The drilling machine is equipped with a powerful 77.3KW Yuchai diesel engine
Machine Description
The RCF180S mini water well drilling rig is a product developed independently by our company. It is capable of both Pneumatic Down-the-Hole (DTH) drilling and mud pump rotary drilling, making it highly effective for drilling through hard rock formations with impressive speed.
This water drilling machine features four high hydraulic legs, ensuring easy transportation. It incorporates the latest and most advanced hydraulic technology, offering low energy consumption, high rotary torque, and user-friendly operation. This versatile drilling rig is extensively used for various applications, including deep well drilling, farm irrigation well drilling, geothermal well drilling, borehole drilling, and mini pile drilling projects.
Technical Parameters
Bore diameter(hammer) | 90-300mm |
Bore depth | 180m |
Air consumption | 17-31m³/min |
Air pressure | 1.7-2.5Mpa |
Once-time advance length | 2.4m |
Pipe diameter | 76mm/89mm |
Pipe length | 2m |
Push force | 4T |
Lifting force | 15T |
Max torque of rotary | 4000-4600Nm |
Rotary speed | 45-65r/min |
Mud Pump flow | 200L/min (option) |
Feeding efficiency | 10-35m/h |
Travel speed | 2.5Km/h |
Climb ability | 30° |
Dimension(L*W*H) | 2300×1200×1900mm |
weight | 2700kg |
Diesel engine | 77.3KW Yuchai engine |
Feature:
1,Small size, light weight ,Compact structure,and flexible operation.
this drilling machine weight is only 2700KGS ,the machine size is 2300X1200X2900mm.
2,it is DTH pneumatic water drilling rig ,two motors rotary head ,top driving ,drill with both mud pump and air compressor ,The double rotation motor increased the rotary torque and revolving speed.
3,big powerful and ability ,it use 77.3KW Yuchai engine ,it can drill max 180m depth ,90-300mm borehole.
4,it is rubber crawler mounted type ,easy to move.
5,full hydraulic legs ,very convenient to transport by truck ,very stable in drilling job.

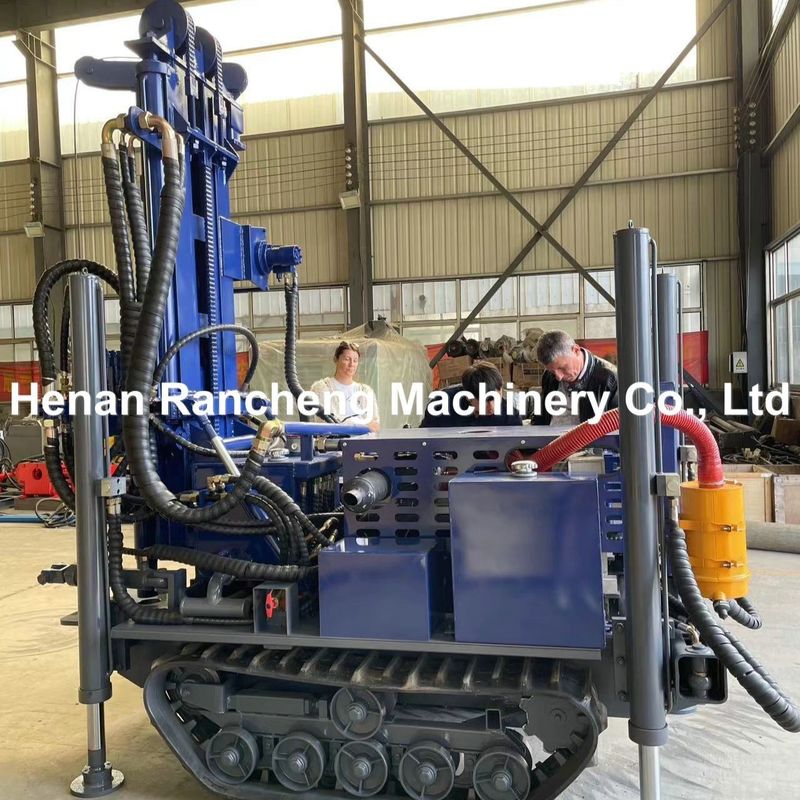

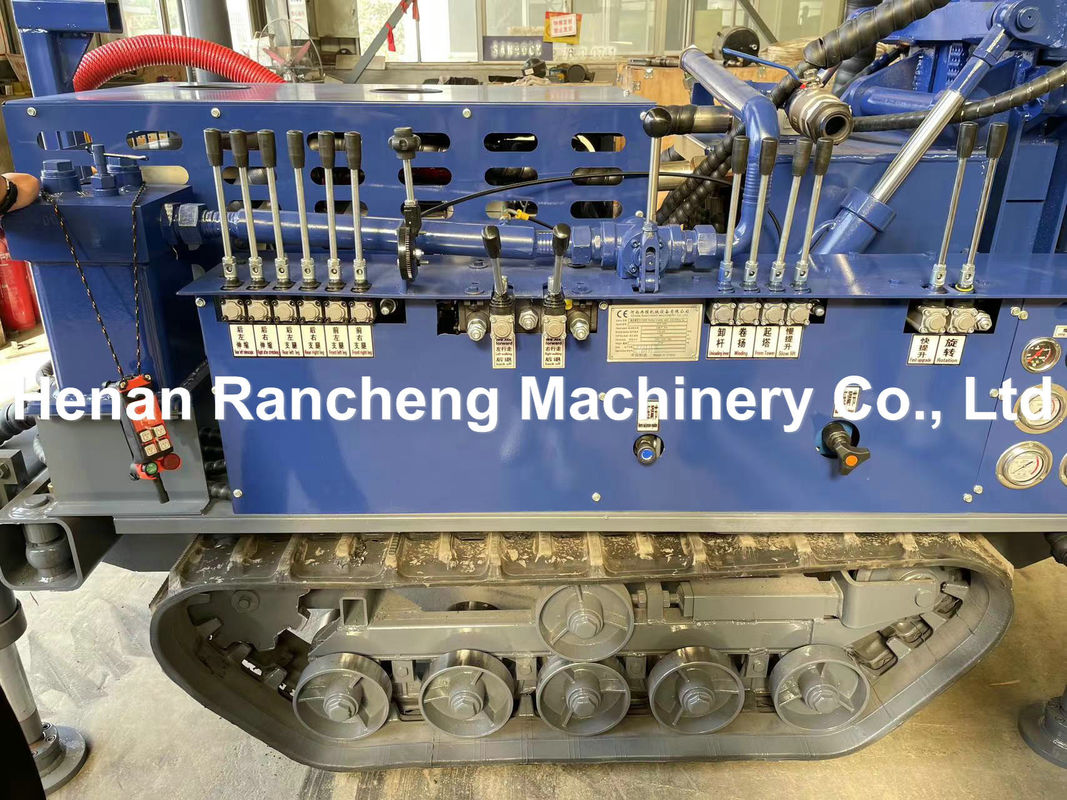

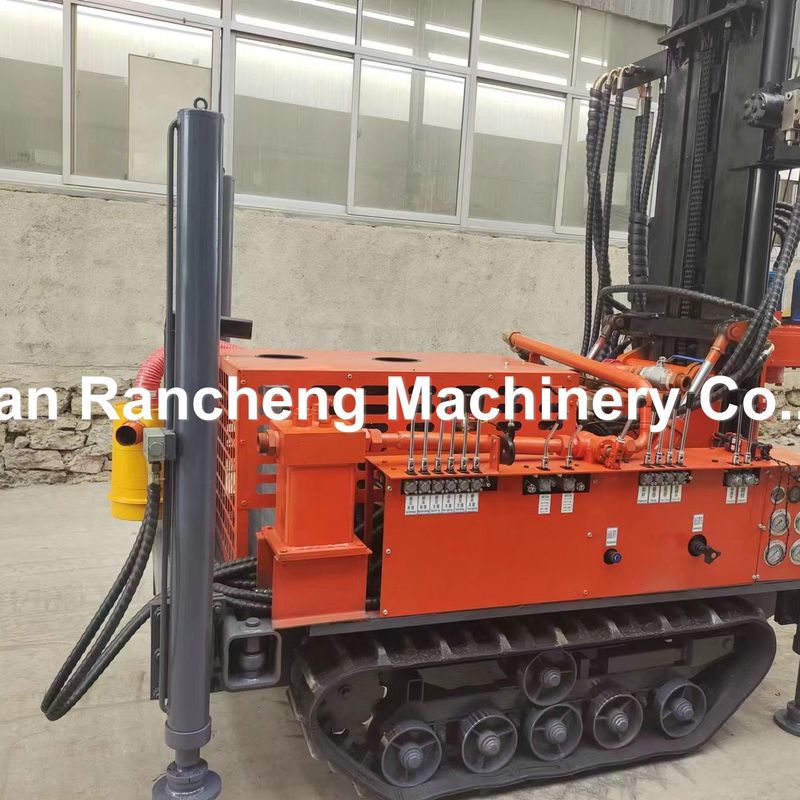

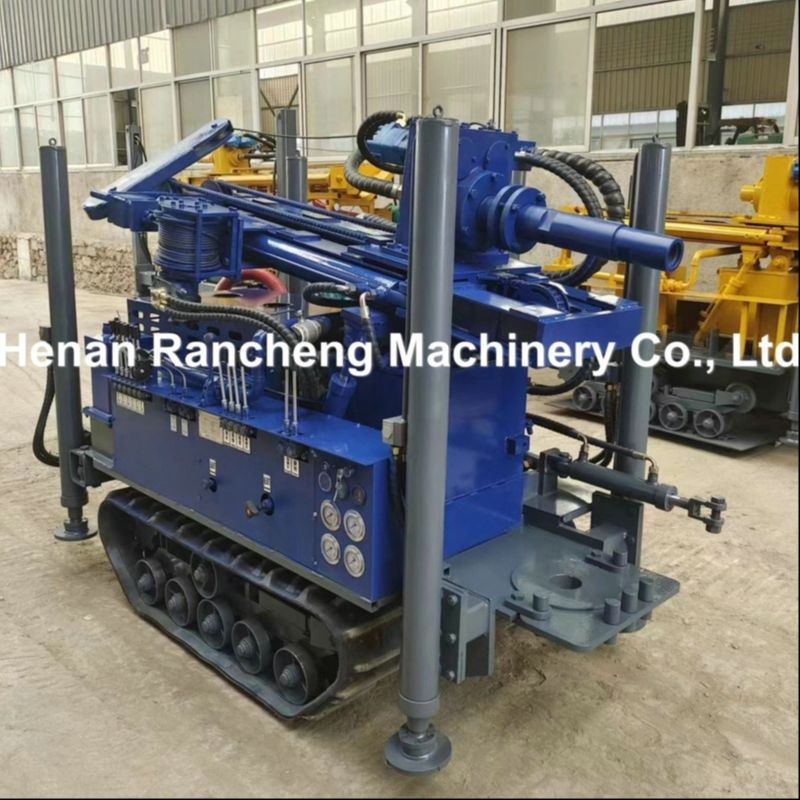

Image Display
