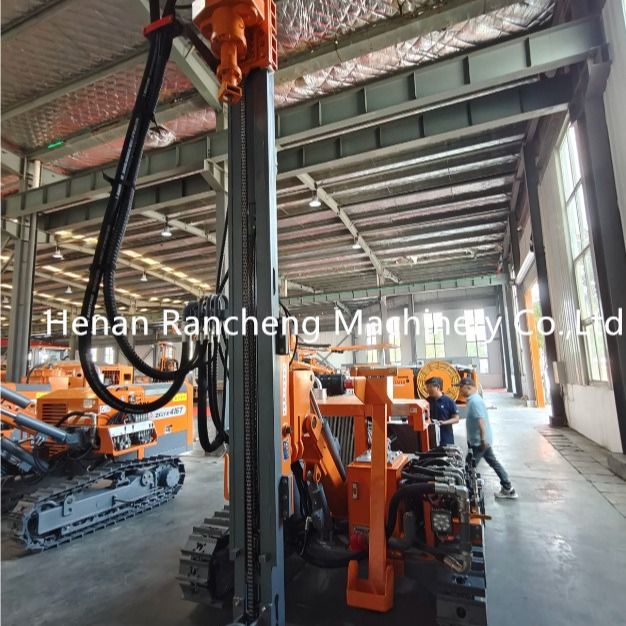

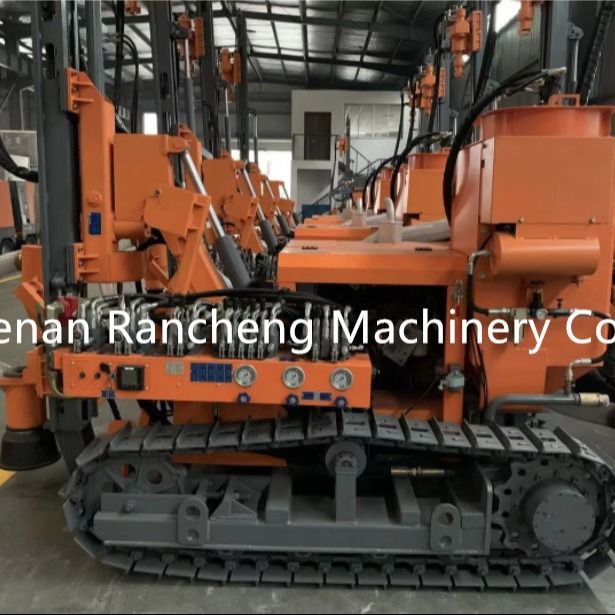

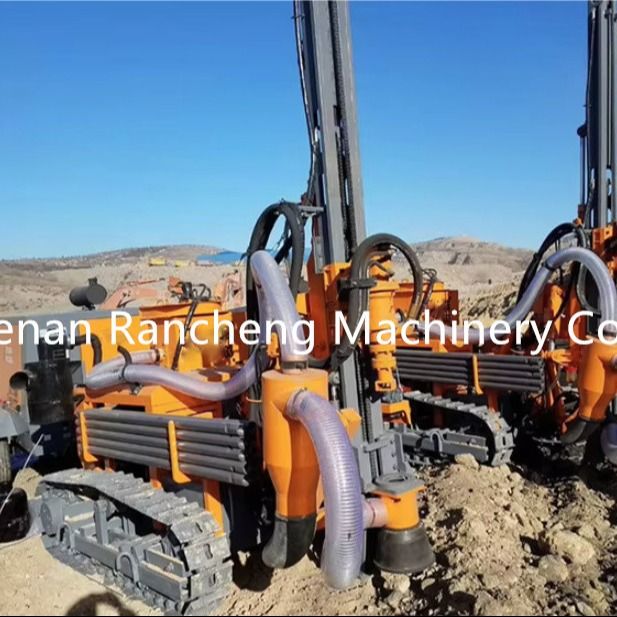

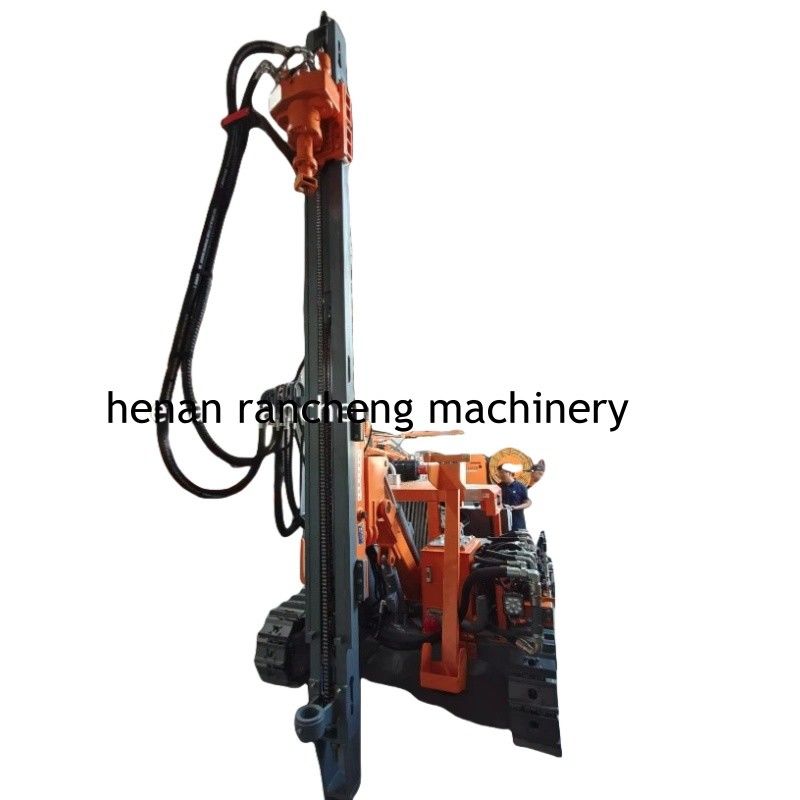

RCZ412B-1 Separated DTH Surface Drill Rig with 58KW Power 20m Depth In Stock

Product Description

The RCZ412B-1 Separated DTH Surface Drill Rig is a highly efficient and versatile solution for various drilling applications. Powered by a 58KW motor, it is capable of reaching a hole depth of up to 20 meters and accommodates drill pipe sizes of 60×2,000 mm. This rig is designed to handle hole diameters between 90 and 115 mm and is equipped with a rotation torque of up to 1,650 N.m. With a rotation speed ranging from 100 to 220 rpm, the RCZ412B-1 provides consistent and reliable performance in tough drilling conditions.

One of the standout features of the RCZ412B-1 is its compact design, which incorporates a powerful single-motor system with a large displacement, providing excellent drilling capabilities in a space-efficient configuration. The adjustable rotary head allows the rig to adapt to various operational requirements, improving drilling efficiency across different job sites.

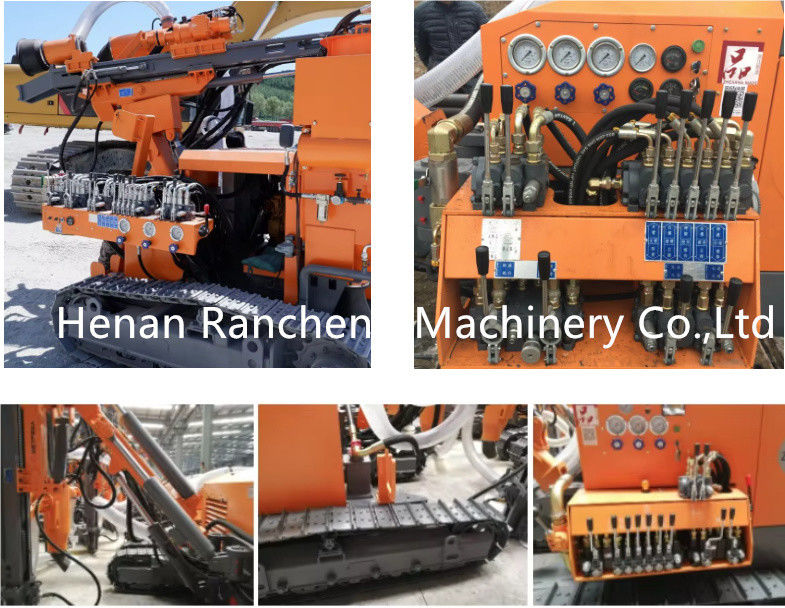

The rig is designed with operator comfort and safety in mind. All operational controls are integrated into a streamlined central control panel, making it easier to operate and reducing the complexity of drilling tasks. This integration also enhances productivity while lowering drilling costs.

In terms of mobility, the RCZ412B-1 comes equipped with a piston tramming motor and specially designed cast track shoes that ensure excellent traction, even on difficult terrains. This feature, combined with its durable construction, extends the service life of the rig and reduces maintenance requirements, making it a cost-effective solution in the long term.

Technical data

Main advantages

• Dual-Stage Dry Dust Collection System: It has been developed in-house to ensure high efficiency, enhance eco-friendliness, and provide a simple, reliable structure.

• Piston Motor: It offers enhanced climbing ability, dependable quality, and high efficiency in tramming.

• Integrated Control Platform: The system is easy to access and user-friendly, enhancing both efficiency and convenience.

• Newly Designed Console: Centralized low-position control that is convenient and efficient, allowing for single-person operation and significantly reducing labor costs.

​

Application

The RCZ412B-1 DTH drilling machine is commonly used for open pit mining, quarry drilling, highway construction, water conservancy projects, power station construction, railway works, and other construction drilling projects.
