Bw Series Water Well Drilling Rig with a 450L/Min Mud Pump, Model Bw450/5

Bw Series Water Well Drilling Rig with a 450L/Min Mud Pump, Model Bw450/5

Bw450/5 Water Well Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

BW450/5

Contact Us
Request A Quote
Bw Series Water Well Drilling Rig with a 450L/Min Mud Pump, Model Bw450/5
Bw Series Water Well Drilling Rig with a 450L/Min Mud Pump, Model Bw450/5 Bw Series Water Well Drilling Rig with a 450L/Min Mud Pump, Model Bw450/5 Bw Series Water Well Drilling Rig with a 450L/Min Mud Pump, Model Bw450/5 Bw Series Water Well Drilling Rig with a 450L/Min Mud Pump, Model Bw450/5
Product Details
Name:
Mud Pump
Strok:
100mm
Pressure:
2/3/4/5MPA
Pump Speed:
86/112/168/223times/min
Type:
Three Cylinder
Engine:
Changchai Engine 28HP
Highlight:

Bw450/5 Water Well Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Standard shipping
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price BW1200/7 Plunger Mud Pump For 1000-Meter Deep Water Well Drilling online Video

BW1200/7 Plunger Mud Pump For 1000-Meter Deep Water Well Drilling

Get Best Price
Good price Horizontal Tri-Cylinder Dual Role Penthouse Detroit Piston Pump BW850 Mud Pump With Flow 850L/min online Video

Horizontal Tri-Cylinder Dual Role Penthouse Detroit Piston Pump BW850 Mud Pump With Flow 850L/min

Get Best Price
Good price Bw Series Water Well Drilling Rig with a 450L/Min Mud Pump, Model Bw450/5 online Video

Bw Series Water Well Drilling Rig with a 450L/Min Mud Pump, Model Bw450/5

Get Best Price
Good price 185KW Power BW1200/7 Piston Pump For 1000m Deep Water Well Projects online Video

185KW Power BW1200/7 Piston Pump For 1000m Deep Water Well Projects

Get Best Price
Contact Us
Contact Now
Product Description

BW Series Water Well Drilling Machine 450L/Min Mud Pump Bw450/5



Machine Introduction



The BW450/5 mud pump is a horizontal tri-cylinder reciprocating single-acting piston pump. It is primarily used to supply flushing fluid to the drilling well in core drilling or hole drilling operations. This pump is capable of discharging not only clear water but also thick mud, making it suitable for a wide range of drilling projects.



Technical Parameters



Type   Horizontal three cylinder reciprocating single acting piston pump
Cylinder diameter mm 95
Stroke mm 100
Pump speed Times/min 223 168 112 86
Flow L/min 450 340 240 172
Pressure Mpa 2 3 4 5
power Changchai engine 28HP
Dimension size 1200X1100X650mm
Weight 520KGS (without engine)



Machine Advantages



  • Compact and Lightweight: The pump has a small external dimension and is lightweight, making it easy to transport, especially in mountainous areas.
  • Versatile Applications: It can be used for various projects, including construction drilling, exploration, water well drilling, pipe-installing, and foundation piling.
  • Adjustable Performance: The BW450/5 type mud pump has three bores and four gear speeds, allowing for adjustable displacement and hole depth according to the specific application. It can also be used for cement perfusion.
  • Essential for Geological Surveys: It is the main equipment for geological surveys, providing fluid (mud or water) to maintain a clean bottom hole and lubricate drill bits and tools during core drilling.




Machine Pictures

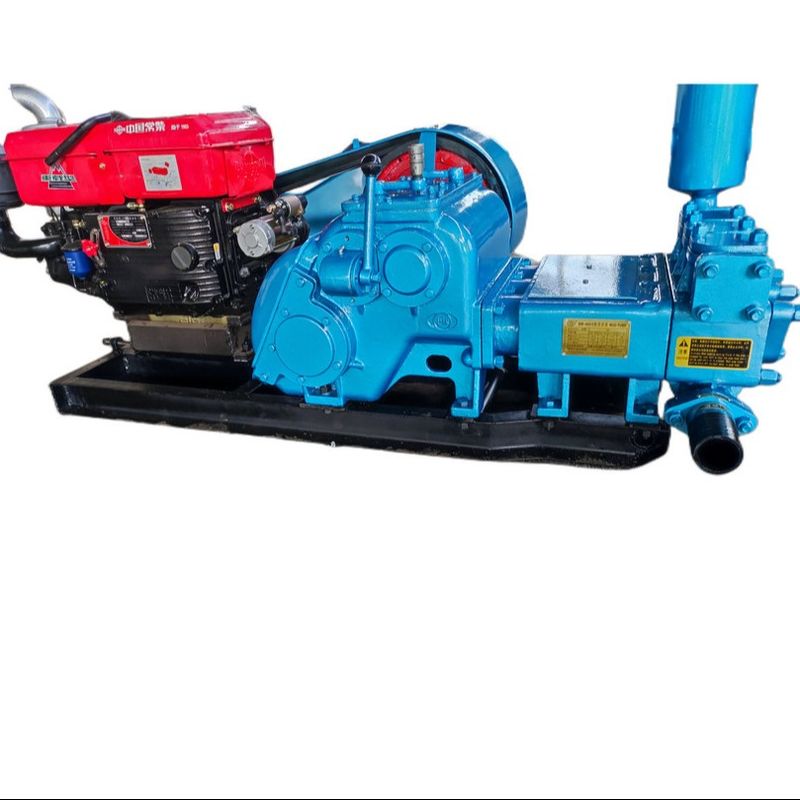

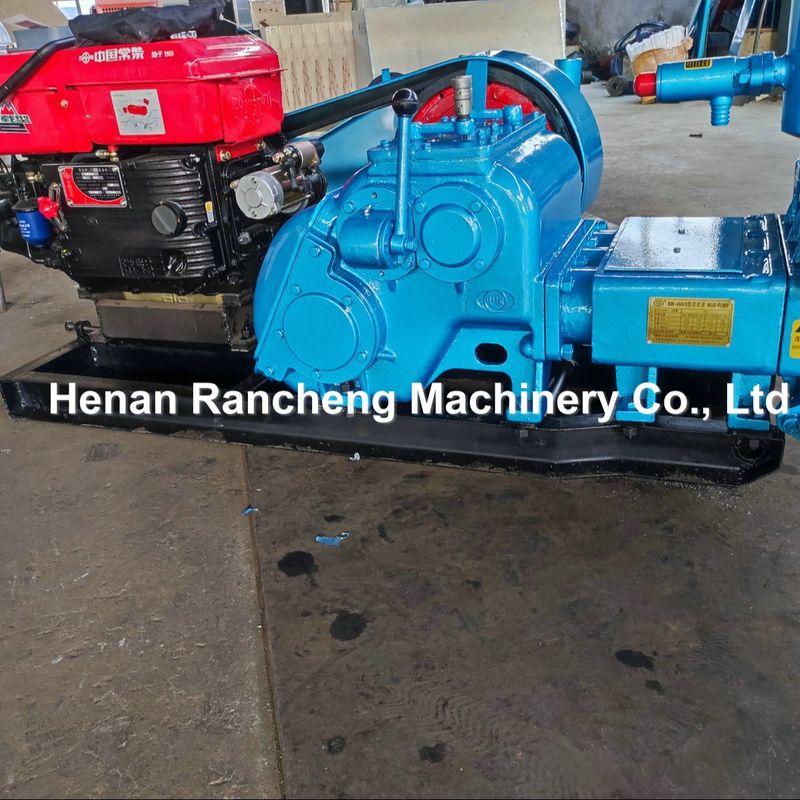

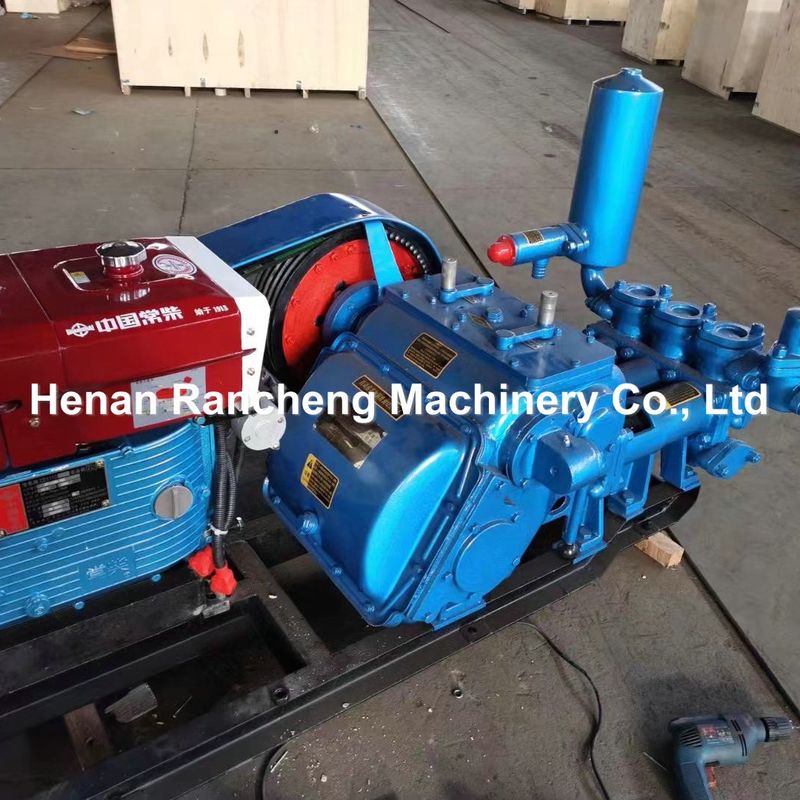

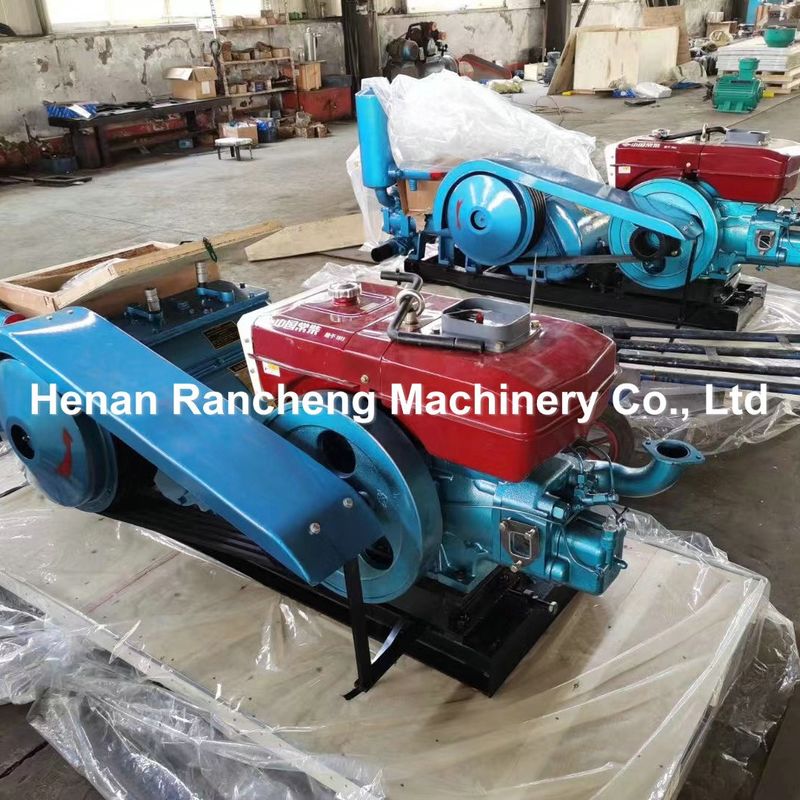

Bw Series Water Well Drilling Rig with a 450L/Min Mud Pump, Model Bw450/5 0Bw Series Water Well Drilling Rig with a 450L/Min Mud Pump, Model Bw450/5 1Bw Series Water Well Drilling Rig with a 450L/Min Mud Pump, Model Bw450/5 2
