RCJ500RC RC Drilling Machine Equipment Reverse Circulation Drilling Rig Equipment Machine

RCJ500RC RC Drilling Machine Equipment Reverse Circulation Drilling Rig Equipment Machine

Reverse Circulation Drilling Rig Equipment

RCJ500RC RC Drilling Machine

RC Drilling Machine Equipment

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCJ500RC

Contact Us
Request A Quote
RCJ500RC RC Drilling Machine Equipment Reverse Circulation Drilling Rig Equipment Machine
RCJ500RC RC Drilling Machine Equipment Reverse Circulation Drilling Rig Equipment Machine RCJ500RC RC Drilling Machine Equipment Reverse Circulation Drilling Rig Equipment Machine RCJ500RC RC Drilling Machine Equipment Reverse Circulation Drilling Rig Equipment Machine RCJ500RC RC Drilling Machine Equipment Reverse Circulation Drilling Rig Equipment Machine
Product Details
Name:
RC Hydraulic Engineer Drilling Rig
Model:
RCJ500RC
Nominal Drill Depth:
500m
End-hole Diameter:
150mm
Max Output Torque:
12000N.m
Engine Power:
132kw
Highlight:

Reverse Circulation Drilling Rig Equipment

,

RCJ500RC RC Drilling Machine

,

RC Drilling Machine Equipment

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 40" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price RCJ150RC Hydraulic Engineer Drilling Rig For 125W Engine Power 8000N.M Max Output Torque online Video

RCJ150RC Hydraulic Engineer Drilling Rig For 125W Engine Power 8000N.M Max Output Torque

Get Best Price
Good price RCJ150RC Hydraulic Engineer Drilling Rig 150m Drill Depth Crawler Type Hydraulic RC Drilling Machine online Video

RCJ150RC Hydraulic Engineer Drilling Rig 150m Drill Depth Crawler Type Hydraulic RC Drilling Machine

Get Best Price
Good price RCJ500RC RC Drilling Machine Equipment Reverse Circulation Drilling Rig Equipment Machine online Video

RCJ500RC RC Drilling Machine Equipment Reverse Circulation Drilling Rig Equipment Machine

Get Best Price
Good price 132KW Hydraulic Crawler RC Drilling Rig 300m Drill Depth 2km/h Walk Speed online Video

132KW Hydraulic Crawler RC Drilling Rig 300m Drill Depth 2km/h Walk Speed

Get Best Price
Contact Us
Contact Now
Product Description

RCJ500RC RC Drilling Machine Equipment Reverse Circulation Drilling Rig Equipment Machine



Machine Introduction



The drilling rig has a large output torque and a wide speed range, which can meet various drilling methods and has a wide range of applications.The feed stroke is large and there is no active drill rod, which reduces the auxiliary time of reducing and adding rods, improves the drilling efficiency, can meet the effective drilling, and has strong accident handling capabilities.



The important hydraulic parts on the drilling rig are all selected from the world's high-end technology products or well-known brand products, and are equipped with corresponding monitoring systems to ensure good system reliability and low failure rate. It can be used in conjunction with a variety of drilling methods, such as: dry spiral drilling rigs without circulating fluid, down-the-hole hammer air drilling rock formations, mud circulation drilling rigs, sandy soil layers, broken rock formations, piped down-the-hole hammer air drilling rigs, rope coring drilling



Technical Parameters



Model RCJ500RC
Drill rig weight(crawler mounted) kg 12000
Engine Power kW 132
Length × Width × Height (normal) mm 7650x2250x3217
Ambient Temperature Range °C -10～38
Drill Ability
Nominal Drill Depth m 500
End-hole Diameter mm 150
Drill head output
Max Output Torque N.m 12000
Output Rotation Speed(continuity) rpm 30 / 60

)

Output Rotation Speed(interval)

 rpm 52 / 104
Feeding mm 7000
Thrust Force kN 100
Lifting Capacity kN 160
Pipe-puller Device Output
Output Rotation Speed rpm 40
Max Output Torque N.m 30000
Hole-through Diameter mm 370
Main Winch
Pull Force of the first Layer kN 70
Rope Diameter mm 19
Rope Capacity m 80
Auxiliary Winch
Pull Force of the first Layer kN 20
Rope Diameter mm 14
Rope Capacity m 60
Clamp Device Hole-through Diameter mm 340
Oil Pump Output Volume ml/r 87+63+25
Max Pressure MPa 25
Tank Capacity L 320
Engine(Cummins) 6BTA5.9-C180
Power kW 132
Rotary Speed (Max.) rpm 2200
Track Chassis Base
Walk Speed Km/h 1.2
Unit Pressure MPa ＜0.05
Climb Ability 度 ≯20
Wire line core drilling unit head

Drilling depth



 NQ m 1200
HQ m 850
PQ m 600



Application

the drilling rig is able to resolve the difficulty of boring in the soft and loose cover ground condition, the screes and gravels area and also the fragmentation stratum according to different drilling techniques ways. Therefore, it is widely used in varieties of the boring work.



The drilling rig is mainly applied in RC drill/water well and observation well, geothermal hole,mini foundation pile hole.

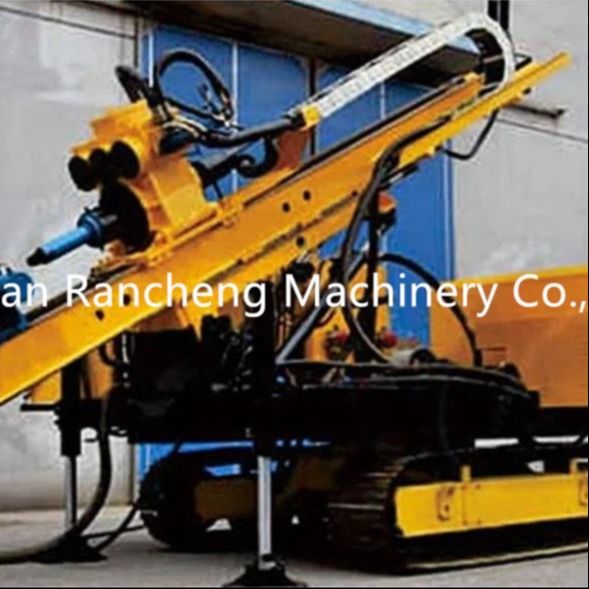

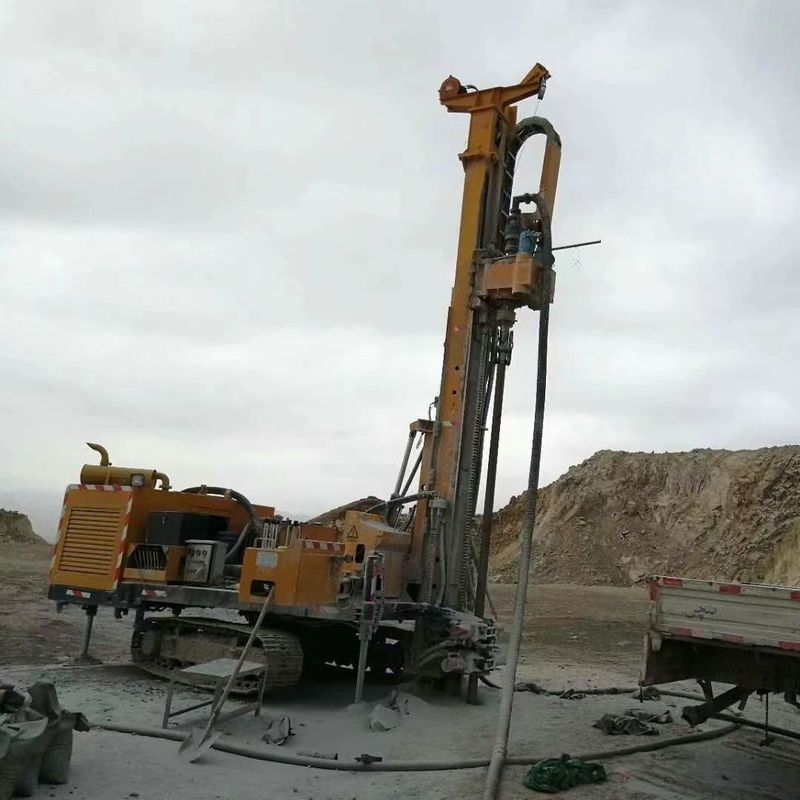

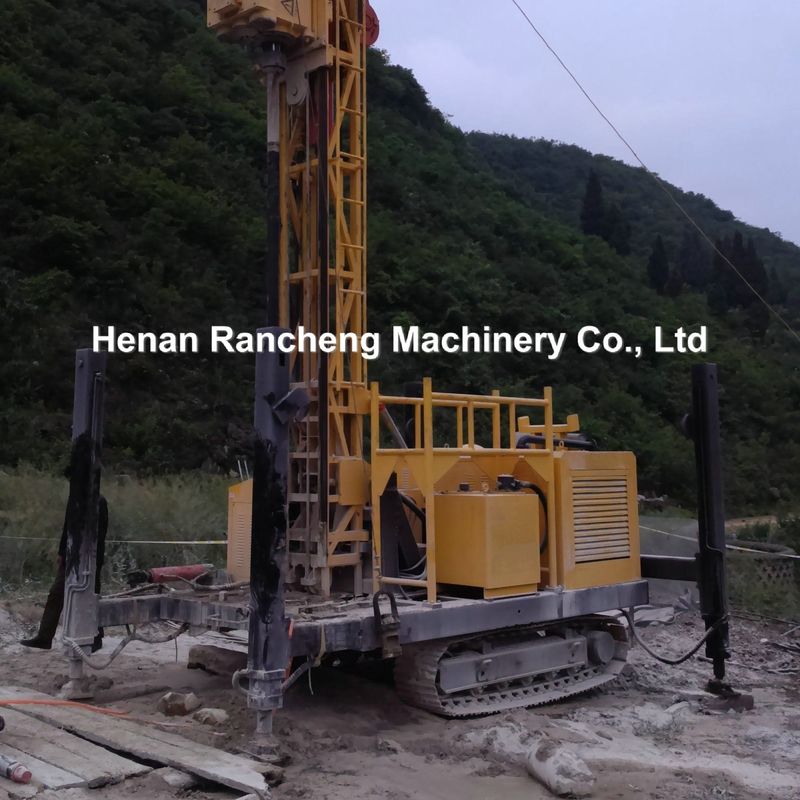

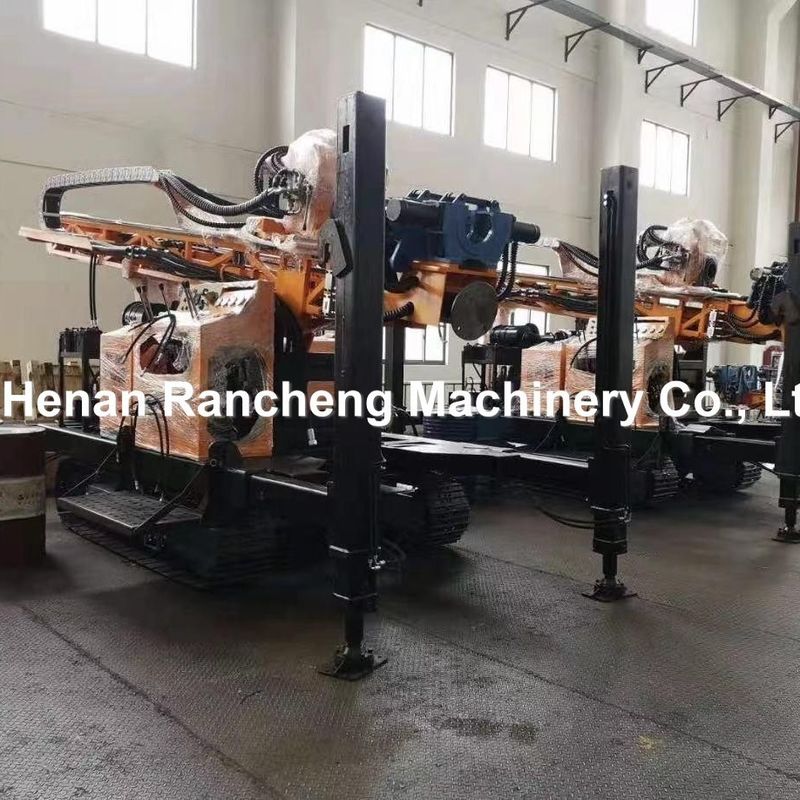

Machine Pictures





RCJ500RC RC Drilling Machine Equipment Reverse Circulation Drilling Rig Equipment Machine 0RCJ500RC RC Drilling Machine Equipment Reverse Circulation Drilling Rig Equipment Machine 1RCJ500RC RC Drilling Machine Equipment Reverse Circulation Drilling Rig Equipment Machine 2RCJ500RC RC Drilling Machine Equipment Reverse Circulation Drilling Rig Equipment Machine 3
