RCF400C Water Well Drilling Machine Of Enviemental Protection

Enviemental Protection Water Well Drilling Machine

RCF400C Water Well Drilling Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF400C

Request A Quote

Product Details

Name:

RCF400C Hydraulic Water Well Drilling Rig

Bore Diameter（hammer）:

140-350mm

Drilling Depth:

400m

Pipe Diameter:

89mm/102mm

Pipe Length:

1.5m/2m/3m/6m

Max Torque Of Rotary:

6200-9000Nm

Rotary Speed:

66-135r/min

Diesel Engine:

92KW Yuchai Engine

Drilling Way:

Air Compressor Drilling Or Mud Pump Drilling

Highlight:

Enviemental Protection Water Well Drilling Machine

RCF400C Water Well Drilling Machine

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 20" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

Max 150 Meters Protable RCF150S Water Well Drilling Machine

Get Best Price

Video

350m Drilling Depth Rubber Caterpillar Track Water Well Drilling Rig Pneumatic Rubber Crawler Drilling Rig

Get Best Price

Video

350m Drilling Depth 91KW Yuchai Engine Water Well Drilling Rig 22T Lifting Force

Get Best Price

Video

Compact And High Efficiency 150 Meter Water Well Drilling Rig

Get Best Price

Contact Now

Product Description

RCF400C Water Well Drilling Machine Of Enviemental Protection

Name: RCF400C Water Well Drilling Machine Of Enviemental Protection
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF400C
Availability: InStock

Machine Introduction

The RCF400C Multi-Purpose Drill is your go-to solution for all drilling tasks, offering unmatched versatility and efficiency. This crawler drill is engineered to tackle a variety of drilling applications, making it an essential tool for construction, mining, and geological exploration projects.

Capable of drilling to depths of up to 400 meters, the RCF400C is designed to perform in diverse geological conditions, ensuring you achieve your desired depth effortlessly. Its borehole diameter can be adjusted from 140mm to 350mm, providing the flexibility needed for different project specifications. Whether you're engaged in water well drilling, mineral exploration, or foundation work, this drill delivers outstanding results every time.

Technical Parameters

Bore diameter(Hammer)	140-350mm
Bore depth	400m
Air consumption	17-36m³/min
Air pressure	1.7-3.5Mpa
Pipe diameter	89mm/102mm
Pipe length	1.5m/2m/3m/6m
Lifting force	22T
Lifting speed	3m/min
feeding speed	0.5-5m/min
Fast lifting speed	20m/min
Fast feeding speed	40m/min
Max torque of rotary	6200-9000Nm
Rotary speed	66-135r/min
Hoist lifting capacity	2T
Mud Pump flow	450L/min (option)
High hydraulic leg	1.4m
Feeding efficiency	15-35m/h
Travel speed	2.5Km/h
Climb ability	30°
Dimension(LWH)	6000×2100×2550mm
Weight	9200Kg
Diesel engine	92KW Yuchai engine
Drilling way	Air compressor drilling or mud pump drilling

Application

1. RCF400C crawler water well drilling rig can use air down-the-hole hammer drilling and mud drilling.

2. Centralized control console, convenient for various operations and controls. Quick lifting, reducing auxiliary time and improving work efficiency.

3. The chassis is equipped with the main transmission system, transfer case, gearbox, double winch unit, mud pump, turntable, drilling tower, feed system, etc.

4. This machine is a hydraulic rotary crawler water well drilling rig with directional circulation function. It can be equipped with a mud pump, using mud as flushing fluid, and equipped with a suitable drill bit, it can drill on clay, sand and rock.

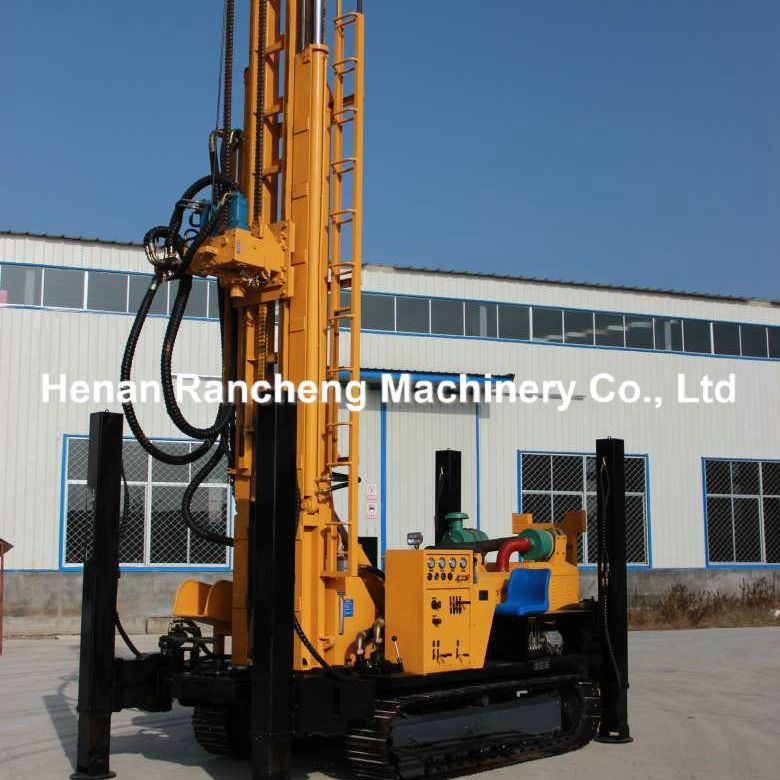

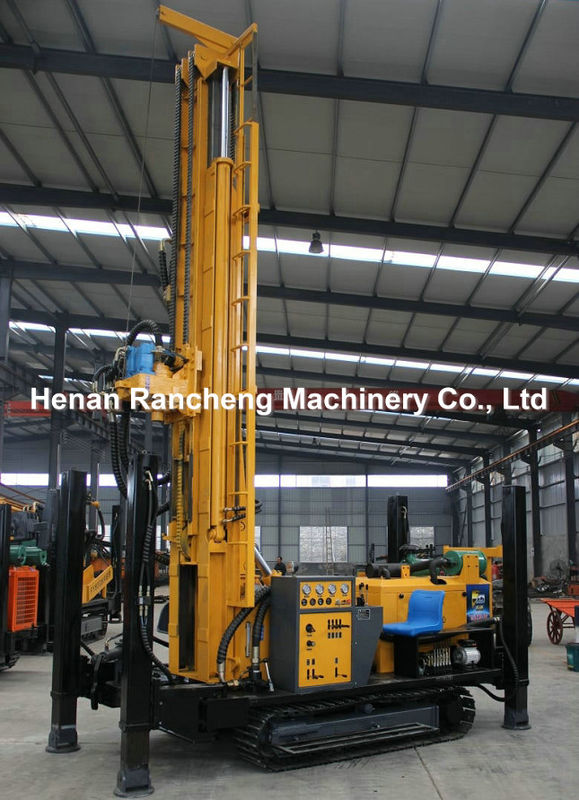

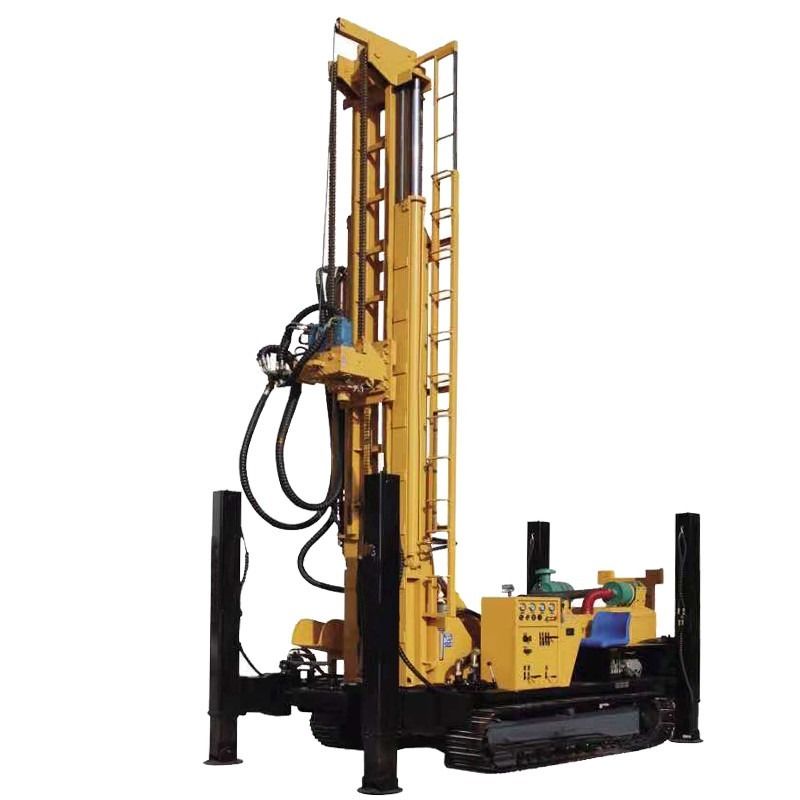

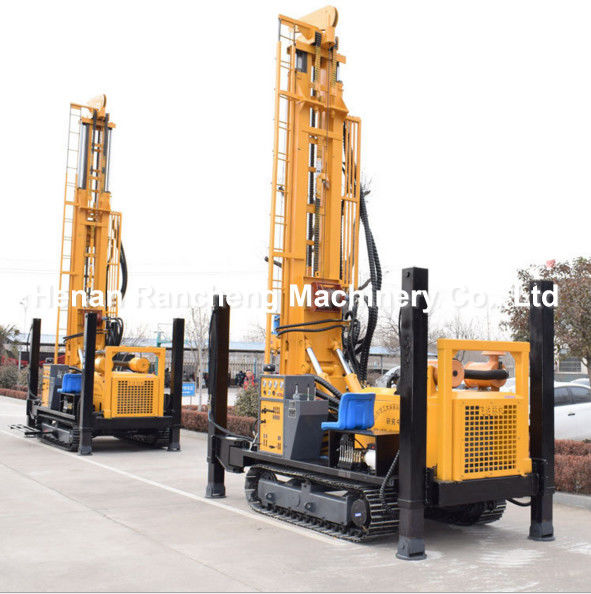

Machine Pictures

RCF400C Water Well Drilling Machine Of Enviemental Protection 0

RCF400C Water Well Drilling Machine Of Enviemental Protection 3
