Horizontal Tri-Cylinder Dual Role Penthouse Detroit Piston Pump BW850 Mud Pump With Flow 850L/min

Horizontal Tri-Cylinder Dual Role Penthouse Detroit Piston Pump BW850 Mud Pump With Flow 850L/min

850L/min Mud Pump

BW850 Mud Pump

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

BW850/5

Contact Us
Request A Quote
Horizontal Tri-Cylinder Dual Role Penthouse Detroit Piston Pump BW850 Mud Pump With Flow 850L/min
Horizontal Tri-Cylinder Dual Role Penthouse Detroit Piston Pump BW850 Mud Pump With Flow 850L/min Horizontal Tri-Cylinder Dual Role Penthouse Detroit Piston Pump BW850 Mud Pump With Flow 850L/min Horizontal Tri-Cylinder Dual Role Penthouse Detroit Piston Pump BW850 Mud Pump With Flow 850L/min Horizontal Tri-Cylinder Dual Role Penthouse Detroit Piston Pump BW850 Mud Pump With Flow 850L/min
Product Details
Name:
Mud Pump
Model:
BW850/5
Cylinder Diameter:
260mm
Piston Stroke:
66mm
Pulley Diameter(mm):
918
The Speed Of V-Belt:
375
Weight(kg):
3100(without Engine)
Highlight:

850L/min Mud Pump

,

BW850 Mud Pump

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Standard shipping
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price BW1200/7 Plunger Mud Pump For 1000-Meter Deep Water Well Drilling online Video

BW1200/7 Plunger Mud Pump For 1000-Meter Deep Water Well Drilling

Get Best Price
Good price Horizontal Tri-Cylinder Dual Role Penthouse Detroit Piston Pump BW850 Mud Pump With Flow 850L/min online Video

Horizontal Tri-Cylinder Dual Role Penthouse Detroit Piston Pump BW850 Mud Pump With Flow 850L/min

Get Best Price
Good price Bw Series Water Well Drilling Rig with a 450L/Min Mud Pump, Model Bw450/5 online Video

Bw Series Water Well Drilling Rig with a 450L/Min Mud Pump, Model Bw450/5

Get Best Price
Good price 185KW Power BW1200/7 Piston Pump For 1000m Deep Water Well Projects online Video

185KW Power BW1200/7 Piston Pump For 1000m Deep Water Well Projects

Get Best Price
Contact Us
Contact Now
Product Description



Horizontal Tri-Cylinder Dual Role Penthouse Detroit Piston Pump BW850 Mud Pump With Flow 850L/Min



Machine Introduction



This pump is the main equipment for geological exploration. Its main role in the core drilling process is to supply fluid (mud or water) to circulate during the drilling process and bring rock debris back to the surface to reach and keep the bottom of the hole clean, lubricate the drill bit and drilling tools, and cool them.



The BW850 mud pump is equipped with a drilling rig to drill holes with mud. During the drilling process, the mud pump pumps mud into the hole to provide a coating for the hole wall, lubricate the drilling tools, and bring rock debris back to the surface. It is suitable for geological core drilling and exploration drilling with a depth of less than 1500 meters.



Technical Parameters



Model No. BW160 BW200 BW250 BW450/5 BW600/10 BW850/5
Type Horizontal single cylinder double-action reciprocating piston pump horizontal type single-cylinder double-acting pump horizontal triplex Reciprocating single-acting piston pump Horizontal three-cylinder reciprocating single-acting piston pump Horizontal three-cylinder reciprocating single-acting piston pump Horizontal double cylinder reciprocating double-action piston pump
Cylinder diameter mm 95 80/65 86/65 95 100 260
Piston Stroke mm 90 85 100 100 110 66
frequency of stroke times/min 147 145 200/116/72/42 223/168/112/86 232/162/109/76 140/130/95
Flow rate L/min 160 200/125 250/145/90 450/340/240/172 600/415/280/195 850/600/350
Pressure mpa 1.3 4；6

2.5/4,5/6/6

4/6/7/7

 2/3/4/5 3.5/5/7.5/10 5/6/8
Power input 5.5 15 15kw 22 55 90
Overall dimensions (LxWxH) mm 850 x 600 x 450 1050X630X820 1000x995x650 1000X995X650 1500X890X1230 3018x1120x2050
Weight kg 130 300 760 520 1400 3100



Application



BW850 /5 type mud pump has three bore and four gear speed. Displacement and hole depth can be adjusted according to the application,it also can be used cement perfusion.

Drilling rig and mud pump application range:
1.Projects: Construction drilling of the projects e.g. prospection, geotechnical investigation(geological exploring), railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction;
2. Exploration: Coal mining exploration, Ore exploration;
3. Water well : Small hole diameter water well drilling;
4. Pipe-installing : Geothermal pipe-installing for heat pump;
5. Foundation piling: Small-diameter hole foundation piling drilling.

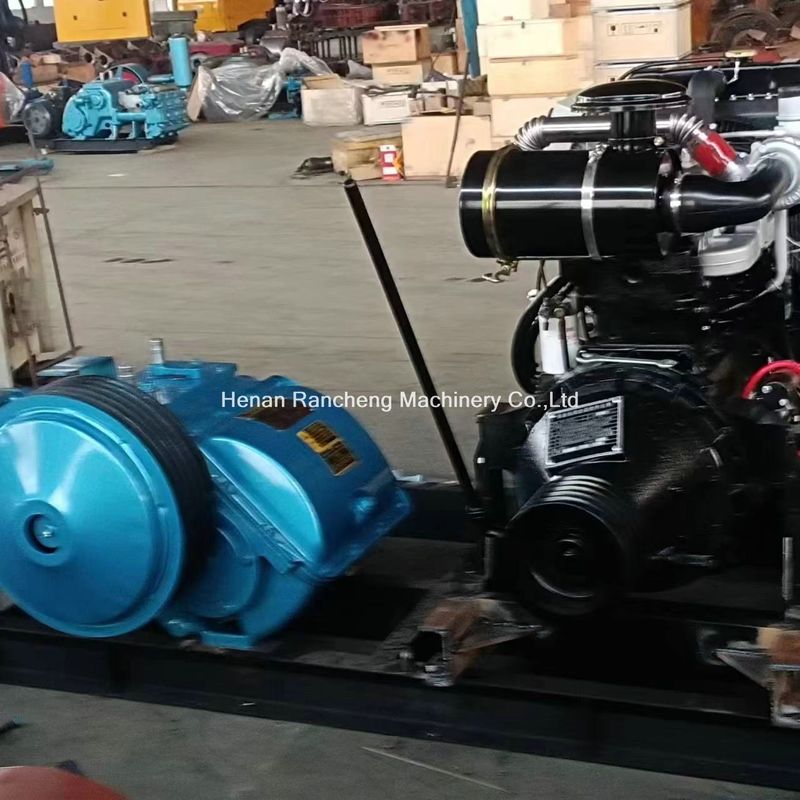

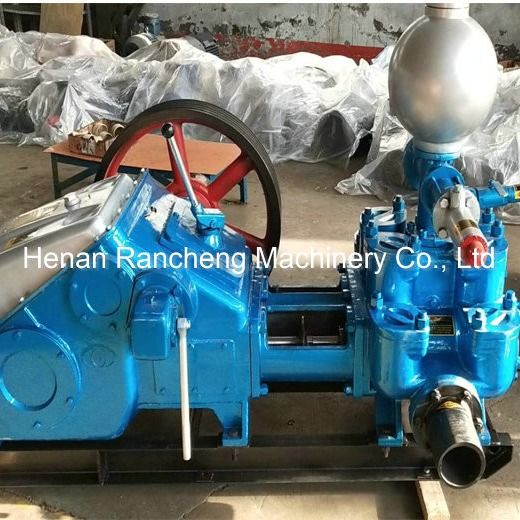

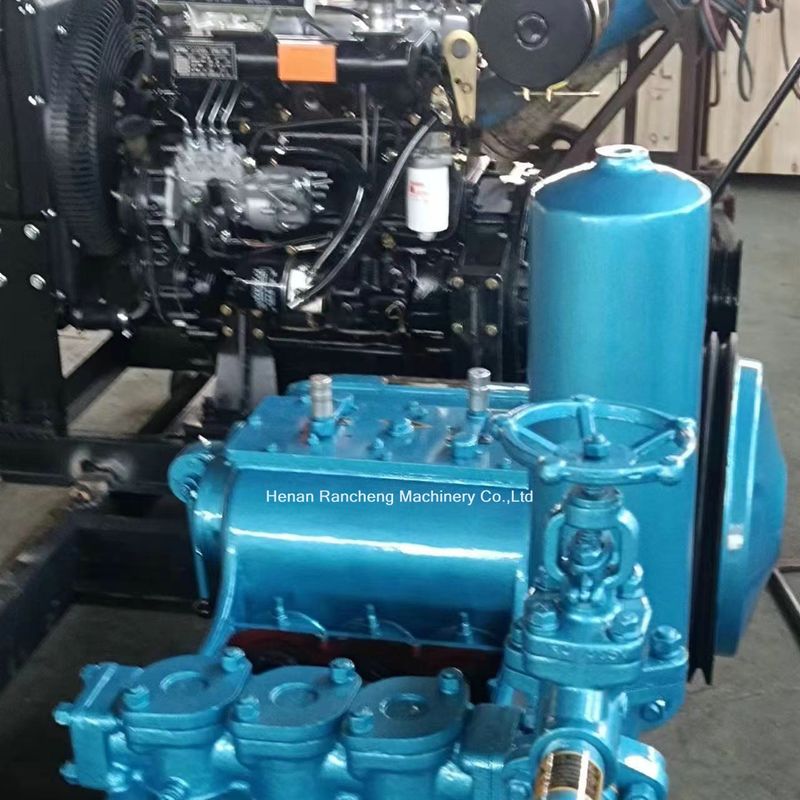

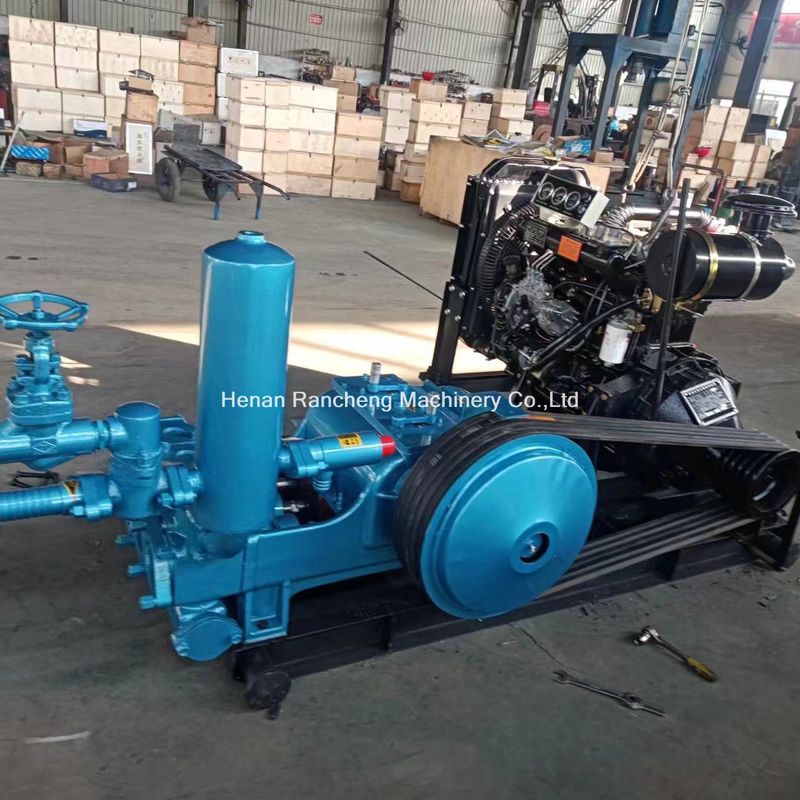

Machine Pictures



Horizontal Tri-Cylinder Dual Role Penthouse Detroit Piston Pump BW850 Mud Pump With Flow 850L/min 0Horizontal Tri-Cylinder Dual Role Penthouse Detroit Piston Pump BW850 Mud Pump With Flow 850L/min 1Horizontal Tri-Cylinder Dual Role Penthouse Detroit Piston Pump BW850 Mud Pump With Flow 850L/min 2Horizontal Tri-Cylinder Dual Role Penthouse Detroit Piston Pump BW850 Mud Pump With Flow 850L/min 3Horizontal Tri-Cylinder Dual Role Penthouse Detroit Piston Pump BW850 Mud Pump With Flow 850L/min 4
