1107CFM 25bBar Diesel Engine Screw Compressors Portable Air Compressors For Construction Work Mining Industry

1107CFM 25bBar Diesel Engine Screw Compressors Portable Air Compressors For Construction Work Mining Industry

1107CFM Diesel Engine Screw Compressors

Portable Air Compressors Screw Compressors

25bBar Diesel Engine Screw Compressors

Place of Origin:

China

Brand Name:

Kaishan

Certification:

CE, ISO 9001:2000

Model Number:

KSZJ-31/25

Contact Us
Request A Quote
Product Details
Name:
Air Compressor
Model:
KSZJ-31/25
Pressure(mpa):
2.5-1.8
Air Consumption(m3/min):
31-35
Engine:
400HP Yuchai
Dimension(mm):
4700×2100×2850mm
Highlight:

1107CFM Diesel Engine Screw Compressors

,

Portable Air Compressors Screw Compressors

,

25bBar Diesel Engine Screw Compressors

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

1107CFM 25bBar Diesel Engine Screw Compressors Portable Air Compressors For Construction Work Mining Industry



Machine Introduction



The air compressor fully realizes "convex-convex" meshing, which is conducive to the formation of a fluid dynamic lubrication film, reduces lateral leakage through the contact area, improves compressor efficiency, and improves rotor processing and testing performance.



Adopting the design concept of "large rotor, large bearing, low speed method", the speed is 30-50% lower than other brands, reducing noise, vibration, exhaust temperature, improving rotor rigidity, extending service life, and reducing sensitivity to debris and oil carbides.



The power range is 4~355KW, of which 18.5~250KW is suitable for compressors without direct-connected gearboxes, 200KW and 250KW are suitable for compressors with 4-stage direct-connected motors, and the speed is as low as 1480 rpm.



Technical Parameters



Model

Air capacity

(m3/min)

Work pressure

(Mpa)

Diesel engine

(HP)

Dimension size

(mm)

6/7 6 0.7 Yuchai 80HP 3750×1920×1700
7.5/7 7.5 7 Yuchai 80HP 3750×1920×1700
9/7 9 0.9 Yuchai 95HP 3750×1920×1700
12/10 12 1 Cummins 150HP 4080×1980×2350
12/10 12 1 Yuchai 160HP 4080×1980×2350
10/13 10 1.3 Yuchai 160HP 4080×1980×2350
17/7 17 0.7 Cummins 180HP 3380×1640×2350
15/10 15 1 Cummins 180HP 3380×1650×2500
15/10 15 1 Yuchai 190HP 3380×1650×2500
15/13 15 1.3 Yuchai 240HP 3380×1650×2500
15/14.5 15 1.45 Yuchai 190HP 3380×1650×2500
13/17 13 1.7 Cummins 215HP 3780×1980×235
18/17 18 1.7 Cummins 260HP 3780×1980×235
18/17 18 1.7 Yuchai 260HP 3780×1980×235
19/18 19 18 Yuchai 260HP 3780×1980×235
22/8 22 0.8 Cummins 260HP 4580×1950×2600
22/14 22 1.4 Yuchai 340HP 4580×1950×2600
22/14 22 1.4 Cummins 360HP 4580×1950×2600
22/18 22 1.8 Yuchai 340HP 4600×1950×2850
22/18 22 1.8 Cummins 360HP 4600×1950×2850
22/20 22 2 Cummins 325HP 4600×1950×2850
26/20 26 2 Cummins 360HP 4600×1950×2850
27/20 27 2 Yuchai 395HP 4600×1950×2850
27/22 27 2.2 Cummins 400HP 4600×1950×2850
29/23 19 2.3 Yuchai 400HP 4700×2100×2850
31/25 31 2.5 Yuchai 550HP 4700×2100×2850
33/25 33 2.5 Yuchai 550HP 4700×2100×2850
35/30 -38/25 35/38 3/2.5 cummins 550HP 4700×2100×2850



Application



Diesel portable screw air compressors are widely used in highways, railways, mines, water conservancy, and shipbuilding, urban construction, energy, military and other industries.

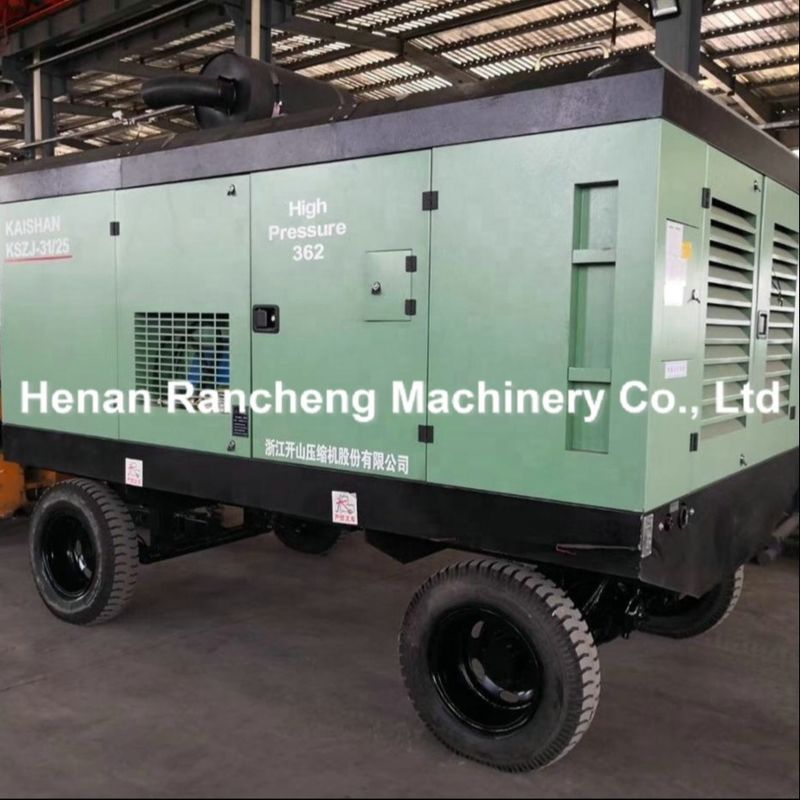

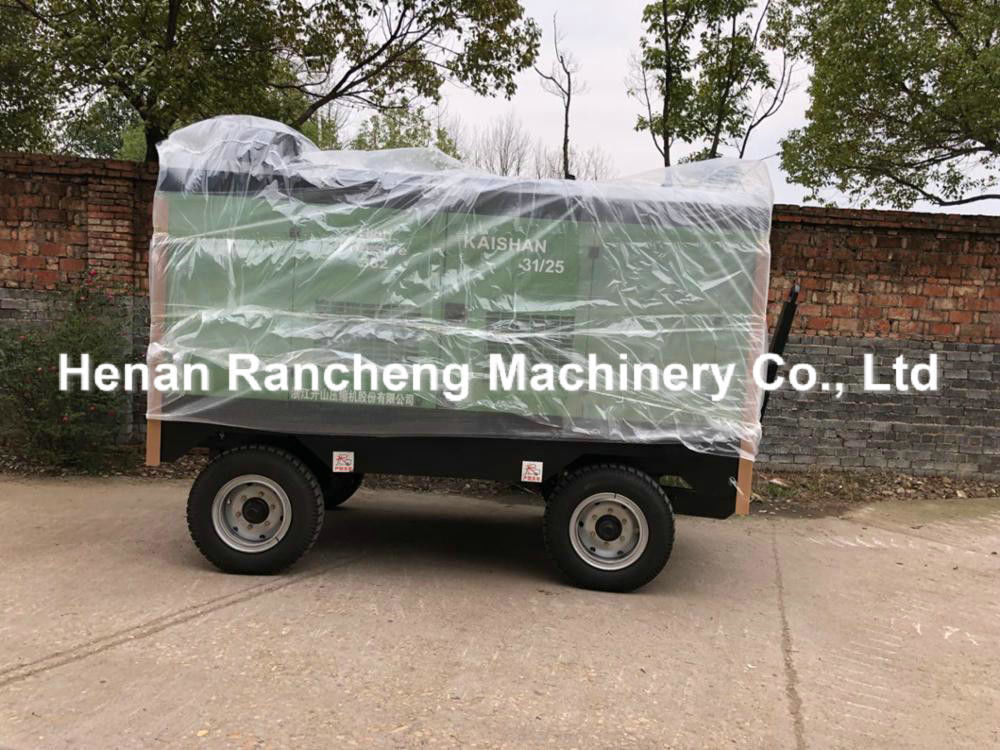

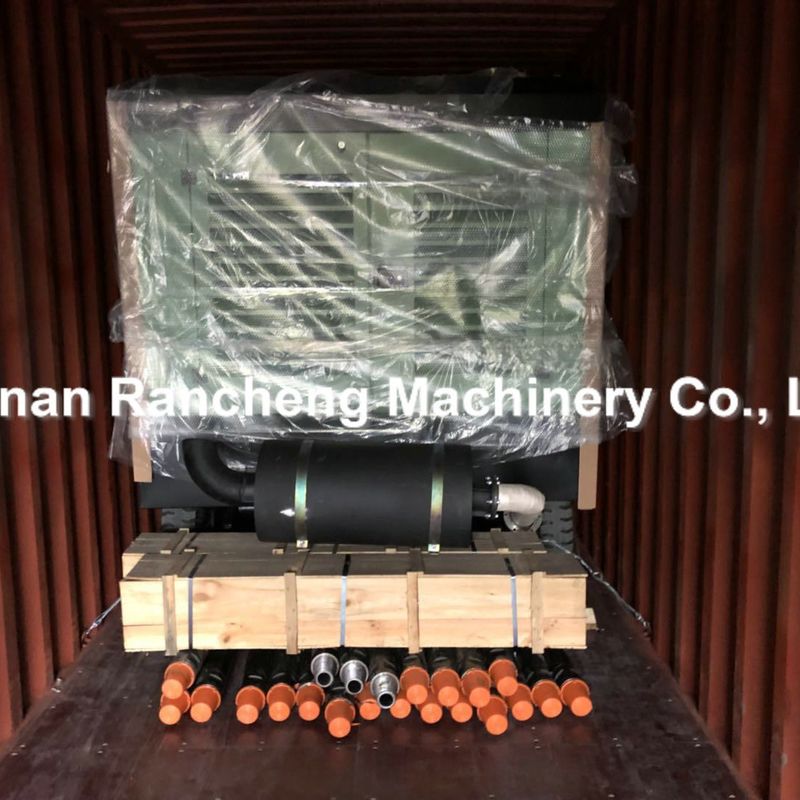

Machine Pictures



1107CFM 25bBar Diesel Engine Screw Compressors Portable Air Compressors For Construction Work Mining Industry 0

1107CFM 25bBar Diesel Engine Screw Compressors Portable Air Compressors For Construction Work Mining Industry 1

1107CFM 25bBar Diesel Engine Screw Compressors Portable Air Compressors For Construction Work Mining Industry 21107CFM 25bBar Diesel Engine Screw Compressors Portable Air Compressors For Construction Work Mining Industry 3
