Home > products > Water Well Drilling Machine >

RCF400C Water Well Drilling Machine For Diverse Geological Conditions

RCF400C Water Well Drilling Machine

400m Depth Water Well Drilling Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF400C

Request A Quote

Product Details

Name:

RCF400C Hydraulic Water Well Drilling Rig

Bore Diameter（hammer）:

140-350mm

Drilling Depth:

400m

Pipe Diameter:

89mm/102mm

Pipe Length:

1.5m/2m/3m/6m

Max Torque Of Rotary:

6200-9000Nm

Rotary Speed:

66-135r/min

Diesel Engine:

92KW Yuchai Engine

Drilling Way:

Air Compressor Drilling Or Mud Pump Drilling

Highlight:

RCF400C Water Well Drilling Machine

400m Depth Water Well Drilling Machine

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 20" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

Max 150 Meters Protable RCF150S Water Well Drilling Machine

Get Best Price

Video

350m Drilling Depth Rubber Caterpillar Track Water Well Drilling Rig Pneumatic Rubber Crawler Drilling Rig

Get Best Price

Video

350m Drilling Depth 91KW Yuchai Engine Water Well Drilling Rig 22T Lifting Force

Get Best Price

Video

Compact And High Efficiency 150 Meter Water Well Drilling Rig

Get Best Price

Contact Now

Product Description

RCF400C Water Well Drilling Machine for Diverse Geological Conditions

Name: RCF400C Water Well Drilling Machine For Diverse Geological Conditions
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF400C
Availability: InStock

Machine Introduction

The RCF400C is made from high-quality materials and features a stylish, compact design. This ensures greater efficiency, a low failure rate, and enhanced durability, making it a more economical choice with excellent overall cost performance. Our water drilling rigs have been thoroughly validated in the market, receiving overwhelmingly positive feedback from our customers.

Technical Parameters

Bore diameter(Hammer)	140-350mm
Bore depth	400m
Air consumption	17-36m³/min
Air pressure	1.7-3.5Mpa
Pipe diameter	89mm/102mm
Pipe length	1.5m/2m/3m/6m
Lifting force	22T
Lifting speed	3m/min
feeding speed	0.5-5m/min
Fast lifting speed	20m/min
Fast feeding speed	40m/min
Max torque of rotary	6200-9000Nm
Rotary speed	66-135r/min
Hoist lifting capacity	2T
Mud Pump flow	450L/min (option)
High hydraulic leg	1.4m
Feeding efficiency	15-35m/h
Travel speed	2.5Km/h
Climb ability	30°
Dimension(LWH)	6000×2100×2550mm
Weight	9200Kg
Diesel engine	92KW Yuchai engine
Drilling way	Air compressor drilling or mud pump drilling

Application

1. RCF400C crawler water well drilling rig can use air down-the-hole hammer drilling and mud drilling.

2. Centralized control console, convenient for various operations and controls. Quick lifting, reducing auxiliary time and improving work efficiency.

3. The chassis is equipped with the main transmission system, transfer case, gearbox, double winch unit, mud pump, turntable, drilling tower, feed system, etc.

4. This machine is a hydraulic rotary crawler water well drilling rig with directional circulation function. It can be equipped with a mud pump, using mud as flushing fluid, and equipped with a suitable drill bit, it can drill on clay, sand and rock.

Machine Pictures

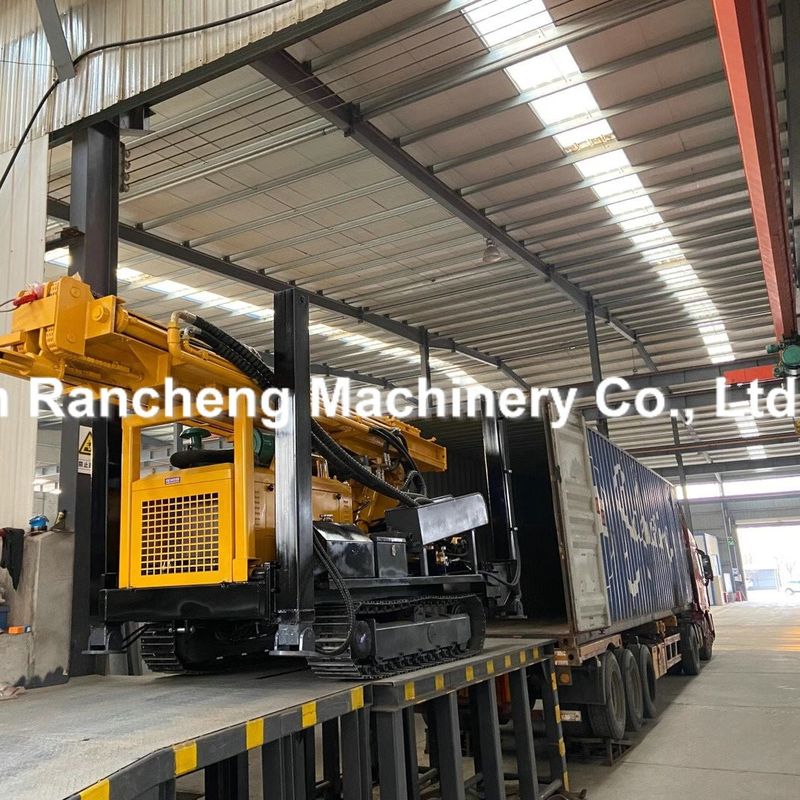

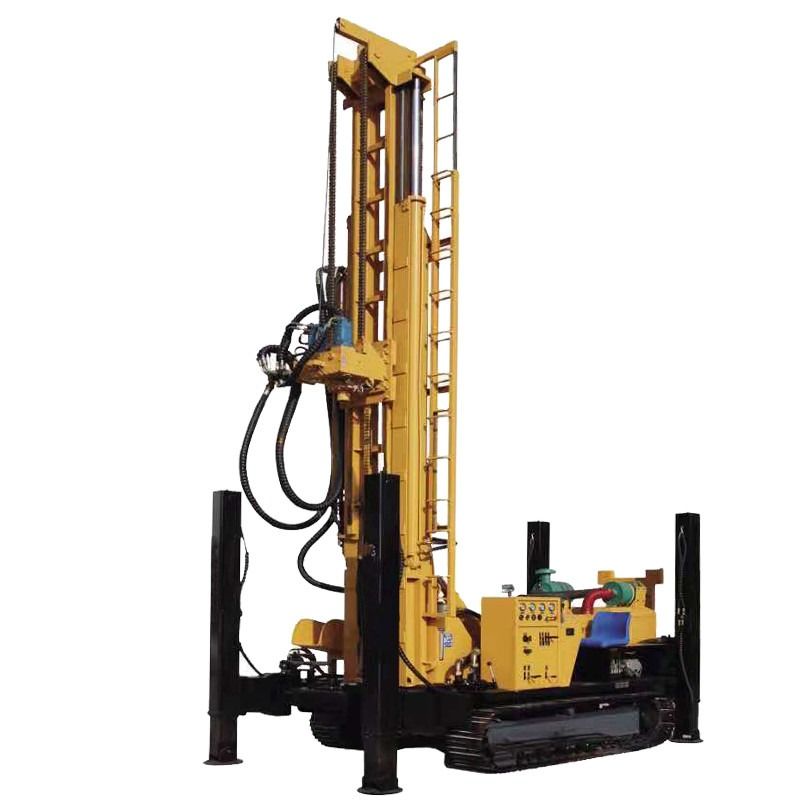

RCF400C Water Well Drilling Machine For Diverse Geological Conditions 0

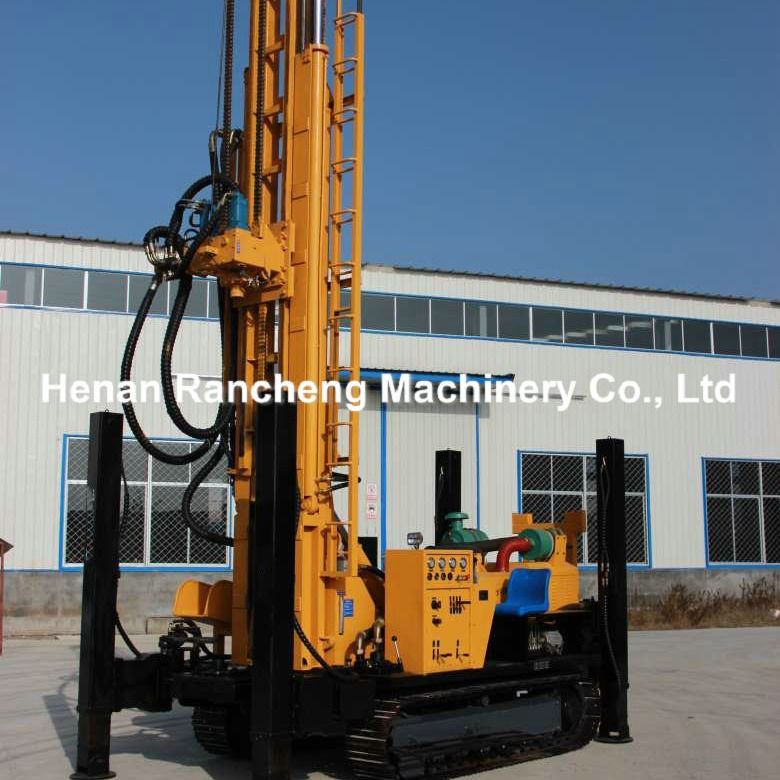

RCF400C Water Well Drilling Machine For Diverse Geological Conditions 3
