Name: 150m Pneumatic Borehole Drilling Rig Mining Rock Drilling Machine Portable DTH Drilling Rig
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCA150
Availability: InStock

Home > products > Core Drilling Rig >

150m Pneumatic Borehole Drilling Rig Mining Rock Drilling Machine Portable DTH Drilling Rig

Mining Rock Drilling Machine

150m Pneumatic Borehole Drilling Rig

Portable DTH Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCA150

Request A Quote

Product Details

Drilling Depth:

150m

Drilling Diameter:

75mm-130mm

Drilling Depth (m):

150(75mm)

Power Model:

Changchai195

Rated Power KW:

10.6

Rotational Speed R/min:

2000

Highlight:

Mining Rock Drilling Machine

150m Pneumatic Borehole Drilling Rig

Portable DTH Drilling Rig

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

Standard shipping

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

100-240RPM Winch Rated Rotary Speed Small Core Drilling Rig 96L/Min Hydraulic System Rated Flow

Get Best Price

Video

100-240RPM Winch Rated Rotary Speed Small Core Drilling Rig Portable Core Drilling Equipment For Intensity Drilling

Get Best Price

Portable Type RCH-3A Underground Core Drilling Rig Exploration Tunnel Mine Drilling Rig

Get Best Price

Video

Portable Hydraulic Core Drilling Rig Equipment For Geological / Gold / Rock Exploration

Get Best Price

Contact Now

Product Description

150m Pneumatic Borehole Drilling Rig Mining Rock Drilling Machine Portable DTH Drilling Rig

Machine Introduction

150m RCA150 portable sampling drill is a portable hydraulic drill with a compact design that allows for quick assembly and transportation, low noise and high reliability.

The drill consists of a mast, column, power head, feed device, bracket, winch, engine, operating system, etc.
The drill head reducer has multiple gears (at least two gears, low speed and high speed).
The feed method is manual sprocket chain or better, and should be able to achieve diamond drilling, carbide drilling, spiral rope core drilling and other processes. It can meet different requirements such as rock sampling, soil sampling, drilling, etc.

Technical Parameters

Main technical parameters
Drilling capacity	Drilling diameter (mm)	75~130	Power part	Power model	Changchai195
	Drilling depth (m)	150(75mm)		Rated power kW	10.6
Rotatory parameters	Maximum torque KN.m	10		Rotational speed r/min	2200
	Maximum feed force KN	15	Matching drill pipe	Drill pipe diameter mm	Ø42/Ø50
	Maximum lifting force KN	25		Drill pipe length m	1.5
	Feed stroke (mm)	1800	Hoist single rope lifting force KN		11
	Rotational speed r/min	Low speed: 142, 302, 716 High-speed: 475, 765, 960	Dimensions	Shipping status mm Working status mm	195012002550 195012004250
Matching mud pump		BW160 single cylinder pump	Whole machine weight(including power) kg		750

Application

The RCA150 portable core drill is widely used in water well drilling, suitable for industrial and civil construction, urban infrastructure construction and water conservancy projects.

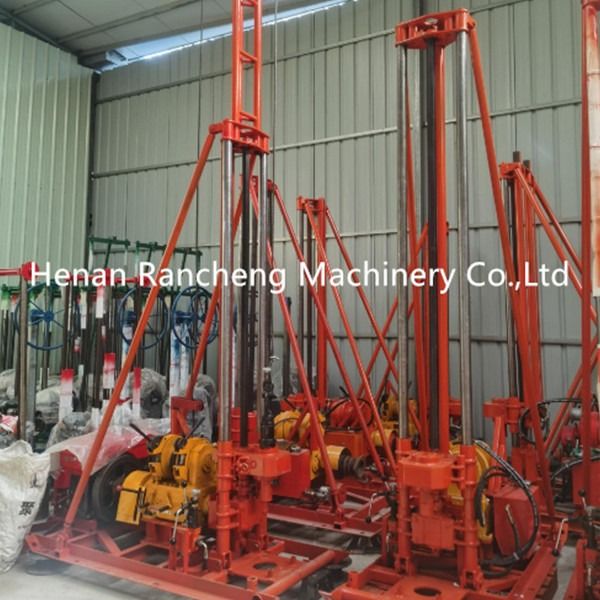

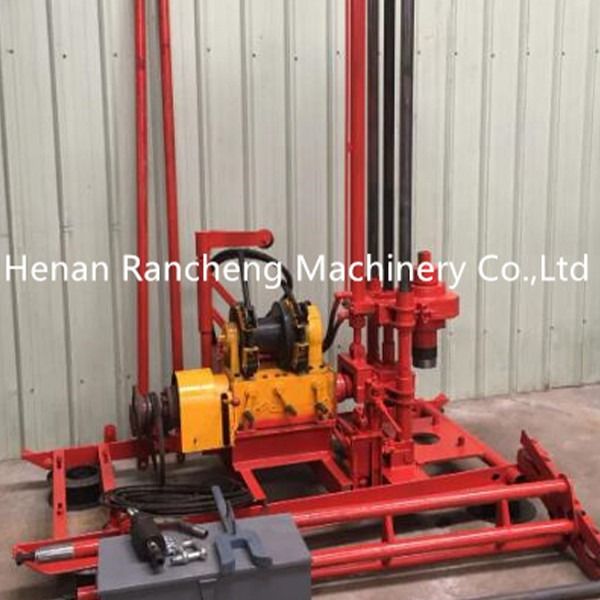

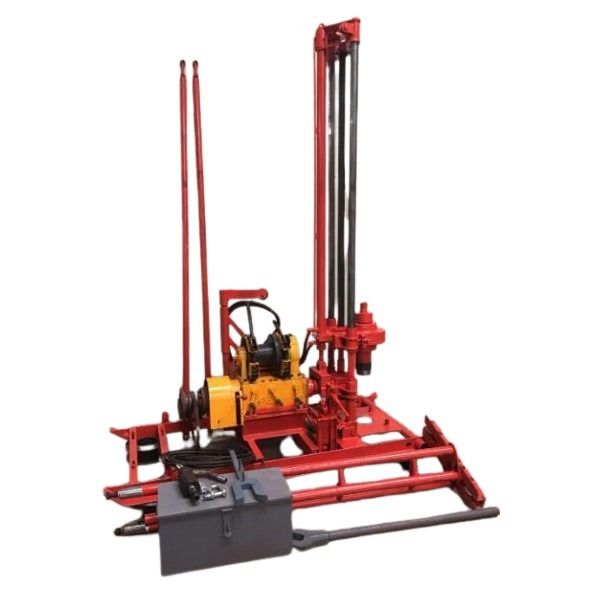

Machine Pictures
