Product Description

25m Rock Mine Diamond Core Drilling Rig Geotechnical Drill Rig Explor Drill Rig

Machine Introduction

The RCQ525 hydraulic small rotary drilling rig adopts a pressurized drilling method, which can achieve a maximum rotary drilling depth of 25m. Equipped with drilling tools of different specifications, the pile hole diameter range can reach 500-1200mm.

This small pile driver has high drilling efficiency and can be quickly transferred to the next construction site after the construction is completed. It is flexible, convenient and efficient. It is a pile driving machinery and equipment dedicated to the national high-speed railway construction.

Technical Parameters

Model	RCQ525 bore piling rig
Working mode	Hydraulic oil cylinder pressure
Drilling diameter	Φ500-Φ1500mm
drilling depth	25m
Kelly bar diameter	315mm
Dimension	11000X2800X3450mm
Total weight	25T
Power head max output torque	120KN.m
Rotary speed	10-50r/min
Pressurized oil cylinder max pressure	100KN
Pressurized oil cylinder max lifting force	100KN
Pressurized oil cylinder max stroke	2500mm
Main winch max lifting force	120KN
Main winch max lifting speed	70m/min
Wire rope diameter	24mm
Assisting winch max lifting force	30KN
Assiting winch max lifting speed	50m/min
Wire rope diameter	12mm
Mast sidewards inclination	±4°
Mast forwards inclination	4°
Max working pressure	28Mpa
pilot pressure	3.5Mpa
Travelling speed	5km/h
Max climbing angle	30
Working radius	4m
Diesel engine power	150KW ,cummins ,water cooling ,turbo charger ,

Machine Advantages

This pie drilling rig Mainly used in soft soil piling, such as the foundation, seaports, Bridges, reservoirs station, and national defence construction and so on, widely used in rotary screw pile ,pile engineering, drilling engineering, geological prospecting, building projects, such as engineering blasting and so on.

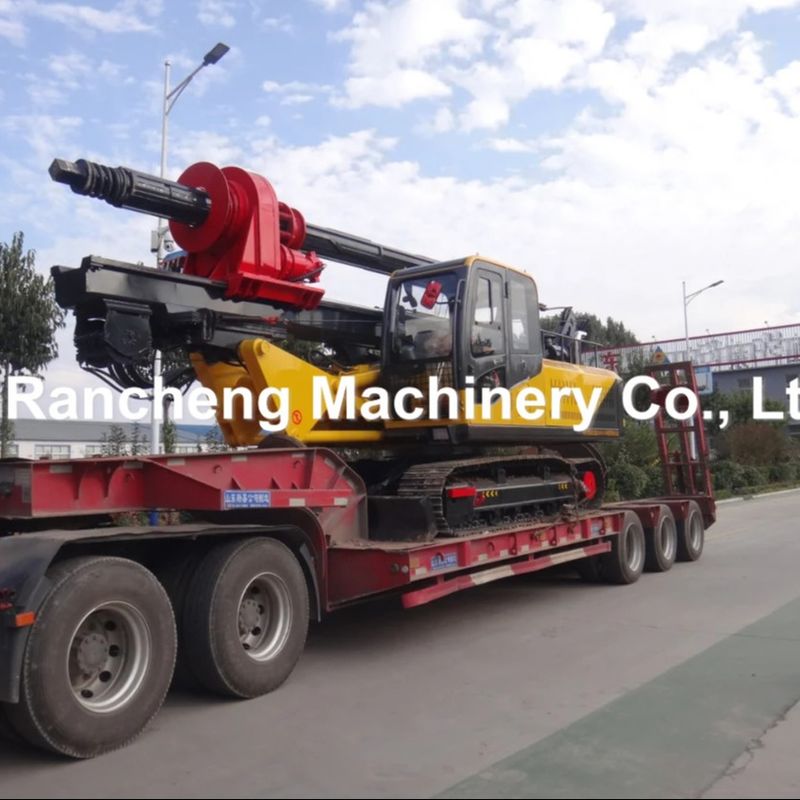

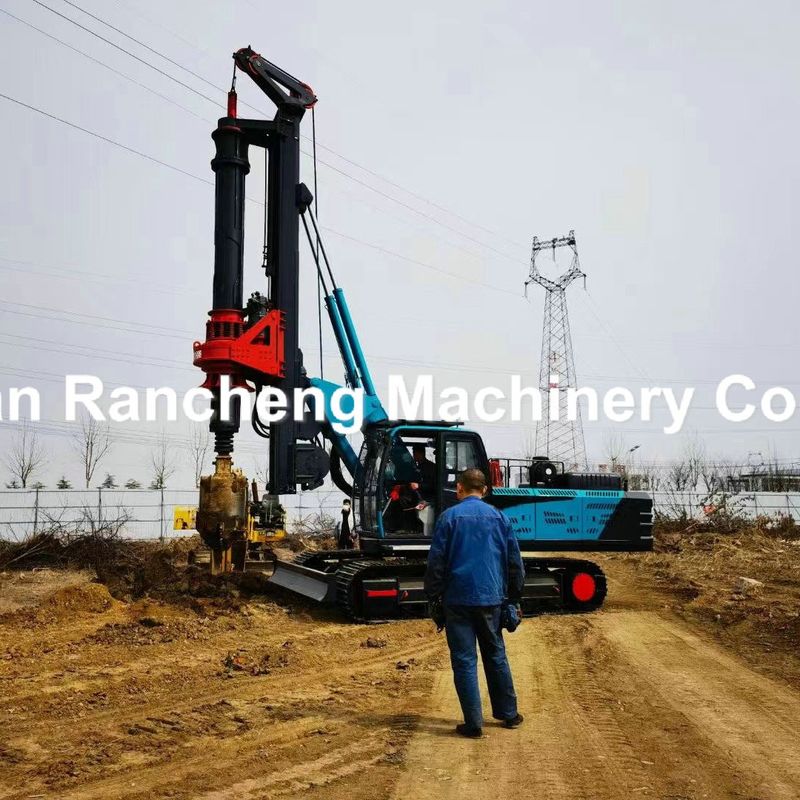

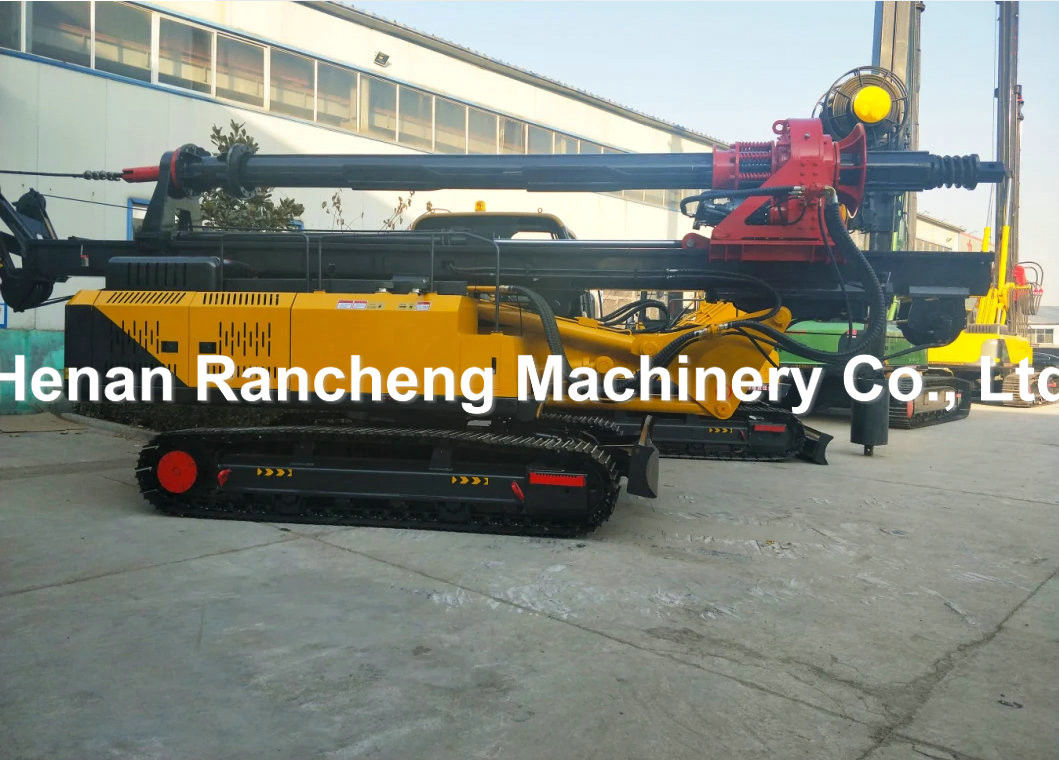

Machine Pictures

25m Rock Mine Diamond Core Drilling Rig Geotechnical Drill Rig Explor Drill Rig 0
