Drill Deeper and Wider with RCF150S Water Well Drilling Machine

Drill Deeper and Wider with RCF150S Water Well Drilling Machine

150S Water Well Drilling Machine

RCF150S Well Drilling Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF150S

Contact Us
Request A Quote
Product Details
Color:
Customizable
Diesel Engine:
42KW Yunnei Engine
Feeding Efficiency:
10-35m/h
Travel Speed:
2.5Km/h
Climb Ability:
30°
Pipe Diameter:
76mm/89mm
Pipe Length:
2m
Highlight:

150S Water Well Drilling Machine

,

RCF150S Well Drilling Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

Drill Deeper and Wider with RCF150S Water Well Drilling Machine

Products Description



The compact RCF150S water well drill is a reliable and adaptable solution for a wide range of drilling needs. Its lightweight design, weighing only 2300 kg, makes it highly portable and ideal for a wide range of water drilling projects. Whether you need to drill a farm irrigation well, a garden well, a geothermal well or an industrial well, the RCF150S can get the job done.



Its advanced features include a dual rotating motor head drive that increases its drilling efficiency. Additionally, the RCF150S can be paired with a mud pump and air compressor, enabling it to handle a variety of soil types and ensure smooth, efficient drilling operations. This combination of portability, depth capacity, and adaptability makes the RCF150S an excellent choice for both small and large water drilling projects.


Machine Specifications

Bore diameter(hammer) 90-300mm
Bore depth 150m
Air consumption 17-31m³/min
Air pressure 1.7-2.5Mpa
Once-time advance length 2.4m
Pipe diameter 76mm/89mm
Pipe length 2m
Push force 4T
Lifting force 12T
Max torque of rotary 3500-3800Nm
Rotary speed 40-65r/min
Mud Pump flow 200L/min (option)
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 2300×1200×1900MM
weight 2300kg
Diesel engine 42KW Yunnei engine


Machine Advantages


(1)Reliable Performance
Basing on the guideline of purchasing the critical auxiliary equipment internationally, the diesel engine, the hydraulic pump, the main valves, the motors, crawler reducers and key hydraulic spare parts are all adopted famous brands products at home and abroad.



(2)High Efficiency
With big torque, high power unit allocation and with reasonable structure design and advanced operation method , all these guarantee the drill rig’s high operation and performance efficiency.

(3)Environmental Protection
With lower pollution discharge of diesel engine, professional noise reducing design, the drill rig is suitable for urban operation and performance.



(4)Energy Saving
Adopting the advanced load sensitive control technique, the drill rig has reduced the power consumption and heat generation to the lowest level. With an elegant outline, compact structure, reliable performance and operation easily, it should be the priority equipment to be selected in the full hydraulic core drill rig of present domestic market.

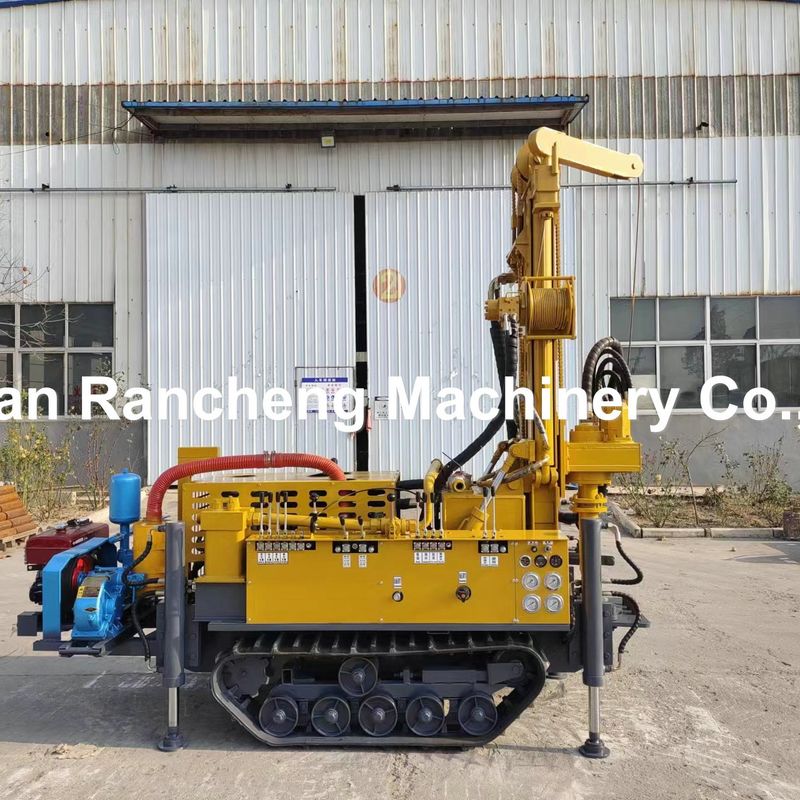

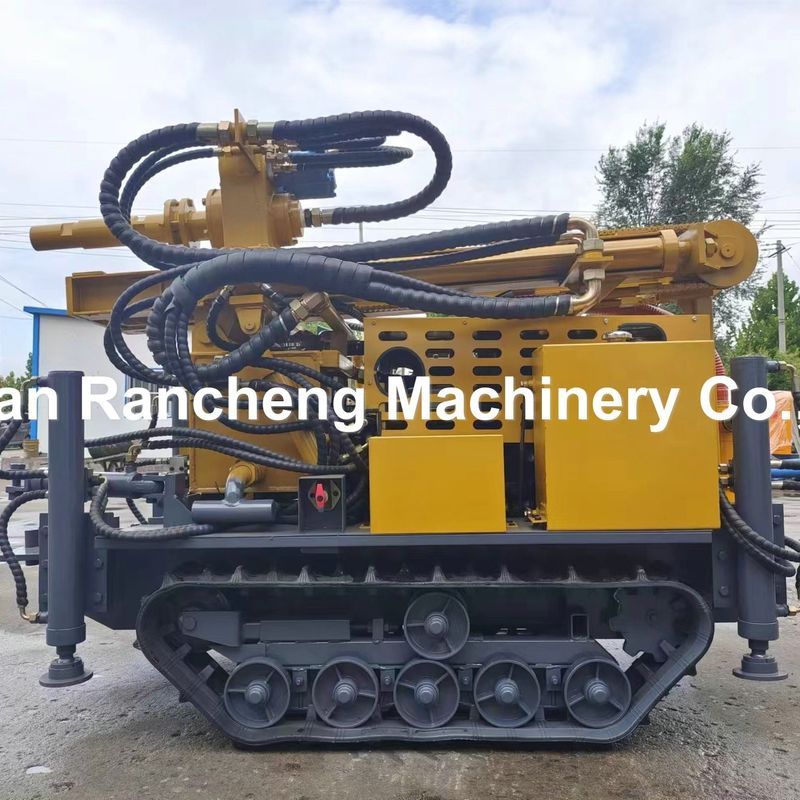

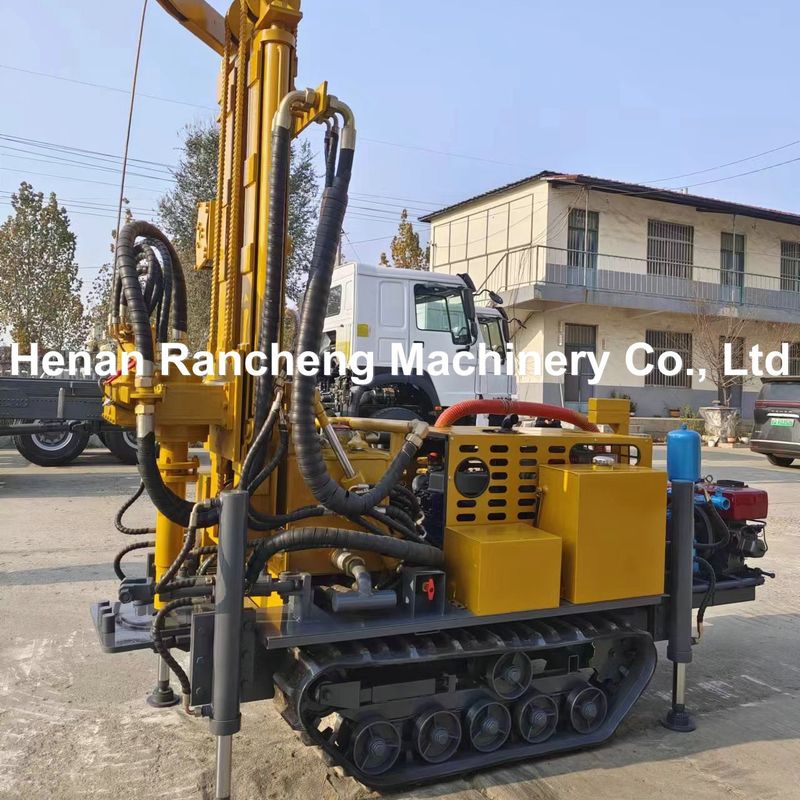

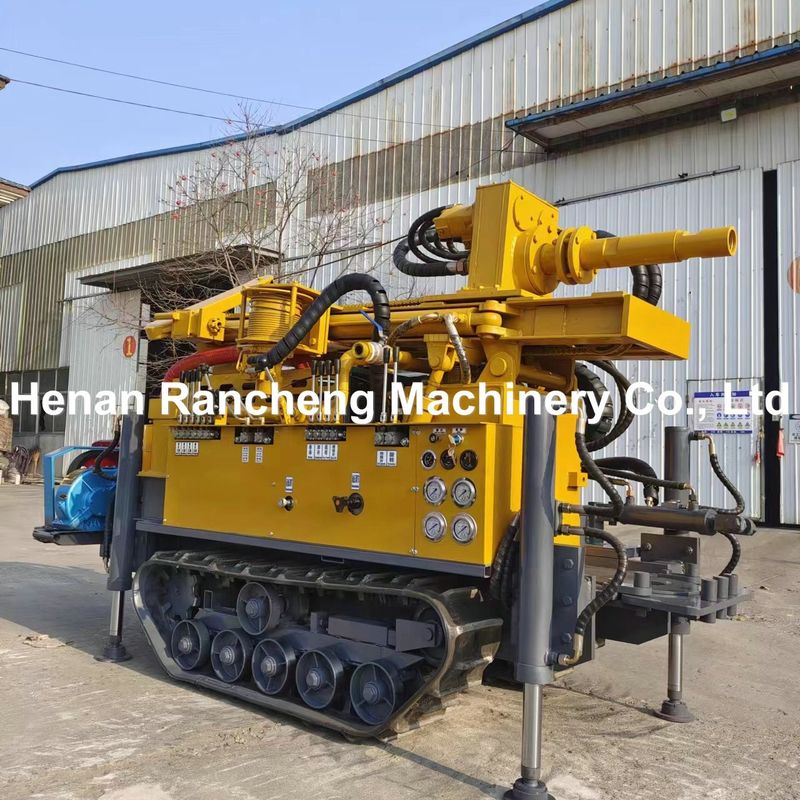

Machine Pictures
Drill Deeper and Wider with RCF150S Water Well Drilling Machine 0Drill Deeper and Wider with RCF150S Water Well Drilling Machine 1Drill Deeper and Wider with RCF150S Water Well Drilling Machine 2Drill Deeper and Wider with RCF150S Water Well Drilling Machine 3Drill Deeper and Wider with RCF150S Water Well Drilling Machine 4Drill Deeper and Wider with RCF150S Water Well Drilling Machine 5

Company Information


Henan Rancheng Machinery Co.,LTD is one professional supplier drilling rigs in China ,we are dedicated in designing and manufacture water well drilling rig ,rotary drilling rig ,anchor drilling rig ,core drilling rig,DTH drilling rig ,solar pile driver,mud pump ,air compressor and drilling tools etc,we have advanced technology ,Modern equipment, first-class team and rich experience ,our products passed ISO9001 ,CE etc certificated ,they are exported to around 200 countries and areas in the world ,get very good feedbacks from our clients.
We Pursue the principle of "Customer First, Integrity First", we are sincerely expecting to cooperate with you!!!

Drill Deeper and Wider with RCF150S Water Well Drilling Machine 6



Transportation



RCF150S can be loaded into a 20-foot container and transported by sea

Drill Deeper and Wider with RCF150S Water Well Drilling Machine 7

Drill Deeper and Wider with RCF150S Water Well Drilling Machine 8

Drill Deeper and Wider with RCF150S Water Well Drilling Machine 9

Drill Deeper and Wider with RCF150S Water Well Drilling Machine 10
