Portable Type RCH-3A Underground Core Drilling Rig Exploration Tunnel Mine Drilling Rig

Portable Type RCH-3A Underground Core Drilling Rig Exploration Tunnel Mine Drilling Rig

Mine Drilling Rig

Underground Core Drilling Rig

Exploration Tunnel Core Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCH-3A

Contact Us
Request A Quote
Portable Type RCH-3A Underground Core Drilling Rig Exploration Tunnel Mine Drilling Rig Portable Type RCH-3A Underground Core Drilling Rig Exploration Tunnel Mine Drilling Rig Portable Type RCH-3A Underground Core Drilling Rig Exploration Tunnel Mine Drilling Rig Portable Type RCH-3A Underground Core Drilling Rig Exploration Tunnel Mine Drilling Rig
Product Details
Name:
Portable Type Core Drilling Rig
Model:
RCH-3A
The Range Of Spindle Rotating Speed:
425-1280 Rpm
The Swing Angle Of Arm(up And Down):
100 Degree
The Swing Angle Of Mast Bracket(left&right):
90 Degree
The Working Pressure:
25MPa
Highlight:

Mine Drilling Rig

,

Underground Core Drilling Rig

,

Exploration Tunnel Core Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price 100-240RPM Winch Rated Rotary Speed Small Core Drilling Rig 96L/Min Hydraulic System Rated Flow online Video

100-240RPM Winch Rated Rotary Speed Small Core Drilling Rig 96L/Min Hydraulic System Rated Flow

Get Best Price
Good price 100-240RPM Winch Rated Rotary Speed Small Core Drilling Rig Portable Core Drilling Equipment For Intensity Drilling online Video

100-240RPM Winch Rated Rotary Speed Small Core Drilling Rig Portable Core Drilling Equipment For Intensity Drilling

Get Best Price
Good price Portable Type RCH-3A Underground Core Drilling Rig Exploration Tunnel Mine Drilling Rig online

Portable Type RCH-3A Underground Core Drilling Rig Exploration Tunnel Mine Drilling Rig

Get Best Price
Good price Portable Hydraulic Core Drilling Rig Equipment For Geological / Gold / Rock Exploration online Video

Portable Hydraulic Core Drilling Rig Equipment For Geological / Gold / Rock Exploration

Get Best Price
Contact Us
Contact Now
Product Description

Portable Type RCH-3A Underground Core Drilling Rig Exploration Tunnel Mine Drilling Rig



Product Description



RCH-3A fully hydraulic down-the-hole drilling rig has a split layout, light weight, convenient transportation and flexible operation. It can complete large-diameter cone drilling, large-diameter hard metal drilling, and impact rotary drilling.


The mast of the drilling tower can slide by itself, and the drilling rig can also be retracted, so that the mast of the drilling tower is in close contact with the foundation, which improves the stability of the drilling rig.



Product Specifications



Drilling depth dia.55mm drilling rod 350m Drill rod spec 55x1500mm
71x1500mm
dia.71mm drilling rod 200m
The range of spindle rotating speed 425-1280 rpm The max. rotating torque of the spindle 895N.m
The working pressure 25MPa Spindle stroke 1600mm
The max. lifting force of the drill head 62KN The max. feeding force of the drill head 33KN
The sliding stoke of mast 495 mm The swing angle of mast bracket(left&right) 90 degree
The swing angle of the arm(up and down) 100 degree Power unit YB225M-4(dIICT4)
Explosion-proof electric motor 45KW/1480 rpm
Dimensions Main machine(L*W*H) 2950*950*1850 mm weight Main machine 1000kg
Power unit 1050kg
The power unit(L*W*H) 1900*980*1320 mm
Operation cabinet 140kg
Operation cabinet(L*W*H)

540*360*1080 mm





Application



It is mainly suitable for coal, geology, metallurgy, engineering and other industries. It is used for large-diameter gas extraction and water injection holes in mines, tunnels, coal mines, and large-diameter horizontal drilling construction of ground engineering. It can also be used for large-diameter horizontal drilling of ground engineering.



Product Image

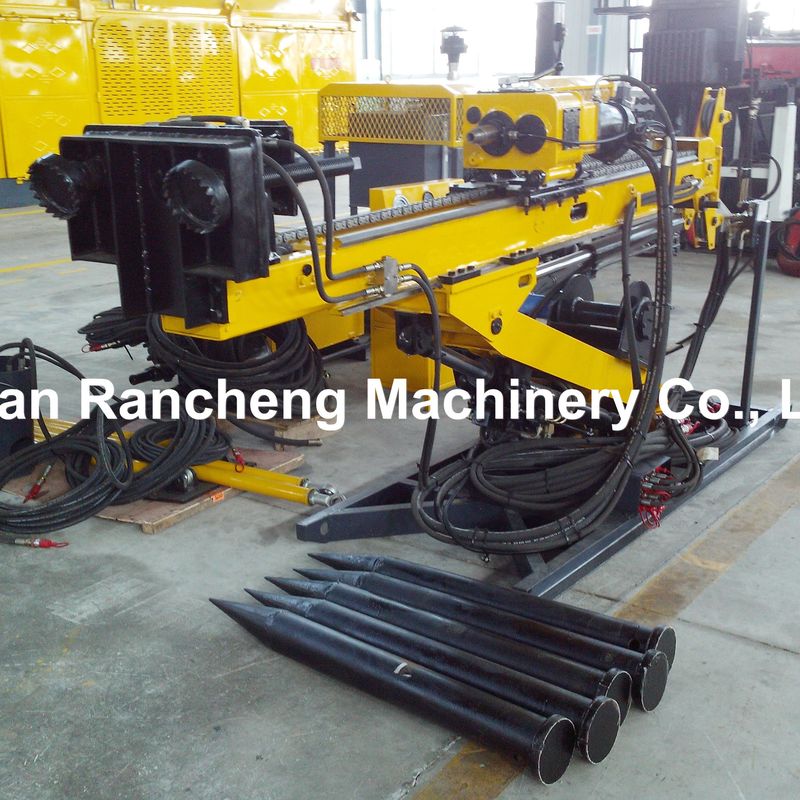

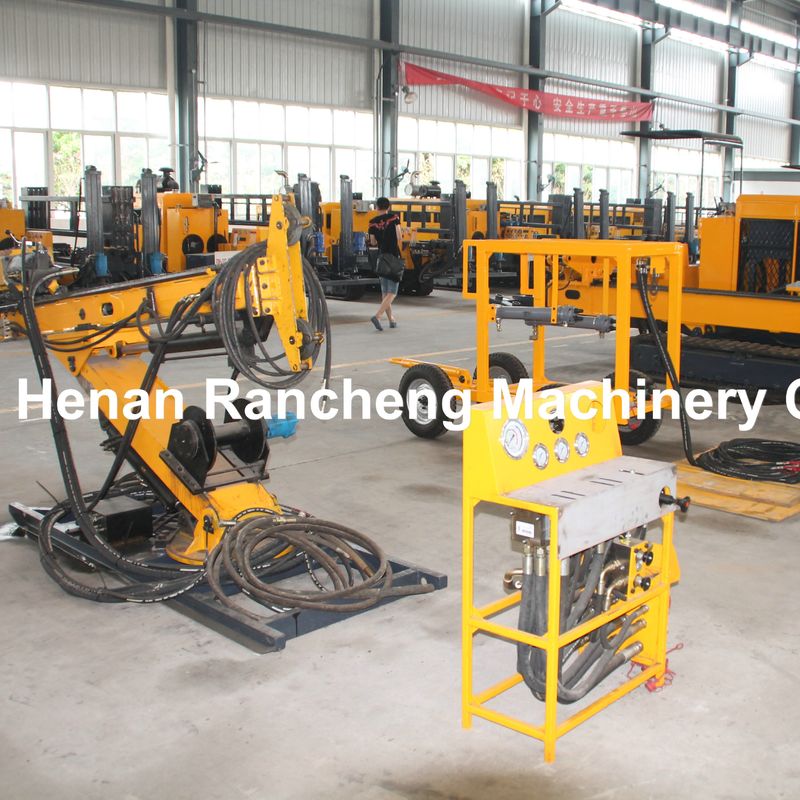

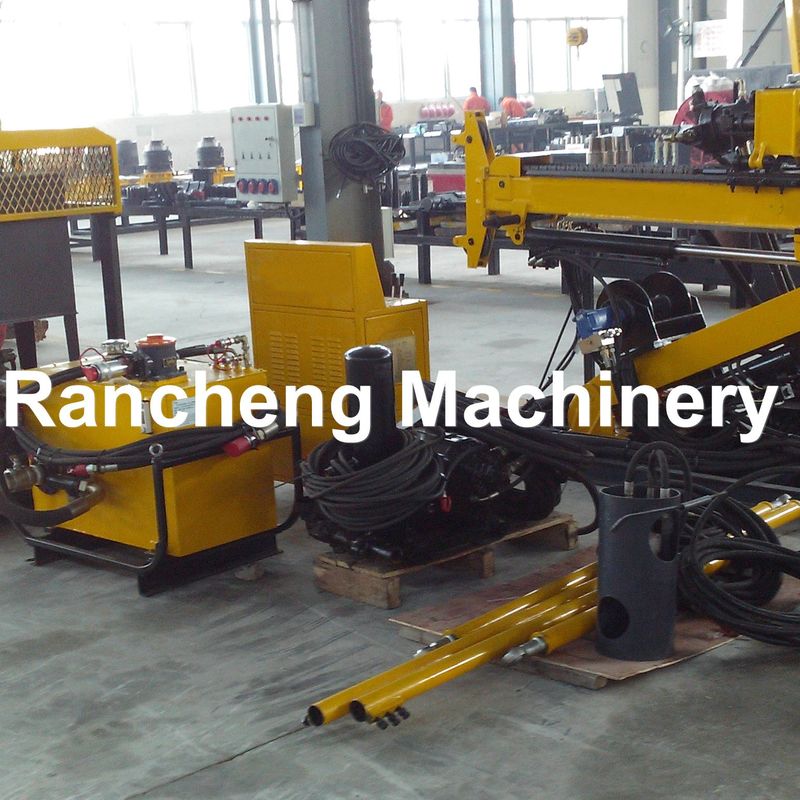

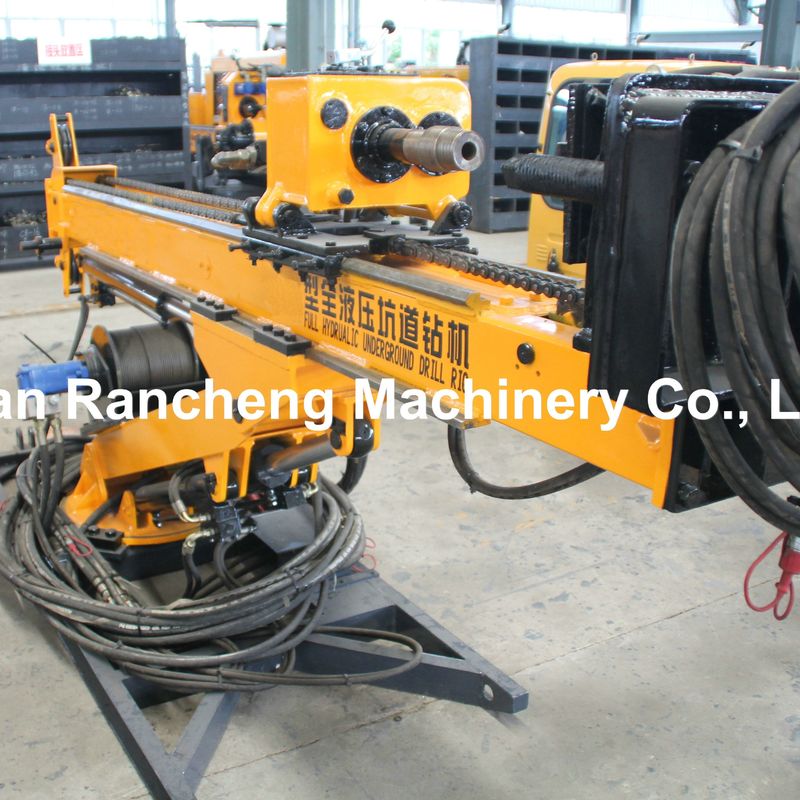

Portable Type RCH-3A Underground Core Drilling Rig Exploration Tunnel Mine Drilling Rig 0Portable Type RCH-3A Underground Core Drilling Rig Exploration Tunnel Mine Drilling Rig 1Portable Type RCH-3A Underground Core Drilling Rig Exploration Tunnel Mine Drilling Rig 2Portable Type RCH-3A Underground Core Drilling Rig Exploration Tunnel Mine Drilling Rig 3
