RCJ150RC Hydraulic Engineer Drilling Rig 150m Drill Depth Crawler Type Hydraulic RC Drilling Machine

RCJ150RC Hydraulic Engineer Drilling Rig 150m Drill Depth Crawler Type Hydraulic RC Drilling Machine

Hydraulic Engineer RC Drilling Machine

Crawler Type RC Drilling Machine

150m Drill Depth RC Drilling Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCJ150RC

Contact Us
Request A Quote
RCJ150RC Hydraulic Engineer Drilling Rig 150m Drill Depth Crawler Type Hydraulic RC Drilling Machine
RCJ150RC Hydraulic Engineer Drilling Rig 150m Drill Depth Crawler Type Hydraulic RC Drilling Machine RCJ150RC Hydraulic Engineer Drilling Rig 150m Drill Depth Crawler Type Hydraulic RC Drilling Machine RCJ150RC Hydraulic Engineer Drilling Rig 150m Drill Depth Crawler Type Hydraulic RC Drilling Machine RCJ150RC Hydraulic Engineer Drilling Rig 150m Drill Depth Crawler Type Hydraulic RC Drilling Machine
Product Details
Name:
RCJ150RC Hydraulic Engineer Drilling Rig
Nominal Drill Depth:
150m
Bore Hole Diameter:
110-250mm
Max Output Torque:
8000N.m
Engine Power:
125kw
Highlight:

Hydraulic Engineer RC Drilling Machine

,

Crawler Type RC Drilling Machine

,

150m Drill Depth RC Drilling Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 40" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price RCJ150RC Hydraulic Engineer Drilling Rig For 125W Engine Power 8000N.M Max Output Torque online Video

RCJ150RC Hydraulic Engineer Drilling Rig For 125W Engine Power 8000N.M Max Output Torque

Get Best Price
Good price RCJ150RC Hydraulic Engineer Drilling Rig 150m Drill Depth Crawler Type Hydraulic RC Drilling Machine online Video

RCJ150RC Hydraulic Engineer Drilling Rig 150m Drill Depth Crawler Type Hydraulic RC Drilling Machine

Get Best Price
Good price RCJ500RC RC Drilling Machine Equipment Reverse Circulation Drilling Rig Equipment Machine online Video

RCJ500RC RC Drilling Machine Equipment Reverse Circulation Drilling Rig Equipment Machine

Get Best Price
Good price 132KW Hydraulic Crawler RC Drilling Rig 300m Drill Depth 2km/h Walk Speed online Video

132KW Hydraulic Crawler RC Drilling Rig 300m Drill Depth 2km/h Walk Speed

Get Best Price
Contact Us
Contact Now
Product Description

RCJ150RC Hydraulic Engineer Drilling Rig 150m Drill Depth Crawler Type Hydraulic RC Drilling Machine



Product Description



The RCJ150RC drilling rig is a crawler chassis, fully hydraulically driven, power head type drilling rig, which can be used to drill vertical or inclined holes, and can adopt the following drilling processes:
Drilling rig spiral drill
Down-the-hole hammer drill
Mud forward circulation drill
ODEX tool (casing follower) drilling rig with down-the-hole hammer
Medium reverse circulation drill
Rope coring drilling after replacing the drill core rotating head



Product Specifications



Model RCJ150RC
Drill rig weight(crawler mounted) kg 9000
Engine Power kW 125
Length × Width × Height (normal) mm 6750x2200x2950
Ambient Temperature Range °C -10～38
Drill Ability
Nominal Drill Depth m 150
End-hole Diameter mm 110-250
Drill angle ° -10-90
Horizontal hole height m 1.85-2.8
Drill head output
Max Output Torque N.m 8000
Output Rotation Speed(continuity) rpm 30 / 60, 54/108rpm



Output Rotation Speed(interval)

 rpm

62 / 124

105/210rpm
Feeding mm 3500
Thrust Force kN 45
Lifting Capacity kN 65
Pipe-puller Device Output
Output Rotation Speed rpm 40
Max Output Torque N.m 30000
Hole-through Diameter mm 370
Auxiliary Winch
Pull Force of the first Layer kN 11
Rope Diameter mm 14
Rope Capacity m 60
Engine(Cummins) 6BTA5.9-C125
Power kW 125
Rotary Speed (Max.) rpm 2200
Track Chassis Base
Walk Speed Km/h 1.2
Unit Pressure MPa ＜0.05
Climb Ability ° ≯20



Application



This drilling rig can solve the drilling problems in soft overburden, crushed stone, gravel area and broken formation according to different drilling processes, and is widely used in various drilling operations.

This drilling rig is mainly used for reverse circulation drilling/water wells and observation wells, geothermal holes, and small foundation pile holes.

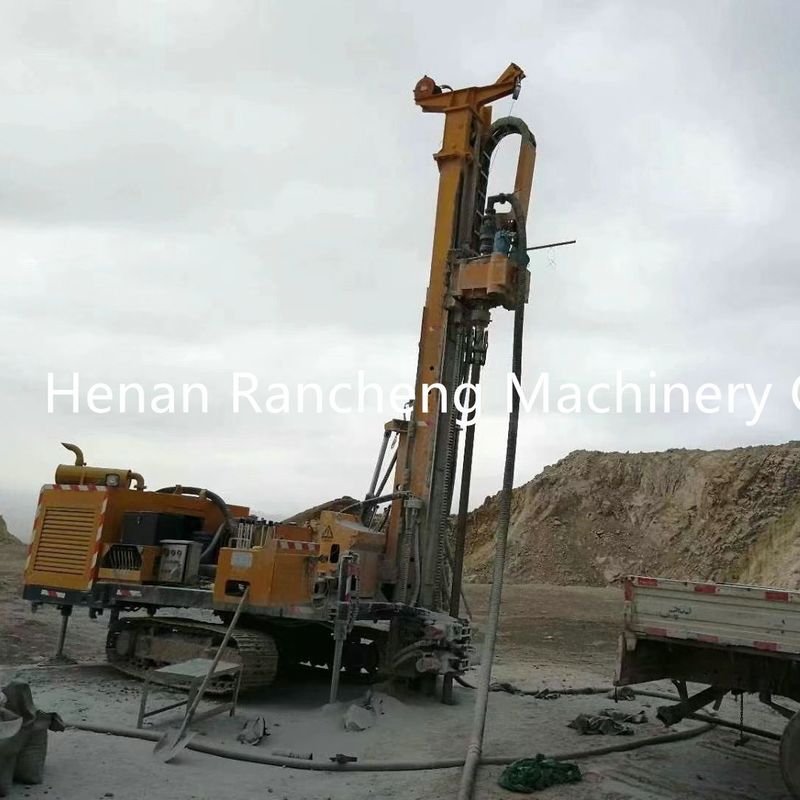

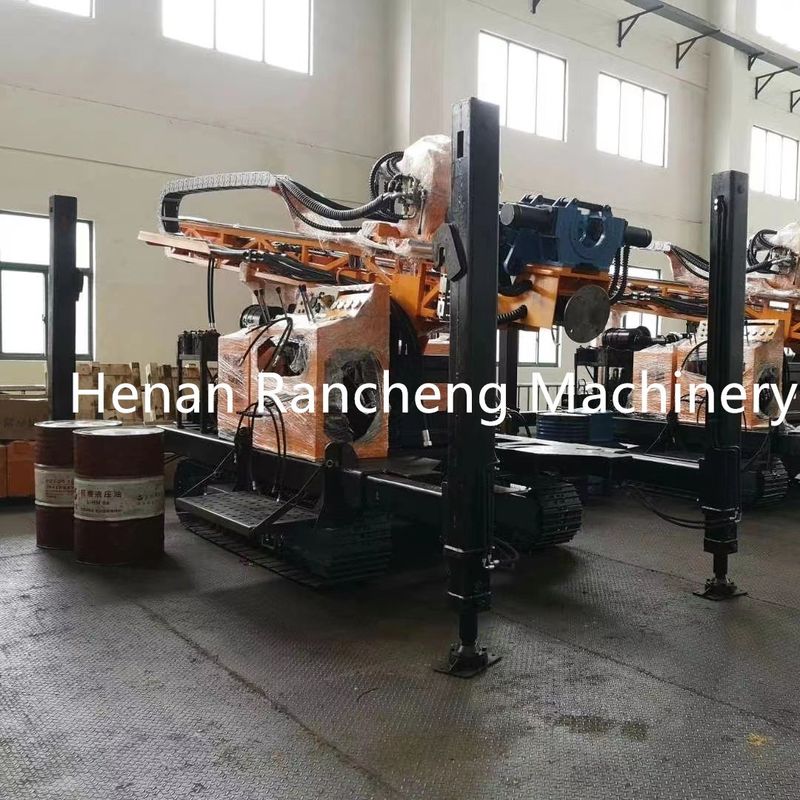

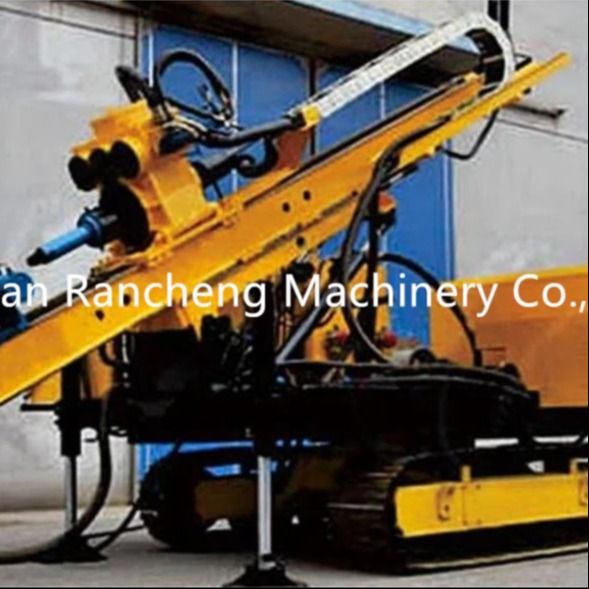

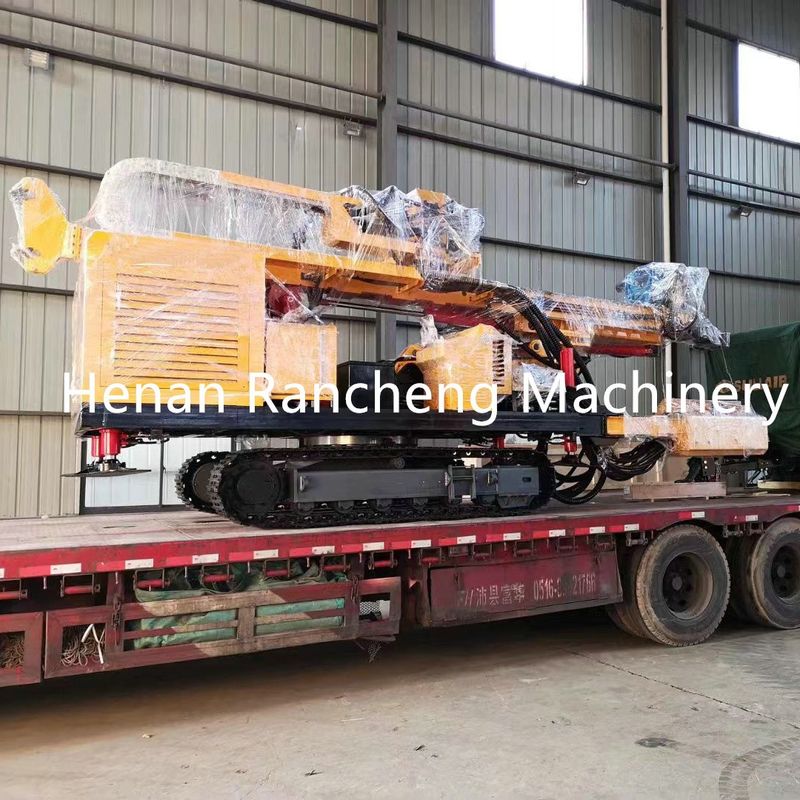

Product Image



RCJ150RC Hydraulic Engineer Drilling Rig 150m Drill Depth Crawler Type Hydraulic RC Drilling Machine 0

RCJ150RC Hydraulic Engineer Drilling Rig 150m Drill Depth Crawler Type Hydraulic RC Drilling Machine 1RCJ150RC Hydraulic Engineer Drilling Rig 150m Drill Depth Crawler Type Hydraulic RC Drilling Machine 2
