RCQ515M Mini Pile Drilling Rig Drilling Depth 15m Hydraulic Small Rotary Drilling Machine

RCQ515M Mini Pile Drilling Rig Drilling Depth 15m Hydraulic Small Rotary Drilling Machine

Hydraulic Mini Pile Drilling Rig

15m Mini Pile Drilling Rig

Small Rotary Drilling Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCQ515M

Contact Us
Request A Quote
RCQ515M Mini Pile Drilling Rig Drilling Depth 15m Hydraulic Small Rotary Drilling Machine
RCQ515M Mini Pile Drilling Rig Drilling Depth 15m Hydraulic Small Rotary Drilling Machine RCQ515M Mini Pile Drilling Rig Drilling Depth 15m Hydraulic Small Rotary Drilling Machine RCQ515M Mini Pile Drilling Rig Drilling Depth 15m Hydraulic Small Rotary Drilling Machine RCQ515M Mini Pile Drilling Rig Drilling Depth 15m Hydraulic Small Rotary Drilling Machine
Product Details
Name:
Hydraulic Small Rotary Drilling Rig
Model:
RCQ515M
Bore Depth:
15m
Drilling Diameter:
500-1200mm
Power Head Torque (KN.m):
45KN.m
Main Winch Max Lifting Force:
120KN
Highlight:

Hydraulic Mini Pile Drilling Rig

,

15m Mini Pile Drilling Rig

,

Small Rotary Drilling Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 40" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price RCQ515M Mini Pile Drilling Rig Drilling Depth 15m Hydraulic Small Rotary Drilling Machine online Video

RCQ515M Mini Pile Drilling Rig Drilling Depth 15m Hydraulic Small Rotary Drilling Machine

Get Best Price
Good price Hydraulic Compact Mini Rotary Pile Drilling Rig For Small Scale Drilling Operations online Video

Hydraulic Compact Mini Rotary Pile Drilling Rig For Small Scale Drilling Operations

Get Best Price
Good price RCQ-10C Hydraulic Mini Pile Drilling Rig 10m Depth With 36KW Kubota Engine Sany SY60C Excavator Chassis online Video

RCQ-10C Hydraulic Mini Pile Drilling Rig 10m Depth With 36KW Kubota Engine Sany SY60C Excavator Chassis

Get Best Price
Good price RCQ-10C Hydraulic Mini Pile Drilling Rig 10m Depth With 10-45RPM R/Min Rotary Speed online Video

RCQ-10C Hydraulic Mini Pile Drilling Rig 10m Depth With 10-45RPM R/Min Rotary Speed

Get Best Price
Contact Us
Contact Now
Product Description

RCQ515M Mini Pile Drilling Rig Drilling Depth 15m Hydraulic Small Rotary Drilling Machine

Machine Introduction

The RCQ515m hydraulic small rotary drilling rig adopts a pressurized drilling method, which can achieve a maximum rotary drilling depth of 15m. Equipped with drilling tools of different specifications, the pile hole diameter range can reach 500-1200mm.



This small pile driver has high drilling efficiency and can be quickly transferred to the next construction site after the construction is completed. It is flexible, convenient and efficient. It is a pile driving mechanical equipment dedicated to the national high-speed railway construction.



Technical Parameters

Drilling diameter Φ500-Φ1200mm Drilling depth 15m
Diesel engine

Yuchai 95KW
Powerhead torque (KN.m) 45KN.m
Rotary speed (r/min) 17-45RPM
Pressurized oil cylinder max pressure 100KN
Pressurized oil cylinder max lifting force 100KN
Pressurized oil cylinder max Stroke 2000mm
Main winch max lifting force 120KN
Main winch max lifting speed 60m/min
Main winch rope diameter 20mm
Assisting winch max lifting force 10KN
Assisting winch max lifting speed 60m/min
Assisting winch rope diameter 16mm
Travel speed 3km/h
Max climbing gradient 30°

Min ground clearance

 400mm

System working pressure

32Mpa
Machine dimension 9.8X2.5X3.35m Weight

19KGS





Application:



This pie drilling rig Mainly used in soft soil piling, such as the foundation, seaports, Bridges, reservoirs station, and national defence construction and so on, widely used in rotary screw pile ,pile engineering, drilling engineering, geological prospecting, building projects, such as engineering blasting and so on.

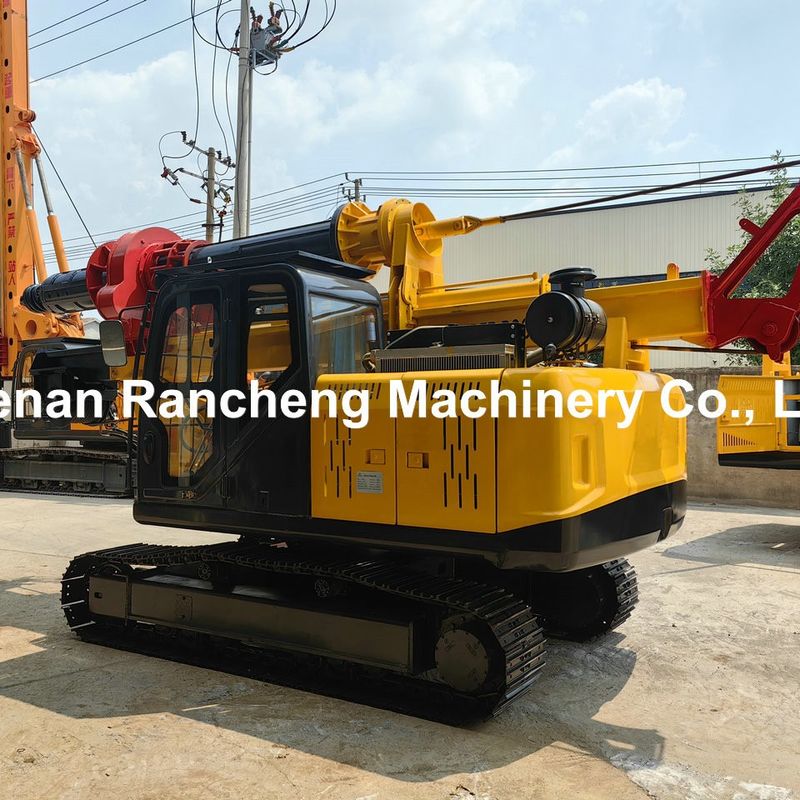

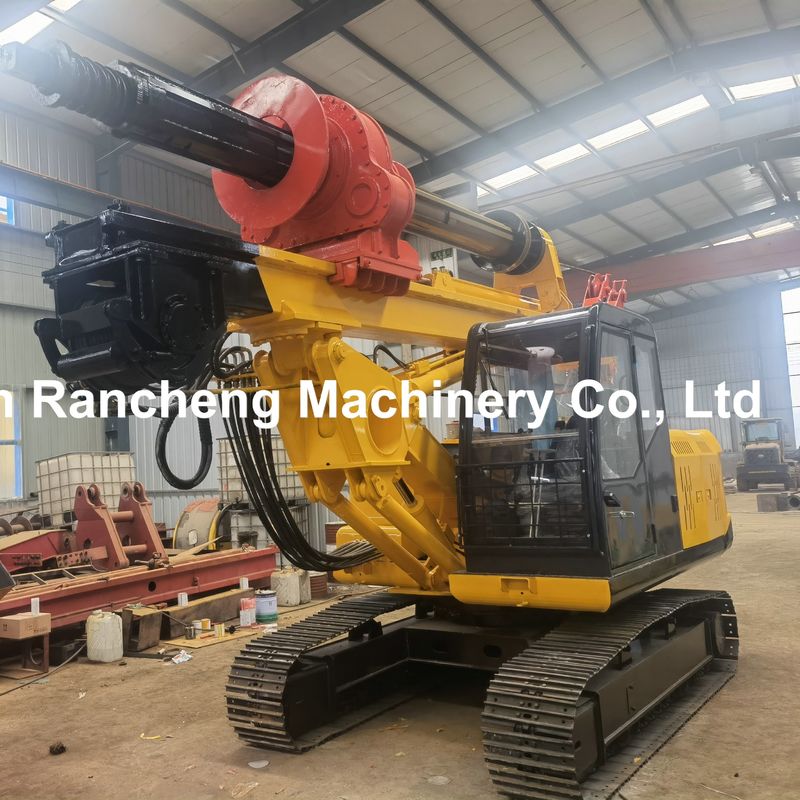

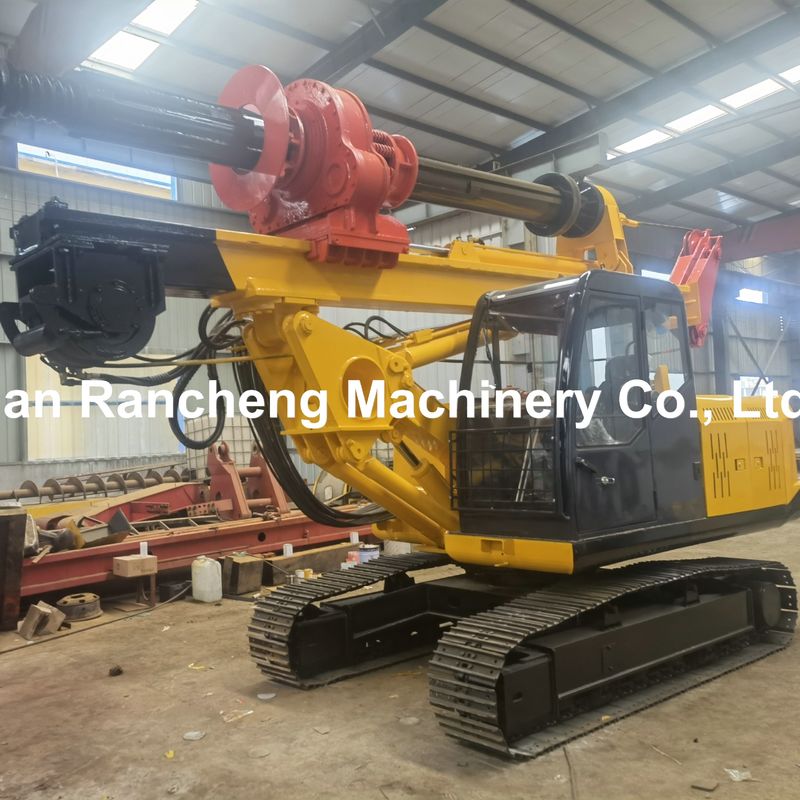

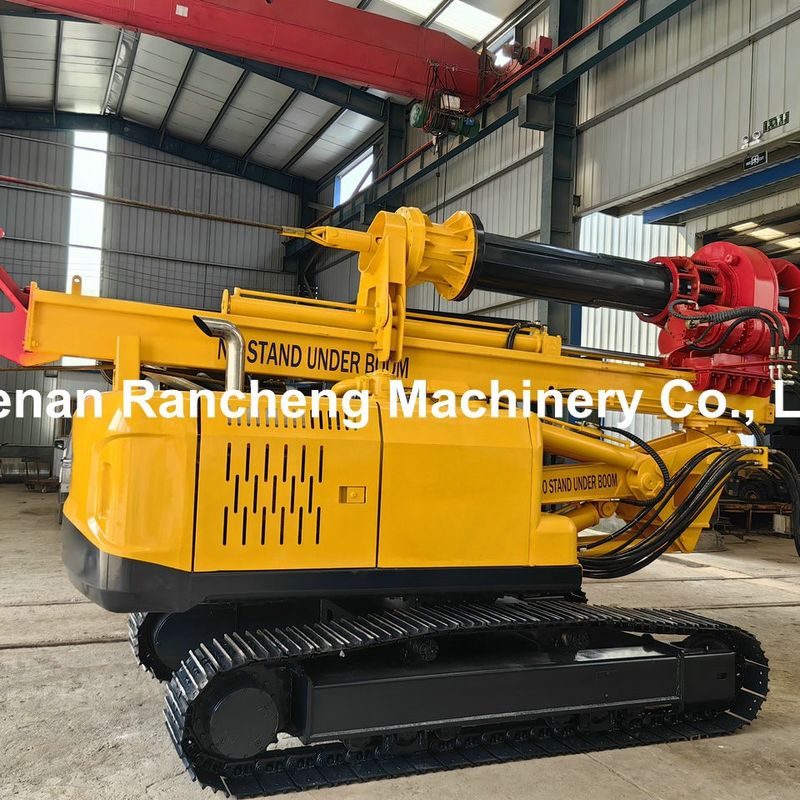

Machine Pictures

RCQ515M Mini Pile Drilling Rig Drilling Depth 15m Hydraulic Small Rotary Drilling Machine 0RCQ515M Mini Pile Drilling Rig Drilling Depth 15m Hydraulic Small Rotary Drilling Machine 1RCQ515M Mini Pile Drilling Rig Drilling Depth 15m Hydraulic Small Rotary Drilling Machine 2RCQ515M Mini Pile Drilling Rig Drilling Depth 15m Hydraulic Small Rotary Drilling Machine 3RCQ515M Mini Pile Drilling Rig Drilling Depth 15m Hydraulic Small Rotary Drilling Machine 4
