Hydraulic Compact Mini Rotary Pile Drilling Rig For Small Scale Drilling Operations

Small Scale Rotary Drilling Rig

Mini Rotary Drilling Rig

Hydraulic Rotary Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCQ-10G

Request A Quote

Product Details

Drilling Depth:

10m

Drilling Diameter:

300-1000mm

Chassis:

XCMG SE60G Excavator

Diesel Engine:

Kubota Engine WP3.2 36.8KW

Power Head Torque:

35KN.m

Rotary Head Travel Distance:

1100mm

Highlight:

Small Scale Rotary Drilling Rig

Mini Rotary Drilling Rig

Hydraulic Rotary Drilling Rig

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

Standard shipping

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

RCQ515M Mini Pile Drilling Rig Drilling Depth 15m Hydraulic Small Rotary Drilling Machine

Get Best Price

Video

Hydraulic Compact Mini Rotary Pile Drilling Rig For Small Scale Drilling Operations

Get Best Price

Video

RCQ-10C Hydraulic Mini Pile Drilling Rig 10m Depth With 36KW Kubota Engine Sany SY60C Excavator Chassis

Get Best Price

Video

RCQ-10C Hydraulic Mini Pile Drilling Rig 10m Depth With 10-45RPM R/Min Rotary Speed

Get Best Price

Contact Now

Product Description

product description

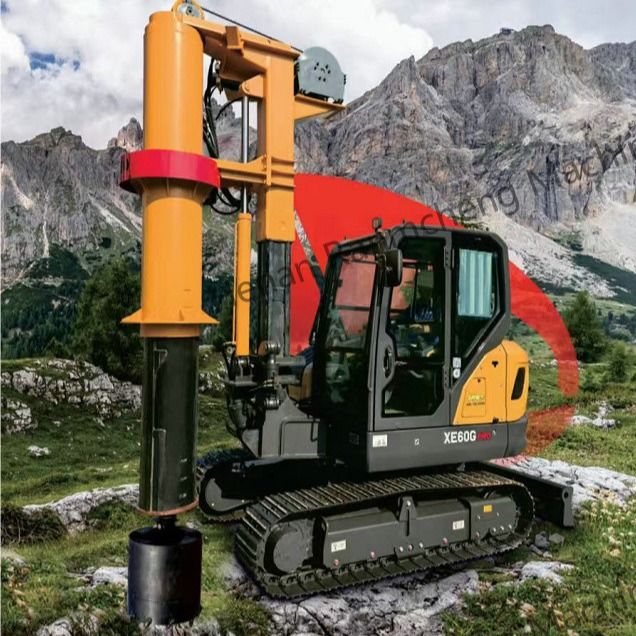

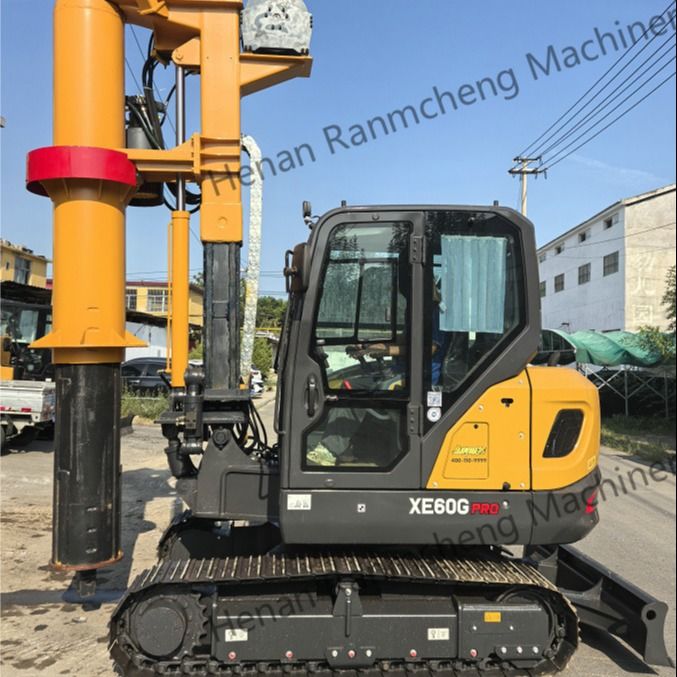

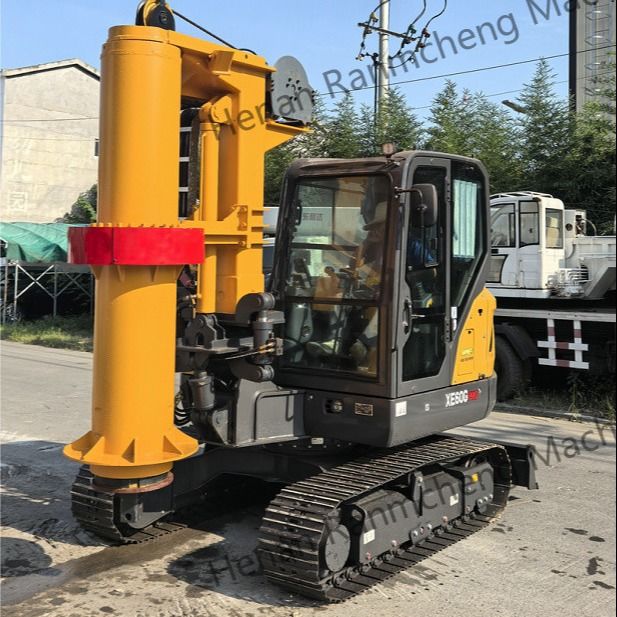

The RCQ-10G is a specialized hydraulic mini pile drilling rig designed for high-performance piling in limited and narrow spaces where traditional rigs cannot operate. Mounted on the XCMG SE60G excavator chassis, it combines mobility, flexibility, and power, achieving a maximum drilling diameter of 1000mm with adjustable working angles, radius, and customizable drill bits.

Technical Parameter

Model	RCQ-10G
Drilling depth (m)	10m
Drilling diameter (mm)	300-1000mm
Chassis	XCMG SE60G excavator
Diesel engine	Kubota engine WP3.2 36.8KW
Rotary head
Power head torque (KN.m)	35KN.m
Rotary head travel distance	1100mm
Rotary speed (r/min)	10-45RPM
Rated lifting force	27KN
Rated pushing force	25KN
Winch
Main winch rated lifting force	38KN
Assisting winch rated lifting force	14KN
Chassis
Travel speed	3km/h
Max climbing gradient	30°
Chassis width	2000mm
Machine weight	9.3T
Machine transportation dimension	3450X2025X3400mm

Key Features

Max Drilling Diameter: 1000mm
Chassis: XCMG SE60G Excavator (all-terrain adaptability)
No Rod Disassembly Needed: This saves time and labor
High-Speed Mobility: Rapid deployment between sites

Application

RCQ-10G Hydraulic Mini Pile Drilling Rig easily navigates tight spaces like elevator shafts, building interiors, low-clearance sites, and narrow roadbeds, making it ideal for municipal, highway, and electrified railway projects.

The RCQ-10G hydraulic mini pile drilling rig is specifically optimized to meet the demands of contractors who require agile and cost-effective piling solutions. Its compact design and maneuverability make it particularly suitable for projects in congested urban environments or hard-to-reach locations where traditional drilling equipment cannot operate. For specialized project requirements, we welcome inquiries about custom-engineered solutions tailored to your specific job site conditions and performance needs.
