RCQ-10C Hydraulic Mini Pile Drilling Rig 10m Depth With 36KW Kubota Engine Sany SY60C Excavator Chassis

RCQ-10C Hydraulic Mini Pile Drilling Rig 10m Depth With 36KW Kubota Engine Sany SY60C Excavator Chassis

10m Hydraulic Mini Pile Drilling Rig

36KW Hydraulic Mini Pile Drilling Rig

Mini Pile Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCQ-10C

Contact Us
Request A Quote
RCQ-10C Hydraulic Mini Pile Drilling Rig 10m Depth With 36KW Kubota Engine Sany SY60C Excavator Chassis
RCQ-10C Hydraulic Mini Pile Drilling Rig 10m Depth With 36KW Kubota Engine Sany SY60C Excavator Chassis RCQ-10C Hydraulic Mini Pile Drilling Rig 10m Depth With 36KW Kubota Engine Sany SY60C Excavator Chassis RCQ-10C Hydraulic Mini Pile Drilling Rig 10m Depth With 36KW Kubota Engine Sany SY60C Excavator Chassis RCQ-10C Hydraulic Mini Pile Drilling Rig 10m Depth With 36KW Kubota Engine Sany SY60C Excavator Chassis
Product Details
Drilling Depth (m):
10m
Drilling Diameter (mm):
300-1000m
Chassis:
Sany SY60C Excavator
Power Head Torque (KN.m):
35KN.m
Rotary Head Travel Distance:
1100mm
Rotary Speed (r/min):
10-45RPM
Highlight:

10m Hydraulic Mini Pile Drilling Rig

,

36KW Hydraulic Mini Pile Drilling Rig

,

Mini Pile Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Standard shipping
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price RCQ515M Mini Pile Drilling Rig Drilling Depth 15m Hydraulic Small Rotary Drilling Machine online Video

RCQ515M Mini Pile Drilling Rig Drilling Depth 15m Hydraulic Small Rotary Drilling Machine

Get Best Price
Good price Hydraulic Compact Mini Rotary Pile Drilling Rig For Small Scale Drilling Operations online Video

Hydraulic Compact Mini Rotary Pile Drilling Rig For Small Scale Drilling Operations

Get Best Price
Good price RCQ-10C Hydraulic Mini Pile Drilling Rig 10m Depth With 36KW Kubota Engine Sany SY60C Excavator Chassis online Video

RCQ-10C Hydraulic Mini Pile Drilling Rig 10m Depth With 36KW Kubota Engine Sany SY60C Excavator Chassis

Get Best Price
Good price RCQ-10C Hydraulic Mini Pile Drilling Rig 10m Depth With 10-45RPM R/Min Rotary Speed online Video

RCQ-10C Hydraulic Mini Pile Drilling Rig 10m Depth With 10-45RPM R/Min Rotary Speed

Get Best Price
Contact Us
Contact Now
Product Description

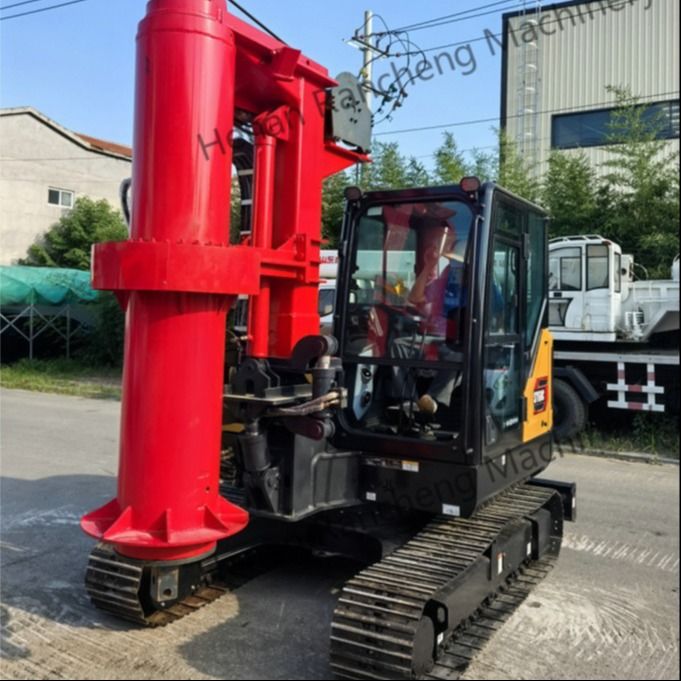

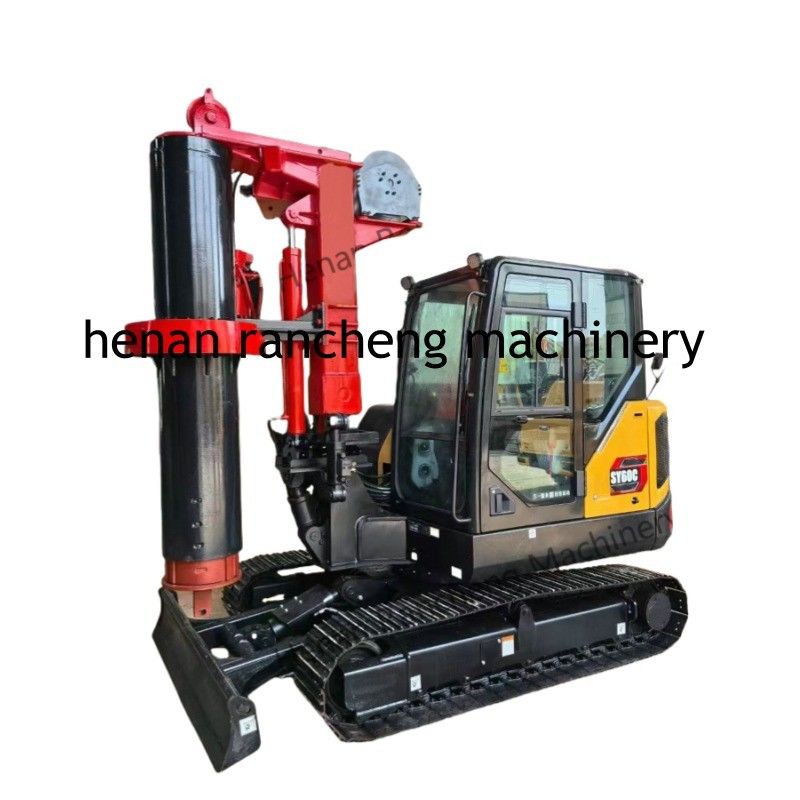

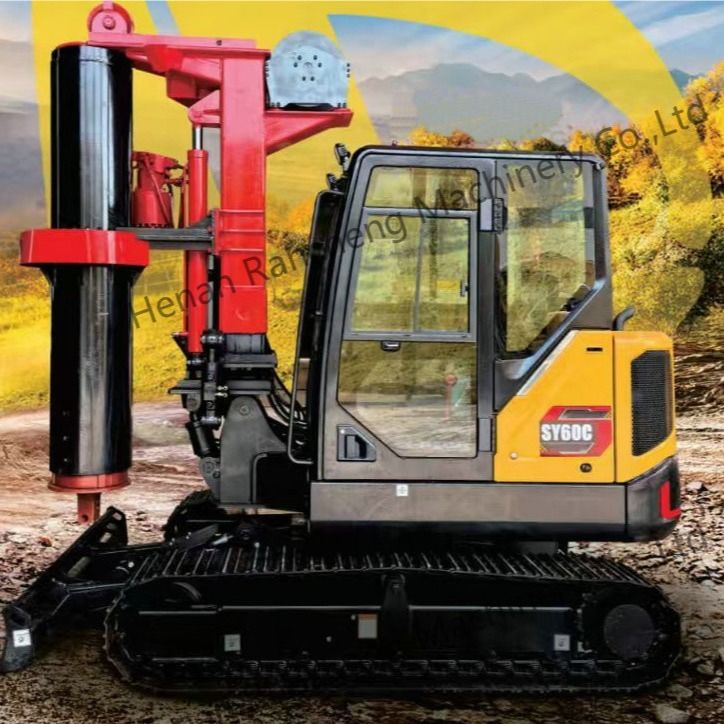

RCQ-10C Hydraulic Mini Pile Drilling Rig 10m Depth With 36KW Kubota Engine Sany SY60C Excavator Chassis

Product Description



The RCQ-10C hydraulic micro pile drilling rig is designed for pile drilling in limited and narrow spaces.
This rotary drilling rig is installed on the mainframe of the Sany SY60C excavator. By adjusting the working angle and working radius and selecting the appropriate drill bit, the maximum drilling diameter of the rig can reach 1000 mm.





Technical Parameters



Model RCQ-10C
Drilling depth (m) 10m
Drilling diameter (mm) 300-1000mm
Chassis Sany SY60C excavator
Diesel engine

Kubota engine V2607-DI-T0CF21

36KW
Rotary head
Power head torque (KN.m) 35KN.m
Rotary head travel distance 1100mm
Rotary speed (r/min) 10-45RPM
Rated lifting force 27KN
Rated pushing force 25KN
Winch
Main winch rated lifting force 38KN
Assisting winch rated lifting force 14KN
Chassis
Travel speed 3km/h
Max climbing gradient 30°
Chassis width 2000mm
Machine weight 9.3T
Machine transportation dimension 3450X2025X3400mm



Main advantages



1.RCQ-10C micro rotary drilling rig is a small diameter rotary drilling rig,
2This small pile driver has high drilling efficiency, construction site, flexible, convenient and efficient
3.The body size is moderate, easy to transport and use, low operating cost, it is an ideal choice for small contractors.
4. Another notable feature of this small pile driver is that the drill rod does not need to be disassembled during transportation, which saves the installation time of the rig at the construction site.



Application



This micro rotary drilling rig is the first choice for drilling in narrow spaces. It can easily enter places where large drilling rigs cannot enter for drilling operations, such as elevator rooms, inside buildings, under low eaves and low clearance sites. This model has been widely used in the construction of power pole pile foundations in narrow roadbeds of municipal, highway and electrified railways.






RCQ-10C Hydraulic Mini Pile Drilling Rig 10m Depth With 36KW Kubota Engine Sany SY60C Excavator Chassis 0RCQ-10C Hydraulic Mini Pile Drilling Rig 10m Depth With 36KW Kubota Engine Sany SY60C Excavator Chassis 1RCQ-10C Hydraulic Mini Pile Drilling Rig 10m Depth With 36KW Kubota Engine Sany SY60C Excavator Chassis 2RCQ-10C Hydraulic Mini Pile Drilling Rig 10m Depth With 36KW Kubota Engine Sany SY60C Excavator Chassis 3
