RCQ-10C Hydraulic Mini Pile Drilling Rig 10m Depth With 10-45RPM R/Min Rotary Speed

RCQ-10C Hydraulic Mini Pile Drilling Rig 10m Depth With 10-45RPM R/Min Rotary Speed

10m Hydraulic Mini Pile Drilling Rig

Hydraulic Mini Pile Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCQ-10C

Contact Us
Request A Quote
RCQ-10C Hydraulic Mini Pile Drilling Rig 10m Depth With 10-45RPM R/Min Rotary Speed
RCQ-10C Hydraulic Mini Pile Drilling Rig 10m Depth With 10-45RPM R/Min Rotary Speed RCQ-10C Hydraulic Mini Pile Drilling Rig 10m Depth With 10-45RPM R/Min Rotary Speed RCQ-10C Hydraulic Mini Pile Drilling Rig 10m Depth With 10-45RPM R/Min Rotary Speed RCQ-10C Hydraulic Mini Pile Drilling Rig 10m Depth With 10-45RPM R/Min Rotary Speed
Product Details
Drilling Depth (m):
10m
Drilling Diameter (mm):
300-1000m
Chassis:
Sany SY60C Excavator
Power Head Torque (KN.m):
35KN.m
Rotary Head Travel Distance:
1100mm
Rotary Speed (r/min):
10-45RPM
Highlight:

10m Hydraulic Mini Pile Drilling Rig

,

Hydraulic Mini Pile Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Standard shipping
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price RCQ515M Mini Pile Drilling Rig Drilling Depth 15m Hydraulic Small Rotary Drilling Machine online Video

RCQ515M Mini Pile Drilling Rig Drilling Depth 15m Hydraulic Small Rotary Drilling Machine

Get Best Price
Good price Hydraulic Compact Mini Rotary Pile Drilling Rig For Small Scale Drilling Operations online Video

Hydraulic Compact Mini Rotary Pile Drilling Rig For Small Scale Drilling Operations

Get Best Price
Good price RCQ-10C Hydraulic Mini Pile Drilling Rig 10m Depth With 36KW Kubota Engine Sany SY60C Excavator Chassis online Video

RCQ-10C Hydraulic Mini Pile Drilling Rig 10m Depth With 36KW Kubota Engine Sany SY60C Excavator Chassis

Get Best Price
Good price RCQ-10C Hydraulic Mini Pile Drilling Rig 10m Depth With 10-45RPM R/Min Rotary Speed online Video

RCQ-10C Hydraulic Mini Pile Drilling Rig 10m Depth With 10-45RPM R/Min Rotary Speed

Get Best Price
Contact Us
Contact Now
Product Description

RCQ-10C Hydraulic Mini Pile Drilling Rig 10m Depth With 10-45RPM R/Min Rotary Speed

Product Descriptionv

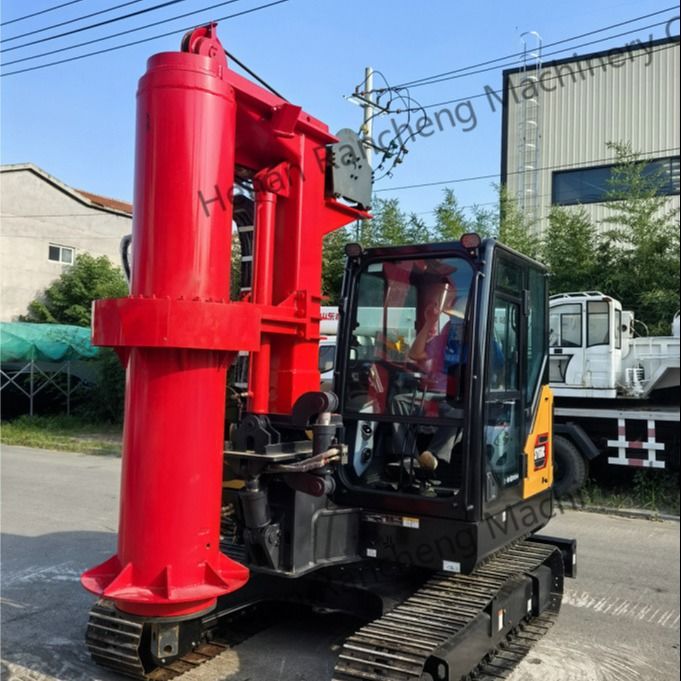

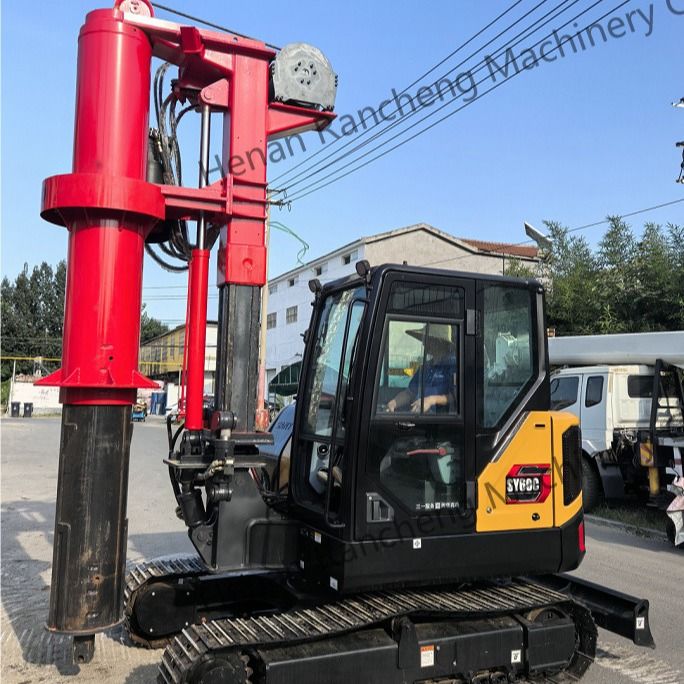

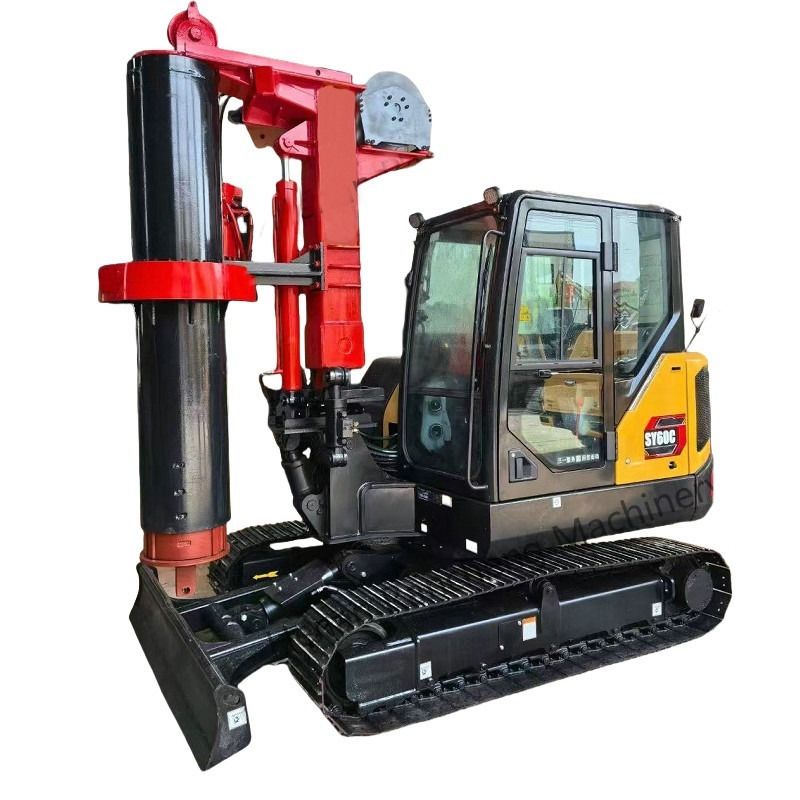

The RCQ-10C hydraulic micro pile drilling rig is designed for drilling piles in confined and narrow spaces.


This rotary drilling rig is installed on the main chassis of the Sany SY60C excavator. By adjusting the working angle and working radius and selecting the appropriate drill bit, the maximum drilling diameter of the well can reach 1000mm.



Technical Parameters



Model RCQ-10C
Drilling depth (m) 10m
Drilling diameter (mm) 300-1000mm
Chassis Sany SY60C excavator
Diesel engine

Kubota engine V2607-DI-T0CF21

36KW
Rotary head
Power head torque (KN.m) 35KN.m
Rotary head travel distance 1100mm
Rotary speed (r/min) 10-45RPM
Rated lifting force 27KN
Rated pushing force 25KN
Winch
Main winch rated lifting force 38KN
Assisting winch rated lifting force 14KN
Chassis
Travel speed 3km/h
Max climbing gradient 30°
Chassis width 2000mm
Machine weight 9.3T
Machine transportation dimension 3450X2025X3400mm



Main advantages



1. RCQ-10C micro rotary drilling rig is a small diameter rotary drilling rig.


2 This small pile driver has high drilling efficiency, flexible construction, convenient and efficient


3. The body size is moderate, easy to carry and operate, and has low operating costs. It is an ideal choice for small enterprises.


4. Another notable feature of this small drilling rig is that the drill rod does not need to be disassembled during transportation, which saves time when installing the drilling rig on the construction site.



Application



This rotary micro drill is ideal for drilling holes in tight spaces. It can easily access places that large drills cannot, such as elevators, inside buildings, under low eaves, and low open spaces. This model is widely used in the construction of narrow platform pole pile foundations for electrified cities, highways, and railway networks.






RCQ-10C Hydraulic Mini Pile Drilling Rig 10m Depth With 10-45RPM R/Min Rotary Speed 0RCQ-10C Hydraulic Mini Pile Drilling Rig 10m Depth With 10-45RPM R/Min Rotary Speed 1RCQ-10C Hydraulic Mini Pile Drilling Rig 10m Depth With 10-45RPM R/Min Rotary Speed 2RCQ-10C Hydraulic Mini Pile Drilling Rig 10m Depth With 10-45RPM R/Min Rotary Speed 3
