150m Hydraulic Water Well Drilling Machine For 17 - 31m³/Min Air Consumption

150m Hydraulic Water Well Drilling Machine For 17 - 31m³/Min Air Consumption

Air Consumption Water Well Drilling Machine

150m Hydraulic Water Well Drilling Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF150C

Contact Us
Request A Quote
Product Details
Name:
Water Well Drilling Machine
Model:
RCF150C
Bore Diameter:
90 - 300mm
Bore Depth:
150m
Air Consumption:
17 - 31m³/min
Air Pressure:
1.7 - 2.5Mpa
Rotary Speed:
40 - 65r/min
Dimension(L*W*H):
3500X1700X2250mm
Weight:
4500Kg
Diesel Engine:
42KW
Highlight:

Air Consumption Water Well Drilling Machine

,

150m Hydraulic Water Well Drilling Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

150m Hydraulic Water Well Drilling Machine For 17 - 31m³/Min Air Consumption

Product Description

The RCF150C Hydraulic Water Well Drilling Rig is an innovative, high-performance machine designed to enhance efficiency and speed in drilling projects. Equipped with advanced hydraulic , it delivers optimized performance while minimizing environmental impact, making it a sustainable choice for modern applications. Its robust construction and versatile design allow seamless adaptation to diverse environments, including harsh weather and challenging terrains. Ideal for resource exploration, hydrogeological surveys, civil engineering, and large-scale natural gas projects, the RCF150C combines cutting-edge innovation with operational reliability. By prioritizing efficiency, durability, and eco-friendliness, it redefines drilling capabilities, offering new possibilities for accessing vital resources with precision and speed.

Technical Parameters

Bore diameter(Hammer) 90-300mm
Bore depth 150m
Air consumption 17-31m³/min
Air pressure 1.7-2.5Mpa
Pipe diameter 76mm/89mm
Pipe length 3m
Push force 4T
Lifting force 12T
Lifting speed 2.5m/min
feeding speed 0.5-5m/min
Fast lifting speed 18m/min
Fast feeding speed 35m/min
Max torque of rotary 3500-3800Nm
Rotary speed 40-65r/min
Mud Pump flow 200L/min (option)
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 3500×1700×2250MM
Weight 3700kg
Diesel engine 42KW


Product advantages


1. Small and lightweight design
The drilling rig is small in size and light in weight, easy to transport and install, and suitable for use in different terrain conditions.
2. Modular structure
The drilling rig consists of three parts: the main engine, the pump station and the control console, which is easy to maintain and operate.
3. Flexible drilling angle
Drilling can be carried out in the range of 0-90 degrees to meet different drilling needs.
4. Mechanized operation
The mechanized twisting and unloading of the drill rod reduces the labor intensity of workers and improves work efficiency.
5. Box feed rack design
The box feed rack is used to tighten the clamp and rotate the power head for drilling. The oil cylinder is responsible for pushing and recovering the drilling tool, saving space.
6. Centralized console operation
The linkage function is realized through the centralized console, which is simple and safe to operate, and has a stepless speed change function.
7. Hollow shaft design
The hollow shaft design makes the drill rod length not limited by the drilling rig stroke, and drilling can be carried out at any inclination angle within 360°.


Machine pictures

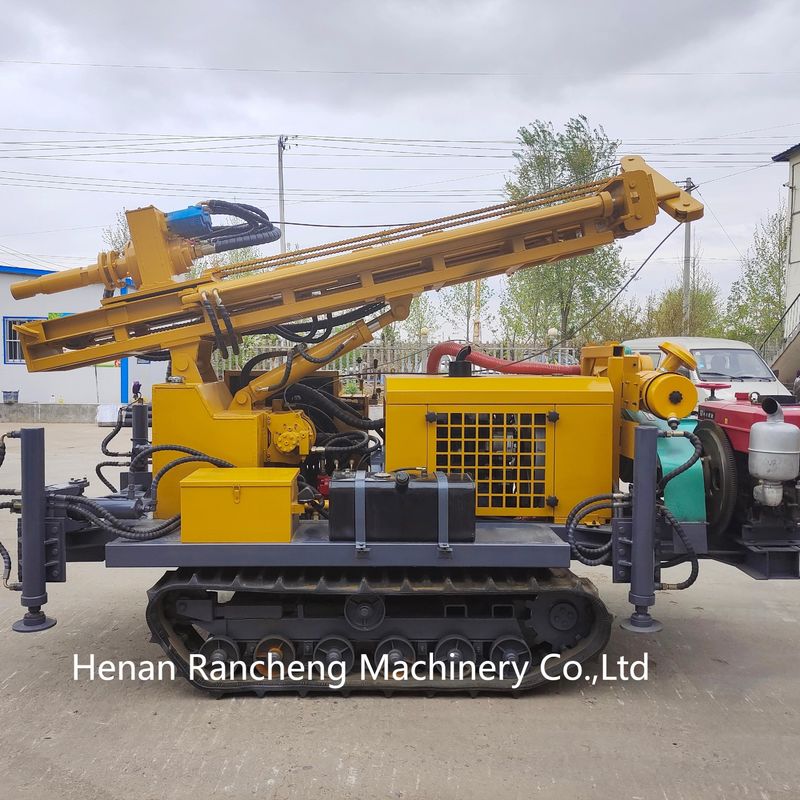

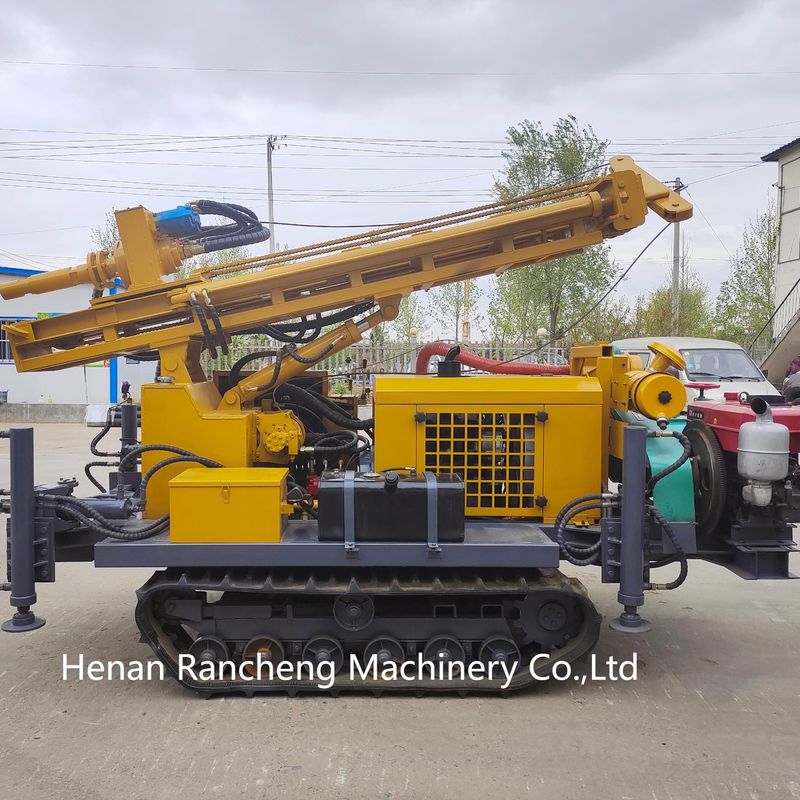

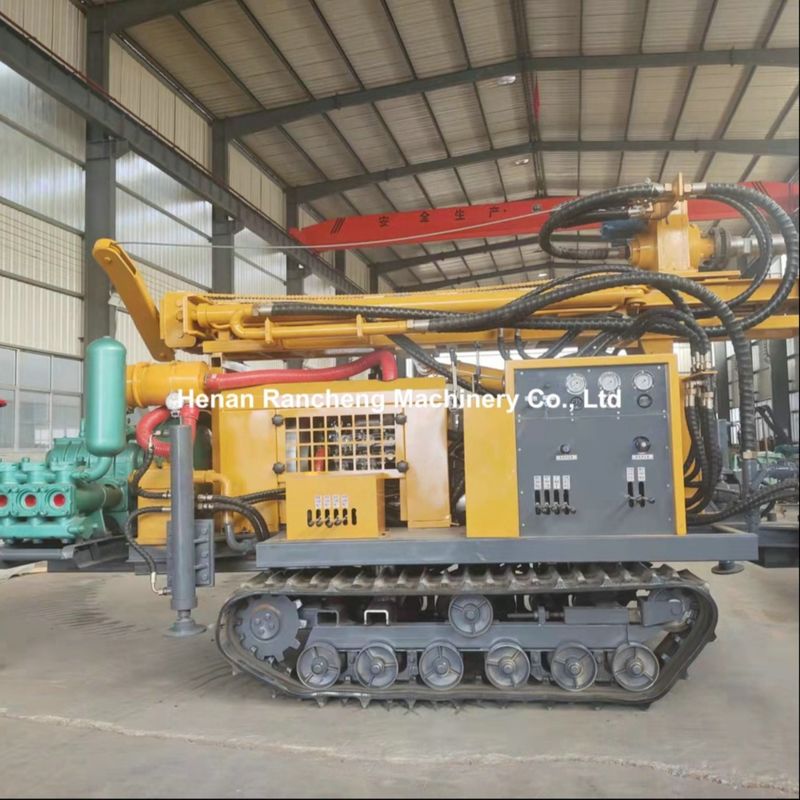

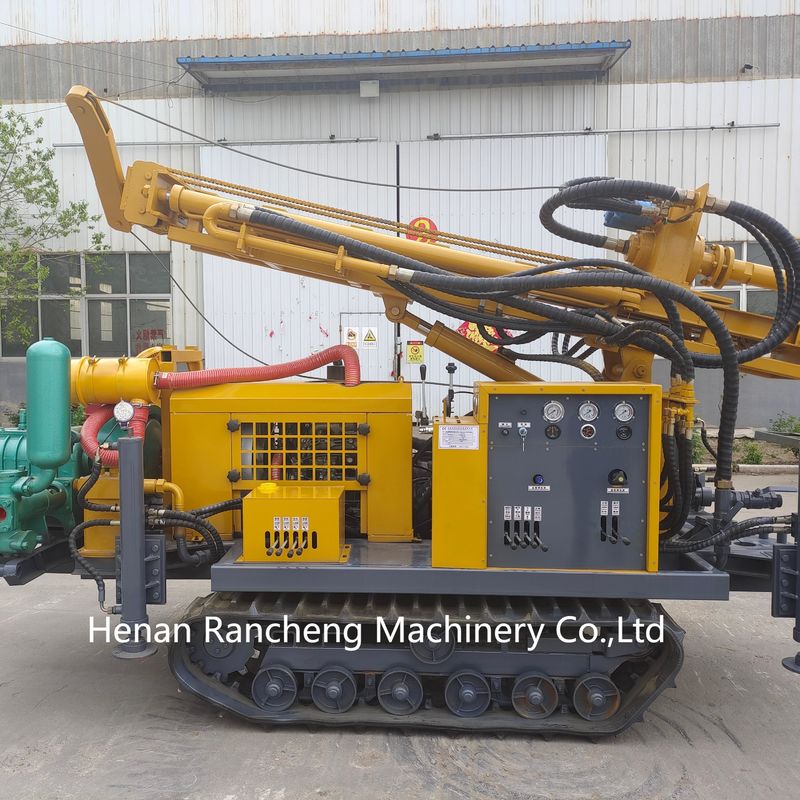

150m Hydraulic Water Well Drilling Machine For 17 - 31m³/Min Air Consumption 0150m Hydraulic Water Well Drilling Machine For 17 - 31m³/Min Air Consumption 1150m Hydraulic Water Well Drilling Machine For 17 - 31m³/Min Air Consumption 2150m Hydraulic Water Well Drilling Machine For 17 - 31m³/Min Air Consumption 3
