RCJ150RC Hydraulic Engineer Drilling Rig For 125W Engine Power 8000N.M Max Output Torque

RCJ150RC Hydraulic Engineer Drilling Rig For 125W Engine Power 8000N.M Max Output Torque

8000N.M RCJ150RC

Hydraulic Engineer RCJ150RC

125W Engine Power RCJ150RC

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCJ150RC

Contact Us
Request A Quote
Product Details
Name:
RCJ150RC Hydraulic Engineer Drilling Rig
Nominal Drill Depth:
150m
Bore Hole Diameter:
110-250mm
Max Output Torque:
8000N.m
Engine Power:
125kw
Highlight:

8000N.M RCJ150RC

,

Hydraulic Engineer RCJ150RC

,

125W Engine Power RCJ150RC

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 40" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

RCJ150RC Hydraulic Engineer Drilling Rig For 125W Engine Power 8000N.M Max Output Torque

Product Description



RCJ150RC drilling rig is a crawler-type, fully hydraulically driven electric head drilling rig, which can be used to drill vertical or inclined holes. It can be applied to the following drilling processes: drilling rig, twist drill, perforator, mud circulation drilling, ODEX down-the-hole hammer drilling tools, rope medium circulation drilling by replacing the drill core rotating head.



the drilling rig is able to resolve the difficulty of boring in the soft and loose cover ground condition, the screes and gravels area and also the fragmentation stratum according to different drilling techniques ways. Therefore, it is widely used in varieties of the boring work.



The drilling rig is mainly applied in RC drill/water well and observation well, geothermal hole,mini foundation pile hole.





The rig is equipped with pipe puller device which can meet the requirements of twisting the drill rod, and reduces the labor strength.The rig is crawler mounted, which makes the machine move easily.Important hydraulic parts on the drilling rig are selected from the world high-end technical products or well-known brand products, and the corresponding monitoring system is configured to ensure the good reliability of the system and the low failure rate.



Product Specifications



Model RCJ150RC
Drill rig weight(crawler mounted) kg 9000
Engine Power kW 125
Length × Width × Height (normal) mm 6750x2200x2950
Ambient Temperature Range °C -10~38
Drill Ability
Nominal Drill Depth m 150
End-hole Diameter mm 110-250
Drill angle ° -10-90
Horizontal hole height m 1.85-2.8
Drill head output
Max Output Torque N.m 8000
Output Rotation Speed(continuity) rpm 30 / 60, 54/108rpm



Output Rotation Speed(interval)

rpm

62 / 124

105/210rpm

Feeding mm 3500
Thrust Force kN 45
Lifting Capacity kN 65
Pipe-puller Device Output
Output Rotation Speed rpm 40
Max Output Torque N.m 30000
Hole-through Diameter mm 370
Auxiliary Winch
Pull Force of the first Layer kN 11
Rope Diameter mm 14
Rope Capacity m 60
Engine(Cummins) 6BTA5.9-C125
Power kW 125
Rotary Speed (Max.) rpm 2200
Track Chassis Base
Walk Speed Km/h 1.2
Unit Pressure MPa <0.05
Climb Ability ° ≯20



Application



The drilling rig can solve the drilling problems of soft overburden, crushed stone, gravel and fractured formations according to different drilling processes, and is widely used in various drilling operations.



The drilling rig is mainly used for reverse circulation drilling/water wells and observation wells, geothermal holes, small foundation pile holes, etc.

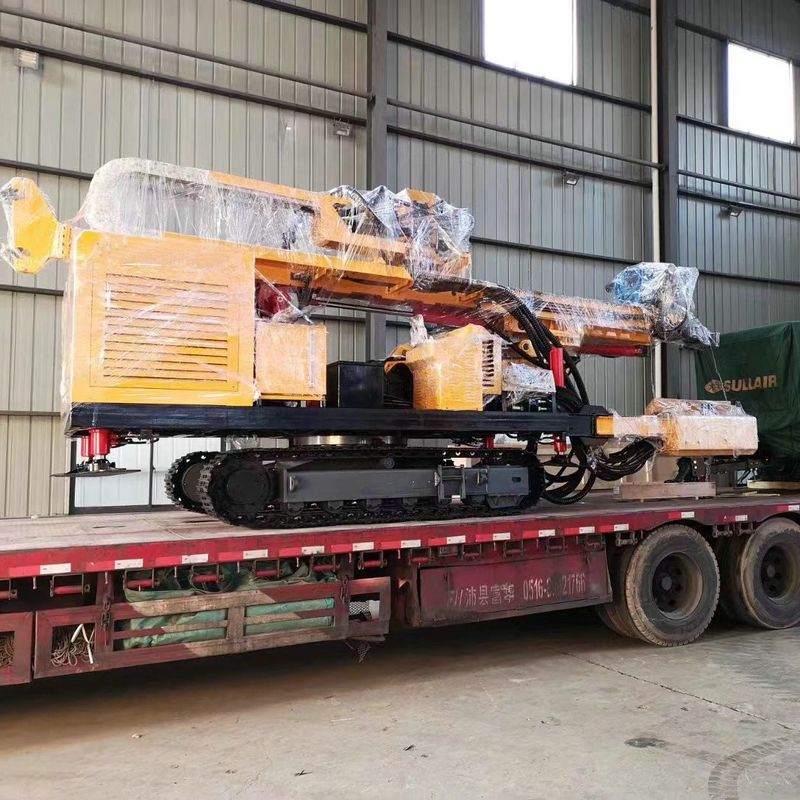

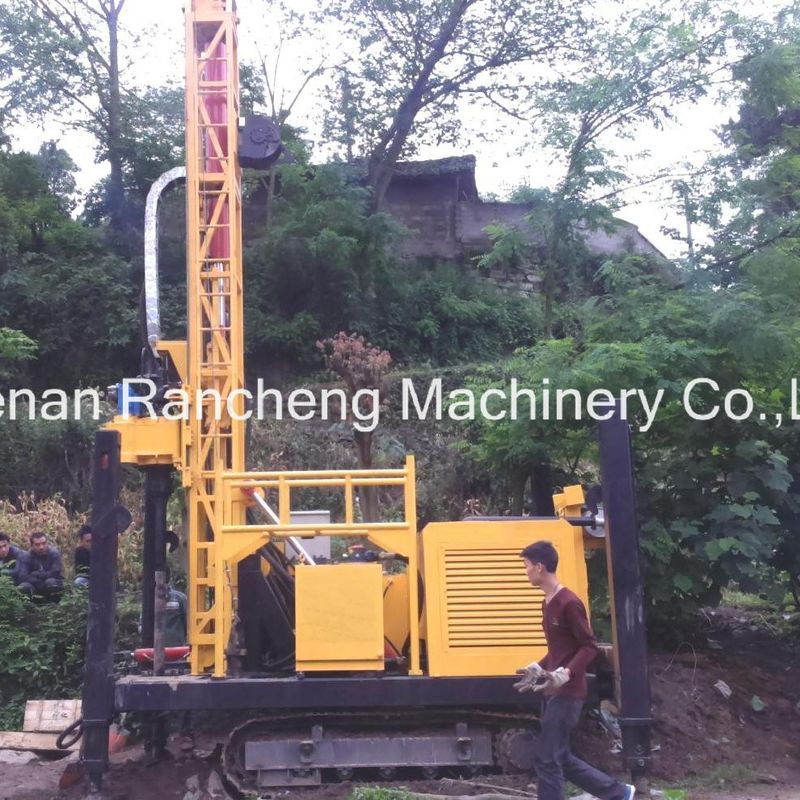

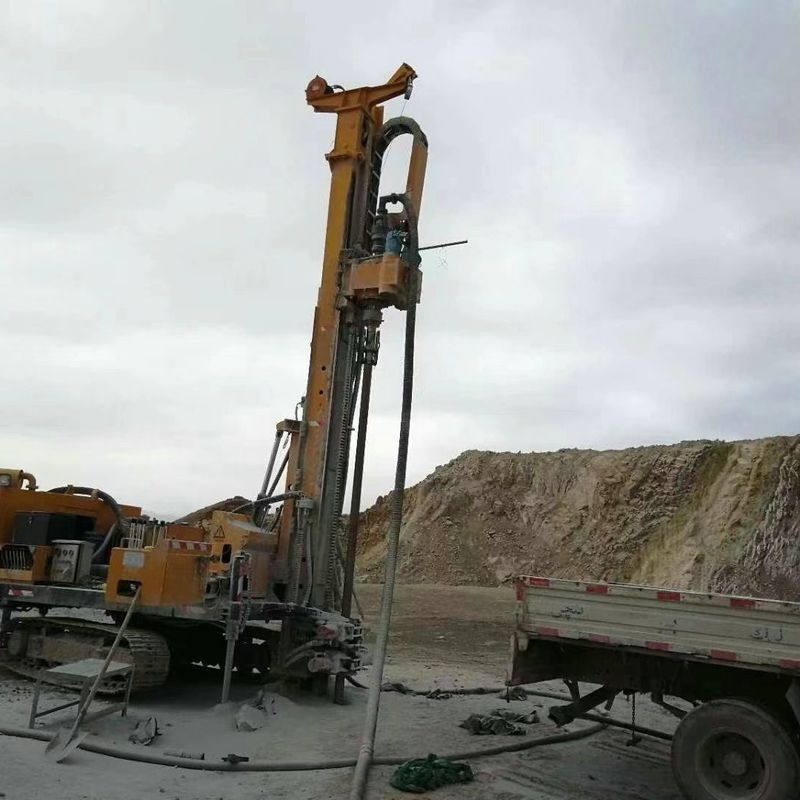

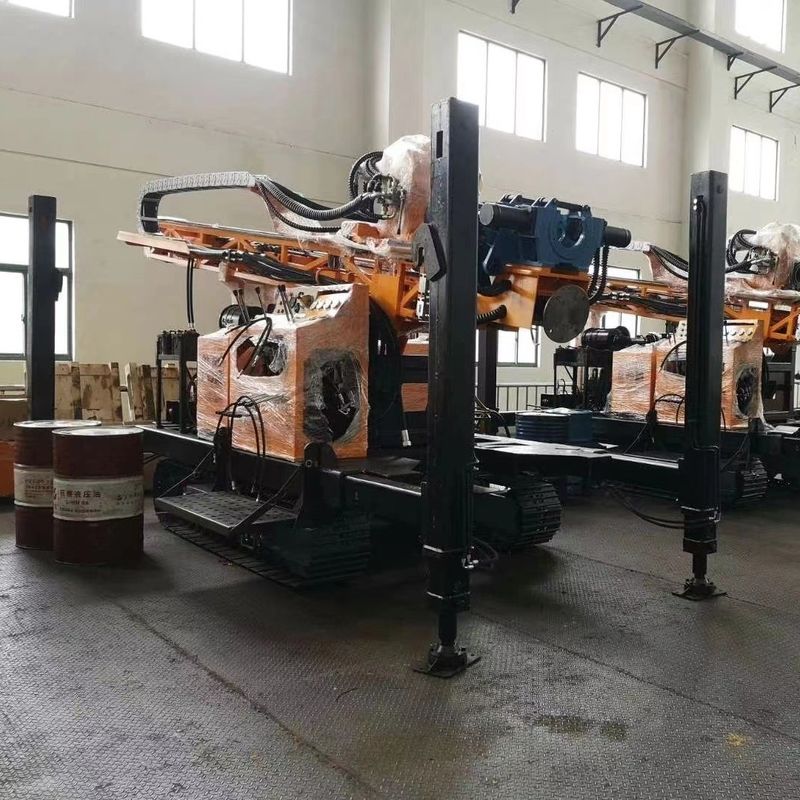

Product Image



RCJ150RC Hydraulic Engineer Drilling Rig For 125W Engine Power 8000N.M Max Output Torque 0

RCJ150RC Hydraulic Engineer Drilling Rig For 125W Engine Power 8000N.M Max Output Torque 1RCJ150RC Hydraulic Engineer Drilling Rig For 125W Engine Power 8000N.M Max Output Torque 2
