20m Hydraulic Integrated DTH Drilling Rig RCZ412B-1 Model 58KW Yuchai Engine With Dust Collector

20m Hydraulic Integrated DTH Drilling Rig RCZ412B-1 Model 58KW Yuchai Engine With Dust Collector

Dust Collector DTH Drilling Rig

20m Hydraulic DTH Drilling Rig

58KW DTH Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCZ412B-1

Contact Us
Request A Quote
20m Hydraulic Integrated DTH Drilling Rig RCZ412B-1 Model 58KW Yuchai Engine With Dust Collector
20m Hydraulic Integrated DTH Drilling Rig RCZ412B-1 Model 58KW Yuchai Engine With Dust Collector 20m Hydraulic Integrated DTH Drilling Rig RCZ412B-1 Model 58KW Yuchai Engine With Dust Collector 20m Hydraulic Integrated DTH Drilling Rig RCZ412B-1 Model 58KW Yuchai Engine With Dust Collector 20m Hydraulic Integrated DTH Drilling Rig RCZ412B-1 Model 58KW Yuchai Engine With Dust Collector
Product Details
Model:
RCZ412B-1
Hole Depth:
20m
Hole Diameter:
115mm
Power:
58KW
Drill Pipe Sizes:
60*2,000 Mm
Highlight:

Dust Collector DTH Drilling Rig

,

20m Hydraulic DTH Drilling Rig

,

58KW DTH Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Standard shipping
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price 20m Hydraulic DTH Blasthole Hole Drilling Rig 162KW Yuchai 6800KG online Video

20m Hydraulic DTH Blasthole Hole Drilling Rig 162KW Yuchai 6800KG

Get Best Price
Good price Integrated Surface DTH Drilling Rig Blast Hole Drill Rig Machine For Mine online Video

Integrated Surface DTH Drilling Rig Blast Hole Drill Rig Machine For Mine

Get Best Price
Good price 20m Hydraulic Integrated DTH Drilling Rig RCZ412B-1 Model 58KW Yuchai Engine With Dust Collector online Video

20m Hydraulic Integrated DTH Drilling Rig RCZ412B-1 Model 58KW Yuchai Engine With Dust Collector

Get Best Price
Good price Automatic Blast Hole Drilling Machine 20m Depth 115mm Diameter For 58KW Power online Video

Automatic Blast Hole Drilling Machine 20m Depth 115mm Diameter For 58KW Power

Get Best Price
Contact Us
Contact Now
Product Description

20m Hydraulic Integrated DTH Drilling Rig RCZ412B-1 Model 58KW Yuchai Engine With Dust Collector

Product Description

RCZ412B-1/RCZ412B-1 is a new generation of split open-pit down-the-hole (DTH) mining drill rig. The drill rig has upgraded operating platform, traveling parts, hydraulic system, feed beam and rotating head. The piston traveling motor greatly improves the working life of the traveling mechanism. The upgraded operating platform can be controlled by one operator instead of two operators, which improves work efficiency and reduces drilling costs at the same time.

Technical data

Product Name RCZ412B-1 Separated DTH Surface drill Rig
Power 58KW
Hole Depth 20m
Drill pipe Sizes 60*2,000 mm
Hole Diameter 90-115 mm
Climbing angles(°) 25°
Rotation torque ( Max.) 1,650 N.m
Rotation Speed 100-220 rpm
Feed Type Cylinder/Chain
Total Weight 3850KG
Transportation Dimensions(L×W×H) 4450x2080x2460mm



Application



this hydraulic drilling rig is widely used for open pit mining blasthole drilling ,quarry blasthole drilling , highway blasthole drilling , water conservancy, power station construction , railway and other construction drilling

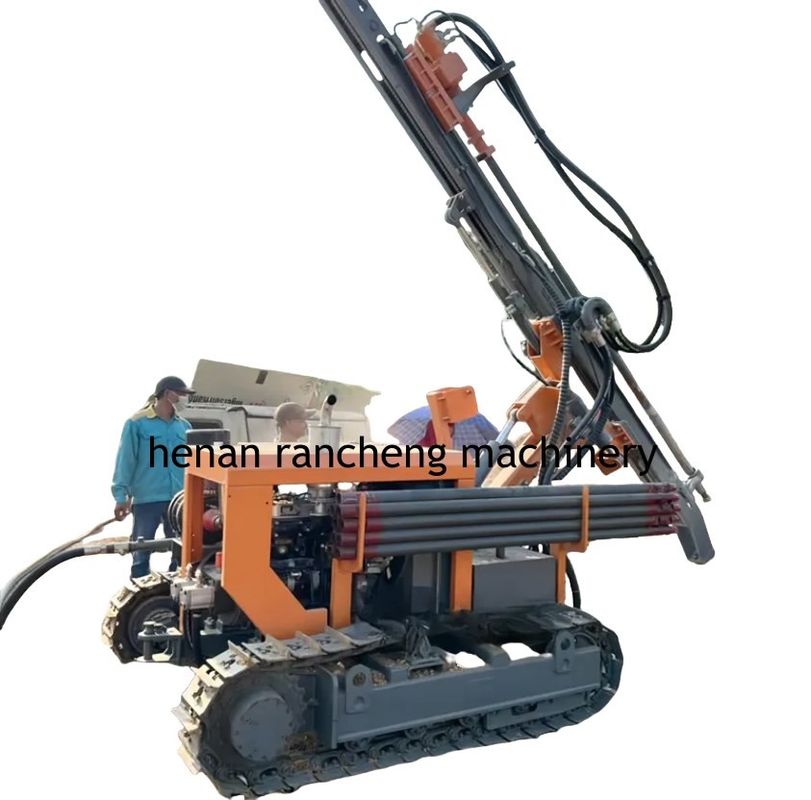

20m Hydraulic Integrated DTH Drilling Rig RCZ412B-1 Model 58KW Yuchai Engine With Dust Collector 0

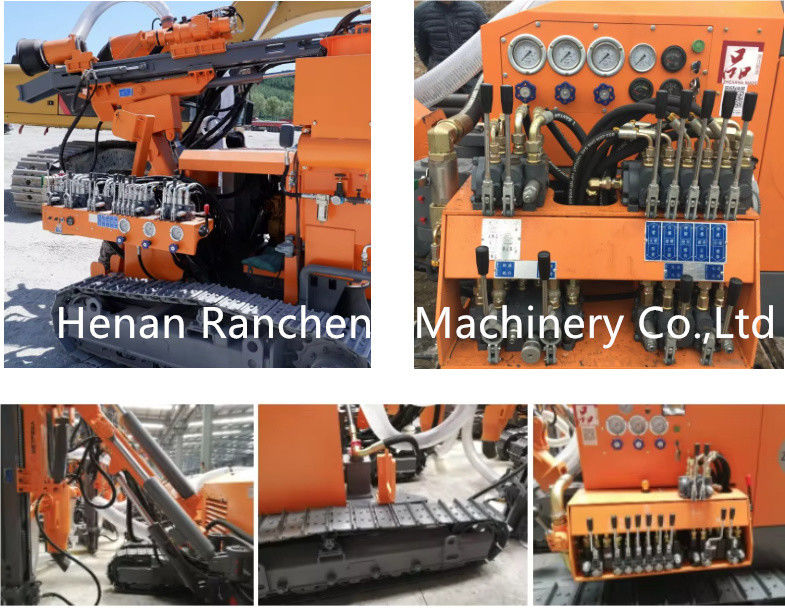

20m Hydraulic Integrated DTH Drilling Rig RCZ412B-1 Model 58KW Yuchai Engine With Dust Collector 1

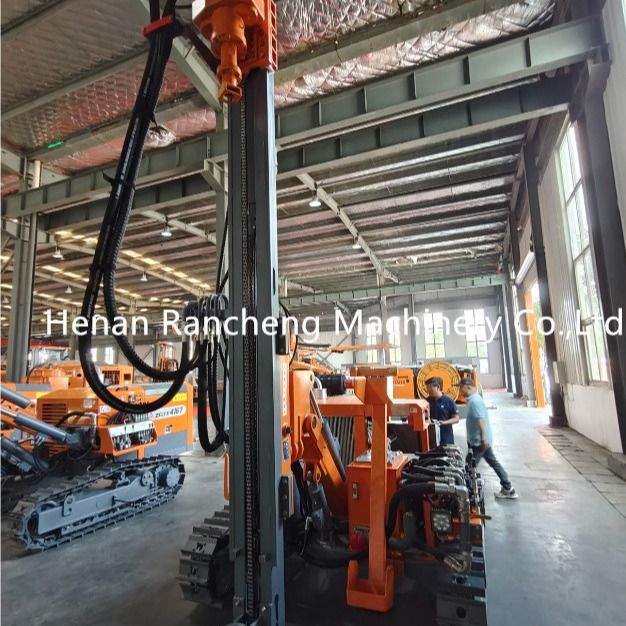

20m Hydraulic Integrated DTH Drilling Rig RCZ412B-1 Model 58KW Yuchai Engine With Dust Collector 2

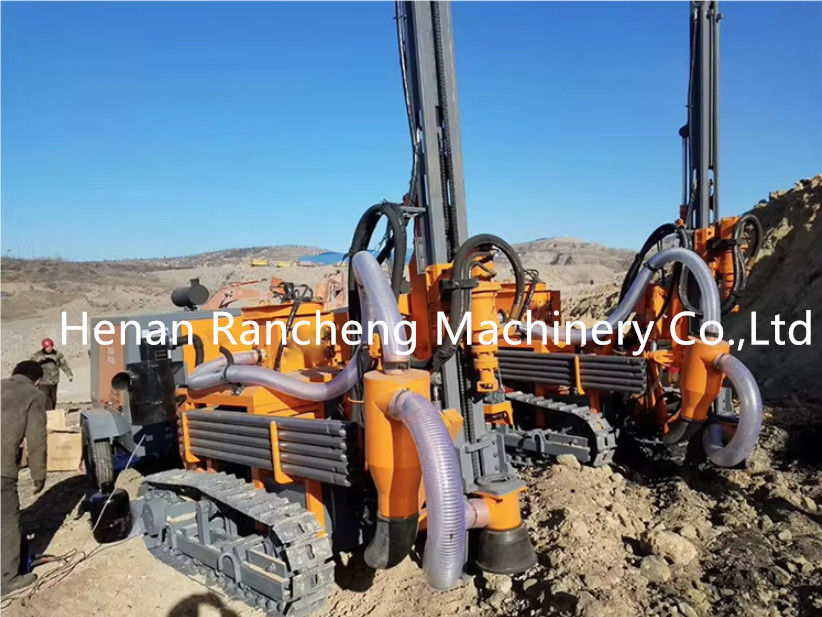

20m Hydraulic Integrated DTH Drilling Rig RCZ412B-1 Model 58KW Yuchai Engine With Dust Collector 3



20m Hydraulic Integrated DTH Drilling Rig RCZ412B-1 Model 58KW Yuchai Engine With Dust Collector 4



20m Hydraulic Integrated DTH Drilling Rig RCZ412B-1 Model 58KW Yuchai Engine With Dust Collector 5
