RCQ-10C Mini Hydraulic Rotary Piling Rig Kubota Diesel Engine 2000mm Chassis Width

RCQ-10C Mini Hydraulic Rotary Piling Rig Kubota Diesel Engine 2000mm Chassis Width

Mini Hydraulic Rotary Piling Rig

Hydraulic Rotary Piling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCQ-10C

Contact Us
Request A Quote
Product Details
Model:
RCQ-10C
Name:
Mini Rotary Piling Rig
Depth:
10m
Diameter:
1000mm
Machine Weight:
9.3T
Chassis Width(mm):
2000
Highlight:

Mini Hydraulic Rotary Piling Rig

,

Hydraulic Rotary Piling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Standard shipping
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

RCQ-10C Mini Hydraulic Rotary Piling Rig Kubota Diesel Engine 2000mm Chassis Width

Product Description

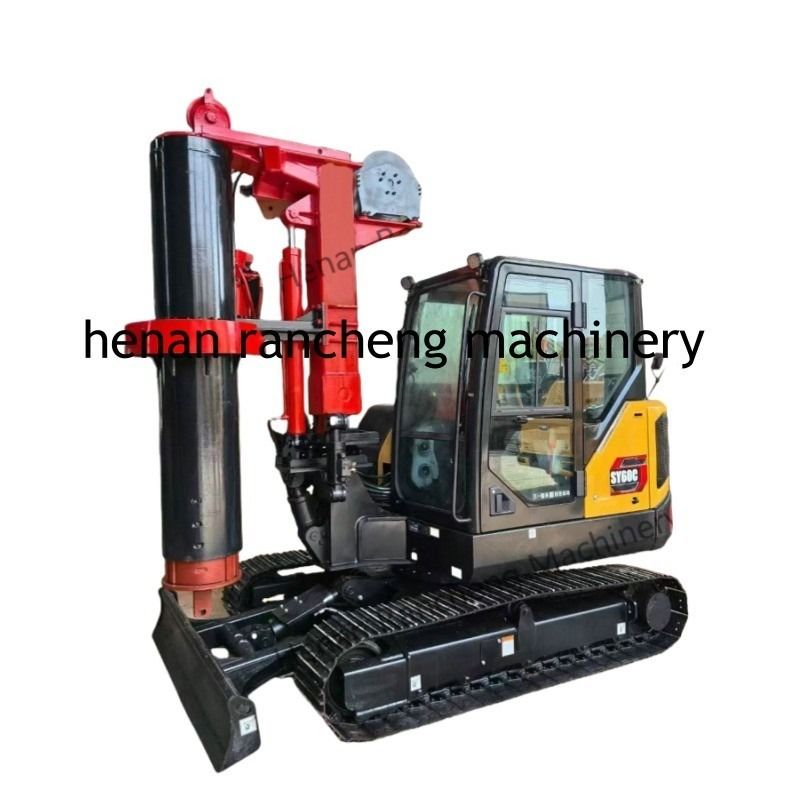

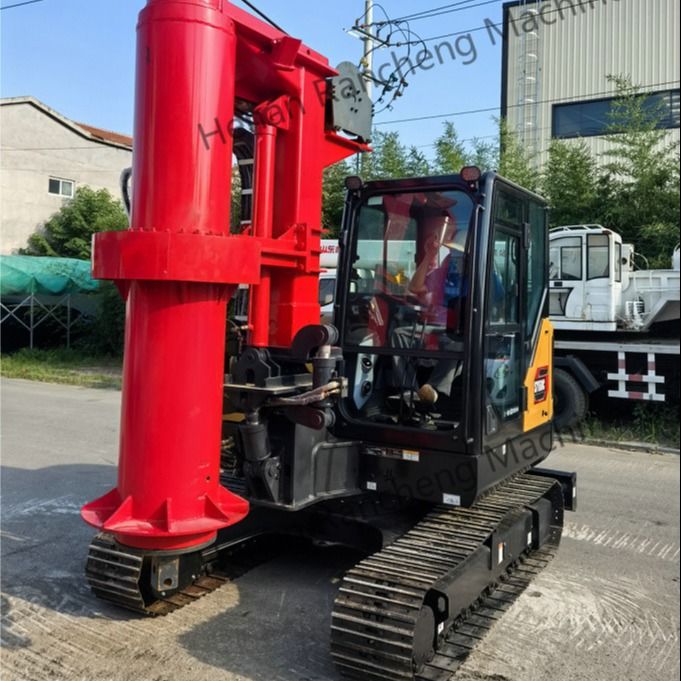

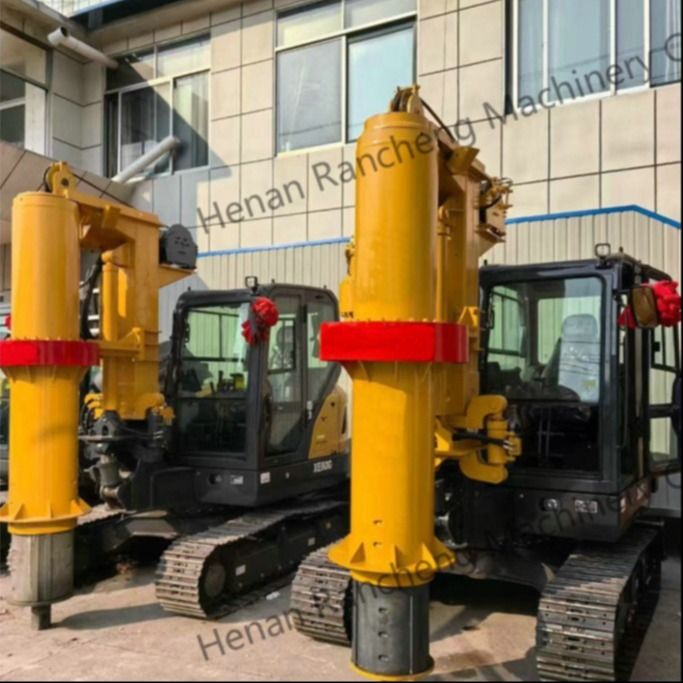

The RCQ-10C is a compact and efficient hydraulic rotary drill rig designed for a variety of piling and drilling applications. Equipped with a 36 kW Kubota V2607-DI-T0CF21 diesel engine, it provides reliable and stable performance in harsh environments. Its drilling depth can reach 10 meters, and the drilling diameter ranges from 300 mm to 1000 mm, which can meet the needs of different projects.

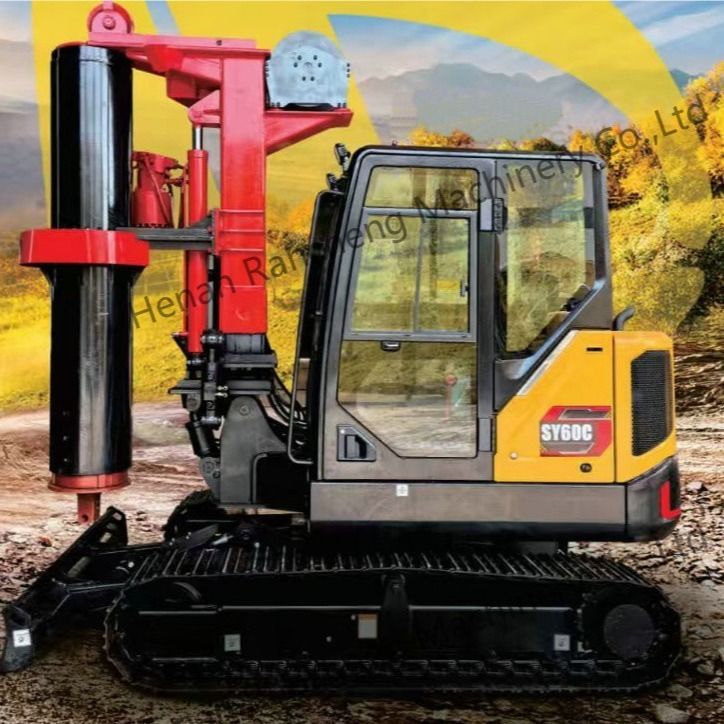

The drill rig adopts the Sany SY60C excavator chassis, which ensures stability and maneuverability. Its rotary head torque is 35 kN·m, the travel distance is 1100 mm, and the rotation speed is 10-45 rpm, which can provide flexibility in different drilling conditions. The drill is equipped with a rated lifting force of 27 kN and a thrust of 25 kN, which can efficiently complete difficult tasks.



The main winch has a rated lifting force of 38kN, and the auxiliary winch can withstand a maximum of 14kN, ensuring smooth lifting and lowering operations during drilling. The chassis has a travel speed of 3 km/h and can overcome slopes of up to 30°, making it easy to traverse rough terrain.



The RCQ-10C weighs 9.3 tonnes and has transport dimensions of 3450 x 2025 x 3400 mm, making it compact and easy to transport. The platform is ideal for small to medium-sized projects, offering outstanding performance, ease of operation and cost-effectiveness to contractors in confined spaces and complex drilling environments.



Technical Parameters



Model RCQ-10C
Drilling depth (m) 10m
Drilling diameter (mm) 300-1000mm
Chassis Sany SY60C excavator
Diesel engine

Kubota engine V2607-DI-T0CF21

36KW

Rotary head
Power head torque (KN.m) 35KN.m
Rotary head travel distance 1100mm
Rotary speed (r/min) 10-45RPM
Rated lifting force 27KN
Rated pushing force 25KN
Winch
Main winch rated lifting force 38KN
Assisting winch rated lifting force 14KN
Chassis
Travel speed 3km/h
Max climbing gradient 30°
Chassis width 2000mm
Machine weight 9.3T
Machine transportation dimension 3450X2025X3400mm



Main advantages

  • Space-Saving Design: It operates in narrow spaces like elevator shafts, building interiors, and low-clearance areas.



  • High Efficiency: Maximum drilling diameter of 1000mm with rapid construction speed.
