1400kg Portable Diesel Screw Air Compressor 55KW For 8Bar Work Pressure

1400kg Portable Diesel Screw Air Compressor 55KW For 8Bar Work Pressure

55KW Portable Diesel Screw Air Compressor

8Bar Portable Diesel Screw Air Compressor

1400kg Portable Diesel Screw Air Compressor

Place of Origin:

China

Brand Name:

Kaishan

Certification:

CE, ISO 9001:2000

Model Number:

KSCY220/8

Contact Us
Request A Quote
1400kg Portable Diesel Screw Air Compressor 55KW For 8Bar Work Pressure
1400kg Portable Diesel Screw Air Compressor 55KW For 8Bar Work Pressure 1400kg Portable Diesel Screw Air Compressor 55KW For 8Bar Work Pressure 1400kg Portable Diesel Screw Air Compressor 55KW For 8Bar Work Pressure 1400kg Portable Diesel Screw Air Compressor 55KW For 8Bar Work Pressure
Product Details
Name:
Drilling Air Compressor
Model:
KSCY220/8
Air Capacity:
6m³/min
Work Pressure(:
8Bar
Dimension:
2175*1760*1785mm
Weight:
1400kg
Compression Stage:
Single
Engine Model No.:
Wuxi Engine
Highlight:

55KW Portable Diesel Screw Air Compressor

,

8Bar Portable Diesel Screw Air Compressor

,

1400kg Portable Diesel Screw Air Compressor

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price KAISHAN LGCY Diesel Small Screw Air Compressor for Mining and Water Well Drilling online Video

KAISHAN LGCY Diesel Small Screw Air Compressor for Mining and Water Well Drilling

Get Best Price
Good price 1107CFM 25bBar Diesel Engine Screw Compressors Portable Air Compressors For 2.5-1.8 Mpa Pressure online Video

1107CFM 25bBar Diesel Engine Screw Compressors Portable Air Compressors For 2.5-1.8 Mpa Pressure

Get Best Price
Good price 1400kg Portable Diesel Screw Air Compressor 55KW For Single Compression Stage online Video

1400kg Portable Diesel Screw Air Compressor 55KW For Single Compression Stage

Get Best Price
Good price 1107CFM 25bBar Diesel Engine Screw Compressors Portable Air Compressors For Construction Work Mining Industry online Video

1107CFM 25bBar Diesel Engine Screw Compressors Portable Air Compressors For Construction Work Mining Industry

Get Best Price
Contact Us
Contact Now
Product Description

1400kg Portable Diesel Screw Air Compressor 55KW For 8Bar Work Pressure


Machine Introduction


The KSCY220/8 is a trailer-type portable screw air compressor designed for heavy-duty industrial applications. With an air capacity of 220 CFM (6 m³/min) and a working pressure of 8 bar (116 psi), it is powered by a reliable 75 HP Xichai diesel engine, ensuring robust performance in demanding environments. This machine is ideal for industries such as highways, railways, mining, water conservancy, shipbuilding, urban construction, energy, and military operations.


Technical Parameters

KSCY-220/8 Diesel Driven portable Screw Air Compressor
Air compressor
Model No: KSCY-220/8
Air capacity(m³/min/cfm) 6 (220)
Work pressure(Bar/Psig) 8 (116)
Compression Stage Single
Diesel Engine
Engine Model No. Wuxi engine
Rated RPM (r/min) 1800
Unload RPM(r/min) 1400
Rated Power (KW/hp) 55 (75)
Fuel Capacity(L) 130
Package
Noise level db (a) 80±3
Outlet connection G3/4×1,G1 1/2×1
Wheel size * Qty 6.5-16x4
Dimension/mm 2175*1760*1785
Weight(KG) 1400


Specific performance


1.High Efficiency & Reliability

Equipped with a large-diameter rotor airend directly coupled to the diesel engine (no reduction gear), ensuring low RPM operation, minimal vibration, and extended lifespan.

Modulation Control System: Automatically adjusts air delivery and engine RPM based on demand, reducing fuel consumption by up to 40% compared to conventional systems.



2.Low Noise & Energy-Saving Design



80±3 dB(A) noise level with vibration-dampening technology for quieter operation.

Low fuel consumption and a full protection system enhance outdoor usability and energy efficiency.



3.Premium Diesel Engine Options



Compatible with renowned engines such as Cummins, Yuchai, Steyr, and Caterpillar, meeting European emission standards for eco-friendly performance.

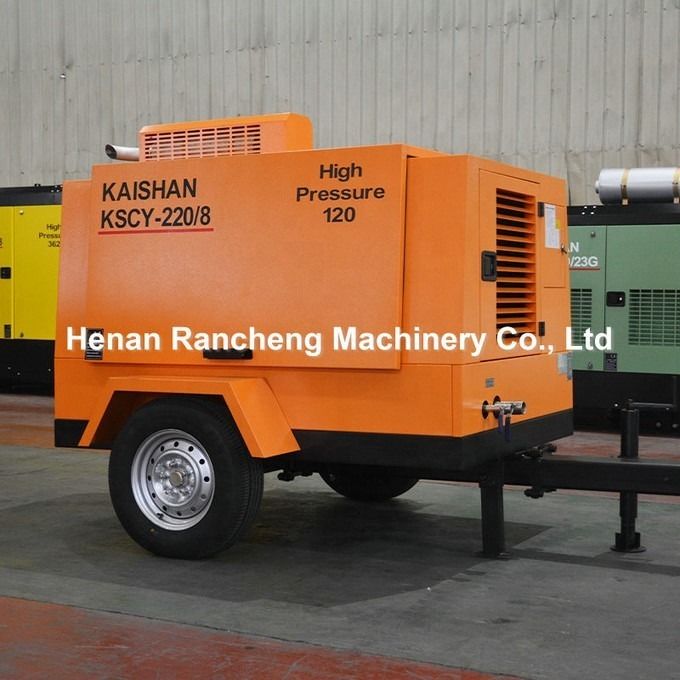

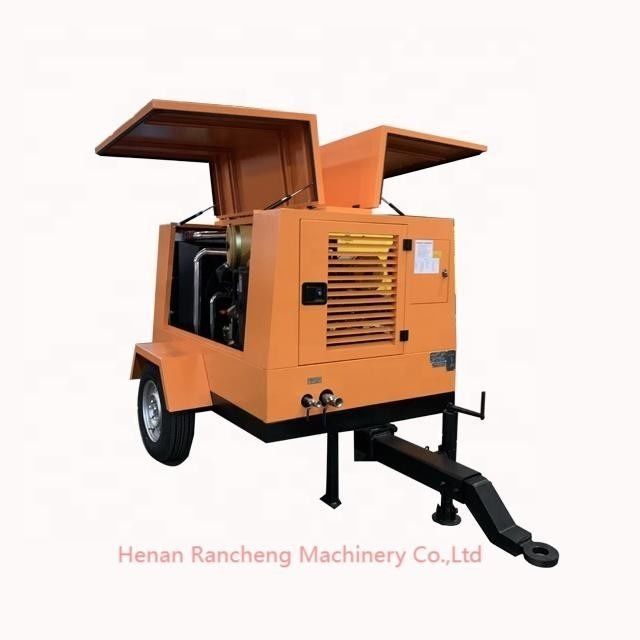

Machine Pictures

1400kg Portable Diesel Screw Air Compressor 55KW For 8Bar Work Pressure 01400kg Portable Diesel Screw Air Compressor 55KW For 8Bar Work Pressure 11400kg Portable Diesel Screw Air Compressor 55KW For 8Bar Work Pressure 21400kg Portable Diesel Screw Air Compressor 55KW For 8Bar Work Pressure 3
