Automatic Imaging Geophysical Survey Equipment with Triple Screen Interoperability

Automatic Imaging Geophysical Survey Equipment with Triple Screen Interoperability

Interoperability Geophysical Survey Equipment

Triple Screen Geophysical Survey Equipment

Automatic Imaging Geophysical Survey Equipment

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RC-M300/500/1200/2000/3000-16D

Contact Us
Request A Quote
Product Details
Channel Input:
16 Channels Input Simultaneously, Maximum Electrode Spacing 2.5m
Channel Options:
1-14
Depth Options:
100/200/300/400/500/600/800/1200/2000/3000m
Scan Interval:
10-80
Connections:
Serial Port, Wifi, Bluetooth 4.0, USB (optional 4G)
Display:
10.1-inch IPS Wide-angle 178° Visual Touch Screen (1024×600)
Highlight:

Interoperability Geophysical Survey Equipment

,

Triple Screen Geophysical Survey Equipment

,

Automatic Imaging Geophysical Survey Equipment

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Standard shipping
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

Automatic Imaging Geophysical Survey Equipment with Triple Screen Interoperability



Product Description:



The detection system is equipped with advanced anti-interference solutions. Through multiple protection mechanisms (such as frequency band optimization technology and intelligent digital signal processing), it can maintain excellent data stability and measurement accuracy even in urban areas with complex electromagnetic environments, industrial areas with strong interference, or remote areas with weak signals.



The equipment is equipped with intelligent analysis functions, which can generate high-definition detection maps in real time, intuitively display abnormal areas, and provide scientific basis for drilling positioning. In addition, the multi-language interactive interface design greatly improves the convenience of cross-border operations and meets the control needs of users in different regions around the world.



Features:



Ø 3D imaging: quickly make 2D.3D images with your phone or tablet

Ø Precise and intelligent:46 years of research and development history, accurate and reliable data.

Ø Simple and efficient:APP operation is simple and easy to understand, innovative measurement methods are 3-6 times faster than traditional methods,simple and ifficient

Ø Inexperienced people can learn the operation in 5 minute



Main advantages:


Automatic imaging:The 10.1" Android touch screen is intelligent in real time into 2D, 3D and curved images.

Precise and stable:
The disadvantages of natural electromagnetic field sources, which are inconsistent in size and change from time to time, are solved and the accuracy is greatly improved.

Triple screen interoperability:
The instrument screen, mobile phone screen and computer screen are interoperable.

Technical Parameters:



Versions 300m-16D 500m-16D 1200m-16D 2000m-16D 3000m-16D
Max Depth (m) ≤300 ≤500 ≤1200 ≤2000 ≤3000
Channel Input 16 channels input simultaneously, maximum electrode spacing 2.5m
Channel Options 1-14
Depth Options Optional within the maximum depth, refer to 100/200/300/400/500/600/800/1200/2000/3000m
Scan Interval 10-80
Connections

Serial port, Wifi, Bluetooth 4.0, USB (optional 4G)

Display 10.1-inch IPS wide-angle 178° visual touch screen (1024×600)
OS Android 6.0.1
CPU ARM Cortex-A7 8-core CPU 2.0Hz
GPU OpenGL ES 2.0
Core Features Multiple options of depths, 2D/3D plotting, removable battery
Sensing Mode MN/TT
Frequency Range (hz) 1-8K 0.01-6K
Filtering Preset or intelligent frequency selection, analog + data filtering 1-16 times superposition optional
Discrim. 0.1mV±3% 0.01mV±2%
Acquisition Time (s) 60-3600 120-5400
Battery 800mA/H
Console Weight 1.85kg



Applications:

Underground water detector is a professional equipment used for hydrogeological exploration. By detecting underground electromagnetic waves or geological structures, the underground water detector can effectively determine key information such as the location, depth and amount of groundwater. This information provides scientific guidance for drilling and water extraction operations. The underground water detector improves the success rate of drilling, and reduces resource waste and cost investment.



Support and Services:


Is it difficult to operate?

---The device is simple to operate and can be used without any experience.
There are related U disks with detailed information in the box.

Guide for After-sale Service

> 1-year guarantee-if using of the product is influenced due to quality problem, you may receive guarantee of the product within 1 year after the date of purchase;

> Lifetime maintenance-lifetime maintenance service is implemented on all factory series products. We offer maintenance of machine which surpasses the maintenance period or has manual damage with material and lab



Packing and Shipping:

delivery time :10-15days

standard exporting packing

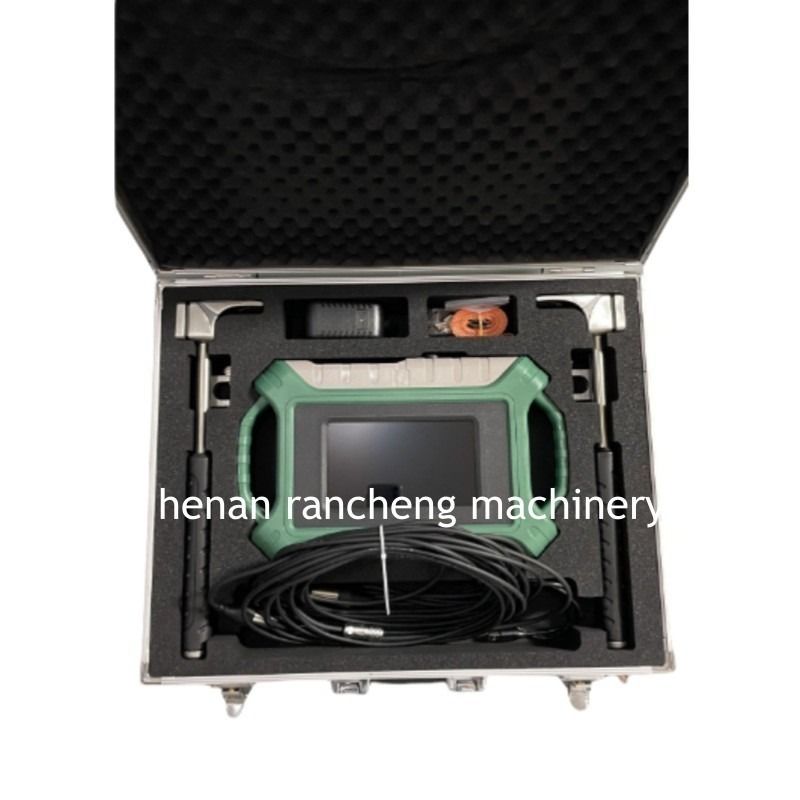

Automatic Imaging Geophysical Survey Equipment with Triple Screen Interoperability 0

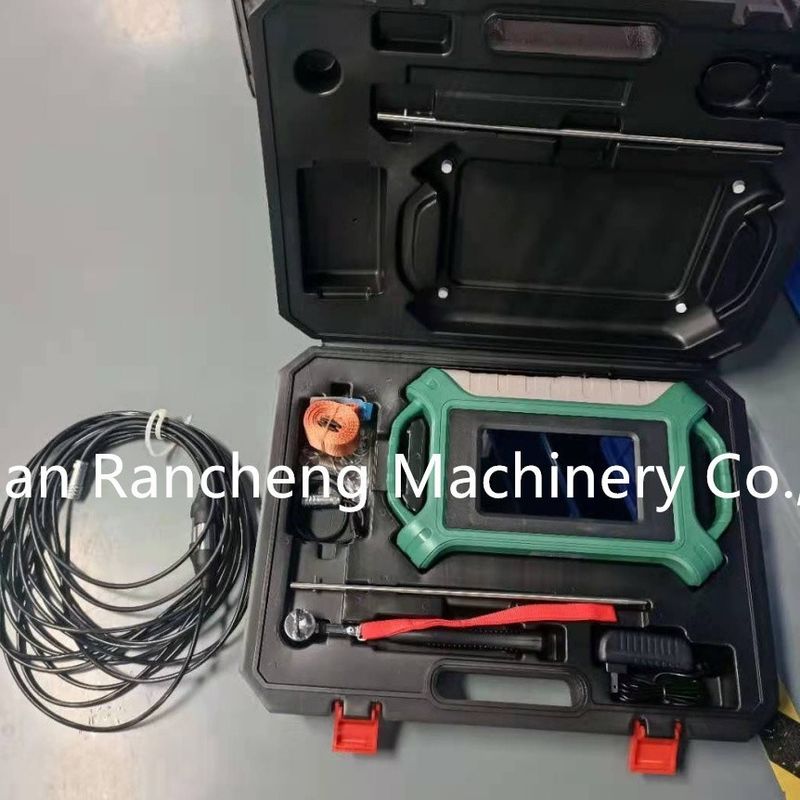

Automatic Imaging Geophysical Survey Equipment with Triple Screen Interoperability 1
