Name: 260m Deep Crawler Mounted Hydraulic Water Well Drill Rig RCF260C Water Well Drilling Rig Machine
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF260C
Availability: InStock

Home > products > Water Well Drilling Machine >

260m Deep Crawler Mounted Hydraulic Water Well Drill Rig RCF260C Water Well Drilling Rig Machine

RCF260C Water Well Drill Rig

260m Deep Water Well Drill Rig

Crawler Mounted Water Well Drill Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF260C

Request A Quote

Product Details

Model:

RCF260C

Bore Depth:

260m

Air Consumption:

17-35m³/min

Air Pressure:

1.7-3.0Mpa

Pipe Diameter:

76mm/89mm

Pipe Length:

Push Force:

Highlight:

RCF260C Water Well Drill Rig

260m Deep Water Well Drill Rig

Crawler Mounted Water Well Drill Rig

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 20" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

Max 150 Meters Protable RCF150S Water Well Drilling Machine

Get Best Price

Video

350m Drilling Depth Rubber Caterpillar Track Water Well Drilling Rig Pneumatic Rubber Crawler Drilling Rig

Get Best Price

Video

350m Drilling Depth 91KW Yuchai Engine Water Well Drilling Rig 22T Lifting Force

Get Best Price

Video

Compact And High Efficiency 150 Meter Water Well Drilling Rig

Get Best Price

Contact Now

Product Description

260m Deep Crawler Mounted Hydraulic Water Well Drill Rig RCF260C Water Well Drilling Rig Machine

Machine Description

RCF260C deep water well drilling rig is a product independently developed by our company. The new generation of down-the-hole drilling rigs combined with greater pneumatic power have played an important role in increasing drilling speed.

Adopting the latest model and advanced hydraulic technology, it has low consumption, large rotation torque, convenient hole deflection,Made of high-quality materials, stylish and compact design, it makes the drilling rig more efficient, with low failure rate, more economical and durable, and high comprehensive cost performance. Our water well drilling rigs have been truly verified by the market and have received positive feedback from most customers.

Technical Parameters

Bore diameter(Hammer)	90-350mm
Bore depth	260m
Air consumption	17-35m³/min
Air pressure	1.7-3.0Mpa
Pipe diameter	76mm/89mm
Pipe length	3m
Push force	4T
Lifting force	15T
Lifting speed	2.5m/min
feeding speed	0.5-5m/min
Fast lifting speed	24m/min
Fast feeding speed	35m/min
Max torque of the rotary	4000-5300Nm
Rotary speed	45-70r/min
Mud Pump flow	200L/min (option)
High hydraulic leg	1.5m
Feeding efficiency	10-35m/h
Travel speed	2.5Km/h
Climb ability	30°
Dimension(LWH)	4×1.85×2.3M
Weight	6500Kg
Diesel engine	70KW FAW engine

Application

The RCF260C rig mainly used for drilling of resource exploration and hydrological wells, civil water wells, agricultural irrigation and other projects.

Our Service

Provide 24/7 online chat and phone services to ensure that customers are always available to solve problems and provide support. In addition, lifetime free technical support is provided, allowing customers to enjoy continuous help and guidance during use. For overseas customers, we also provide overseas services and can dispatch engineers to provide support and services as needed to ensure that customers can enjoy high-quality services around the world.

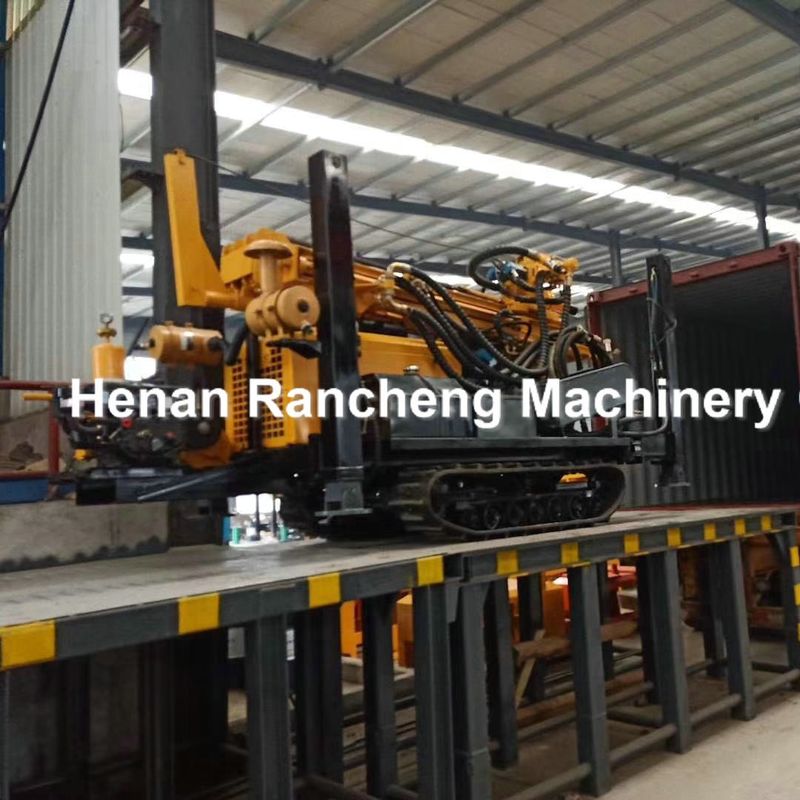

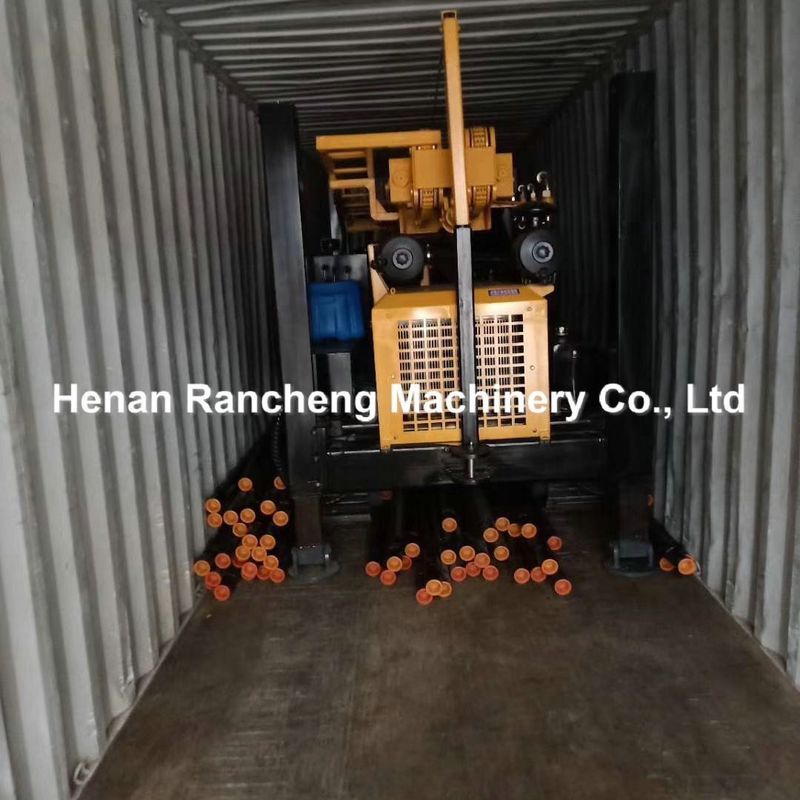

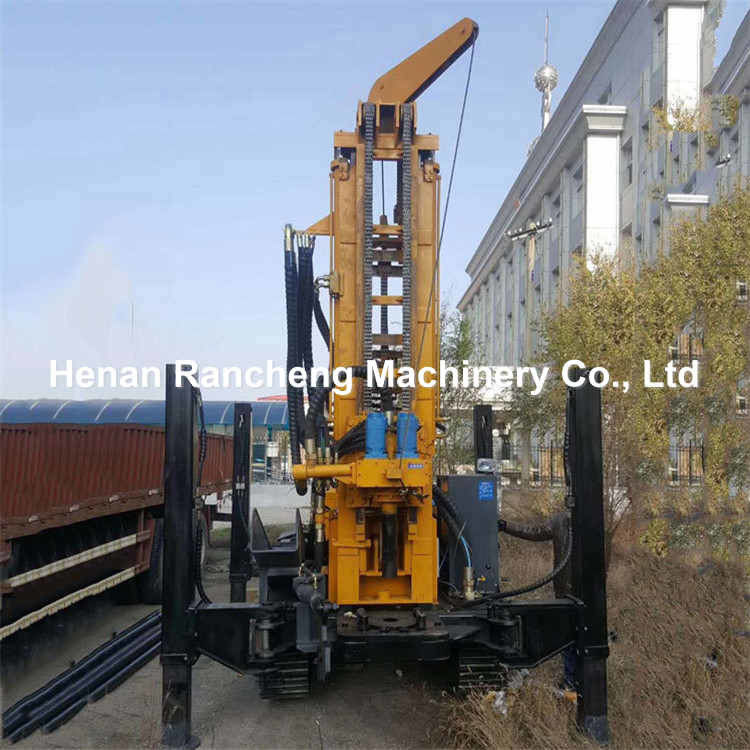

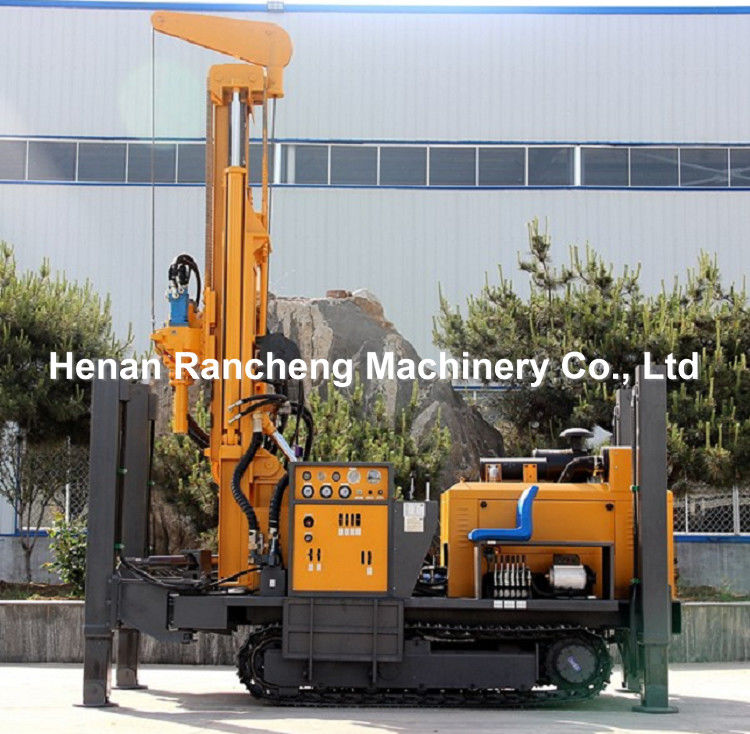

Machine picture display

260m Deep Crawler Mounted Hydraulic Water Well Drill Rig RCF260C Water Well Drilling Rig Machine 0
