Name: Crawler Type Portable Water Well Drilling Rig 150 Meters Customized
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCS200C Portable Water Well Drilling Machine
Availability: InStock

Home > products > Portable Water Well Drilling Machine >

Crawler Type Portable Water Well Drilling Rig 150 Meters Customized

Customized Portable Water Well Drilling Rig

Portable Water Well Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCS200C Portable Water Well Drilling Machine

Request A Quote

Product Details

Model:

RCS200C

Walking Way:

Rubber Crawler Mounted

Drill Rod Length(mm):

1500

Drill Rod Diameter (mm):

Ø50

Drilling Depth(m):

150m

Drilling Hole Diameter(mm):

Within Ø 450mm

Highlight:

Customized Portable Water Well Drilling Rig

Portable Water Well Drilling Rig

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

Standard shipping

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

Drill Depth 100m Electric Portable Water Well Drilling Rig Main Machine With 22HP Engine

Get Best Price

Video

150m DTH Hydraulic Water Well Drilling Rig Machine Portable Pneumatic trailer Mounted Drilling Rig

Get Best Price

Video

Small Hydraulic Drill Cylinder 160m Depth Water Digger Machine Crawler Mounted Water Well Drilling Rig For Sale

Get Best Price

Video

100m Deep Electric Portable Water Well Drilling Rig With 22 HP Engine 40kg Maximum Load

Get Best Price

Contact Now

Product Description

Crawler Type Portable Water Well Drilling Rig 150 Meters Can Be Customized

Product Description

This water well drilling machine mainly applies to geothermal drilling, farm irrigation,house yards, gardens ,water well drilling, and boring drilling, etc. It can drill diameters of 70-450mm and reach a maximum depth of 150m. It can also be used for small building piling, such as for farmhouses or factories; the drilling diameter can reach 450mm. It is suitable for various strata, including sand,soil,clay,soft rock, and so on.

Product Specifications

Model of drilling machine	RCS200C
Walking way	Rubber crawler mounted
Drilling machine overall dimension(mm)	230010802000
Weight of Drilling machine (kg)	1000
Drill rod diameter (mm)	Ø50
Drill rod length(mm)	1500
Rod change method	Full automatic screw thread
Drilling depth(m)	150
Diesel Motor Power (Hp/kw)	22/16.2
Drilling method	Percussive and rotating type
Drilling hole diameter(mm)	Within Ø 450mm
Stroke distance (mm)	2000
Hosting capacity (kg)	1500

Product Features

1. Light weight, energy saving.

2. Patented product, unique design and simple drilling structure;

3. Easy to transport and can learn how to handle the machine in short time;

4. Can drill through hard stratum, unless thick rock layer ;

5. One person operation, reduce the labor intensity ;

6. High efficiency and work fast;

7. Assure easily operation and long life service life.

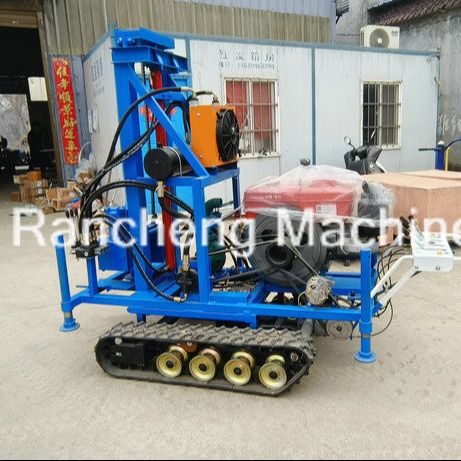

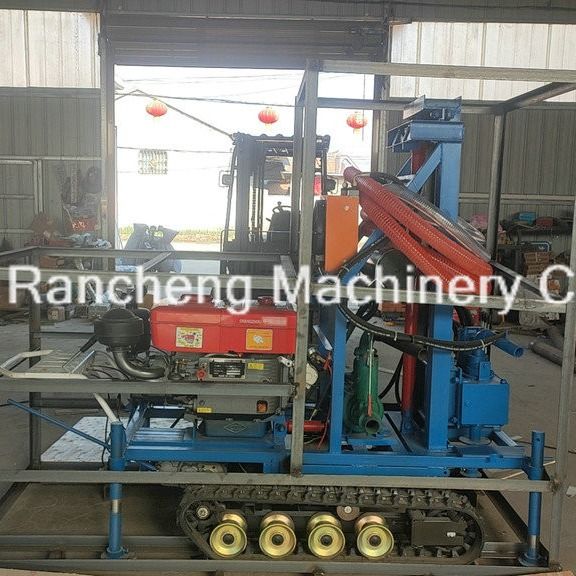

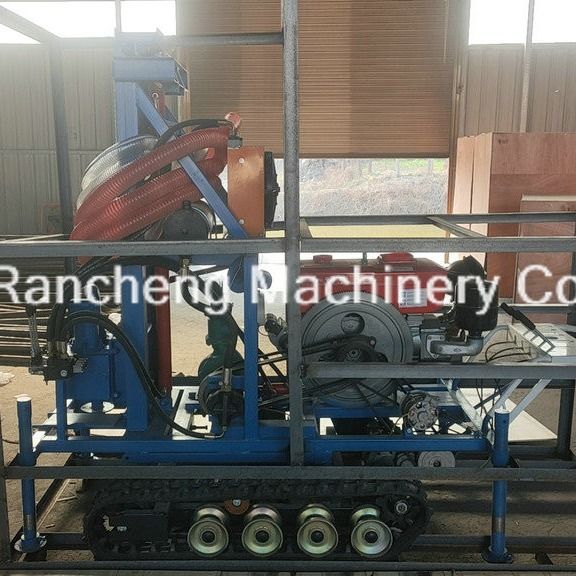

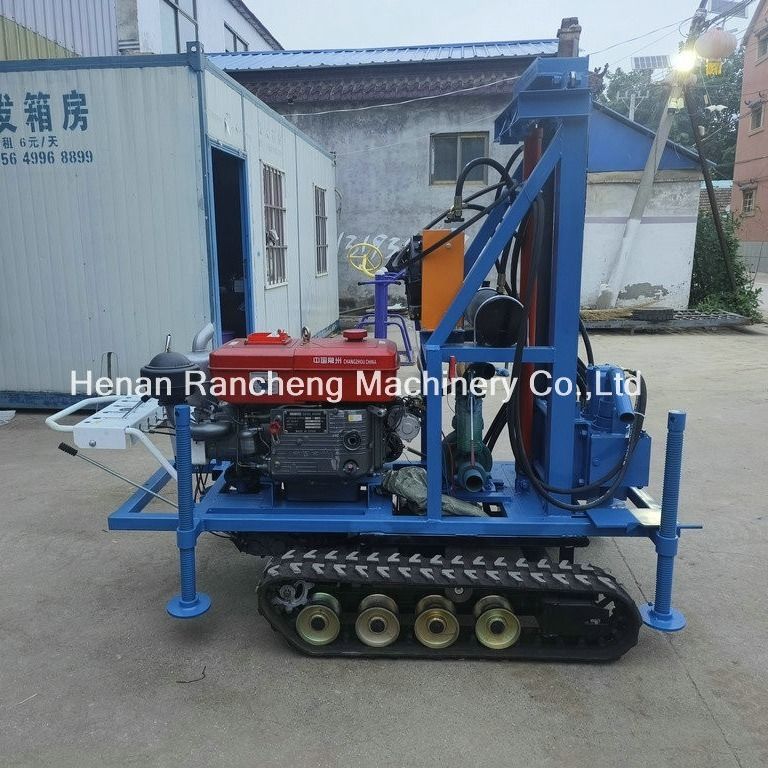

Product Image

Crawler Type Portable Water Well Drilling Rig 150 Meters Customized 0

Crawler Type Portable Water Well Drilling Rig 150 Meters Customized 1

Crawler Type Portable Water Well Drilling Rig 150 Meters Customized 2
