RCQ-10C Mini Hydraulic Rotary Piling Rig Kubota Diesel Engine 2000mm Chassis Width

Mini Hydraulic Rotary Piling Rig

Hydraulic Rotary Piling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCQ-10C

Request A Quote

Product Details

Model:

RCQ-10C

Name:

Mini Rotary Piling Rig

Depth:

10m

Diameter:

1000mm

Machine Weight:

9.3T

Chassis Width(mm):

2000

Highlight:

Mini Hydraulic Rotary Piling Rig

Hydraulic Rotary Piling Rig

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

Standard shipping

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

RCQ515M Mini Pile Drilling Rig Drilling Depth 15m Hydraulic Small Rotary Drilling Machine

Get Best Price

Video

Hydraulic Compact Mini Rotary Pile Drilling Rig For Small Scale Drilling Operations

Get Best Price

Video

RCQ-10C Hydraulic Mini Pile Drilling Rig 10m Depth With 36KW Kubota Engine Sany SY60C Excavator Chassis

Get Best Price

Video

RCQ-10C Hydraulic Mini Pile Drilling Rig 10m Depth With 10-45RPM R/Min Rotary Speed

Get Best Price

Contact Now

Product Description

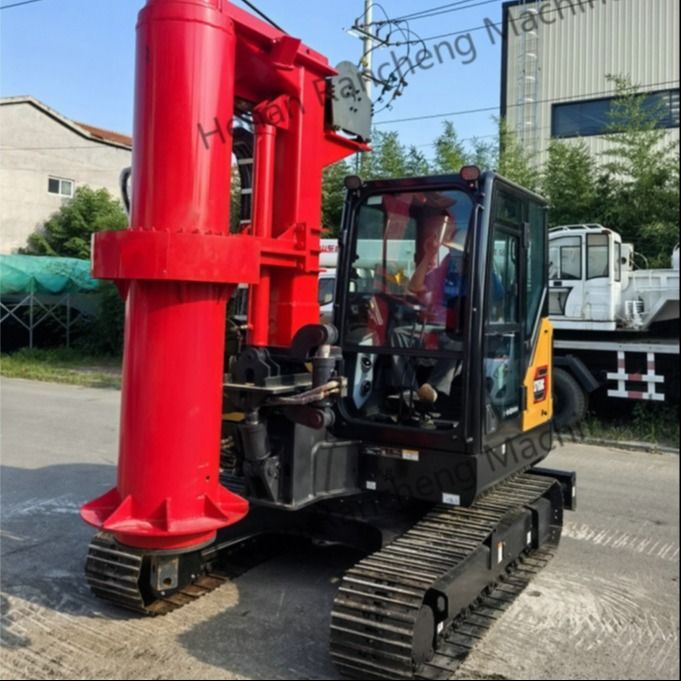

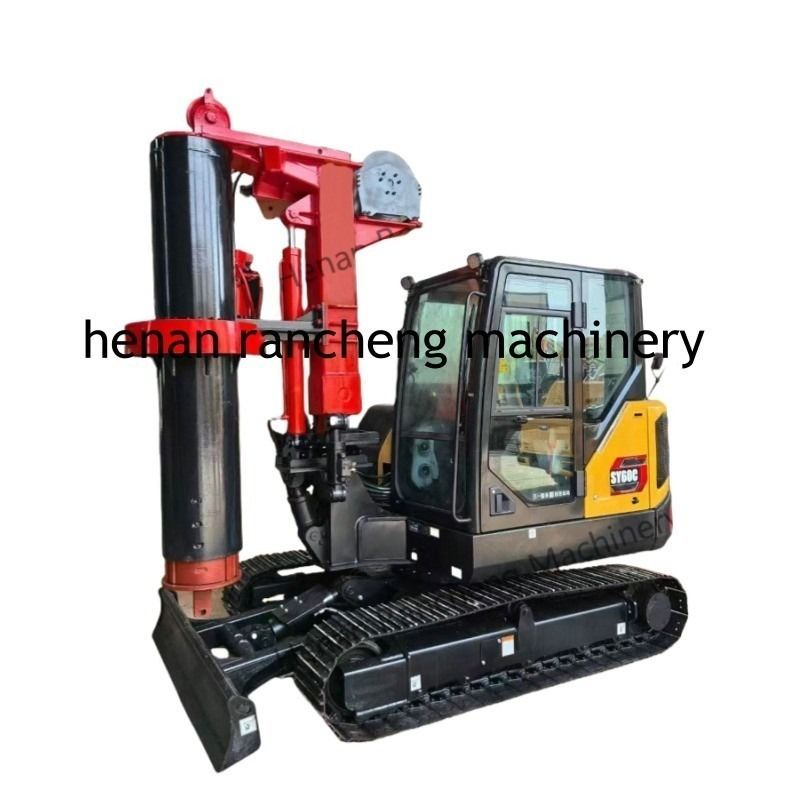

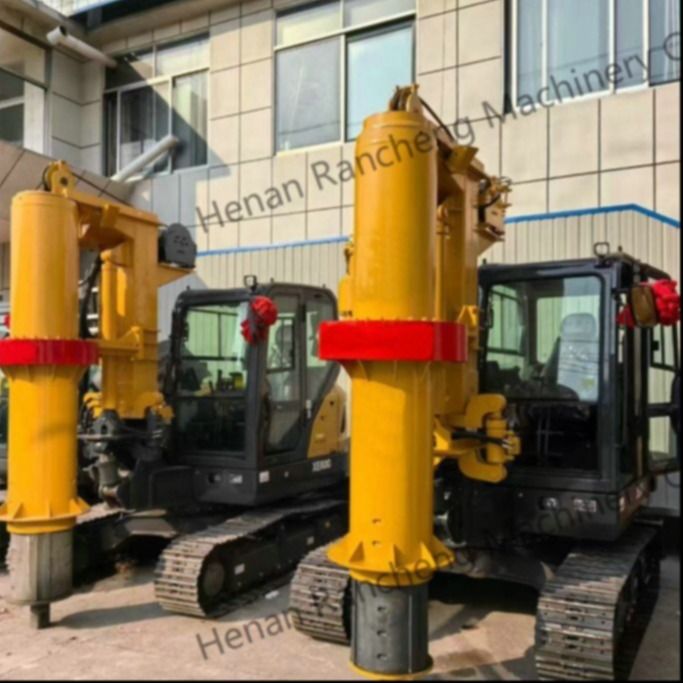

RCQ-10C Mini Hydraulic Rotary Piling Rig Kubota Diesel Engine 2000mm Chassis Width

Name: RCQ-10C Mini Hydraulic Rotary Piling Rig Kubota Diesel Engine 2000mm Chassis Width
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCQ-10C
Availability: InStock

Product Description

This equipment adopts a modular design concept, equipped with a Kubota V2607-DI-T0CF21 turbocharged diesel engine (rated power 36kW), passed EU Stage V emission certification, and can maintain continuous power output under extreme working conditions. Its operating capacity covers a hole diameter range of 300-1000mm, with a maximum hole depth of 10m, and is suitable for various pile foundation engineering needs.

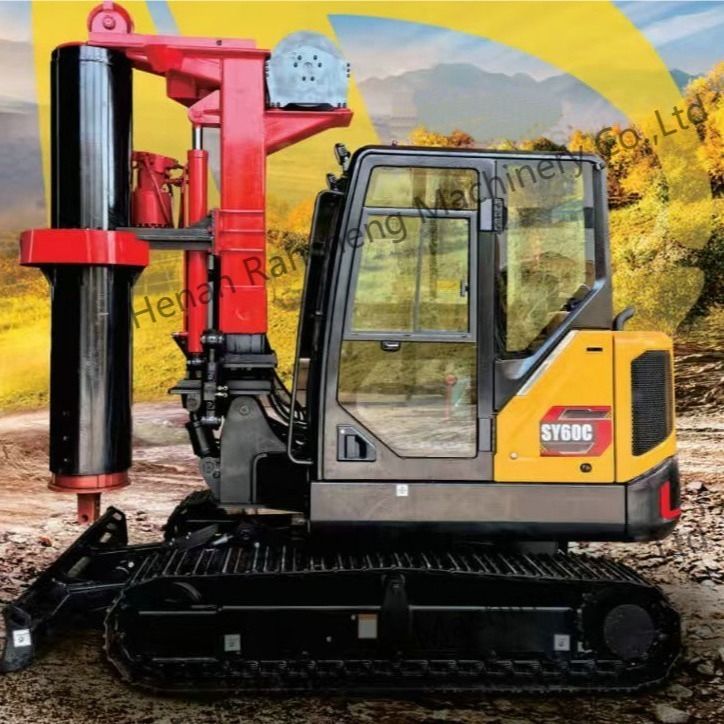

The walking system adopts the Sany SY60C special excavator platform, equipped with a full hydraulic four-wheel drive device, to achieve a travel speed of 3km/h and a 30° ramp passability. The core working unit is equipped with a hydraulic rotary device, with an output torque of 35kN·m and an effective stroke of 1100mm. With a 10-45rpm stepless speed regulation system, it can accurately match the drilling requirements of different formations.

This equipment is particularly suitable for space-constrained scenarios such as municipal renovation and building foundations. Through the ergonomic control interface and intelligent working condition memory system, it significantly improves the construction efficiency and economic indicators in complex formations.

Technical Parameters

Model	RCQ-10C
Drilling depth (m)	10m
Drilling diameter (mm)	300-1000mm
Chassis	Sany SY60C excavator
Diesel engine	Kubota engine V2607-DI-T0CF21 36KW
Rotary head
Power head torque (KN.m)	35KN.m
Rotary head travel distance	1100mm
Rotary speed (r/min)	10-45RPM
Rated lifting force	27KN
Rated pushing force	25KN
Winch
Main winch rated lifting force	38KN
Assisting winch rated lifting force	14KN
Chassis
Travel speed	3km/h
Max climbing gradient	30°
Chassis width	2000mm
Machine weight	9.3T
Machine transportation dimension	3450X2025X3400mm

Main advantages

Space-Saving Design: It operates in narrow spaces like elevator shafts, building interiors, and low-clearance areas.

High Efficiency: Maximum drilling diameter of 1000mm with rapid construction speed.
