1400kg Portable Diesel Screw Air Compressor 55KW For Single Compression Stage

1400kg Portable Diesel Screw Air Compressor 55KW For Single Compression Stage

55KW Portable Diesel Screw Air Compressor

Portable Diesel Screw Air Compressor

Place of Origin:

China

Brand Name:

Kaishan

Certification:

CE, ISO 9001:2000

Model Number:

KSCY220/8

Contact Us
Request A Quote
1400kg Portable Diesel Screw Air Compressor 55KW For Single Compression Stage
1400kg Portable Diesel Screw Air Compressor 55KW For Single Compression Stage 1400kg Portable Diesel Screw Air Compressor 55KW For Single Compression Stage 1400kg Portable Diesel Screw Air Compressor 55KW For Single Compression Stage 1400kg Portable Diesel Screw Air Compressor 55KW For Single Compression Stage
Product Details
Name:
Drilling Air Compressor
Model:
KSCY220/8
Air Capacity:
6m³/min
Work Pressure(:
8Bar
Dimension:
2175*1760*1785mm
Weight:
1400kg
Compression Stage:
Single
Engine Model No.:
Wuxi Engine
Highlight:

55KW Portable Diesel Screw Air Compressor

,

Portable Diesel Screw Air Compressor

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price KAISHAN LGCY Diesel Small Screw Air Compressor for Mining and Water Well Drilling online Video

KAISHAN LGCY Diesel Small Screw Air Compressor for Mining and Water Well Drilling

Get Best Price
Good price 1107CFM 25bBar Diesel Engine Screw Compressors Portable Air Compressors For 2.5-1.8 Mpa Pressure online Video

1107CFM 25bBar Diesel Engine Screw Compressors Portable Air Compressors For 2.5-1.8 Mpa Pressure

Get Best Price
Good price 1400kg Portable Diesel Screw Air Compressor 55KW For Single Compression Stage online Video

1400kg Portable Diesel Screw Air Compressor 55KW For Single Compression Stage

Get Best Price
Good price 1107CFM 25bBar Diesel Engine Screw Compressors Portable Air Compressors For Construction Work Mining Industry online Video

1107CFM 25bBar Diesel Engine Screw Compressors Portable Air Compressors For Construction Work Mining Industry

Get Best Price
Contact Us
Contact Now
Product Description

1400kg Portable Diesel Screw Air Compressor 55KW For Single Compression Stage


Machine Introduction


The KSCY220/8 is a trailer-mounted portable screw air compressor designed for heavy-duty industrial applications. With an air capacity of 220 CFM (6 m³/min) and an operating pressure of 8 bar (116 psi), the compressor is powered by a reliable 75 HP Xichai diesel engine, ensuring stable performance in harsh environments. These machines are suitable for industries such as highway, railway, mining, water conservancy, marine, urban construction, energy and military operations.


Technical Parameters



KSCY-220/8 Diesel Driven portable Screw Air Compressor
Air compressor
Model No: KSCY-220/8
Air capacity(m³/min/cfm) 6 (220)
Work pressure(Bar/Psig) 8 (116)
Compression Stage Single
Diesel Engine
Engine Model No. Wuxi engine
Rated RPM (r/min) 1800
Unload RPM(r/min) 1400
Rated Power (KW/hp) 55 (75)
Fuel Capacity(L) 130
Package
Noise level db (a) 80±3
Outlet connection G3/4×1,G1 1/2×1
Wheel size * Qty 6.5-16x4
Dimension/mm 2175*1760*1785
Weight(KG) 1400


Specific performance


1. Efficient and reliable

Equipped with a large-diameter rotor compressor unit directly coupled to the diesel engine (no reducer required), ensuring low-speed operation, minimal vibration and longer service life.

Modulation control system: automatically adjusts air supply and engine speed according to demand, reducing fuel consumption by up to 40% compared to traditional systems.



2. Quiet and energy-saving design

Noise level is 80 ± 3 dB(A), and vibration reduction technology is used for quieter operation.

Low fuel consumption and comprehensive protection system improve outdoor usability and energy efficiency.



3. Advanced diesel engine options

Compatible with well-known engines such as Cummins, Yuchai, Steyr, Caterpillar, etc., meets European emission standards and has environmental protection performance.

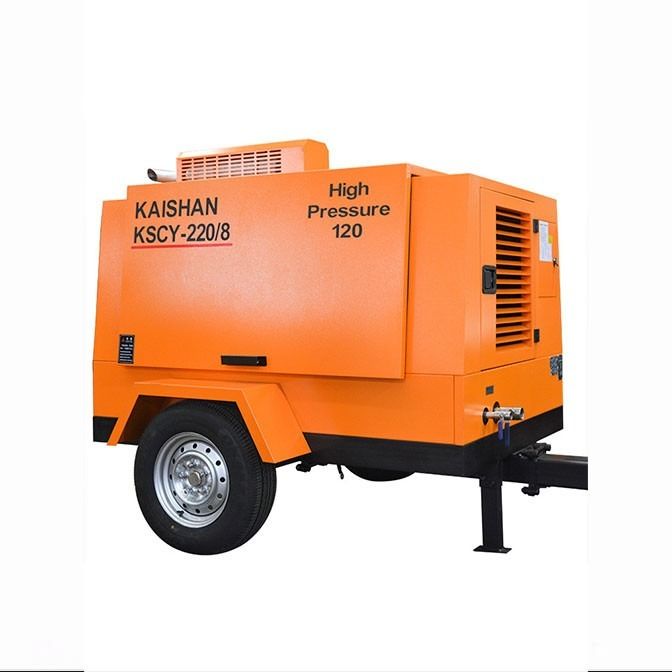

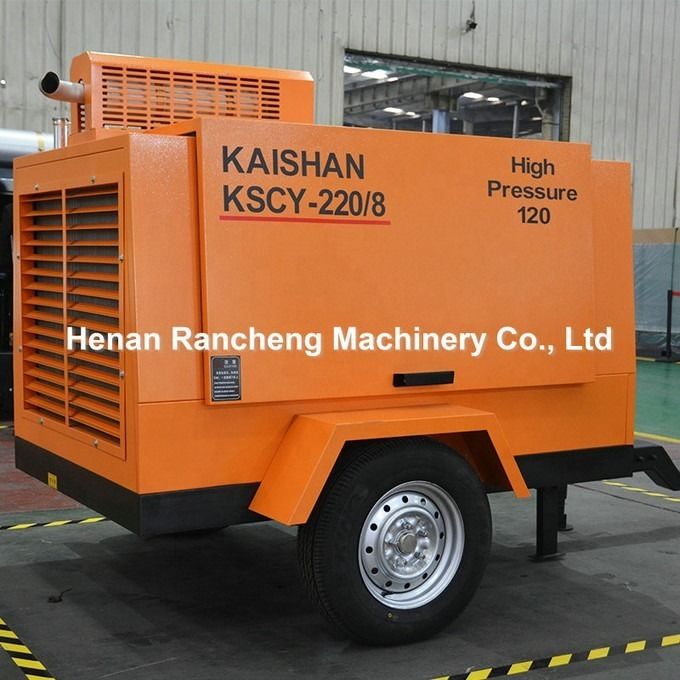

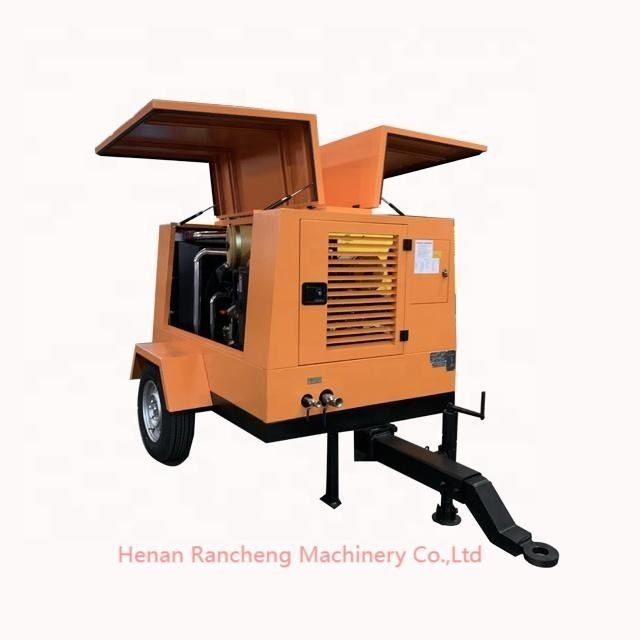

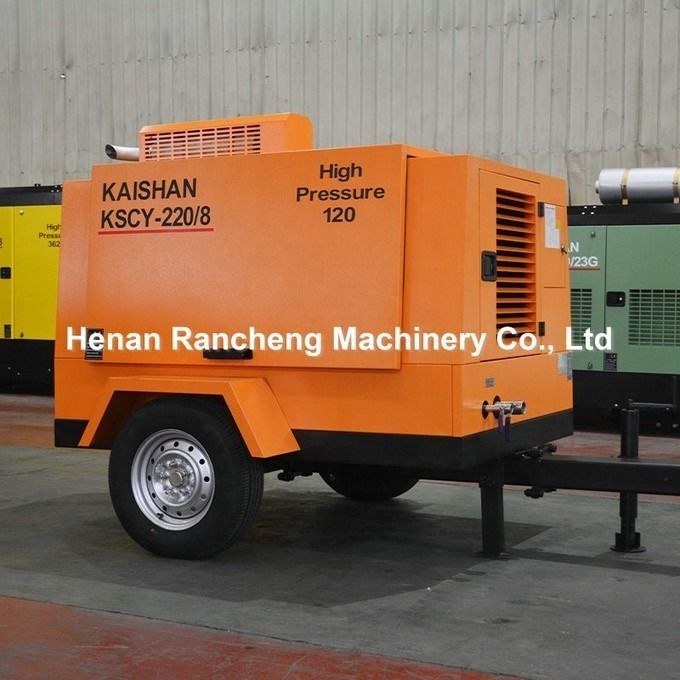

Machine Pictures

1400kg Portable Diesel Screw Air Compressor 55KW For Single Compression Stage 01400kg Portable Diesel Screw Air Compressor 55KW For Single Compression Stage 11400kg Portable Diesel Screw Air Compressor 55KW For Single Compression Stage 21400kg Portable Diesel Screw Air Compressor 55KW For Single Compression Stage 3
