WIFI Connection Method 300m Water Survey Equipment Underground Water Finder Detector

300m Water Survey Equipment

WIFI Connection Method Water Survey Equipment

Underground Water Finder Detector

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

3HT2

Request A Quote

Product Details

Adjustable Depth(m):

300

Depth Interval:

5/10/20(m)

Connection Method:

WIFI

Measurement Mode:

MN/TT

Resolution:

0.1mV±5%

Sampling Time (seconds):

14-420

Highlight:

300m Water Survey Equipment

WIFI Connection Method Water Survey Equipment

Underground Water Finder Detector

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

Standard shipping

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

300m Underground Water Exploration Detector Underground Water Finder

Get Best Price

Video

High Precision Submersible Intelligent Water Level Gauge For Liquid Water Tanks And Well Sensors

Get Best Price

Video

Water Detecor Of 3D Imaging Geophysical Survey Equipment

Get Best Price

Video

Advanced 3D Imaging Geophysical Survey Equipment for Detecting Water Pipe Leaks

Get Best Price

Contact Now

Product Description

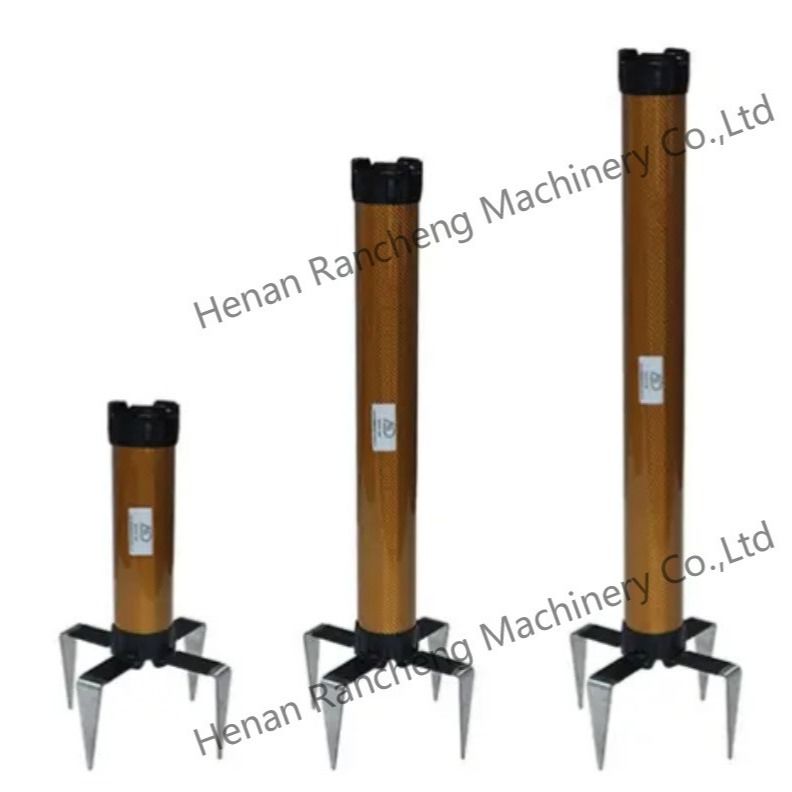

WIFI Connection Method 300m Water Survey Equipment Underground Water Finder Detector

Name: WIFI Connection Method 300m Water Survey Equipment Underground Water Finder Detector
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: 3HT2
Availability: InStock

Product Description

The water finder was developed by our company in cooperation with the Guilin Hydrogeology Research Institute, which has more than 40 years of experience in data collection and exploration. It provides complex data calculations, automatic graphics generation, cloud storage, and online communication with expert consultants via mobile phones or tablets, providing users with intelligent and practical water-finding solutions. The tool realizes automation and visualization of data processing, significantly improving scanning efficiency and accuracy.

Technical Parameters

Model	3H	3HT2	3HT3	8HT2	8HT3
Adjustable depth(m)	300			800
Depth interval	5/10/20(m)
Battery power consumption	7.4V2600mAH lithium battery, power consumption is about 140mA
Connection method	WIFI
MN electrode	1009530mm L-shaped alloy electrode 4 pcs
The main function	Optional start and end depth range, adjustable depth interval, 2D/3D automatic drawing, AI automatic analysis, online/offline measurement mode
TT electromagnetic induction coil (mm/w)	/	300/4	300/4	450/8	550/8
TT electromagnetic induction core (KmH/m)	/	80	100	100	120
working environment	Can be inserted into the ground	any ground
Frequency range (HZ)	1-8K
Measurement mode	MN	MN/TT
Resolution	0.1mV±5%			0.01mV±1%
Sampling time (seconds)	14-420	14-420	14-700	14-420	14-700
Shipping weight (kg)	4.5	6.0		7.5
Length weight (mm)	540225195	785225195		940225195

Main functions:

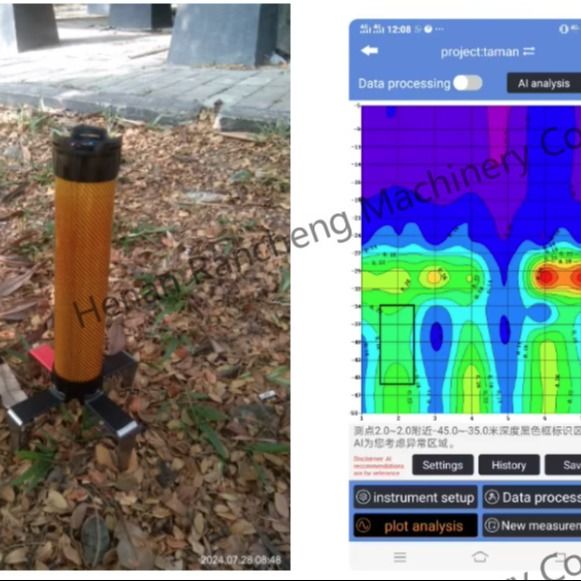

Automatic imaging: Equipped with a 7-inch Android touch screen, it generates 2D, 3D, and curved images in real time, and intuitively presents geological structures.

Accurate and stable: After more than 40 years of iterative development, the equipment has high measurement accuracy and stable and reliable performance.

Three-screen communication: Supports data communication between the instrument display, mobile phone display, and computer display, which is convenient for multi-terminal operation and analysis.

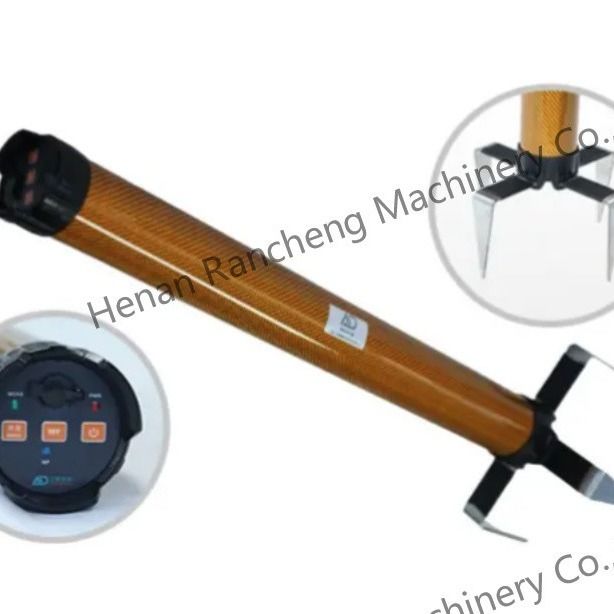

Intelligent and flexible: Supports switching between MN electrode and TT probe measurement modes, and can be equipped with wireless probes or water detection gold belts to meet different research needs.

WIFI Connection Method 300m Water Survey Equipment Underground Water Finder Detector 0

WIFI Connection Method 300m Water Survey Equipment Underground Water Finder Detector 1

WIFI Connection Method 300m Water Survey Equipment Underground Water Finder Detector 2

WIFI Connection Method 300m Water Survey Equipment Underground Water Finder Detector 3

WIFI Connection Method 300m Water Survey Equipment Underground Water Finder Detector 4
