Compact But High Effecient 150meters Water Well Drilling Machine

Compact But High Effecient 150meters Water Well Drilling Machine

High effecient water well drilling machine

Compact water well drilling machine

150 meters water well drilling machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF150S

Contact Us
Request A Quote
Product Details
Color:
Customizable
Diesel Engine:
42KW Yunnei Engine
Feeding Efficiency:
10-35m/h
Travel Speed:
2.5Km/h
Climb Ability:
30°
Pipe Diameter:
76mm/89mm
Pipe Length:
2m
Highlight:

High effecient water well drilling machine

,

Compact water well drilling machine

,

150 meters water well drilling machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

Compact but high effecient 150meters water well drilling machine

Products Description



The RCF150S compact water well drilling rig has become a first choice in the drilling field with its excellent reliability and wide adaptability. This lightweight equipment, weighing only 2,300 kg, has excellent mobility and can easily cope with various drilling scenarios, including agricultural irrigation, garden water, geothermal development and industrial water.



This model adopts an innovative dual-motor rotary drive system, significantly improving drilling operations' efficiency. What is more worth mentioning is that the RCF150S can be flexibly used with mud pumps and air compressors, enabling it to calmly cope with different geological conditions and ensure efficient and stable operation of the drilling process.


Whether it is a small or medium-sized water well project, the RCF150S can provide users with a solution with its convenient transportation characteristics, excellent drilling depth and strong adaptability to working conditions.


Machine Specifications

Bore diameter(hammer) 90-300mm
Bore depth 150m
Air consumption 17-31m³/min
Air pressure 1.7-2.5Mpa
Once-time advance length 2.4m
Pipe diameter 76mm/89mm
Pipe length 2m
Push force 4T
Lifting force 12T
Max torque of rotary 3500-3800Nm
Rotary speed 40-65r/min
Mud Pump flow 200L/min (option)
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 2300×1200×1900MM
weight 2300kg
Diesel engine 42KW Yunnei engine


Machine Advantages


(1)Reliable Performance
Basing on the guideline of purchasing the critical auxiliary equipment internationally, the diesel engine, the hydraulic pump, the main valves, the motors, crawler reducers and key hydraulic spare parts are all adopted famous brands products at home and abroad.



(2)High Efficiency
With big torque, high power unit allocation and with reasonable structure design and advanced operation method , all these guarantee the drill rig’s high operation and performance efficiency.

(3)Environmental Protection
With lower pollution discharge of diesel engine, professional noise reducing design, the drill rig is suitable for urban operation and performance.



(4)Energy Saving
Adopting the advanced load sensitive control technique, the drill rig has reduced the power consumption and heat generation to the lowest level. With an elegant outline, compact structure, reliable performance and operation easily, it should be the priority equipment to be selected in the full hydraulic core drill rig of present domestic market.

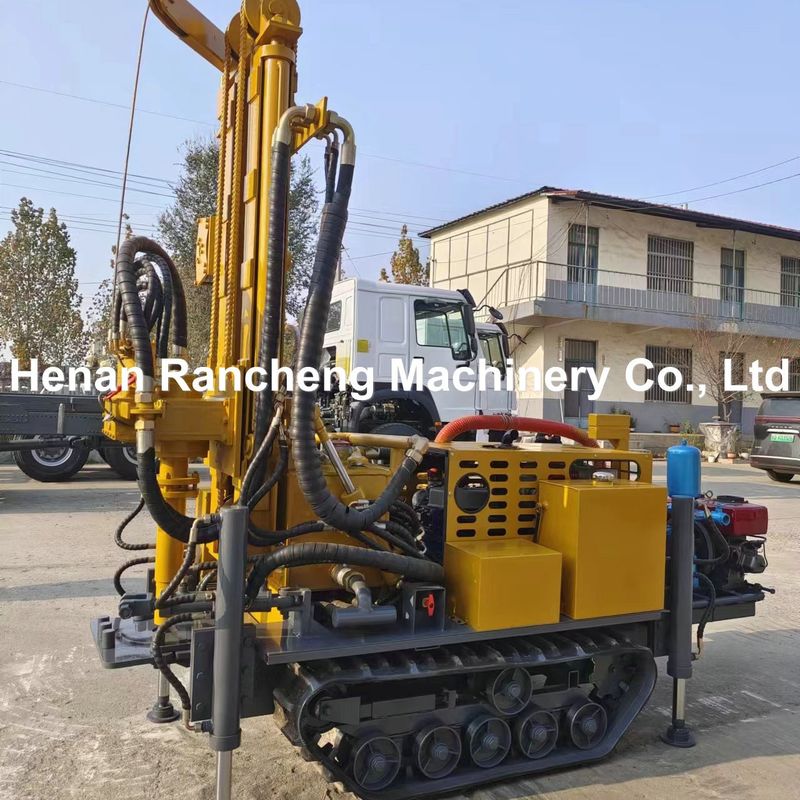

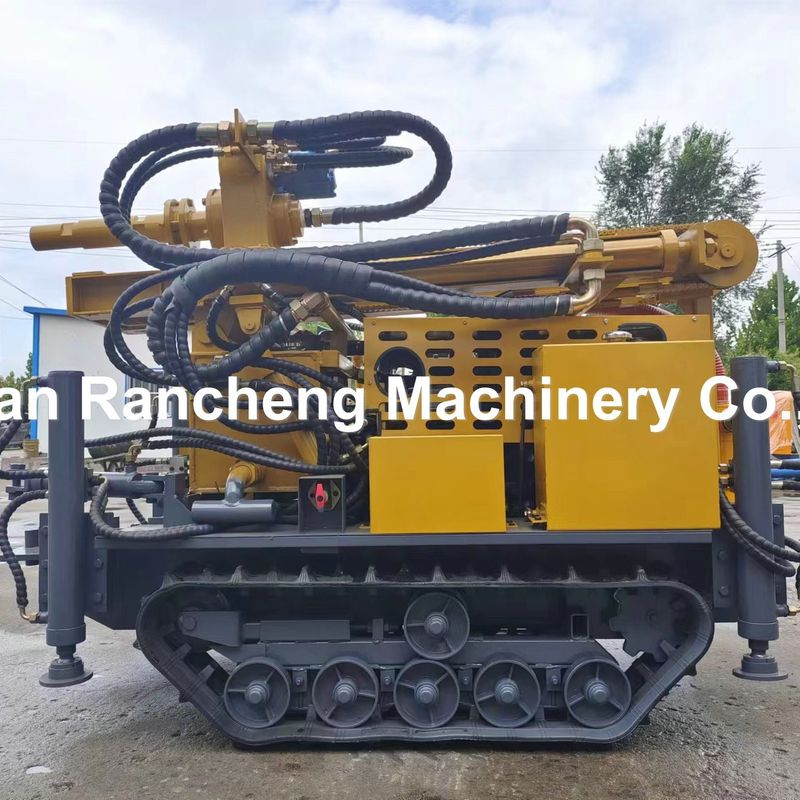

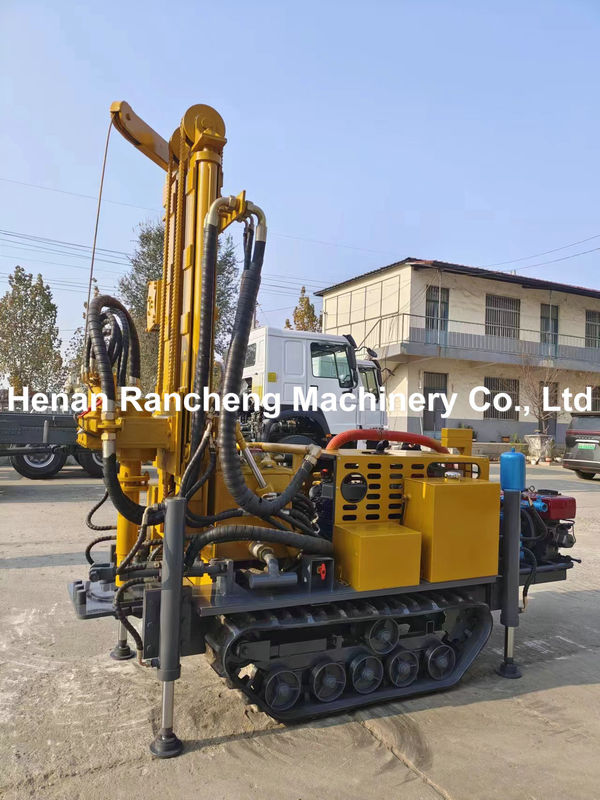

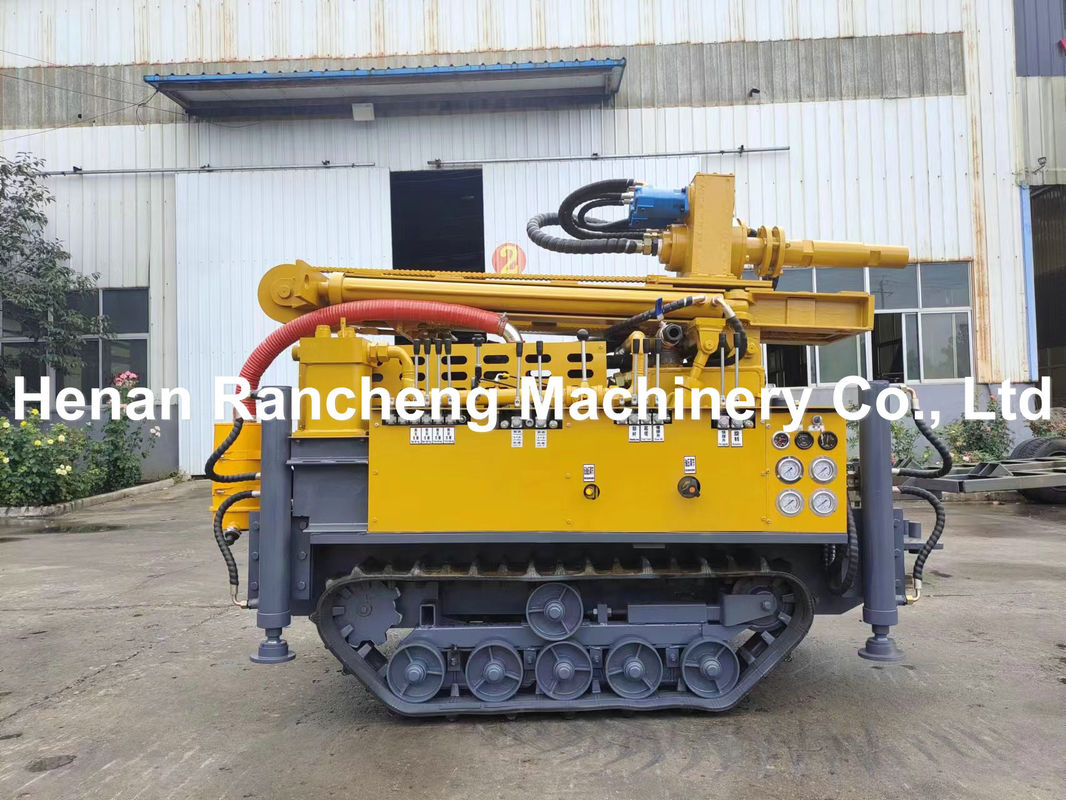

Machine Pictures
Compact But High Effecient 150meters Water Well Drilling Machine 0Compact But High Effecient 150meters Water Well Drilling Machine 1Compact But High Effecient 150meters Water Well Drilling Machine 2Compact But High Effecient 150meters Water Well Drilling Machine 3Compact But High Effecient 150meters Water Well Drilling Machine 4Compact But High Effecient 150meters Water Well Drilling Machine 5

Company Information


Henan Rancheng Machinery Co.,LTD is one professional supplier drilling rigs in China ,we are dedicated in designing and manufacture water well drilling rig ,rotary drilling rig ,anchor drilling rig ,core drilling rig,DTH drilling rig ,solar pile driver,mud pump ,air compressor and drilling tools etc,we have advanced technology ,Modern equipment, first-class team and rich experience ,our products passed ISO9001 ,CE etc certificated ,they are exported to around 200 countries and areas in the world ,get very good feedbacks from our clients.
We Pursue the principle of "Customer First, Integrity First", we are sincerely expecting to cooperate with you!!!

Compact But High Effecient 150meters Water Well Drilling Machine 6



Transportation



RCF150S can be loaded into a 20-foot container and transported by sea
