Drilling Machine Equipped With Powerful 77.3KW Yuchai Diesel Engine 45-65r/Min Rotary Speed

Drilling Machine Equipped With Powerful 77.3KW Yuchai Diesel Engine 45-65r/Min Rotary Speed

65r/Min Drilling Machine

Powerful 77.3KW Drilling Machine

Yuchai Diesel Engine Drilling Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF180S

Contact Us
Request A Quote
Drilling Machine Equipped With Powerful 77.3KW Yuchai Diesel Engine 45-65r/Min Rotary Speed
Drilling Machine Equipped With Powerful 77.3KW Yuchai Diesel Engine 45-65r/Min Rotary Speed Drilling Machine Equipped With Powerful 77.3KW Yuchai Diesel Engine 45-65r/Min Rotary Speed Drilling Machine Equipped With Powerful 77.3KW Yuchai Diesel Engine 45-65r/Min Rotary Speed Drilling Machine Equipped With Powerful 77.3KW Yuchai Diesel Engine 45-65r/Min Rotary Speed
Product Details
Name:
RCF180S
Drilling Depth:
180m
Once-time Advance Length:
90-300mm
Rotary Speed:
45-65r/min
Diesel Engine:
77.3KW Yuchai Engine
RCF180S Mini Water Drilling Machine Is Very Powerful ,it Can Drill Max 180m Depth , This Small Water:
76/89mm
Highlight:

65r/Min Drilling Machine

,

Powerful 77.3KW Drilling Machine

,

Yuchai Diesel Engine Drilling Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price Max 150 Meters Protable RCF150S Water Well Drilling Machine online Video

Max 150 Meters Protable RCF150S Water Well Drilling Machine

Get Best Price
Good price 350m Drilling Depth Rubber Caterpillar Track Water Well Drilling Rig Pneumatic Rubber Crawler Drilling Rig online Video

350m Drilling Depth Rubber Caterpillar Track Water Well Drilling Rig Pneumatic Rubber Crawler Drilling Rig

Get Best Price
Good price 350m Drilling Depth 91KW Yuchai Engine Water Well Drilling Rig 22T Lifting Force online Video

350m Drilling Depth 91KW Yuchai Engine Water Well Drilling Rig 22T Lifting Force

Get Best Price
Good price Compact And High Efficiency 150 Meter Water Well Drilling Rig online Video

Compact And High Efficiency 150 Meter Water Well Drilling Rig

Get Best Price
Contact Us
Contact Now
Product Description

Drilling Machine Equipped With Powerful 77.3KW Yuchai Diesel Engine 45-65r/Min Rotary Speed


Machine Description



The RCF180S micro water well drill is our innovative dual-purpose rig, capable of both pneumatic DTH drilling and mud pump rotary drilling to handle hard rock formations with ease. Featuring four hydraulic stabilizing legs and an advanced low-consumption hydraulic system, it delivers high torque performance while remaining operator-friendly. This versatile solution is suitable for deep wells, agricultural irrigation, geothermal projects, boreholes, and mini piling applications.


Technical Parameters

Bore diameter(hammer) 90-300mm
Bore depth 180m
Air consumption 17-31m³/min
Air pressure 1.7-2.5Mpa
Once-time advance length 2.4m
Pipe diameter 76mm/89mm
Pipe length 2m
Push force 4T
Lifting force 15T
Max torque of rotary 4000-4600Nm
Rotary speed 45-65r/min
Mud Pump flow 200L/min (option)
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 2300×1200×1900mm
weight 2700kg
Diesel engine 77.3KW Yuchai engine



Feature:

1. Small size, light weight, compact structure and flexible operation.The rig weighs only 2,700 kg and measures 2,300 x 1,200 x 2,900 mm.


2. DTH air drill rig with dual motor rotary head, top drive, mud pump and air compressor. Dual rotary motors increase torque and rotation speed.


3. High power and large capacity: Adopting 77.3kW Yuchai engine, it can drill wells from 90 to 300mm and the maximum depth is 180m.


4. It is installed with rubber crawler and easy to move.


5. Fully hydraulic outriggers, very easy to transport by truck and very stable when drilling.

Image Display

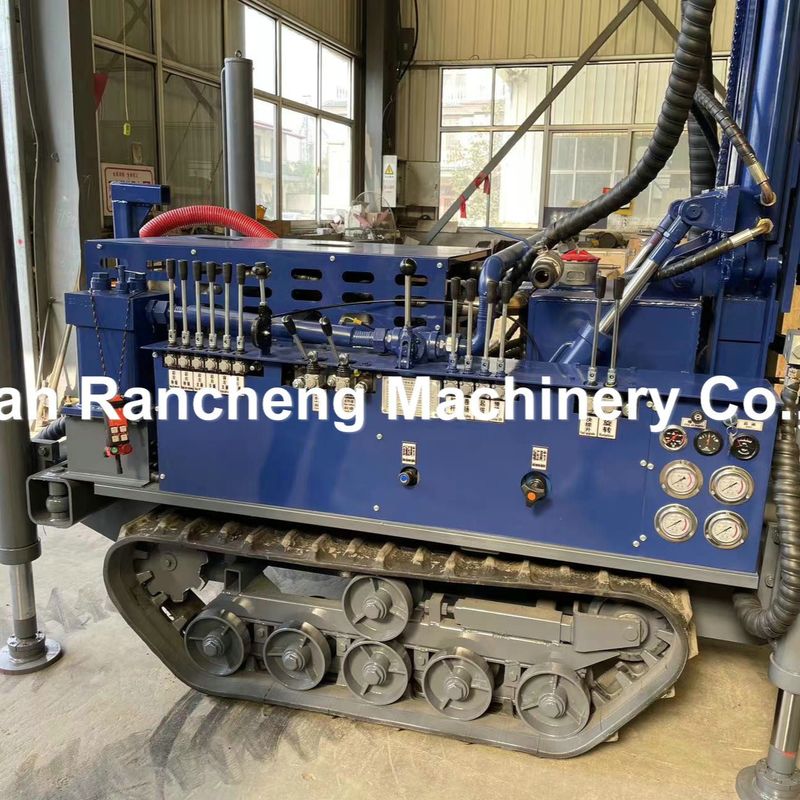

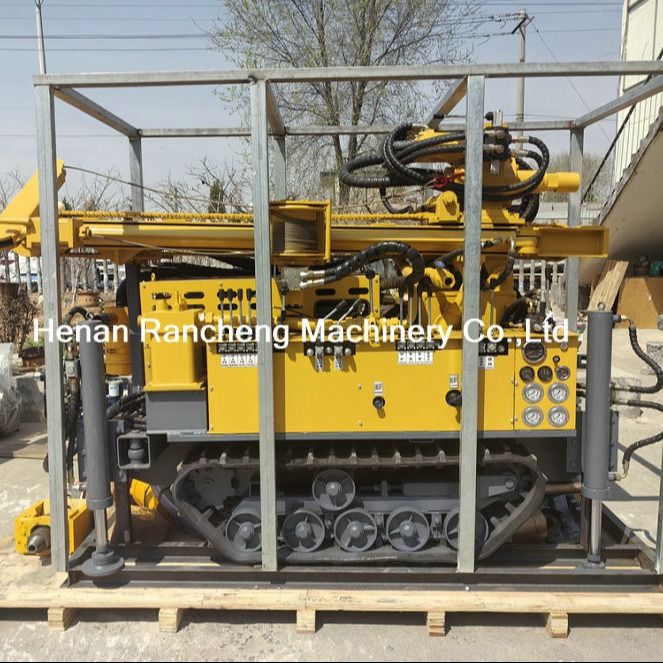

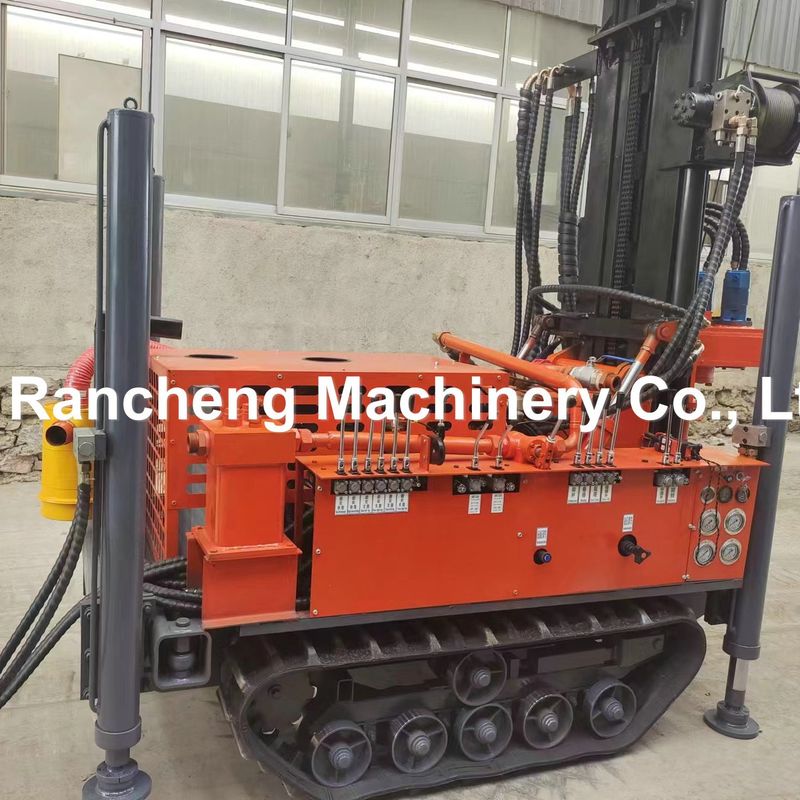

Drilling Machine Equipped With Powerful 77.3KW Yuchai Diesel Engine 45-65r/Min Rotary Speed 0Drilling Machine Equipped With Powerful 77.3KW Yuchai Diesel Engine 45-65r/Min Rotary Speed 1Drilling Machine Equipped With Powerful 77.3KW Yuchai Diesel Engine 45-65r/Min Rotary Speed 2

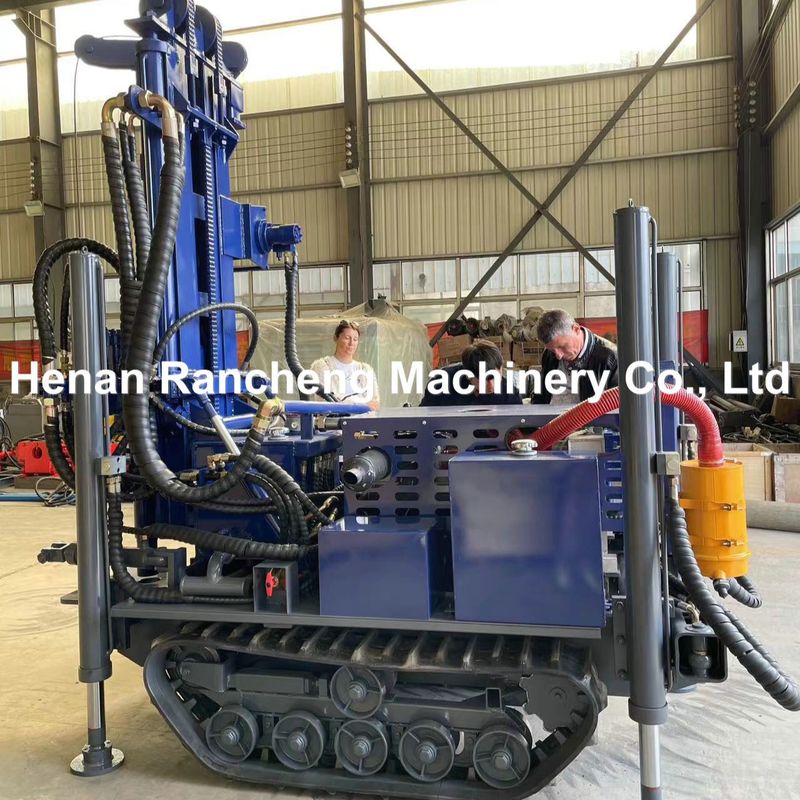

Drilling Machine Equipped With Powerful 77.3KW Yuchai Diesel Engine 45-65r/Min Rotary Speed 3
