Product Description

Professional-Grade Groundwater Detection Instrument 300m Underground Water Finder Detector

Name: Professional-Grade Groundwater Detection Instrument 300m Underground Water Finder Detector
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: 3HT2
Availability: InStock

Product Description

The ADMT-3HT2 is a professional-grade groundwater detection instrument designed for locating underground water sources, assessing aquifer depth, and analyzing hydrological conditions. Utilizing advanced electromagnetic wave and resistivity measurement technologies, it provides non-invasive, efficient, and reliable solutions for geological surveys, environmental studies, and engineering projects.

Technical Parameters

Model	3H	3HT2	3HT3	8HT2	8HT3
Adjustable depth(m)	300			800
Depth interval	5/10/20(m)
Battery power consumption	7.4V2600mAH lithium battery, power consumption is about 140mA
Connection method	WIFI
MN electrode	1009530mm L-shaped alloy electrode 4 pcs
The main function	Optional start and end depth range, adjustable depth interval, 2D/3D automatic drawing, AI automatic analysis, online/offline measurement mode
TT electromagnetic induction coil (mm/w)	/	300/4	300/4	450/8	550/8
TT electromagnetic induction core (KmH/m)	/	80	100	100	120
working environment	Can be inserted into the ground	any ground
Frequency range (HZ)	1-8K
Measurement mode	MN	MN/TT
Resolution	0.1mV±5%			0.01mV±1%
Sampling time (seconds)	14-420	14-420	14-700	14-420	14-700
Shipping weight (kg)	4.5	6.0		7.5
Length weight (mm)	540225195	785225195		940225195

Main functions:

Depth from 0 to 300 meters portable mapping 3HT2 underground water finder detector.:

High Precision Sensing

Employs multi-frequency electromagnetic induction to detect variations in subsurface resistivity, identifying potential water-bearing layers with high accuracy.

Depth detection ranges up to 300 meters (adjustable based on terrain and settings).

User-Friendly Interface

Equipped with a digital display and intuitive software for real-time data visualization, enabling quick interpretation of underground structures.

Portability & Durability

Compact, lightweight design with rugged construction, suitable for fieldwork in challenging environments.

Multi-Functionality

Capable of mapping geological profiles, distinguishing between freshwater and saline water layers, and analyzing soil moisture content.

Energy Efficiency

Long-lasting battery life ensures extended operation during surveys.

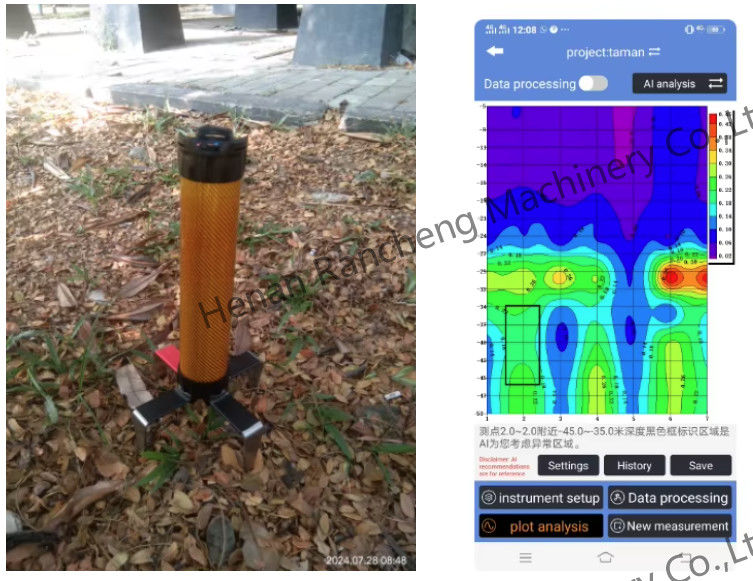

Professional-Grade Groundwater Detection Instrument 300m Underground Water Finder Detector 0

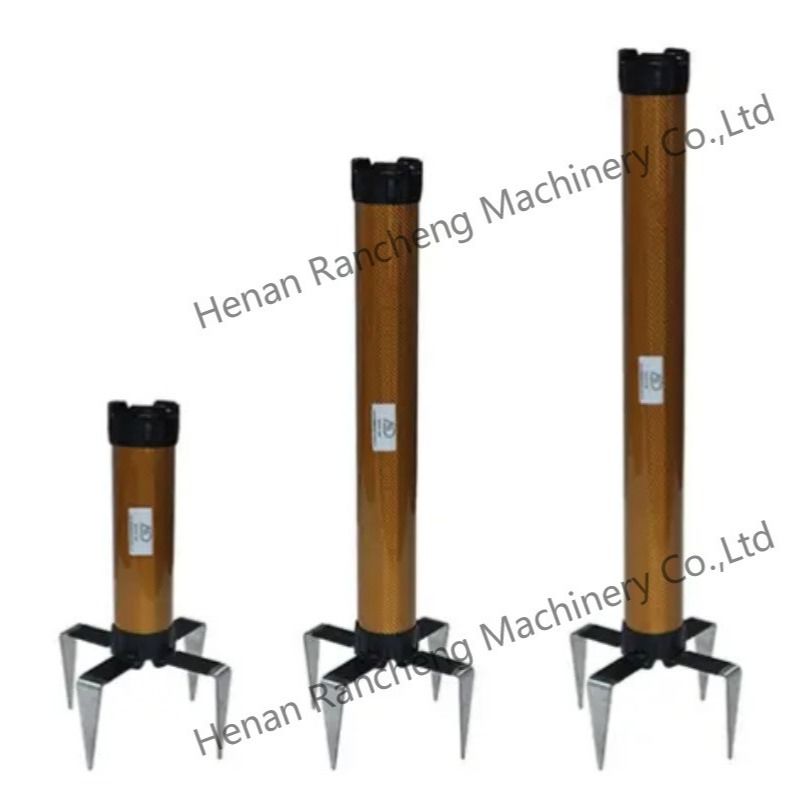

Professional-Grade Groundwater Detection Instrument 300m Underground Water Finder Detector 1

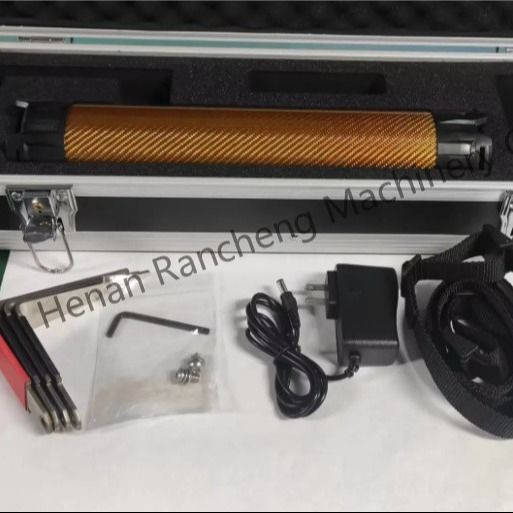

Professional-Grade Groundwater Detection Instrument 300m Underground Water Finder Detector 2

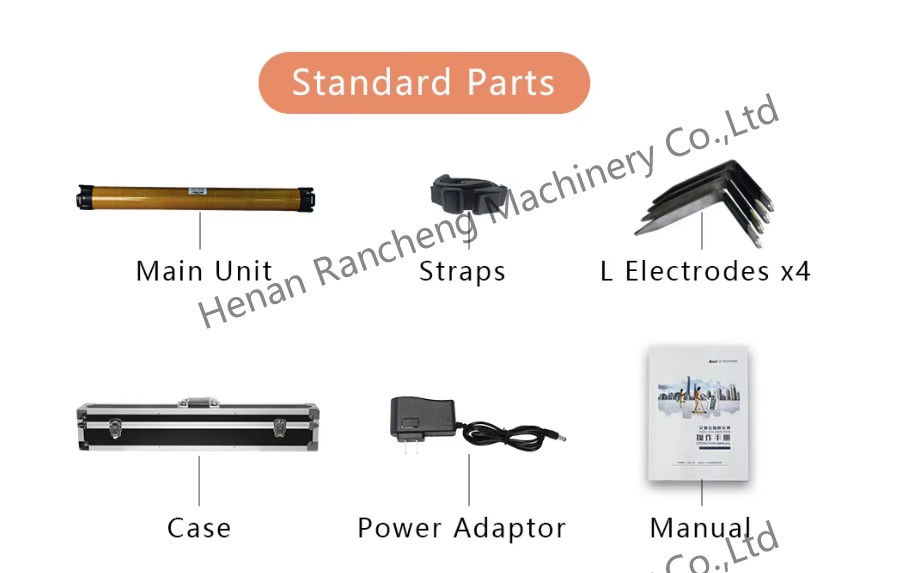

Professional-Grade Groundwater Detection Instrument 300m Underground Water Finder Detector 3

Professional-Grade Groundwater Detection Instrument 300m Underground Water Finder Detector 4
