Hydraulic Small Rotary Drilling Rig Mini Piling Drill Rig With 15m Drilling Depth
Products Description

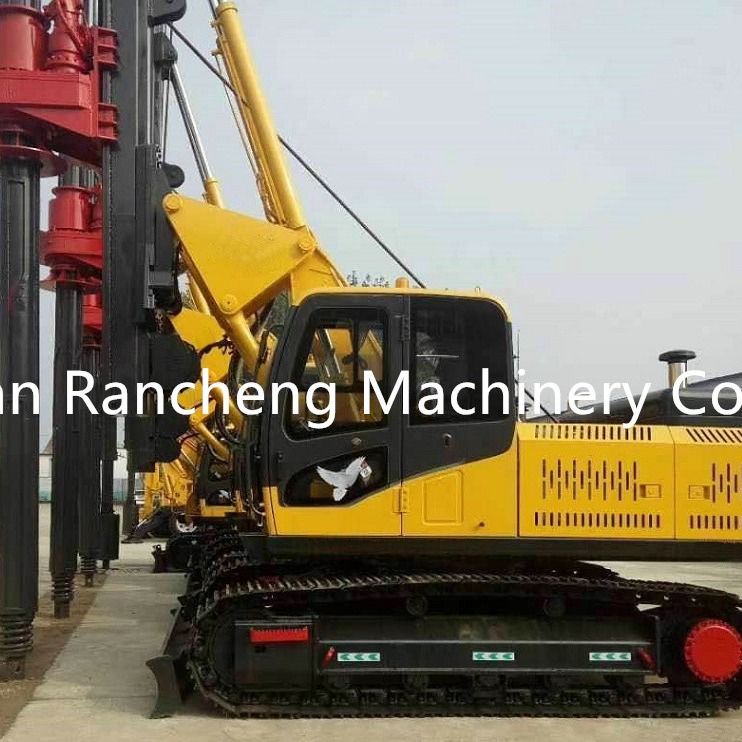

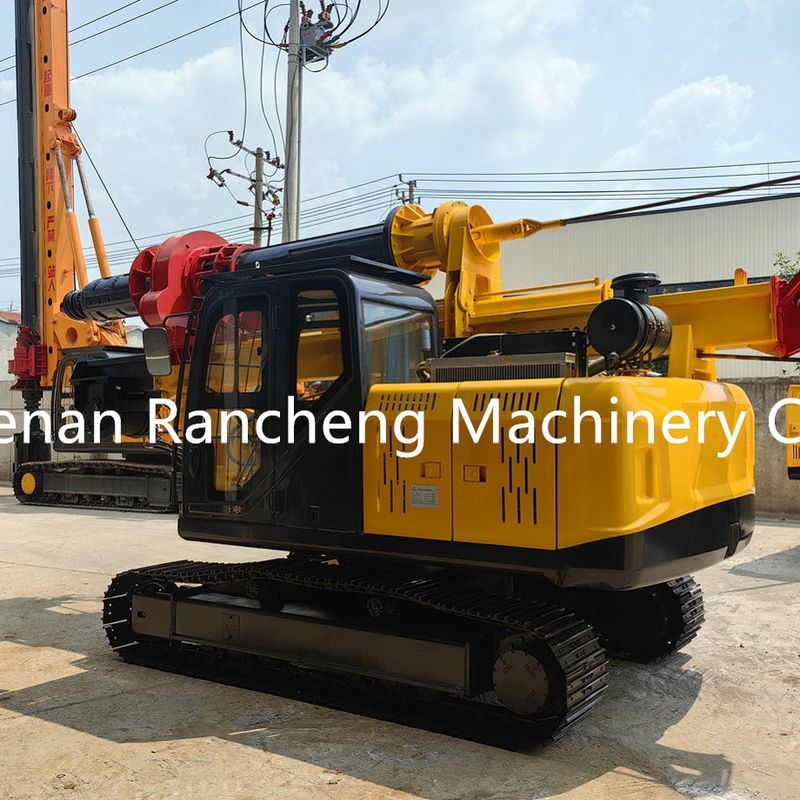

The RCQ515M hydraulic small rotary drilling rig adopts a pressurized drilling mode, enabling a maximum drilling depth of 15 meters. It supports various drilling tool specifications, allowing for pile hole diameters ranging from 500 to 1200 mm, making it suitable for a wide range of shallow foundation applications.
This compact and efficient piling rig delivers high drilling efficiency, and thanks to its mobility, it can be rapidly relocated to the next job site upon completion of tasks. Its flexibility, convenience, and operational efficiency make it especially suitable for national high-speed rail construction projects.
Machine Specifications
| Drilling diameter |
Φ500-Φ1200mm |
drilling depth |
15m |
| Diesel engine |
Yuchai 95KW |
| Power head torque (KN.m) |
45KN.m |
| Rotary speed (r/min) |
17-45RPM |
| Pressurized oil cylinder max push force |
80KN |
| Pressurized oil cylinder max lifting force |
100KN |
| Pressurized oil cylinder max Stroke |
2000mm |
| Main winch max lifting force |
120KN |
| Main winch max single rope speed |
60m/min |
| Main winch rope diameter |
20mm |
| Assisting winch max lifting force |
15KN |
| Assisting winch max single rope speed |
60m/min |
| Assisting winch rope diameter |
16mm |
| Travel speed |
3km/h |
| Max climbing gradient |
30° |
| Min ground clearance |
400mm |
| Crawler board width |
450mm |
| System working pressure |
32Mpa |
| Machine transportation dimension |
8X2.3X3.3m |
Weight |
16.5T |
| Machine working dimension |
5.7X2.3X9m |
Machine Advantages
1. Advanced Hydraulic System
The rig is equipped with a hydraulic system that ensures optimal matching of all vehicle subsystems, offering smooth operation, low energy consumption, and reduced mechanical wear.
2. Reliable Winch System
A grooved drum and rope press system on the main winch prevents rope biting and abrasion, extending the lifespan of the wire rope and ensuring stable hoisting operations.
3. Smart Control Interface
The electrical system features real-time monitoring of operational data such as drilling depth. Its intuitive HMI (Human-Machine Interface) enhances operator control and reduces training requirements.
4. Strong Structure And Safety
Key structural components-including the mast, chassis, and parallelogram mechanism-are developed with finite element analysis, ensuring a high safety factor and long service life even in demanding job conditions.

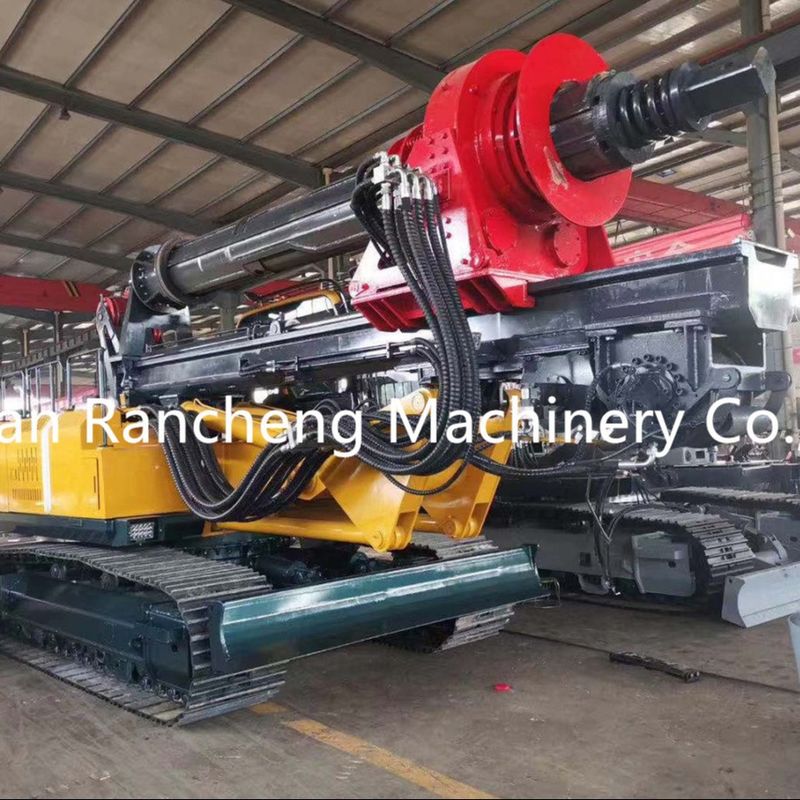

5. Enhanced Power Head With Buffer System
The upgraded power head incorporates a new buffer device, providing stronger torque output and better protection for equipment longevity under variable drilling conditions.
6. Wide Engineering Adaptability
The RCQ515M is suitable for a broad range of applications such as municipal engineering, highways, railway bridge foundations, rural infrastructure, and real estate development. It can handle various ground conditions, including dry holes and water-bearing layers.
7. Transport And Setup Convenience
Designed for on-board transportation with drill rods, the RCQ515M allows for fast mobilization and flexible construction, offering both economic and practical benefits to project contractors.
