Name: Crawler Type Hydraulic Water Well Drilling Rig For 3500-3800Nm Max Torque Of Rotary
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF150C
Availability: InStock

Home > products > Water Well Drilling Machine >

Crawler Type Hydraulic Water Well Drilling Rig For 3500-3800Nm Max Torque Of Rotary

3800Nm Water Well Drilling Rig

Crawler Water Well Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF150C

Request A Quote

Product Details

Name:

Hydraulic Water Well Drilling Machine

Model:

RCF150C

Bore Depth:

150m

Bore Diameter（hammer）:

90-300mm

Pipe Diameter:

76mm/89mm

Pipe Length:

Highlight:

3800Nm Water Well Drilling Rig

Crawler Water Well Drilling Rig

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 20" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

Max 150 Meters Protable RCF150S Water Well Drilling Machine

Get Best Price

Video

350m Drilling Depth Rubber Caterpillar Track Water Well Drilling Rig Pneumatic Rubber Crawler Drilling Rig

Get Best Price

Video

350m Drilling Depth 91KW Yuchai Engine Water Well Drilling Rig 22T Lifting Force

Get Best Price

Video

Compact And High Efficiency 150 Meter Water Well Drilling Rig

Get Best Price

Contact Now

Product Description

Crawler Type Hydraulic Water Well Drilling Rig For 3500-3800Nm Max Torque Of Rotary

Product Description

RCF150C deepwater drilling rig is a product independently developed by our company. The water well drilling rig produced by our company adopts the latest model, advanced hydraulic technology, low energy consumption, large torque, convenient hole formation, and is mainly used for resource exploration and drilling of hydrological wells, civil water wells, agricultural irrigation and other projects.

The drilling rig adopts high-quality materials, has a stylish and compact design, higher efficiency, lower failure rate, economical and durable, and higher overall cost performance. Our water well drilling rig has truly been recognized by the market and has received positive feedback from most customers.

Technical Parameters

Bore diameter(Hammer)	90-300mm
Bore depth	150m
Air consumption	17-31m³/min
Air pressure	1.7-2.5Mpa
Pipe diameter	76mm/89mm
Pipe length	3m
Push force	4T
Lifting force	12T
Lifting speed	2.5m/min
feeding speed	0.5-5m/min
Fast lifting speed	18m/min
Fast feeding speed	35m/min
Max torque of rotary	3500-3800Nm
Rotary speed	40-65r/min
Mud Pump flow	200L/min (option)
Feeding efficiency	10-35m/h
Travel speed	2.5Km/h
Climb ability	30°
Dimension(LWH)	3500×1700×2250MM
Weight	3700kg
Diesel engine	42KW

Product advantages

1. It consists of three parts: the main engine, the pump station, and the control panel.

2. It can drill into the original transportation and exploration tunnels to protect the overall structure of the mine, and can also drill holes at 0 to 90 degrees on the ground.

3. The drilling rig is flexible in layout and the drill rod is mechanized, which reduces the labor intensity of workers and improves work efficiency.

4. The feed box is used, the chuck is fixed, the drill bit rotates, and the oil cylinder pulls and sends out the drilling tool. This bulky drilling rig has been abandoned.

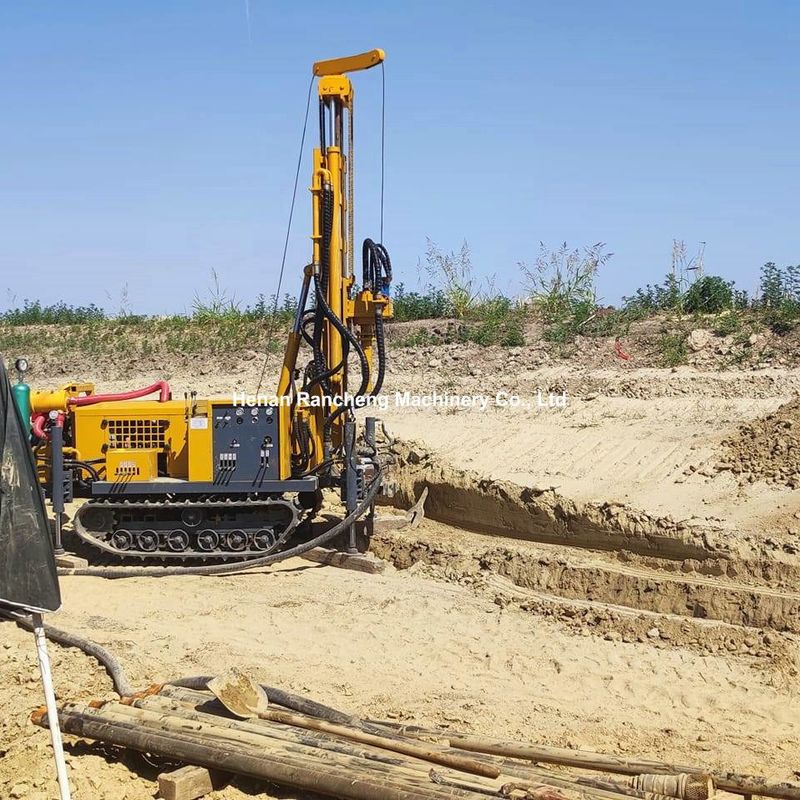

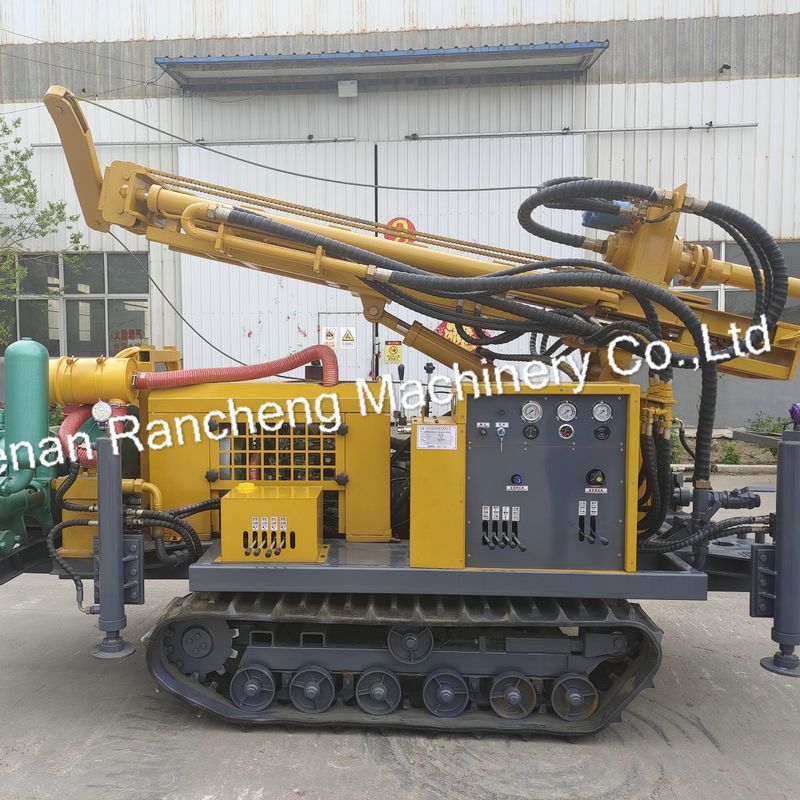

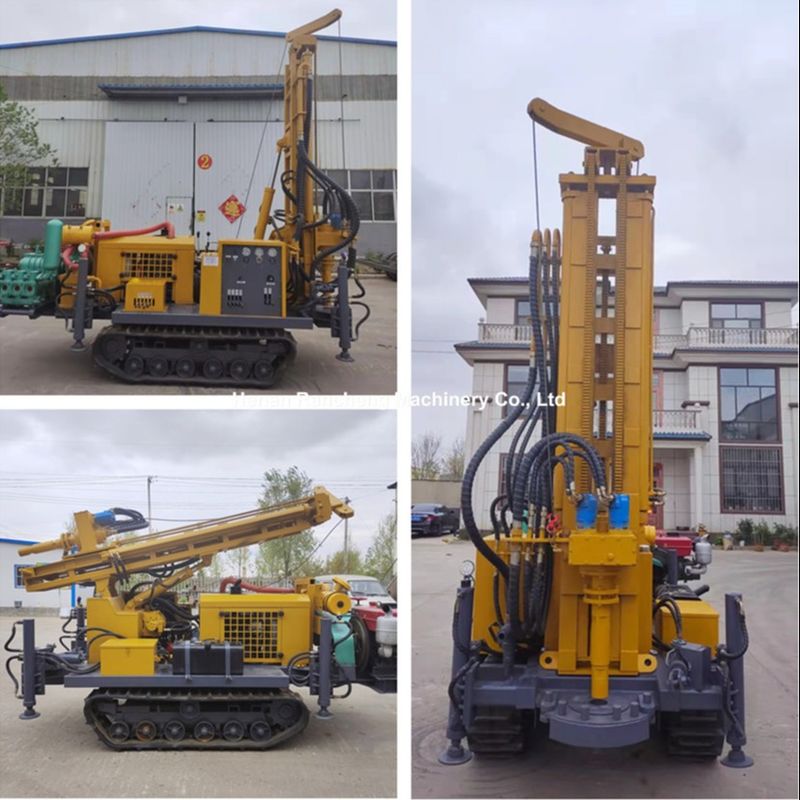

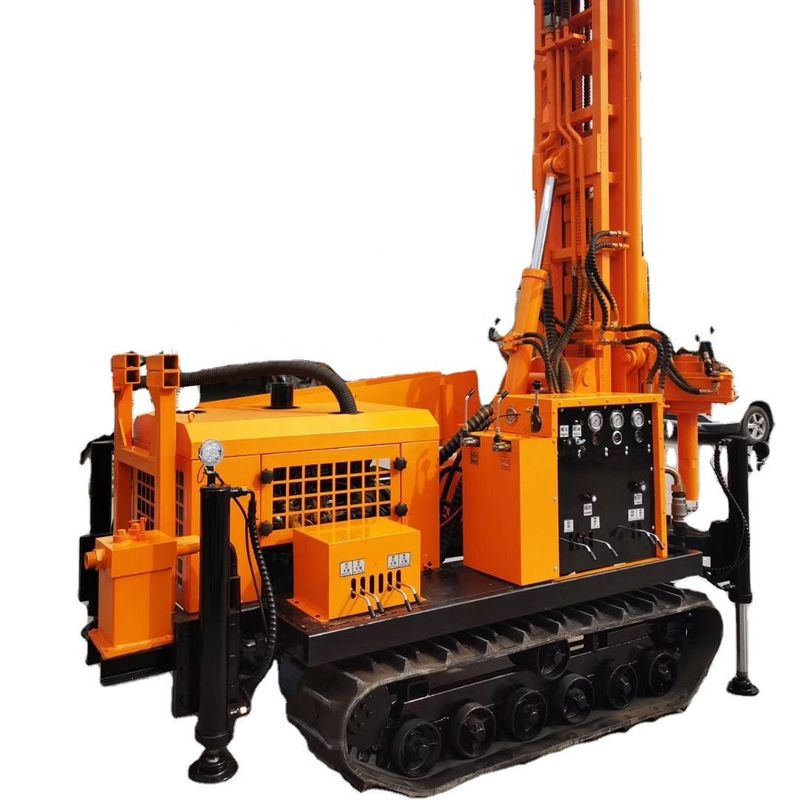

Machine pictures
