Portable Hydraulic Core Drilling Rig Equipment For Geological / Gold / Rock Exploration

Gold Core Drilling Rig

Geological Core Drilling Rig

Rock Exploration Core Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCKY-2A

Request A Quote

Product Details

Drill Depth:

150m(HTW)

Diesel Engine Model:

Yuchai Engine 4 Cylinders 77.3KW

Rated Speed:

2200rpm

Lifting Force:

200KN

Highlight:

Gold Core Drilling Rig

Geological Core Drilling Rig

Rock Exploration Core Drilling Rig

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

Standard shipping

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

100-240RPM Winch Rated Rotary Speed Small Core Drilling Rig 96L/Min Hydraulic System Rated Flow

Get Best Price

Video

100-240RPM Winch Rated Rotary Speed Small Core Drilling Rig Portable Core Drilling Equipment For Intensity Drilling

Get Best Price

Portable Type RCH-3A Underground Core Drilling Rig Exploration Tunnel Mine Drilling Rig

Get Best Price

Video

Portable Hydraulic Core Drilling Rig Equipment For Geological / Gold / Rock Exploration

Get Best Price

Contact Now

Product Description

Portable Hydraulic Core Drilling Rig Equipment For Geological/Gold/Rock Exploration

Name: Portable Hydraulic Core Drilling Rig Equipment For Geological / Gold / Rock Exploration
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCKY-2A
Availability: InStock

Machine Introduction

Designed for high-efficiency core sampling, this RCKY-2A full hydraulic core drilling rig features a robust hydraulic drive system with axial piston pumps and bent-axis piston motors, delivering 1400N.m torque and smooth operation. Its intelligent load-sensing control optimizes performance across varying geological conditions, while the 0-90° adjustable mast enables versatile drilling angles—from vertical to horizontal boreholes.

Technical Parameters

RCKY-2A full hydraulic core drilling rig
Working stratum	Loose soil layer and bed rock(hardness:F6~20)
Drilling capacity	BTW (m)	280
	NTW (m)	200
	HTW (m)	150
Hydraulic system	Rated pressure Mpa	32+16
	Cooling way	secondary air cooling plus primary water cooling
Power	Diesel engine model	Yuchai engine 4 cylinders 77.3KW
	Rated power	77.3KW
	Rated speed	2200rpm
Rotary head	Max torque	1400N.m
	rotary speed	0-1400rpm
	Feeding stroke	1.5-3.4m
	through-hole	95
	Lifting force	200KN
	Feeding force	120KN
Wireline hydraulic Winch capacity	Rope capacity	300m
	Lifting force	1.5T
	Lifting speed	110m/min
	Rope diameter	5mm
Mast	Full height	6.1m
	Drilling angle	40-90°
Clamp (hydraulic )	through-hole	75mm/91mm/115mm
Mud pump (hydraulic )	Model	BW100
	type	Horizontal three cylinder reciprocating single acting piston pump
	Cylinder diameter	65mm
	stroke	50mm
	Pump speed (times/min)	220	156	115
	Flow (L/min)	90	65	50
	Pressure (Mpa	1	2	3
	Outlet pipe diameter	25mm
	Inlet pipe diameter	38mm
Crawler chassis	Walking speed	0~2km/h
	Climbing angle	25°-30°
Dimension	Transport	600023002200mm
Weight		4000kg

Machine Advantages

✅ High-Performance Drilling

Depth Capacity: 150–280m (depending on rod type)
Hole Diameter: 90–300mm (customizable)
Adaptability: Handles loose soil to hard bedrock (F6-20)

✅ Advanced Hydraulic System

Dual-speed feed mechanism (oil cylinder + chain) for precise pressure control
Load-sensitive hydraulics auto-adjust to rock hardness

✅ Smart & Safe Operation

Wireless remote control (50m range)
Auto-leveling legs and sliding mast for quick setup
Crawler chassis for rugged terrain mobility

✅ Efficient Design

Modular assembly for fast relocation
Hydraulic rod clamp reduces manual handling

Application

RCKY-2A full hydraulic core drilling rig is primarily designed for drilling solid mineral deposits but can also be used for engineering geology, shallow oil and natural gas exploration, groundwater drilling, as well as drilling holes for tunnel ventilation, drainage, and dam grouting.

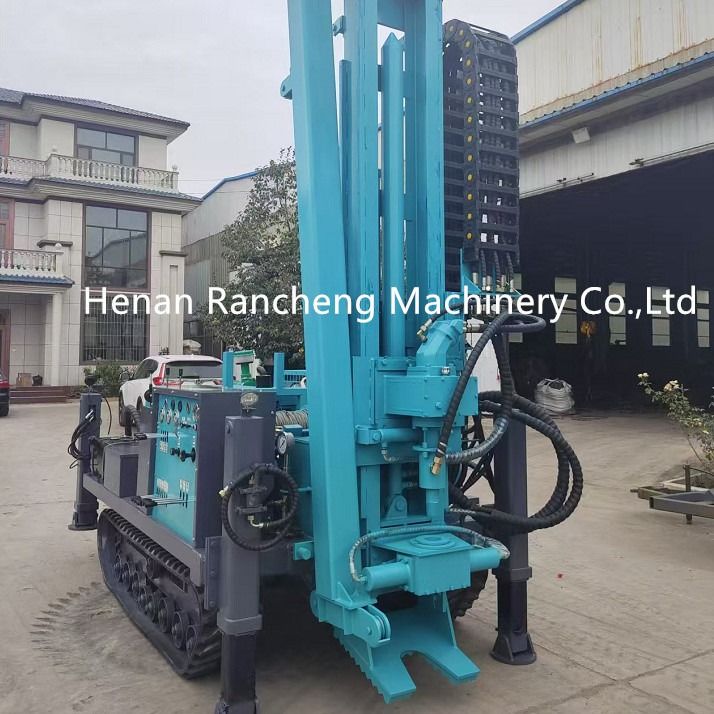

Portable Hydraulic Core Drilling Rig Equipment For Geological / Gold / Rock Exploration 0

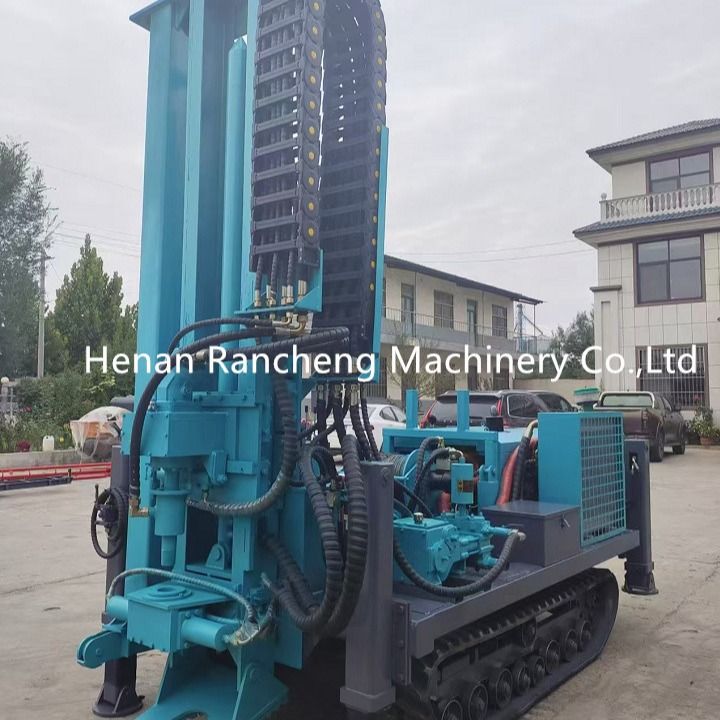

Portable Hydraulic Core Drilling Rig Equipment For Geological / Gold / Rock Exploration 1

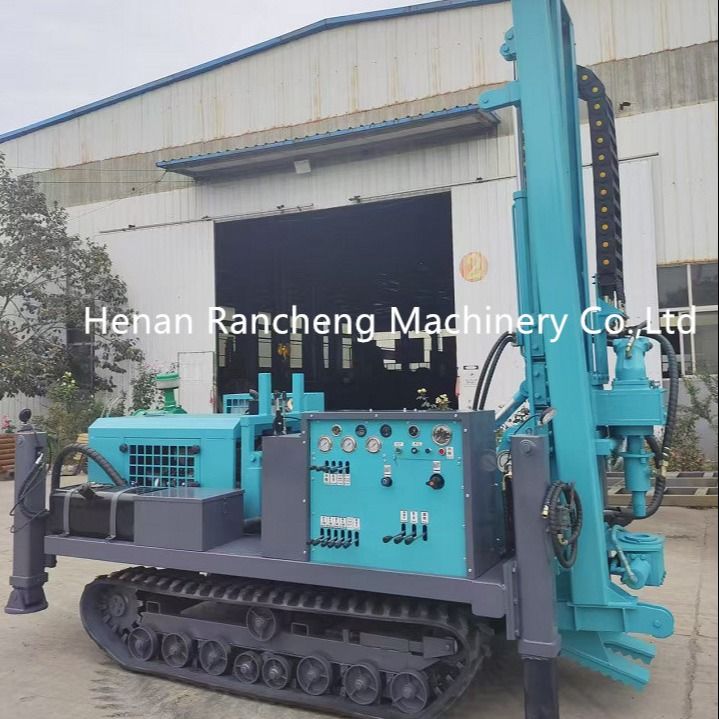

Portable Hydraulic Core Drilling Rig Equipment For Geological / Gold / Rock Exploration 2

Portable Hydraulic Core Drilling Rig Equipment For Geological / Gold / Rock Exploration 3
