Portable Drilling Rotary 22HP Diesel Hydraulic Well Drilling Rig Small Well Drilling Machine

Portable Drilling Rotary 22HP Diesel Hydraulic Well Drilling Rig Small Well Drilling Machine

Small Well Drilling Machine

22HP Drilling Rotary Machine

Portable Drilling Rotary Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCS200P Portable Well Drilling Machine

Contact Us
Request A Quote
Portable Drilling Rotary 22HP Diesel Hydraulic Well Drilling Rig Small Well Drilling Machine
Portable Drilling Rotary 22HP Diesel Hydraulic Well Drilling Rig Small Well Drilling Machine Portable Drilling Rotary 22HP Diesel Hydraulic Well Drilling Rig Small Well Drilling Machine Portable Drilling Rotary 22HP Diesel Hydraulic Well Drilling Rig Small Well Drilling Machine Portable Drilling Rotary 22HP Diesel Hydraulic Well Drilling Rig Small Well Drilling Machine
Product Details
Name:
Portable Water Well Drilling Machine
Model:
RCS200P
Bore Depth:
80-150m
Drilling Dia:
100-450mm
Weight Of Drilling Machine (kg):
1000
Highlight:

Small Well Drilling Machine

,

22HP Drilling Rotary Machine

,

Portable Drilling Rotary Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Standard shipping
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price Drill Depth 100m Electric Portable Water Well Drilling Rig Main Machine With 22HP Engine online Video

Drill Depth 100m Electric Portable Water Well Drilling Rig Main Machine With 22HP Engine

Get Best Price
Good price 150m DTH Hydraulic Water Well Drilling Rig Machine Portable Pneumatic trailer Mounted Drilling Rig online Video

150m DTH Hydraulic Water Well Drilling Rig Machine Portable Pneumatic trailer Mounted Drilling Rig

Get Best Price
Good price Small Hydraulic Drill Cylinder 160m Depth Water Digger Machine Crawler Mounted Water Well Drilling Rig For Sale online Video

Small Hydraulic Drill Cylinder 160m Depth Water Digger Machine Crawler Mounted Water Well Drilling Rig For Sale

Get Best Price
Good price 100m Deep Electric Portable Water Well Drilling Rig With 22 HP Engine 40kg Maximum Load online Video

100m Deep Electric Portable Water Well Drilling Rig With 22 HP Engine 40kg Maximum Load

Get Best Price
Contact Us
Contact Now
Product Description

Portable Drilling Rotary 22HP Diesel Hydraulic Well Drilling Rig Small Well Drilling Machine



Product Description



This water well drilling machine mainly apply to geothermal drilling, farm irrigation,house yard, gardens ,water well drilling and boring drilling etc,it can drill 70-450mm diameter , Max 150m depth,It also can be used in small building piling, like farmhouse or factory, the drilling diameter can reach 450mm ,it can apply to different stratum, such as sand,soil,clay,soft rock and so on.

Product Specifications

Model of drilling machine RCS200P
Drilling machine overall dimension(mm) 1800*1000*2000
Weight of Drilling machine (kg) 1000
Drill rod diameter (mm) Ø50
Drill rod length(mm) 1500
Rod change method Full automatic screw thread
Drilling depth(m) 150
Diesel Motor Power (Hp/kw) 22/16.2
Drilling method Percussive and rotating type
Drilling hole diameter(mm) Within Ø 450mm
Stroke distance (mm) 2000
Hosting capacity (kg) 1500



Product Features



1. Lightweight, energy-saving; patented product, unique design, simple drilling structure;
2. Convenient transportation, high efficiency, fast operation speed; long service life.
3. Simple operation, can be learned in a short time, one person can operate, reducing labor intensity;
4. Can drill through hard strata, unless it is thick rock layer;

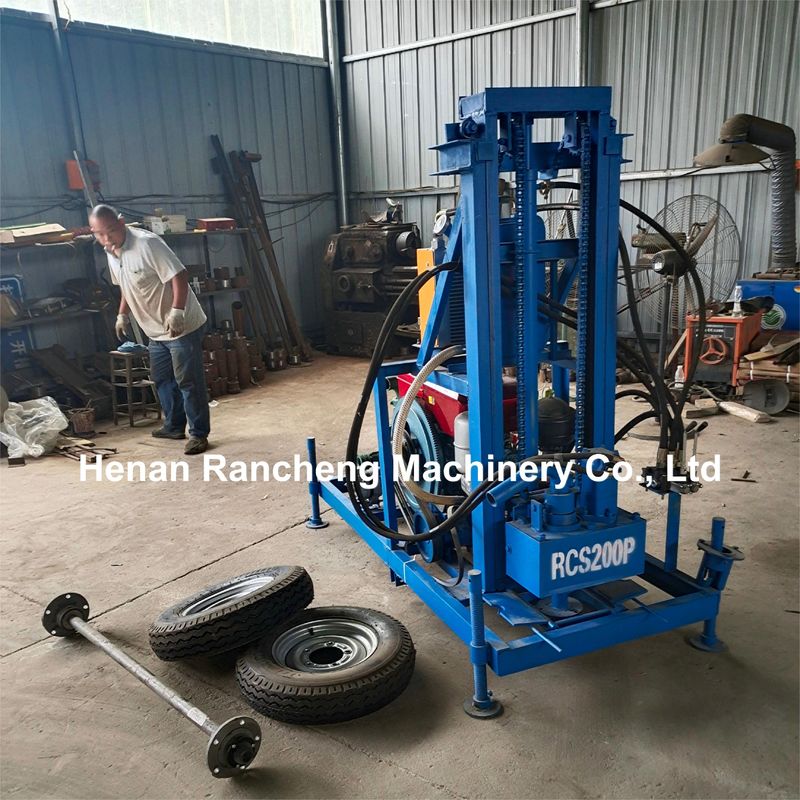

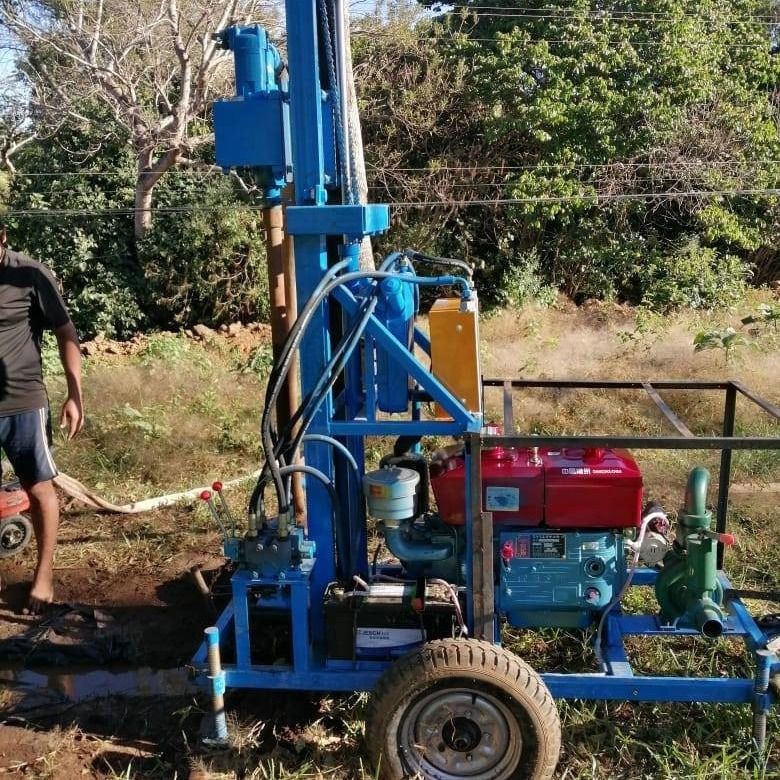

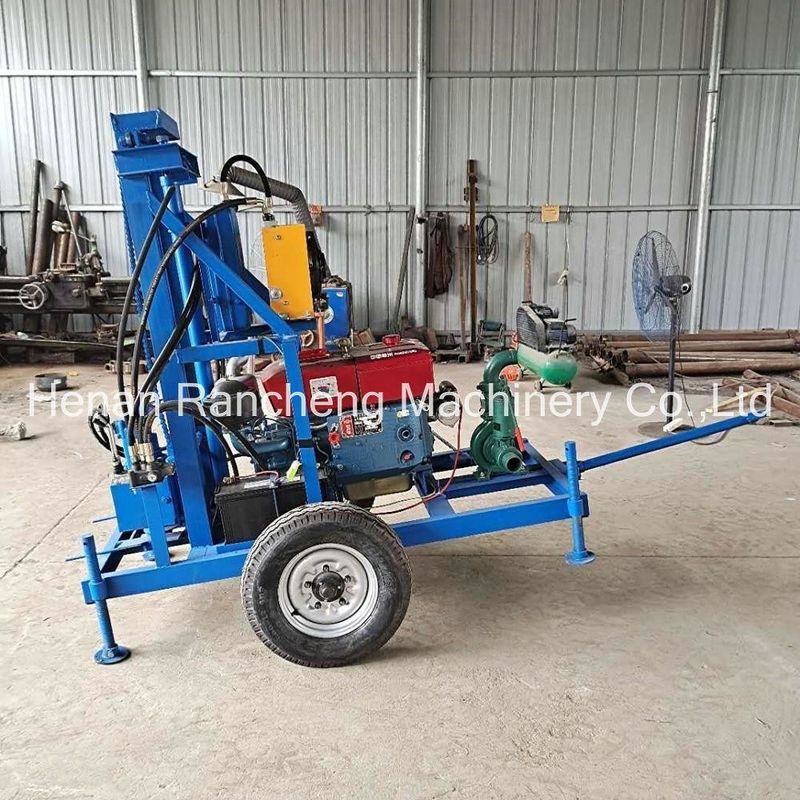

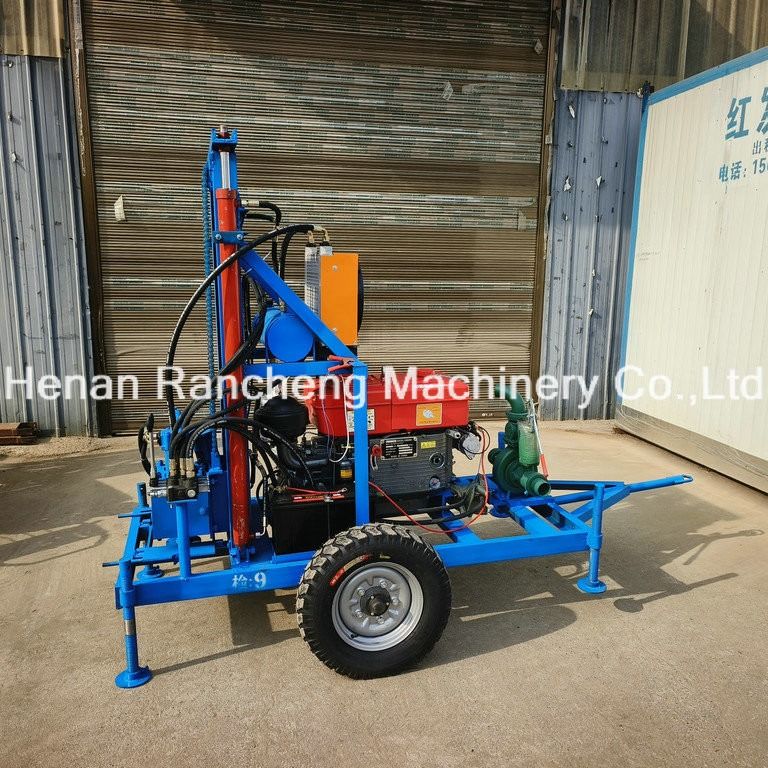

Product Image



Portable Drilling Rotary 22HP Diesel Hydraulic Well Drilling Rig Small Well Drilling Machine 0Portable Drilling Rotary 22HP Diesel Hydraulic Well Drilling Rig Small Well Drilling Machine 1Portable Drilling Rotary 22HP Diesel Hydraulic Well Drilling Rig Small Well Drilling Machine 2Portable Drilling Rotary 22HP Diesel Hydraulic Well Drilling Rig Small Well Drilling Machine 3Portable Drilling Rotary 22HP Diesel Hydraulic Well Drilling Rig Small Well Drilling Machine 4Portable Drilling Rotary 22HP Diesel Hydraulic Well Drilling Rig Small Well Drilling Machine 5
