Wheel Type Square Rod Rotary Drilling Rig Pile Driver Machine Piling Post Ground Screw Fence Hydraulic Equipment

Wheel Type Square Rod Rotary Drilling Rig Pile Driver Machine Piling Post Ground Screw Fence Hydraulic Equipment

Ground Screw Fence Rotary Drilling Rig

Hydraulic Equipment Rotary Drilling Rig

Pile Driver Machine Rotary Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCQ-11W/13W/15W/20W

Contact Us
Request A Quote
Product Details
Name:
Hydraulic Piling Rig
Model:
RCQ-11W/13W/15W/20W
Drilling Diameter:
500-1500mm
Max Drilling Depth:
11/13/15/20m
Highlight:

Ground Screw Fence Rotary Drilling Rig

,

Hydraulic Equipment Rotary Drilling Rig

,

Pile Driver Machine Rotary Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 40" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

Wheel Type Square Rod Rotary Drilling Rig Pile Driver Machine Piling Post Ground Screw Fence Hydraulic Equipment

Product Description


The RCQ series wheeled spiral pile driver uses a pressurized drilling method to achieve a rotary drilling depth of 11-20 meters. Equipped with drilling tools of different specifications, the pile hole diameter can reach 500-1500 mm.



The pile driver has high drilling efficiency and can be quickly transferred to the next construction site after the construction is completed. It is flexible, convenient, efficient and reliable. It is a pile driving machinery and equipment dedicated to the national high-speed railway construction.



Product Specifications

Model RCQ-11W RCQ-13W RCQ-15W RCQ-20W
Working mode Pressure type drilling
Drilling diameter (mm) Φ500-Φ1500
Max drilling depth (m) 11 13 15 20
Dimension (mm) 7150X2120x2900 7000X2200X2950 7500X2200X2950 8200X2200X2950
The total weight (t) 7.6 9.5 9.8 10.2
Chassis width(mm) 400
Powerhead torque (KN.m) 17000-22000
Powerhead rotary speed (r/min) 30-50
Max lifting power (KN) 150
Max stroke (m) 11-12
Wire-rope diameter (mm) 16
Rotation angle ( °) 180 360
Travel speed (km/h) 30
Max Grade ability ( °) 25
Diesel engine model Weichai 4108 Weichai 6105
Diesel engine power (KW) 88 110
Diesel engine rotary speed (r/min) 2400 2200



Application:



This bored piling drilling machine Mainly used in soft soil piling, such as the foundation, seaports, Bridges, reservoirs station, and national defence construction and so on, widely used in rotary screw pile ,pile engineering, drilling engineering, geological prospecting, building projects, such as engineering blasting and so on.

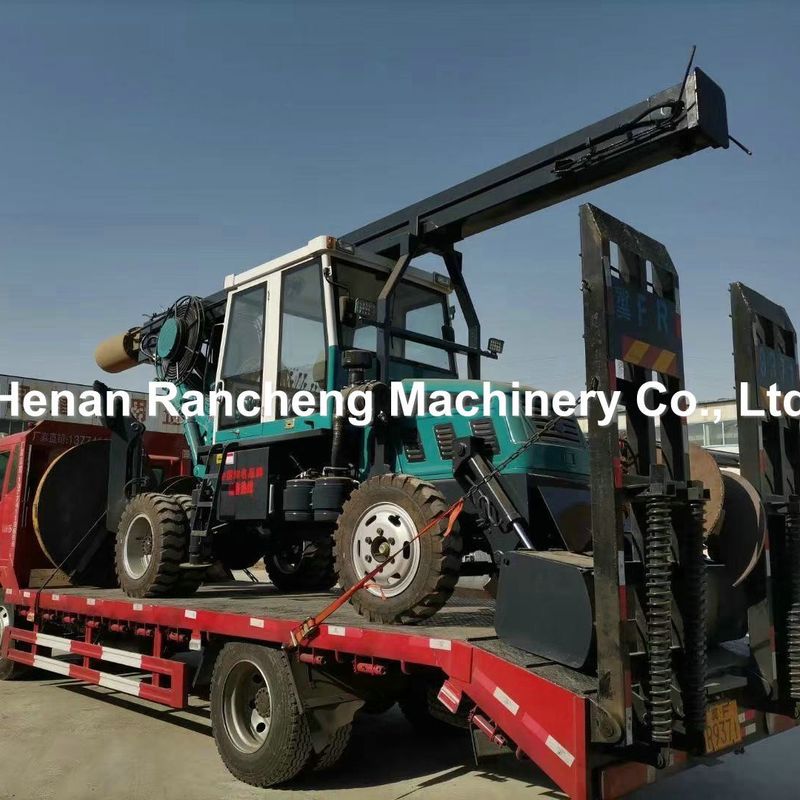

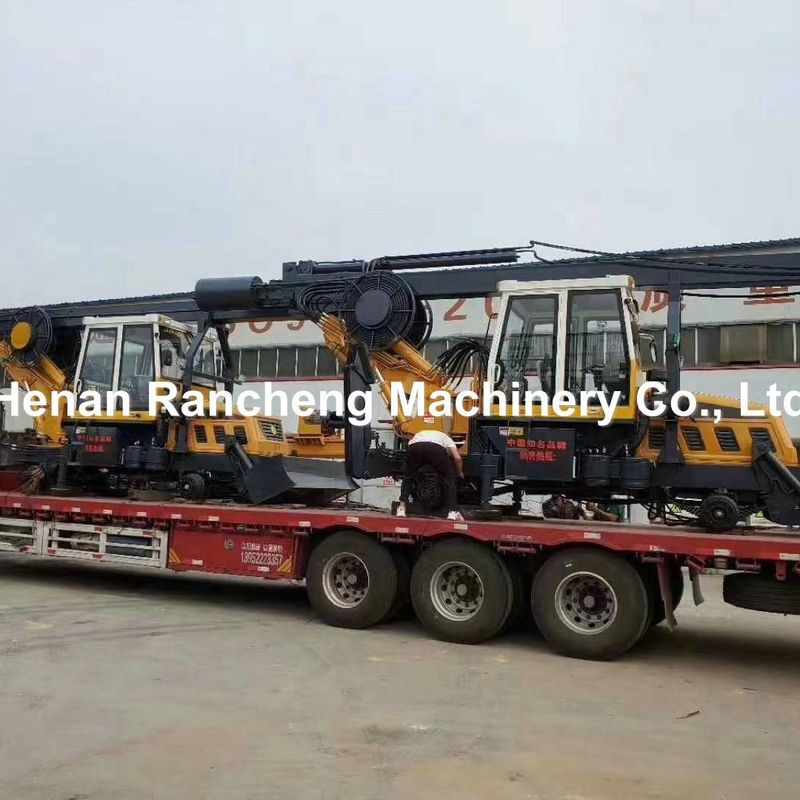

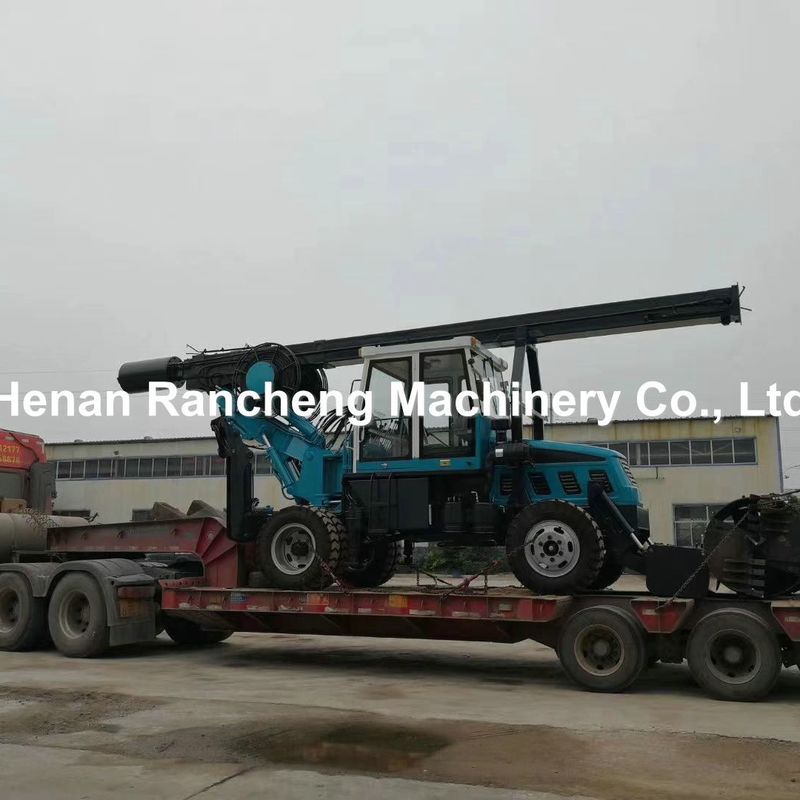

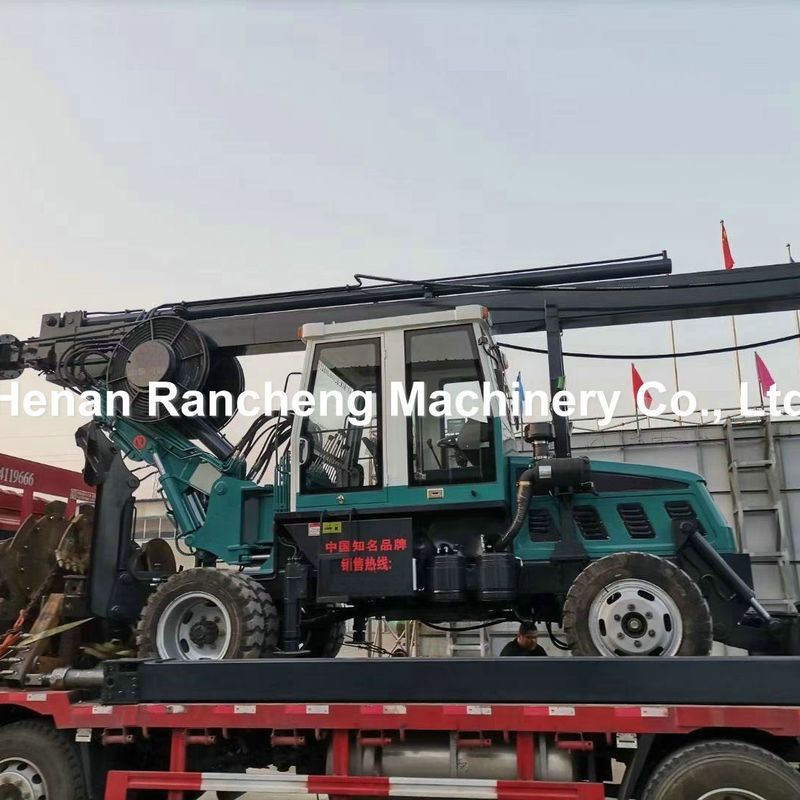

Product Image

Wheel Type Square Rod Rotary Drilling Rig Pile Driver Machine Piling Post Ground Screw Fence Hydraulic Equipment 0Wheel Type Square Rod Rotary Drilling Rig Pile Driver Machine Piling Post Ground Screw Fence Hydraulic Equipment 1Wheel Type Square Rod Rotary Drilling Rig Pile Driver Machine Piling Post Ground Screw Fence Hydraulic Equipment 2Wheel Type Square Rod Rotary Drilling Rig Pile Driver Machine Piling Post Ground Screw Fence Hydraulic Equipment 3
