100m Deep Electric Portable Water Well Drilling Rig With 22 HP Engine 40kg Maximum Load

100m Deep Electric Portable Water Well Drilling Rig With 22 HP Engine 40kg Maximum Load

40kg Portable Water Well Drilling Rig

Portable Water Well Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCS100E

Contact Us
Request A Quote
100m Deep Electric Portable Water Well Drilling Rig With 22 HP Engine 40kg Maximum Load
100m Deep Electric Portable Water Well Drilling Rig With 22 HP Engine 40kg Maximum Load 100m Deep Electric Portable Water Well Drilling Rig With 22 HP Engine 40kg Maximum Load 100m Deep Electric Portable Water Well Drilling Rig With 22 HP Engine 40kg Maximum Load 100m Deep Electric Portable Water Well Drilling Rig With 22 HP Engine 40kg Maximum Load
Product Details
Name:
Portable Electric Water Well Drilling Machine
Model:
RCS100E
Max Drilling Depth:
100m
Driving Motor Power:
60V 1500W
Highlight:

40kg Portable Water Well Drilling Rig

,

Portable Water Well Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by LCL
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price Drill Depth 100m Electric Portable Water Well Drilling Rig Main Machine With 22HP Engine online Video

Drill Depth 100m Electric Portable Water Well Drilling Rig Main Machine With 22HP Engine

Get Best Price
Good price 150m DTH Hydraulic Water Well Drilling Rig Machine Portable Pneumatic trailer Mounted Drilling Rig online Video

150m DTH Hydraulic Water Well Drilling Rig Machine Portable Pneumatic trailer Mounted Drilling Rig

Get Best Price
Good price Small Hydraulic Drill Cylinder 160m Depth Water Digger Machine Crawler Mounted Water Well Drilling Rig For Sale online Video

Small Hydraulic Drill Cylinder 160m Depth Water Digger Machine Crawler Mounted Water Well Drilling Rig For Sale

Get Best Price
Good price 100m Deep Electric Portable Water Well Drilling Rig With 22 HP Engine 40kg Maximum Load online Video

100m Deep Electric Portable Water Well Drilling Rig With 22 HP Engine 40kg Maximum Load

Get Best Price
Contact Us
Contact Now
Product Description

100m Deep Electric Portable Water Well Drilling Rig With 22 HP Engine 40kg Maximum Load



Product Description



This water well drilling rig can drill water wells with diameters from 70 to 450 mm to a maximum depth of 150 meters. It is also suitable for small construction piling projects such as country houses or factories, with a drilling diameter of up to 450 mm. The platform is versatile and can be used in a variety of ground formations, including sand, soil, clay, soft rock, etc.



Product Specifications



Type RCS100E Water pump 220V,2.2KW,12m3/min flow ,46m head of delivery
Max. Drilling Diameter 100-300mm DC potential transformer 60V-80A DC ,Charging transformer
Max.Drilling Depth 100m Drilling Rod Length 1.5m/piece
Driving motor Power 60V 1500W Diameter of Drilling Rod 42mm
Lifting motor power 60V 1500W Dimension 700X700X2400mm



Product Features



1. Small footprint, light weight, maximum length after disassembly is no more than 2 meters, small tricycle, maximum load 40kg, can move people.


2. Mobile structure, 50mm steel frame column, safer and stronger.


3. Parallel shaft and reducer drill bit design, low noise, no tooth jump. Smooth and reliable operation. Water supply for precision machining.

Bearing shaft design, firm suspension bearing system, more scientific and safe.


4. Chassis improvement, stamping connection, more convenient installation.

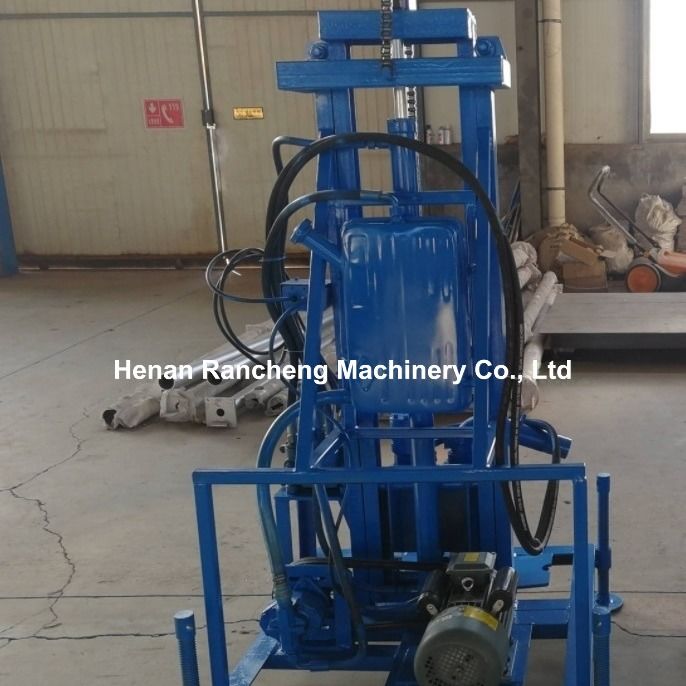

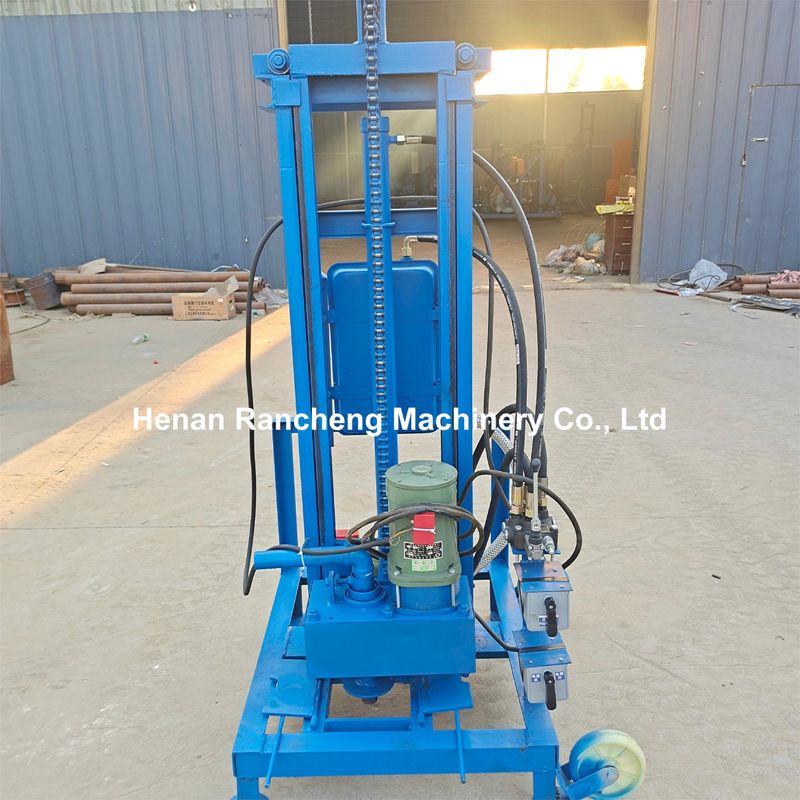

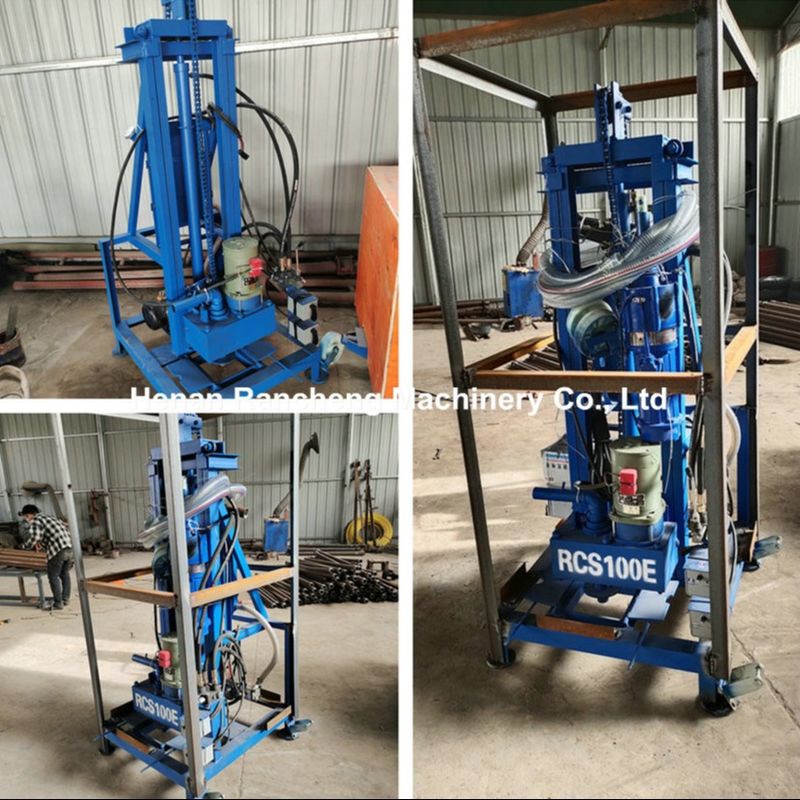

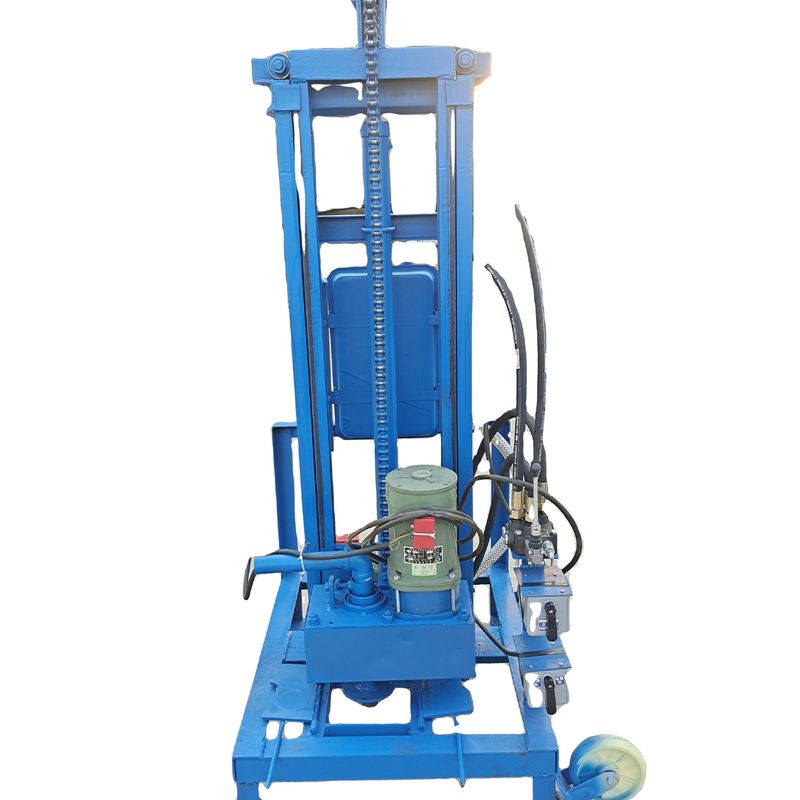

Product Image



100m Deep Electric Portable Water Well Drilling Rig With 22 HP Engine 40kg Maximum Load 0100m Deep Electric Portable Water Well Drilling Rig With 22 HP Engine 40kg Maximum Load 1

100m Deep Electric Portable Water Well Drilling Rig With 22 HP Engine 40kg Maximum Load 2
