Name: 350m Drilling Depth Rubber Caterpillar Track Water Well Drilling Rig Pneumatic Rubber Crawler Drilling Rig
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF350C
Availability: InStock

Home > products > Water Well Drilling Machine >

350m Drilling Depth Rubber Caterpillar Track Water Well Drilling Rig Pneumatic Rubber Crawler Drilling Rig

Track Water Well Drilling Rig

350m Depth Water Well Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF350C

Request A Quote

Product Details

Name:

Crawler Mounted Water Well Drilling Machine

Model:

RCF350C

Bore Depth:

350m

Diesel Engine:

91KW Yuchai Engine

Highlight:

Track Water Well Drilling Rig

350m Depth Water Well Drilling Rig

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 20" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

Max 150 Meters Protable RCF150S Water Well Drilling Machine

Get Best Price

Video

350m Drilling Depth Rubber Caterpillar Track Water Well Drilling Rig Pneumatic Rubber Crawler Drilling Rig

Get Best Price

Video

350m Drilling Depth 91KW Yuchai Engine Water Well Drilling Rig 22T Lifting Force

Get Best Price

Video

Compact And High Efficiency 150 Meter Water Well Drilling Rig

Get Best Price

Contact Now

Product Description

350m Bore Depth Crawler Mounted Water Well Drilling Machine 91KW Yuchai Engine

Product Description

RCF350C deepwater well drilling rig is a product independently developed by our company. This new generation of down-the-hole hammer combined with greater pneumatic power plays an important role in increasing drilling speed.

Adopting the latest model and advanced hydraulic technology, low energy consumption, high torque, convenient well inclination drilling, made of high-quality materials, stylish and compact design, our company's drilling rigs are more efficient, have a lower failure rate, are economical and durable, and have a higher comprehensive cost performance. Our water well drilling rigs have been recognized by the market and our customers have given positive feedback.

Technical Parameters

Model	RCF350C
Bore diameter(Hammer)	140-350mm
Bore depth	350m
Air consumption	17-35m³/min
Air pressure	1.7-3.5Mpa
Pipe diameter	89mm/102mm
Pipe length	1m/2m/3m/6m
Lifting force	22T
Lifting speed	3m/min
feeding speed	0.5-5m/min
Fast lifting speed	30m/min
Fast feeding speed	50m/min
Max torque of the rotary	6200-8500Nm
Rotary speed	55-115r/min
Hoist lifting capacity	2T
Mud Pump flow	450L/min (option)
High hydraulic leg	1.5m
Feeding efficiency	10-35m/h
Travel speed	2.5Km/h
Climb ability	30°
Dimension(LWH)	6000×2000×2550mm
Weight	8600Kg
Diesel engine	91KW Yuchai engine
Drilling way	Air compressor drilling or mud pump drilling
Operating system	Full hydraulic operation

Application

Our company's water well drilling rigs are mainly used for drilling resources exploration, hydrological wells, civil water wells, agricultural irrigation and other projects.

After service

We offer 24 / 7 online chat and phone support to ensure you're always ready for help. In addition, we also provide lifetime free technical support, as well as overseas services, if you need it, we can send engineers to your site to provide support.

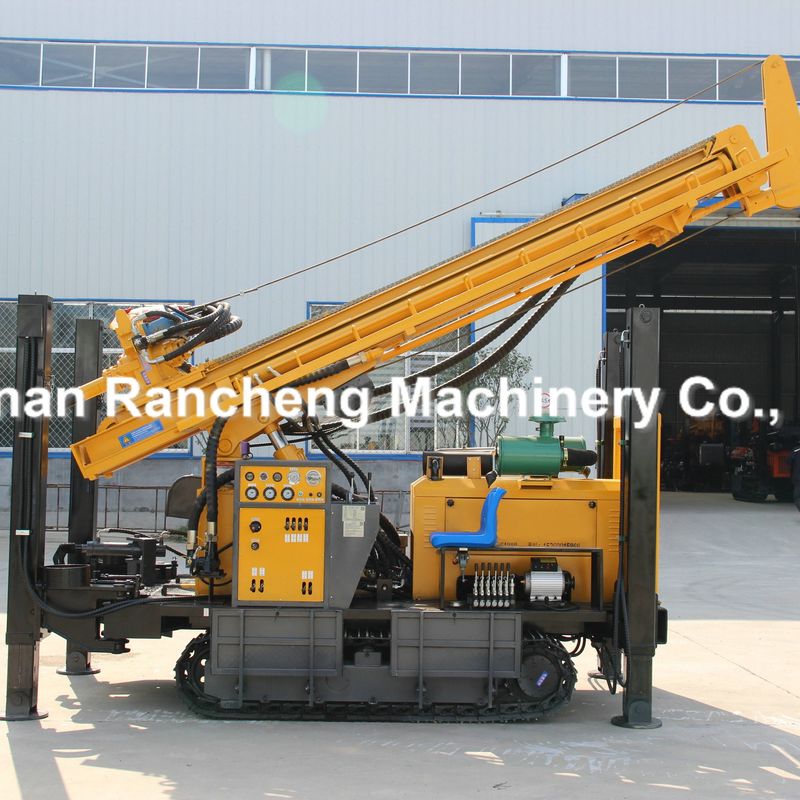

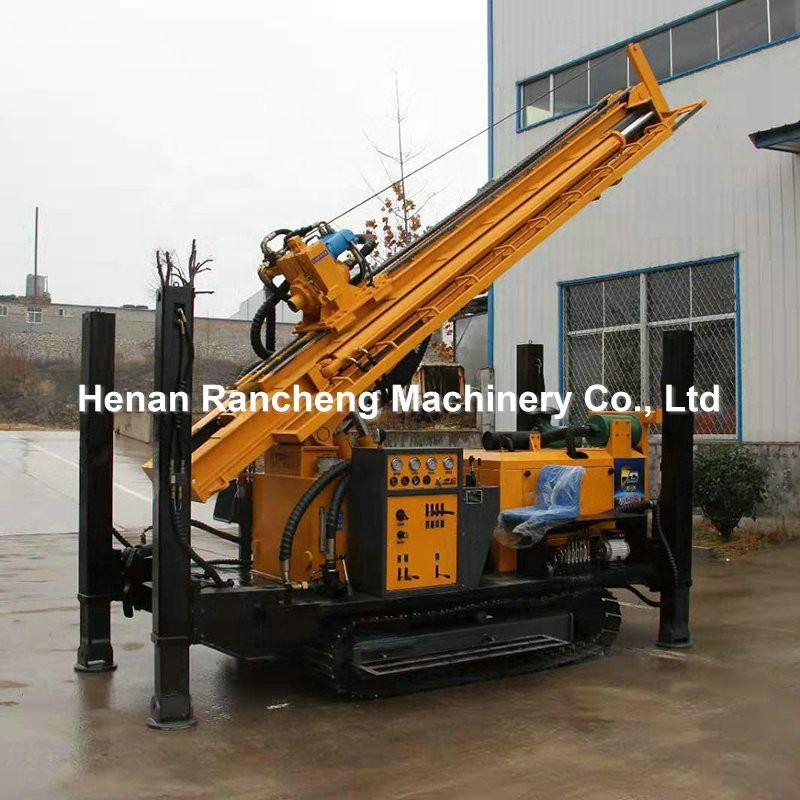

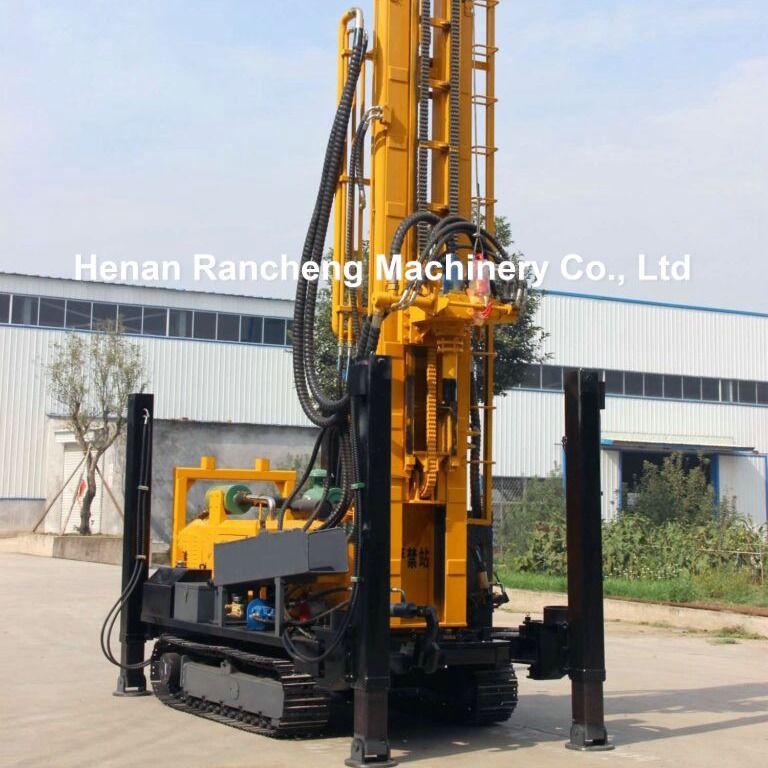

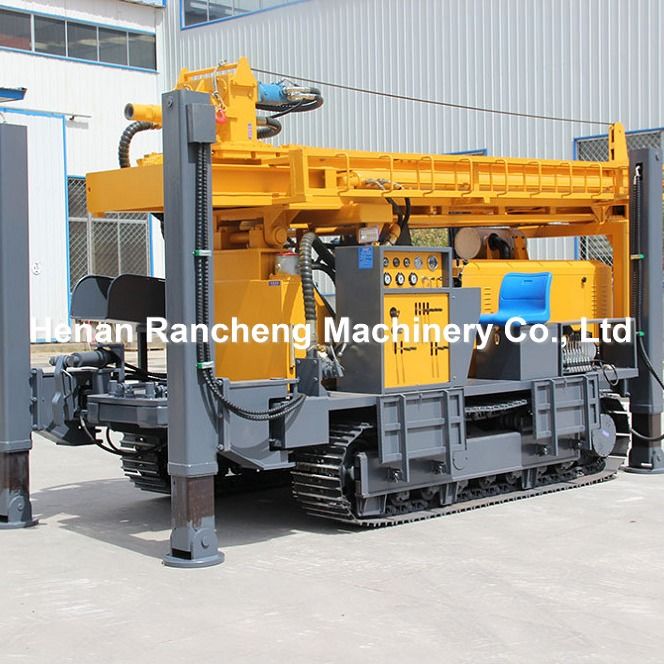

Machine picture display
