350m Drilling Depth 91KW Yuchai Engine Water Well Drilling Rig 22T Lifting Force

350m Drilling Depth 91KW Yuchai Engine Water Well Drilling Rig 22T Lifting Force

91KW Water Well Drilling Rig

350m Depth Water Well Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF350C

Contact Us
Request A Quote
350m Drilling Depth 91KW Yuchai Engine Water Well Drilling Rig 22T Lifting Force
350m Drilling Depth 91KW Yuchai Engine Water Well Drilling Rig 22T Lifting Force 350m Drilling Depth 91KW Yuchai Engine Water Well Drilling Rig 22T Lifting Force 350m Drilling Depth 91KW Yuchai Engine Water Well Drilling Rig 22T Lifting Force 350m Drilling Depth 91KW Yuchai Engine Water Well Drilling Rig 22T Lifting Force
Product Details
Name:
Crawler Mounted Water Well Drilling Machine
Model:
RCF350C
Bore Depth:
350m
Diesel Engine:
91KW Yuchai Engine
Highlight:

91KW Water Well Drilling Rig

,

350m Depth Water Well Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price Max 150 Meters Protable RCF150S Water Well Drilling Machine online Video

Max 150 Meters Protable RCF150S Water Well Drilling Machine

Get Best Price
Good price 350m Drilling Depth Rubber Caterpillar Track Water Well Drilling Rig Pneumatic Rubber Crawler Drilling Rig online Video

350m Drilling Depth Rubber Caterpillar Track Water Well Drilling Rig Pneumatic Rubber Crawler Drilling Rig

Get Best Price
Good price 350m Drilling Depth 91KW Yuchai Engine Water Well Drilling Rig 22T Lifting Force online Video

350m Drilling Depth 91KW Yuchai Engine Water Well Drilling Rig 22T Lifting Force

Get Best Price
Good price Compact And High Efficiency 150 Meter Water Well Drilling Rig online Video

Compact And High Efficiency 150 Meter Water Well Drilling Rig

Get Best Price
Contact Us
Contact Now
Product Description

350m Drilling Depth 91KW Yuchai Engine Water Well Drilling Rig 22T Lifting Force

Product Description
RCF350C deepwater well drilling rig is a product independently developed by our company. This new generation of hammer drill combined with enhanced pneumatic power plays an important role in increasing drilling speed.

Our company's drilling rig adopts the latest model and advanced hydraulic technology, with low energy consumption, high torque, convenient drilling of well inclination, made of high-quality materials, beautiful and compact design, higher efficiency, lower failure rate, economical and durable, and has a high comprehensive cost performance. Our water well drilling rigs have been recognized by the market and customers have given positive feedback.

Technical Parameters

ModelRCF350C
Bore diameter(Hammer)140-350mm
Bore depth350m
Air consumption17-35m³/min
Air pressure1.7-3.5Mpa
Pipe diameter89mm/102mm
Pipe length1m/2m/3m/6m
Lifting force22T
Lifting speed3m/min
feeding speed0.5-5m/min
Fast lifting speed30m/min
Fast feeding speed50m/min
Max torque of the rotary6200-8500Nm
Rotary speed55-115r/min
Hoist lifting capacity2T
Mud Pump flow450L/min (option)
High hydraulic leg1.5m
Feeding efficiency10-35m/h
Travel speed2.5Km/h
Climb ability30°
Dimension(L*W*H)6000×2000×2550mm
Weight8600Kg
Diesel engine91KW Yuchai engine
Drilling wayAir compressor drilling or mud pump drilling
Operating systemFull hydraulic operation


Application

Our company's water well drilling rigs are mainly used for drilling resources exploration, hydrological wells, civil water wells, agricultural irrigation and other projects.

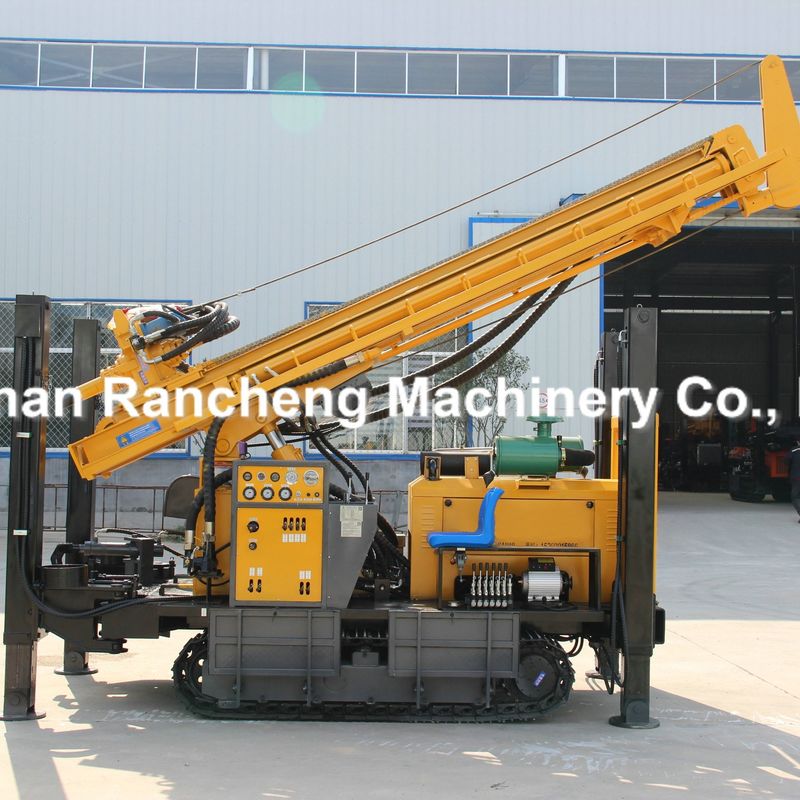

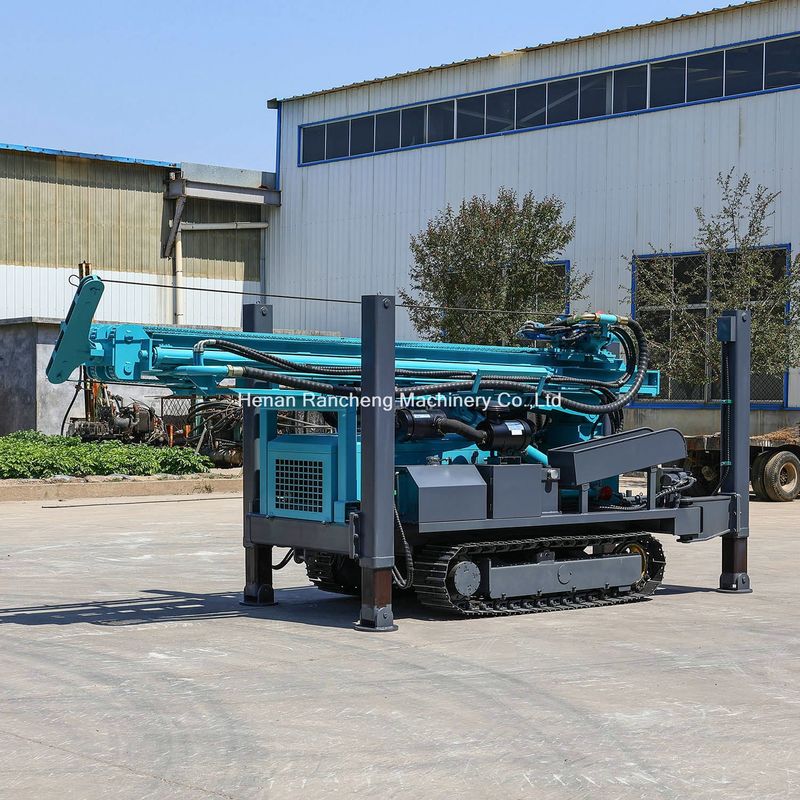

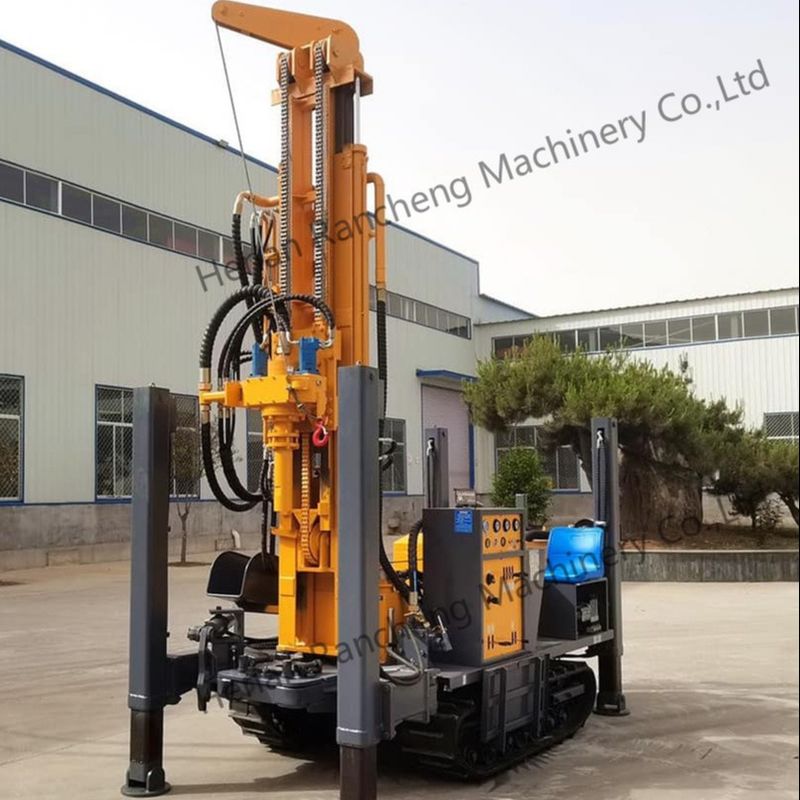

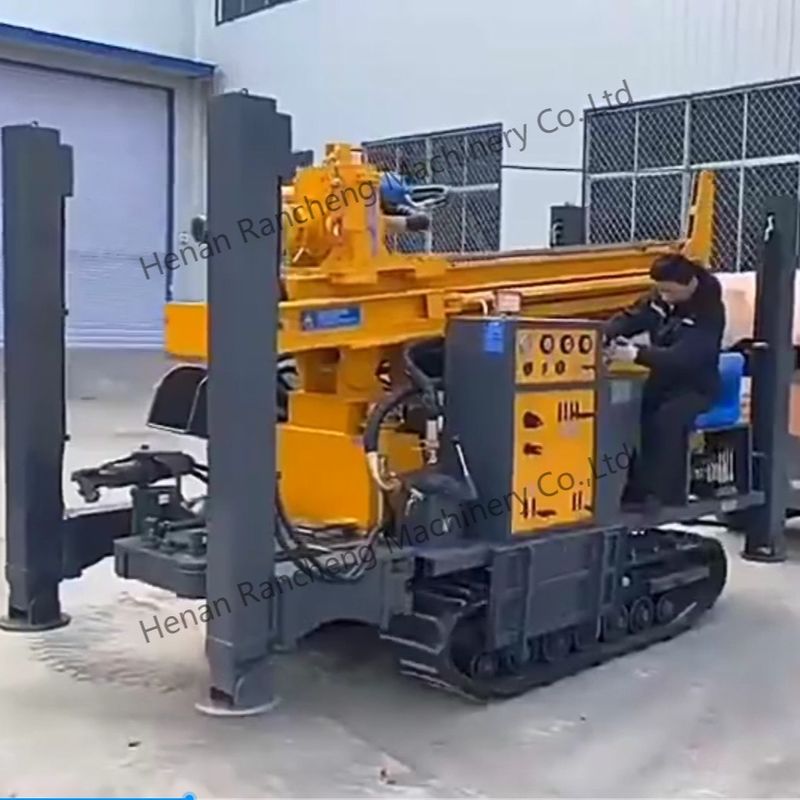

Machine picture display

350m Drilling Depth 91KW Yuchai Engine Water Well Drilling Rig 22T Lifting Force 0350m Drilling Depth 91KW Yuchai Engine Water Well Drilling Rig 22T Lifting Force 1
350m Drilling Depth 91KW Yuchai Engine Water Well Drilling Rig 22T Lifting Force 2
350m Drilling Depth 91KW Yuchai Engine Water Well Drilling Rig 22T Lifting Force 3
350m Drilling Depth 91KW Yuchai Engine Water Well Drilling Rig 22T Lifting Force 4
