5t 5 m*2.2 m Platform Truck Semi Trailer Axle For Cargo Transport
Product Description

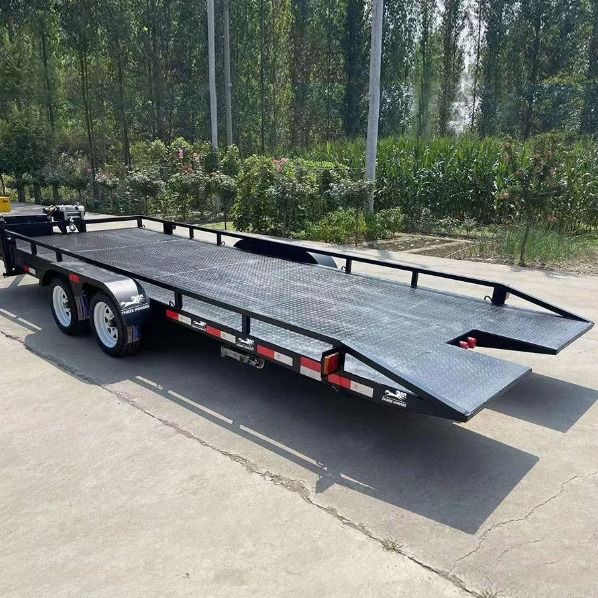

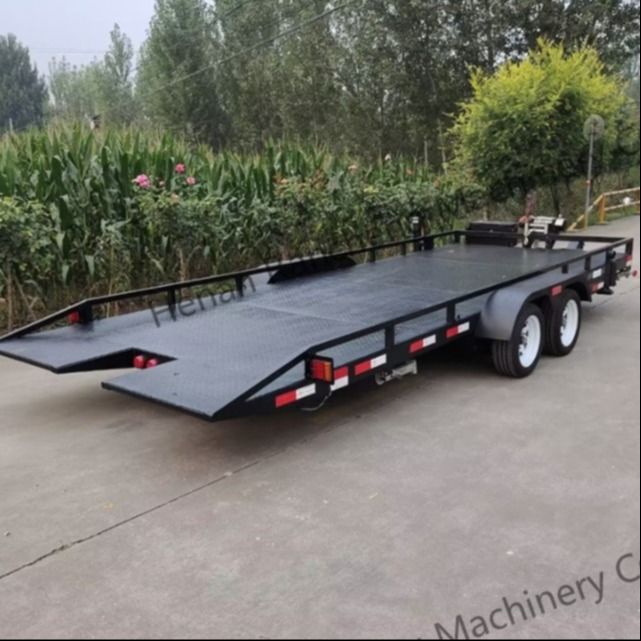

This flatbed trailer combines steel and aluminum construction to achieve both high strength and reduced weight. The spacious 5000 × 2200 mm cargo platform is suitable for transporting a wide range of large cargo. With overall dimensions of 6500 × 2800 × 750 mm, the trailer is compact and easy to maneuver.
Equipped with four ST235/80R16 tubeless tires, it provides good grip and enhanced puncture resistance. The trailer features a dual-axle linkage system with front and rear floating suspension, supported by steel plate shock absorbers to handle rough road conditions effectively. The dual-axle electric braking system offers quick and responsive braking to ensure driving safety.

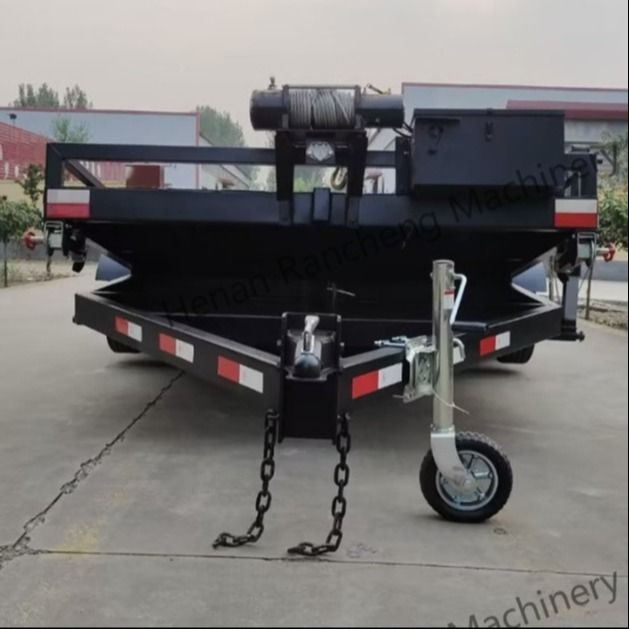

A triangular towing bar with a support frame enables compatibility with various tractors. The main frame is built with 12# and 14# channel steel, and the deck is made from 3 mm Q235 patterned steel plate, delivering durability and load-bearing capacity.
The rear-dump function is powered by a dual hydraulic cylinder system, an independent hydraulic station, and a 12V battery, making unloading efficient and convenient.
technical data
| Material |
Steel / Aluminum |
| Maximum Payload |
5T |
| Carriage Size |
5000X2200mm |
| Overall Size |
6500X2800X750mm |
| Tire |
ST235/80R16 Tubeless Tire X4 |
| Suspension form |
Double-bridge linkage, front and rear floating type structure, with linkage steel plates installed at the front and rear for shock absorption |
| brake type |
Double-axle electric brake |
|
Traction form
|
Triangular traction rods are equipped with traction support frames |
| additional device |
Taillights, seven-hole socket, mudguard, traction support frame, connector, safety chain, D-ring, mechanical outriggers X4, electric winch, and 12V battery |
| Material |
12# 14# Channel steel, 3mm patterned plate, material Q235 |
| Self-unloading form |
Double oil top (rear-tipping self-unloading), equipped with an independent hydraulic station, 12V battery |
| surface treatment |
Primer + topcoat |
Product Features
1. Intelligent Suspension System
The unique dual-axle linkage suspension with front and rear floating design automatically adjusts to varying road conditions, ensuring smooth and stable cargo transport.
2. Quick and Precise Braking
The dual-axle electric braking system delivers rapid response and evenly distributed braking force, enabling safe and controlled stops even in emergencies.
3. Smart and Efficient Loading & Unloading
The rear-tilt dump design, powered by a hydraulic system, allows for one-touch unloading without the need for additional equipment, greatly improving operational efficiency.
4. High Compatibility and Versatility
The triangular towing bar with support frame is compatible with a wide range of tractors, making the trailer suitable for various operational applications.
5. Comprehensive Safety Features
The trailer is equipped with taillights, fenders, safety chains, and mechanical support legs for enhanced stability. An electric winch assists in loading and unloading heavy cargo, ensuring all-around transport safety.
Application
The 5-ton flatbed trailer is a versatile transportation solution suitable for a wide range of applications. It is suitable for carrying building materials and equipment in construction projects, transporting agricultural machinery and produce, handling industrial parts and components, supporting commercial goods distribution, and delivering materials and equipment for municipal engineering tasks.
