5t 5m*2.2m Platform Truck Semi Trailer Axle Double-Axle Electric Brake

5t 5m*2.2m Platform Truck Semi Trailer Axle Double-Axle Electric Brake

5t Platform Truck Semi Trailer Axle

5m Platform Truck Semi Trailer Axle

2.2m Platform Truck Semi Trailer Axle

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

5T trailer

Contact Us
Request A Quote
5t 5m*2.2m Platform Truck Semi Trailer Axle Double-Axle Electric Brake
5t 5m*2.2m Platform Truck Semi Trailer Axle Double-Axle Electric Brake 5t 5m*2.2m Platform Truck Semi Trailer Axle Double-Axle Electric Brake 5t 5m*2.2m Platform Truck Semi Trailer Axle Double-Axle Electric Brake 5t 5m*2.2m Platform Truck Semi Trailer Axle Double-Axle Electric Brake
Product Details
Loading Ability:
5t
Material:
Steel / Aluminum
Carriage Size:
5000X2200mm
Overall Size:
6500X2800X750mm
Tire:
ST235/80R16 Tubeless Tire X4
Brake Type:
Double-axle Electric Brake
Highlight:

5t Platform Truck Semi Trailer Axle

,

5m Platform Truck Semi Trailer Axle

,

2.2m Platform Truck Semi Trailer Axle

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Standard shipping
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price 5t 5m*2.2m Platform Truck Semi Trailer Axle For Cargo Transport online Video

5t 5m*2.2m Platform Truck Semi Trailer Axle For Cargo Transport

Get Best Price
Good price 5t 5m*2.2m Platform Truck Semi Trailer Axle Double-Axle Electric Brake online Video

5t 5m*2.2m Platform Truck Semi Trailer Axle Double-Axle Electric Brake

Get Best Price
Good price Crawler Type Four Wheel Hybrid Remote Control Lawn Mower 8HP Gasoline Engine online Video

Crawler Type Four Wheel Hybrid Remote Control Lawn Mower 8HP Gasoline Engine

Get Best Price
Good price Crawler Type Four Wheel Hybrid Remote Control Lawn Mower 20mm-180mm Cutting Height online Video

Crawler Type Four Wheel Hybrid Remote Control Lawn Mower 20mm-180mm Cutting Height

Get Best Price
Contact Us
Contact Now
Product Description

5t 5m*2.2m Platform Truck Semi Trailer Axle Double-Axle Electric Brake

Product Description

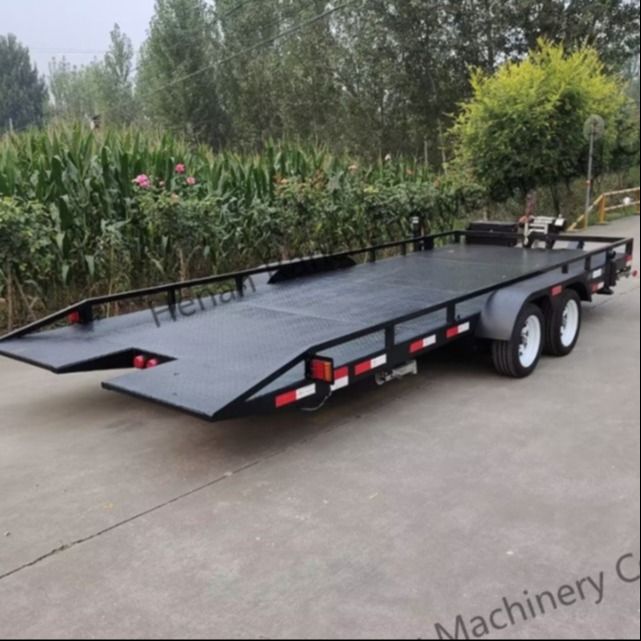

This flatbed trailer features a steel and aluminum structure for high strength and light weight. Its spacious 5000×2200 mm platform is suitable for transporting a variety of large cargoes. With an overall size of 6,500 × 2,800 × 750 mm, it is compact and easy to operate.



Equipped with four ST235/80R16 tubeless tires, it has excellent grip and enhanced puncture resistance. The trailer is equipped with a dual-axle coupling system, front and rear floating suspension, supported by steel plate shock absorbers, which can travel efficiently on rough roads. The dual-axle electric braking system brakes quickly to ensure safe driving.



The triangular tow bar with support frame ensures compatibility with a variety of tractors. The main frame is made of 12 and 14-inch steel sections, and the platform is made of 3mm Q235 steel plate to ensure durability and load capacity.



The rear unloading function is driven by a system of two hydraulic cylinders, an independent hydraulic station and a 12V battery, making unloading efficient and convenient.

technical data



Material Steel / Aluminum
Maximum Payload 5T
Carriage Size 5000X2200mm
Overall Size 6500X2800X750mm
Tire ST235/80R16 Tubeless Tire X4
Suspension form Double-bridge linkage, front and rear floating type structure, with linkage steel plates installed at the front and rear for shock absorption
brake type Double-axle electric brake

Traction form

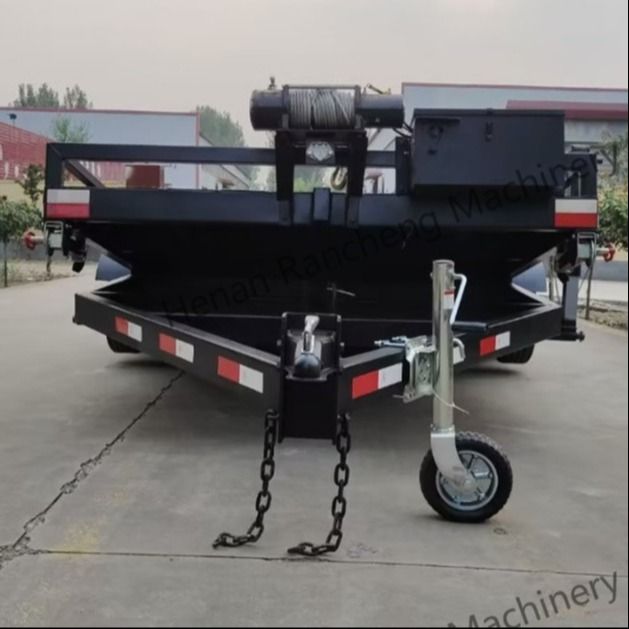

 Triangular traction rods are equipped with traction support frames
additional device Taillights, seven-hole socket, mudguard, traction support frame, connector, safety chain, D-ring, mechanical outriggers X4, electric winch, and 12V battery
Material 12# 14# Channel steel, 3mm patterned plate, material Q235
Self-unloading form Double oil top (rear-tipping self-unloading), equipped with an independent hydraulic station, 12V battery
surface treatment Primer + topcoat



Product Features



5t 5m*2.2m Platform Truck Semi Trailer Axle Double-Axle Electric Brake 0



5t 5m*2.2m Platform Truck Semi Trailer Axle Double-Axle Electric Brake 1



5t 5m*2.2m Platform Truck Semi Trailer Axle Double-Axle Electric Brake 2



5t 5m*2.2m Platform Truck Semi Trailer Axle Double-Axle Electric Brake 3



5t 5m*2.2m Platform Truck Semi Trailer Axle Double-Axle Electric Brake 4
