Water Detecor of 3D Imaging Geophysical Survey Equipment
Product Description:

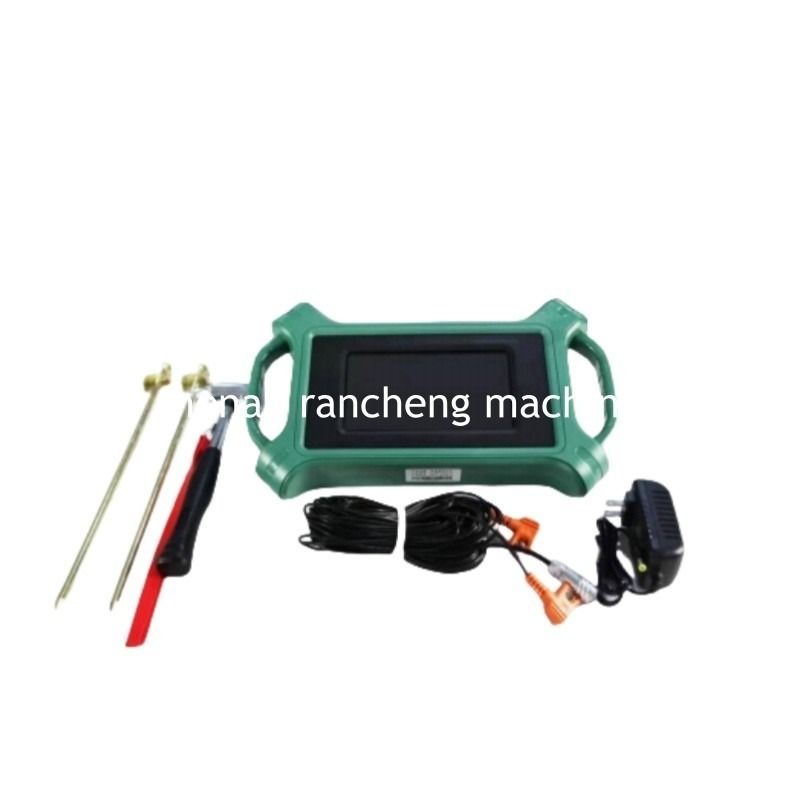

This 300-meter natural electric field detector is a groundbreaking geophysical exploration equipment developed by our company. It uses independent patented technology and is specially designed for groundwater detection. The instrument weighs only a few kilograms and has a 10-meter short measuring line design, so a single person can quickly complete the exploration task. The intelligent touch operation interface is equipped with large-capacity storage, supports one-click real-time mapping, and can accurately identify fault zones (high-resistance areas) and aquifers (low-resistance areas), greatly improving the efficiency of field exploration.
Features:
Ø 3D imaging: quickly make 2D.3D images with your phone or tablet
Ø Precise and intelligent:46 years of research and development history, accurate and reliable data.
Ø Simple and efficient:APP operation is simple and easy to understand, innovative measurement methods are 3-6 times faster than traditional methods,simple and ifficient
Ø Inexperienced people can learn the operation in 5 minute
Main advantages:
Automatic imaging:The 10.1" Android touch screen is intelligent in real time into 2D, 3D and curved images.
Precise and stable:
The disadvantages of natural electromagnetic field sources, which are inconsistent in size and change from time to time, are solved and the accuracy is greatly improved.
Triple screen interoperability:
The instrument screen, mobile phone screen and computer screen are interoperable.
Technical Parameters:
| Versions |
300m-16D |
500m-16D |
1200m-16D |
2000m-16D |
3000m-16D |
| Max Depth (m) |
≤300 |
≤500 |
≤1200 |
≤2000 |
≤3000 |
| Channel Input |
16 channels input simultaneously, maximum electrode spacing 2.5m |
| Channel Options |
1-14 |
| Depth Options |
Optional within the maximum depth, refer to 100/200/300/400/500/600/800/1200/2000/3000m |
| Scan Interval |
10-80 |
| Connections |
Serial port, Wifi, Bluetooth 4.0, USB (optional 4G)
|
| Display |
10.1-inch IPS wide-angle 178° visual touch screen (1024×600) |
| OS |
Android 6.0.1 |
| CPU |
ARM Cortex-A7 8-core CPU 2.0Hz |
| GPU |
OpenGL ES 2.0 |
| Core Features |
Multiple options of depths, 2D/3D plotting, removable battery |
| Sensing Mode |
MN/TT |
| Frequency Range (hz) |
1-8K |
0.01-6K |
| Filtering |
Preset or intelligent frequency selection, analog + data filtering 1-16 times superposition optional |
| Discrim. |
0.1mV±3% |
0.01mV±2% |
| Acquisition Time (s) |
60-3600 |
120-5400 |
| Battery |
800mA/H |
| Console Weight |
1.85kg |
Applications:
Underground water detector is a professional equipment used for hydrogeological exploration. By detecting underground electromagnetic waves or geological structures, the underground water detector can effectively determine key information such as the location, depth and amount of groundwater. This information provides scientific guidance for drilling and water extraction operations. The underground water detector improves the success rate of drilling, and reduces resource waste and cost investment.
Support and Services:
Is it difficult to operate?
---The device is simple to operate and can be used without any experience.
There are related U disks with detailed information in the box.
Guide for After-sale Service
> 1-year guarantee-if using of the product is influenced due to quality problem, you may receive guarantee of the product within 1 year after the date of purchase;
> Lifetime maintenance-lifetime maintenance service is implemented on all factory series products. We offer maintenance of machine which surpasses the maintenance period or has manual damage with material and lab
Packing and Shipping:
delivery time :10-15days
standard exporting packing
