Affordable and Easy to Operate RCF150S Water Well Drilling Machine
Products Description
The RCF150S water well drilling rig is a compact yet powerful machine designed for drilling depths of up to 150 meters. Despite its lightweight and portable design, it delivers impressive performance, making it ideal for both soft soil and hard rock formations. Thanks to its high-torque motor, this rig ensures smooth and efficient drilling, earning great feedback from users.
Our latest batch is now in stock, ready for fast dispatch within 3 days after your order. To support your drilling projects, we offer free technical guidance—so you can start drilling with confidence. Affordable, user-friendly, and highly efficient, the RCF150S is the perfect choice for homeowners, farmers, and small-scale contractors looking for a reliable well-drilling solution.
Machine Specifications
| Bore diameter(hammer) |
90-300mm |
| Bore depth |
150m |
| Air consumption |
17-31m³/min |
| Air pressure |
1.7-2.5Mpa |
| Once-time advance length |
2.4m |
| Pipe diameter |
76mm/89mm |
| Pipe length |
2m |
| Push force |
4T |
| Lifting force |
12T |
| Max torque of rotary |
3500-3800Nm |
| Rotary speed |
40-65r/min |
| Mud Pump flow |
200L/min (option) |
| Feeding efficiency |
10-35m/h |
| Travel speed |
2.5Km/h |
| Climb ability |
30° |
| Dimension(L*W*H) |
2300×1200×1900MM |
| weight |
2300kg |
| Diesel engine |
42KW Yunnei engine |
Machine Advantages
(1)Reliable Performance
Basing on the guideline of purchasing the critical auxiliary equipment internationally, the diesel engine, the hydraulic pump, the main valves, the motors, crawler reducers and key hydraulic spare parts are all adopted famous brands products at home and abroad.
(2)High Efficiency
With big torque, high power unit allocation and with reasonable structure design and advanced operation method , all these guarantee the drill rig’s high operation and performance efficiency.
(3)Environmental Protection
With lower pollution discharge of diesel engine, professional noise reducing design, the drill rig is suitable for urban operation and performance.
(4)Energy Saving
Adopting the advanced load sensitive control technique, the drill rig has reduced the power consumption and heat generation to the lowest level. With an elegant outline, compact structure, reliable performance and operation easily, it should be the priority equipment to be selected in the full hydraulic core drill rig of present domestic market.

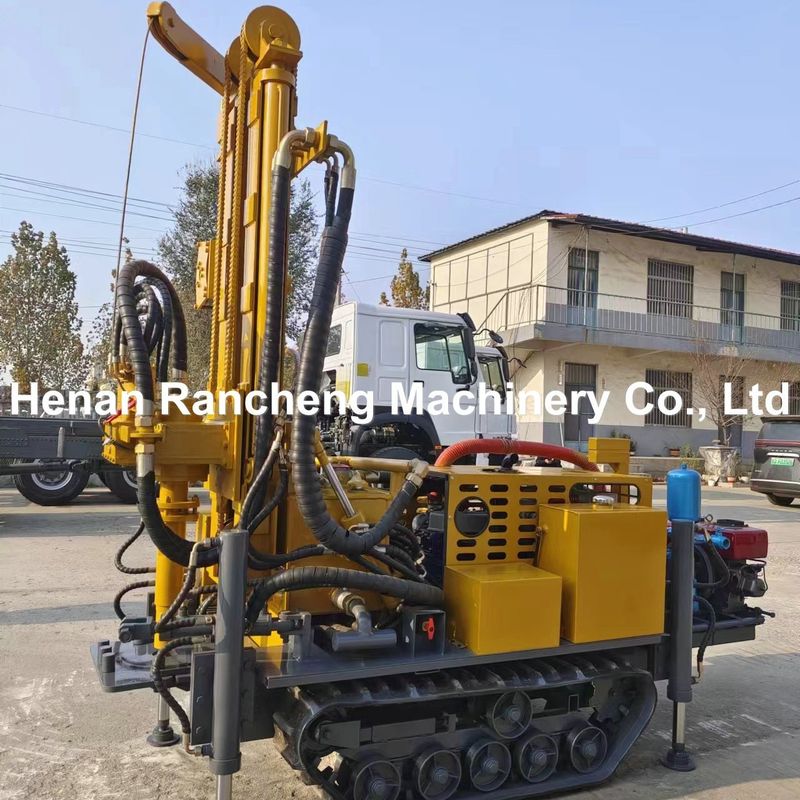

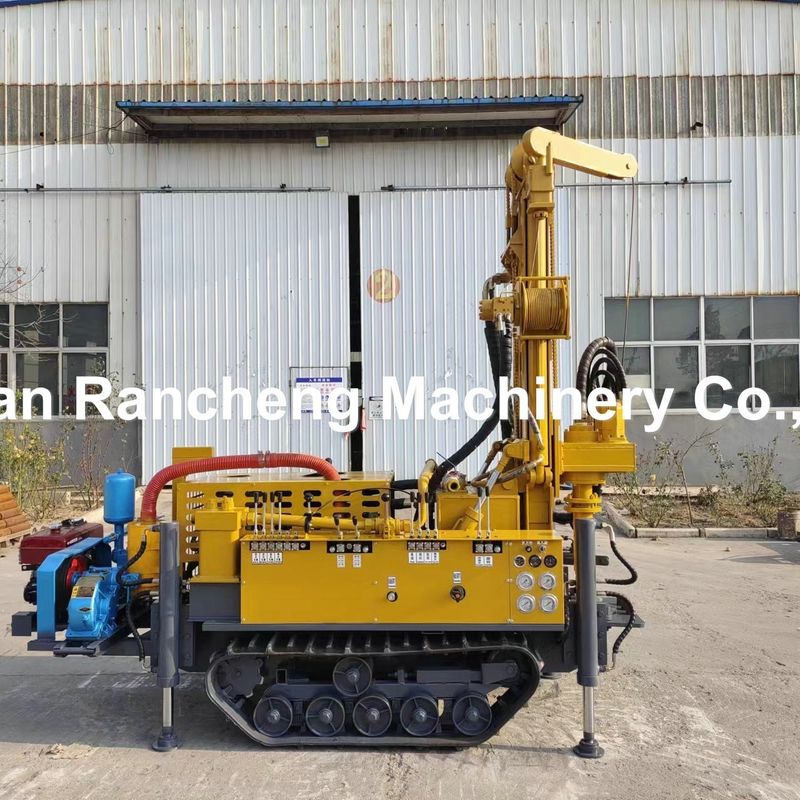

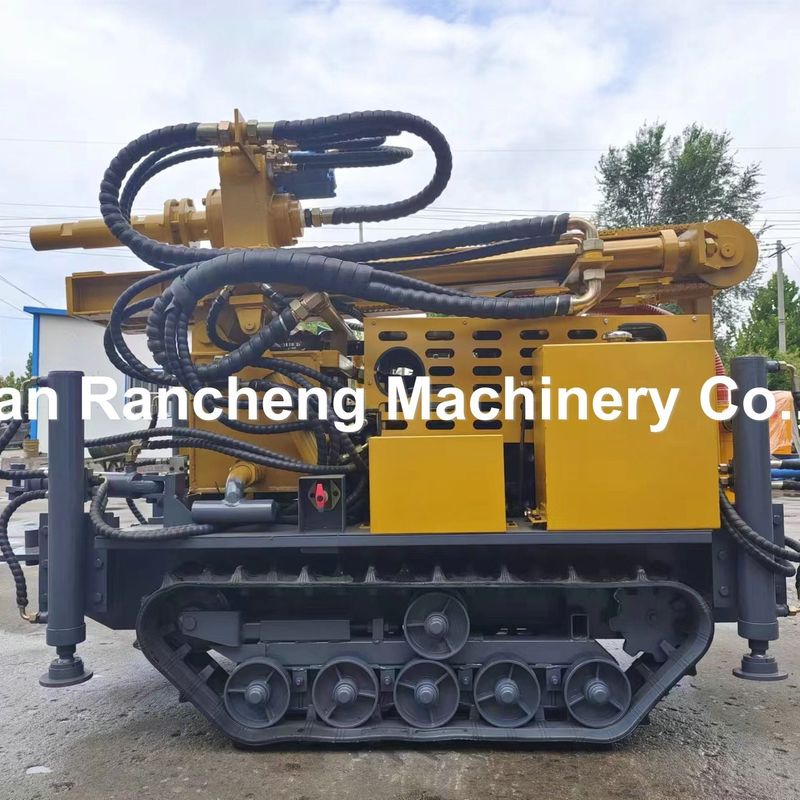

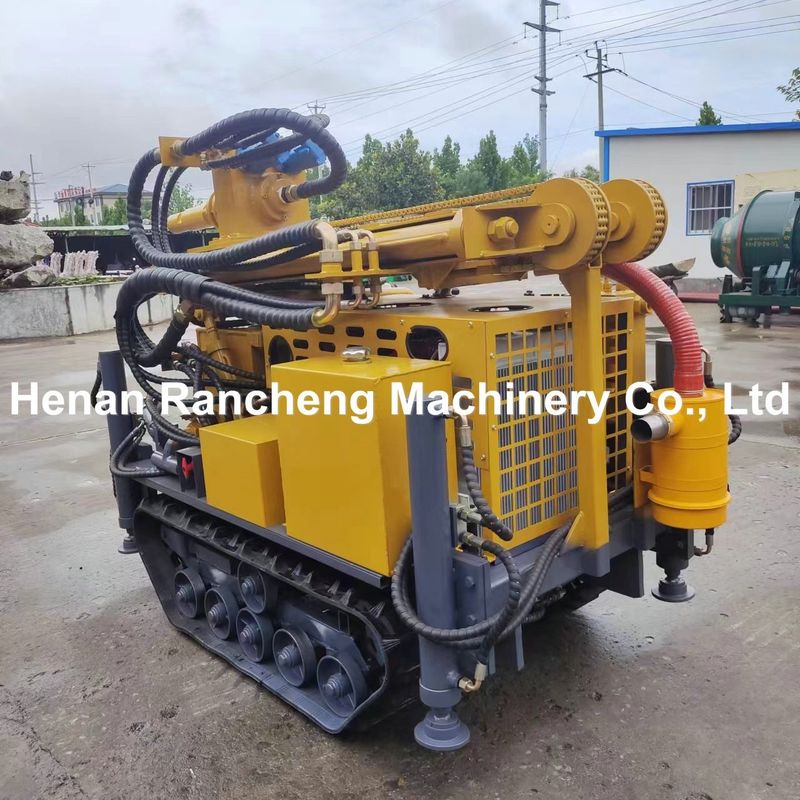

Machine Pictures
Company Information
Henan Rancheng Machinery Co.,LTD is one professional supplier drilling rigs in China ,we are dedicated in designing and manufacture water well drilling rig ,rotary drilling rig ,anchor drilling rig ,core drilling rig,DTH drilling rig ,solar pile driver,mud pump ,air compressor and drilling tools etc,we have advanced technology ,Modern equipment, first-class team and rich experience ,our products passed ISO9001 ,CE etc certificated ,they are exported to around 200 countries and areas in the world ,get very good feedbacks from our clients.
We Pursue the principle of "Customer First, Integrity First", we are sincerely expecting to cooperate with you!!!
Transportation
RCF150S can be loaded into a 20-foot container and transported by sea
