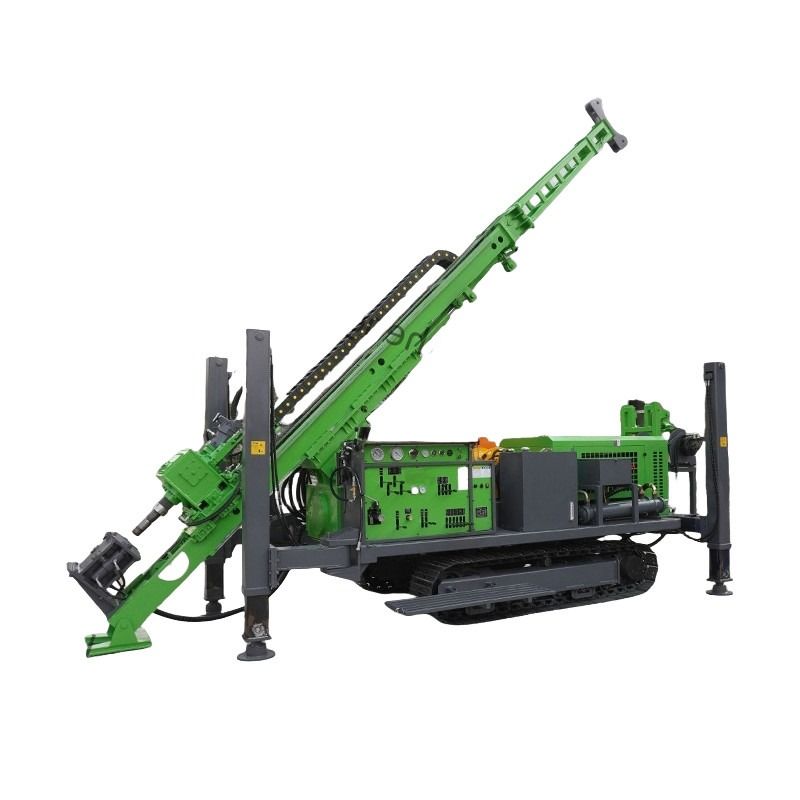

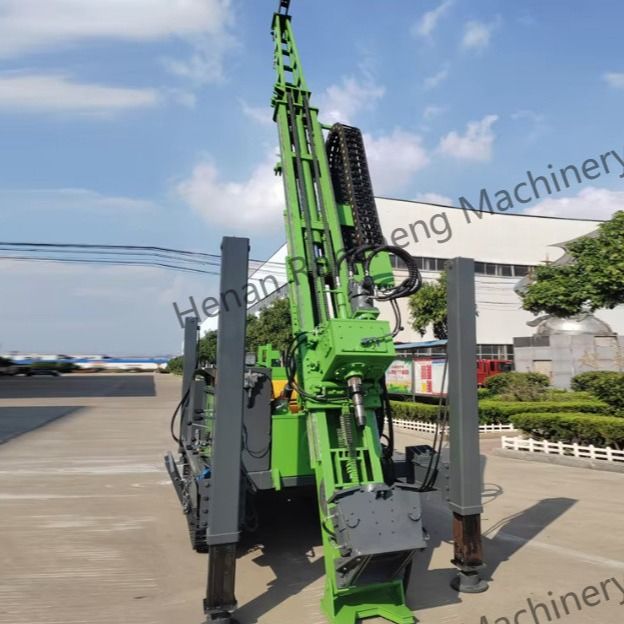

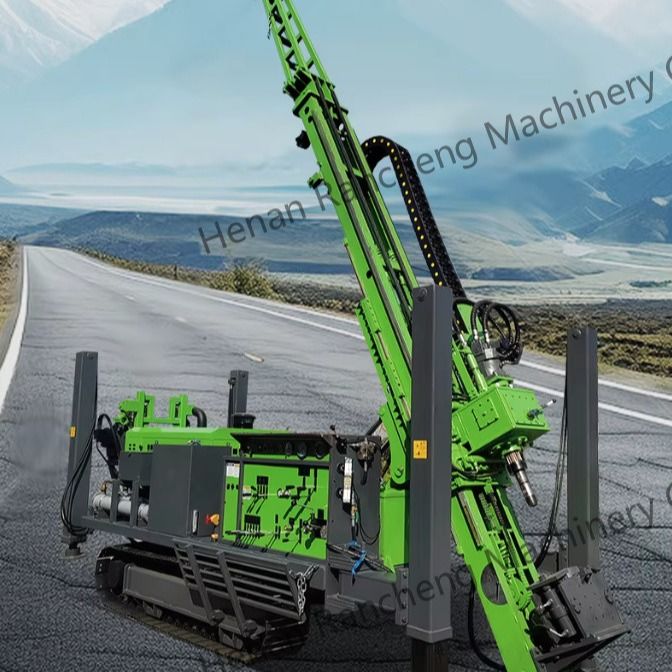

Fully Hydraulic Pneumatic Diamond Core Drilling Rig For Soil Sampling And Mining

Diamond Core Drilling Rig

Mining Core Drilling Rig

Pneumatic Core Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCJ1600C

Request A Quote

Product Details

Drilling Depth:

1400-1800m

Diameter:

NQ,BQ,HQ,PQ

Diesel Engine:

154KW Cummins Engine

Max Torque:

4000N.m

Lifting Force:

30KN

Lifting Speed:

110m/min

Highlight:

Diamond Core Drilling Rig

Mining Core Drilling Rig

Pneumatic Core Drilling Rig

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

Standard shipping

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

Fully Hydraulic Pneumatic Diamond Core Drilling Rig For Soil Sampling And Mining 154KW Cummins Engine

Get Best Price

Video

Hydraulic Core Drilling Rig RCJ1600C Drill Depth1400-1800m With 154KW Cummins Engine

Get Best Price

Video

Crawler Mounted Hydraulic Core Drilling Rig RCJ1600C Full Hydraulic Machine With 154KW Cummins Engine

Get Best Price

Video

1800m BTW Core Drilling Rig Full Hydraulic Machine With 154KW Cummins Engine

Get Best Price

Contact Now

Product Description

Fully Hydraulic Pneumatic Diamond Core Drilling Rig For Soil Sampling And Mining

Name: Fully Hydraulic Pneumatic Diamond Core Drilling Rig For Soil Sampling And Mining
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCJ1600C
Availability: InStock

Product Description

This series of full-hydraulic core drilling rigs is specifically engineered for solid mineral deposit exploration. It is equally suitable for engineering geology surveys, shallow oil and gas drilling, groundwater exploration, and construction applications, including tunnel ventilation, drainage, and dam grouting.

The rig features a full-hydraulic drive system, where an axial piston pump and angled-axis piston motor power power head rotation. Its mechanical two-speed configuration with stepless speed regulation ensures precise operation across varied geological strata. The power head incorporates a cylinder-chain feeding mechanism for smooth motion, complemented by a lateral translation function for enhanced positioning accuracy. The mast, operated via cylinder-driven lifting and sliding mechanisms, supports drilling angles ranging from 45° to 90°, enabling both inclined and vertical borehole operations. Equipped with a load-sensing hydraulic system, the rig optimizes energy efficiency while delivering up to 4,000N·m of torque for high-intensity drilling tasks.

Technical Parameters

RCJ1600C full hydraulic core drilling rig
Working stratum	Loose soil layer and bed rock(hardness:F6~20)
Drilling capacity	BTW (m)	1800
	NTW (m)	1600
	HTW (m)	1400
	PQ(m)	1200
Hydraulic system	Rated pressure Mpa	32+25 (main pump :145 ml/r ,32 MPa, auxiliary pump 96 ml/r, 25 MPa.)
	Cooling way	secondary air cooling plus primary water cooling
Power	Diesel engine model	cummins engine 6 cylinders
	Rated power	154KW
	Rated speed	2000rpm
Rotary head	Max torque	4000N.m
	Max rotary speed	1400rpm
	Feeding stroke	3.5m
	Lifting force	460KN
	Feeding force	230KN
Wireline hydraulic Winch capacity	Rope capacity	1600m
	Lifting force	30KN
	Lifting speed	110m/min
	Rope diameter	6mm
Mast	Full height	8.1m
	Drilling angle	45-90°
	Slip Stroke	1200mm
Clamp (hydraulic)		T75/89/115mm
Mud pump (hydraulic )	Model	BW250
Crawler chassis	Walking speed	2-3km/h
	Climbing angle	25°-30°
Dimension	Transport	590021002400mm
Weight		10000kg

Key Features

Quick Deployment Features: Hydraulic clamp fixtures, leveling legs, and a telescopic mast enable rapid on-site positioning.

Terrain Flexibility: Wireless remote-controlled crawler tracks allow stable movement across complex terrains, while the remote operation keeps operators safe from potential hazards.

Drill String System: Equipped with a floating main shaft and 3-meter drill pipes, the rig ensures core sample integrity even in hard rock formations (stratum hardness: F6~20).
