1107CFM 25Bar Diesel Engine Screw Compressors Portable Air Compressors For 2.5-1.8 Mpa Pressure

1107CFM 25Bar Diesel Engine Screw Compressors Portable Air Compressors For 2.5-1.8 Mpa Pressure

25 Bar Diesel Engine Screw Compressors

1107CFM Diesel Engine Screw Compressors

Portable Diesel Engine Screw Compressors

Place of Origin:

China

Brand Name:

Kaishan

Certification:

CE, ISO 9001:2000

Model Number:

KSZJ-31/25

Contact Us
Request A Quote
1107CFM 25Bar Diesel Engine Screw Compressors Portable Air Compressors For 2.5-1.8 Mpa Pressure
1107CFM 25Bar Diesel Engine Screw Compressors Portable Air Compressors For 2.5-1.8 Mpa Pressure 1107CFM 25Bar Diesel Engine Screw Compressors Portable Air Compressors For 2.5-1.8 Mpa Pressure 1107CFM 25Bar Diesel Engine Screw Compressors Portable Air Compressors For 2.5-1.8 Mpa Pressure 1107CFM 25Bar Diesel Engine Screw Compressors Portable Air Compressors For 2.5-1.8 Mpa Pressure
Product Details
Name:
Air Compressor
Model:
KSZJ-31/25
Pressure(mpa):
2.5-1.8
Air Consumption(m3/min):
31-35
Engine:
400HP Yuchai
Dimension(mm):
4700×2100×2850mm
Rated RPM:
1800r/min
Unload RPM:
1400r/min
Weight:
6000KGS
Highlight:

25 Bar Diesel Engine Screw Compressors

,

1107CFM Diesel Engine Screw Compressors

,

Portable Diesel Engine Screw Compressors

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price Four Wheels Trailer Type LGCY17-18-18/15TK Air Compressor Work Pressure 18bar 210HP Cummins Engine For 150-200m Drilling online Video

Four Wheels Trailer Type LGCY17-18-18/15TK Air Compressor Work Pressure 18bar 210HP Cummins Engine For 150-200m Drilling

Get Best Price
Good price Air Capacity 31m3/Min S100T Air Compressor Work Pressure 25bar With 309KW Xichai Engine online Video

Air Capacity 31m3/Min S100T Air Compressor Work Pressure 25bar With 309KW Xichai Engine

Get Best Price
Good price Capacity 1107CFM Pressure 25bar Diesel Engine Screw Compressors Portable Air Compressors online Video

Capacity 1107CFM Pressure 25bar Diesel Engine Screw Compressors Portable Air Compressors

Get Best Price
Good price 25bar 400HP Yuchai Diesel Engine Screw Compressors Portable Air Compressors online Video

25bar 400HP Yuchai Diesel Engine Screw Compressors Portable Air Compressors

Get Best Price
Contact Us
Contact Now
Product Description

1107CFM 25bBar Diesel Engine Screw Compressors Portable Air Compressors For 2.5-1.8 Mpa Pressure



Machine Introduction



This air compressor adopts a "convex-convex" gear system, which enhances the formation of a fluid dynamic lubrication film, minimizes side leakage in the contact area, thereby improving compressor efficiency and optimizing the machining and testing performance of the rotor.



Its design follows the concept of "large rotor, large bearing, low speed", and its operating speed is 30-50% lower than similar products, effectively reducing noise, vibration and exhaust temperature, while enhancing rotor rigidity, extending service life, and reducing sensitivity to impurities and oil carbides.



In terms of power configuration, the power range covers 4 to 355 kW, of which the 18.5 kW and 250 kW models are suitable for direct-drive gearless compressors, and the 200 kW and 250 kW models are suitable for direct-drive four-stage motor compressors, with a maximum speed of up to 1480 rpm.



Technical Parameters



Model

Air capacity

(m3/min)

Work pressure

(Mpa)

Diesel engine

(HP)

Dimension size

(mm)
6/7 6 0.7 Yuchai 80HP 3750×1920×1700
7.5/7 7.5 7 Yuchai 80HP 3750×1920×1700
9/7 9 0.9 Yuchai 95HP 3750×1920×1700
12/10 12 1 Cummins 150HP 4080×1980×2350
12/10 12 1 Yuchai 160HP 4080×1980×2350
10/13 10 1.3 Yuchai 160HP 4080×1980×2350
17/7 17 0.7 Cummins 180HP 3380×1640×2350
15/10 15 1 Cummins 180HP 3380×1650×2500
15/10 15 1 Yuchai 190HP 3380×1650×2500
15/13 15 1.3 Yuchai 240HP 3380×1650×2500
15/14.5 15 1.45 Yuchai 190HP 3380×1650×2500
13/17 13 1.7 Cummins 215HP 3780×1980×235
18/17 18 1.7 Cummins 260HP 3780×1980×235
18/17 18 1.7 Yuchai 260HP 3780×1980×235
19/18 19 18 Yuchai 260HP 3780×1980×235
22/8 22 0.8 Cummins 260HP 4580×1950×2600
22/14 22 1.4 Yuchai 340HP 4580×1950×2600
22/14 22 1.4 Cummins 360HP 4580×1950×2600
22/18 22 1.8 Yuchai 340HP 4600×1950×2850
22/18 22 1.8 Cummins 360HP 4600×1950×2850
22/20 22 2 Cummins 325HP 4600×1950×2850
26/20 26 2 Cummins 360HP 4600×1950×2850
27/20 27 2 Yuchai 395HP 4600×1950×2850
27/22 27 2.2 Cummins 400HP 4600×1950×2850
29/23 19 2.3 Yuchai 400HP 4700×2100×2850
31/25 31 2.5 Yuchai 550HP 4700×2100×2850
33/25 33 2.5 Yuchai 550HP 4700×2100×2850
35/30 -38/25 35/38 3/2.5 cummins 550HP 4700×2100×2850



Application



Diesel portable screw air compressors are widely used in highway, railway, mining, water conservancy, shipping, urban construction, energy, military and other industries.

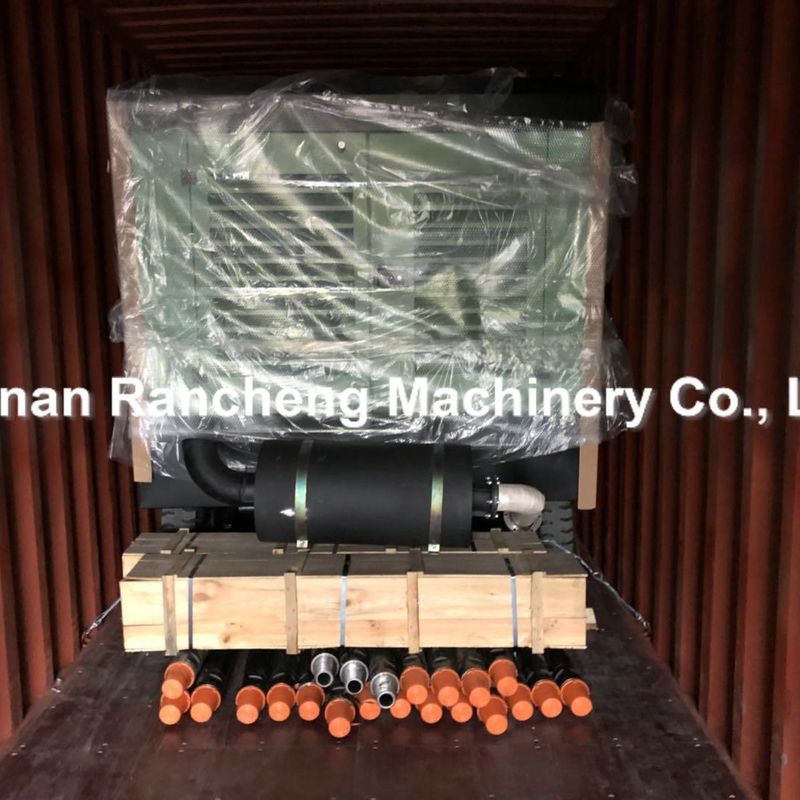

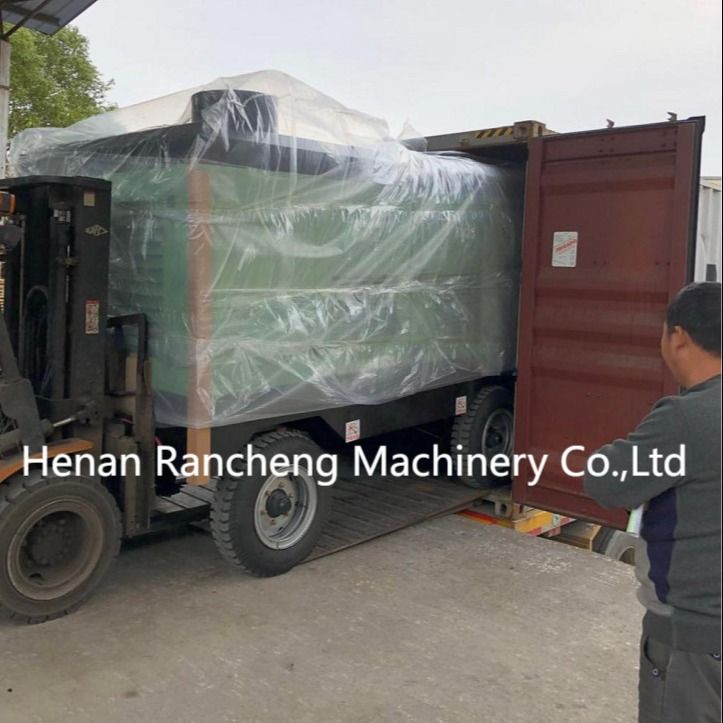

Machine Pictures



1107CFM 25Bar Diesel Engine Screw Compressors Portable Air Compressors For 2.5-1.8 Mpa Pressure 0

1107CFM 25Bar Diesel Engine Screw Compressors Portable Air Compressors For 2.5-1.8 Mpa Pressure 1

1107CFM 25Bar Diesel Engine Screw Compressors Portable Air Compressors For 2.5-1.8 Mpa Pressure 21107CFM 25Bar Diesel Engine Screw Compressors Portable Air Compressors For 2.5-1.8 Mpa Pressure 3
