Hydraulic Tricycle Mounted Water Well Drilling Rig Drill Depth 400m with Cummins 170 HP Load Vehicle Engine

Hydraulic Tricycle Mounted Water Well Drilling Rig Drill Depth 400m with Cummins 170 HP Load Vehicle Engine

Hydraulic Water Well Drilling Rig

400m Water Well Drilling Rig

Water Well Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF400T

Contact Us
Request A Quote
Hydraulic Tricycle Mounted Water Well Drilling Rig Drill Depth 400m with Cummins 170 HP Load Vehicle Engine
Hydraulic Tricycle Mounted Water Well Drilling Rig Drill Depth 400m with Cummins 170 HP Load Vehicle Engine Hydraulic Tricycle Mounted Water Well Drilling Rig Drill Depth 400m with Cummins 170 HP Load Vehicle Engine Hydraulic Tricycle Mounted Water Well Drilling Rig Drill Depth 400m with Cummins 170 HP Load Vehicle Engine Hydraulic Tricycle Mounted Water Well Drilling Rig Drill Depth 400m with Cummins 170 HP Load Vehicle Engine
Product Details
Name:
Hydraulic Tricycle Mounted Water Well Drilling Rig
Model:
RCF400T
Aperture:
140-350mm
Drilling Depth:
400m
Feed Stroke:
6600mm
Travel Speed:
80km/h
Wind Pressure:
1.7-3.5Mpa
Air Consumption:
17-36m³/min
Highlight:

Hydraulic Water Well Drilling Rig

,

400m Water Well Drilling Rig

,

Water Well Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by ro-ro ship
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price RCF200T Hydraulic Water Well Drilling Machine/200m Truck Mounted Water Well Drilling Rig/6X4 Truck Mounted Rig online Video

RCF200T Hydraulic Water Well Drilling Machine/200m Truck Mounted Water Well Drilling Rig/6X4 Truck Mounted Rig

Get Best Price
Good price Hydraulic Tricycle Mounted Water Well Drilling Rig Drill Depth 400m with Cummins 170 HP Load Vehicle Engine online Video

Hydraulic Tricycle Mounted Water Well Drilling Rig Drill Depth 400m with Cummins 170 HP Load Vehicle Engine

Get Best Price
Good price Hydraulic Tricycle Mounted Water Well Drilling Rig 1.7-3.5Mpa Wind Pressure online Video

Hydraulic Tricycle Mounted Water Well Drilling Rig 1.7-3.5Mpa Wind Pressure

Get Best Price
Good price 280m Depth Truck Mounted Water Well Drilling Rig 210 HP Load Vehicle Engine online Video

280m Depth Truck Mounted Water Well Drilling Rig 210 HP Load Vehicle Engine

Get Best Price
Contact Us
Contact Now
Product Description

Hydraulic Tricycle Mounted Water Well Drilling Rig Drill Depth 400m With Cummins 170HP Load Vehicle Engine



Machine Introduction



RCF400T deepwater well drilling rig is a product independently developed by our company. This new generation of down-the-hole hammer combined with enhanced pneumatic power has greatly improved the drilling speed.



Our water well drilling rig adopts cutting-edge design and advanced hydraulic technology, with low energy consumption, high torque and easy downhole guidance. The drilling rig is made of high-quality materials, with a stylish and compact appearance, higher efficiency, low failure rate, more economical, more durable and more cost-effective. Our water well drilling rig has been widely praised by the market and received positive feedback from customers.



Technical Parameters



Geology drilled / All kinds
Drilling Type / DTH & Mud Rotary
Drill system and operation / Hydraulic
Hole Diameter mm Φ140—Φ350
Hole Depth m 400
Rotation Torque Nm 9600 1st Gear
4800 2nd Ger
Rotation Speed rpm 0-80 1st Gear
0-160 2nd Ger
Drill pipe diameter mm 89/114
Drill pipe length mm 4000/4500
Axial pressure T 85KN
Winch
Max. Lifting force T 20
Lifting force of the Main winch(Optional) T 4
Lifting force of hoist T 1.5
Length of the steel wire rope(tool winch) m 100
Lifting height of tool winch m 8
Engine
Diesel Engine type CUMMINS
Rated Horsepower Kw 132
Electrical System Volt 24
Compressor required
Compressor Type Rotary Screw/Movable
Pressure Required Mpa 1.05—4.5
Air consumption m³/min 16—60
Truck
Manufacturer /　 SINOTRUCK HOWO
Model / ZZ1257M5847C
Engine / WD615.93C
Rated Horsepower kw 270
Discharge Standard / EU-3
Drive type / 6*4
Max.Speed Km/h 102.9
Steering wheel / left/right(Optional)
Mud Pump
Type / Hydraulic
Model / BW450/BW850
Stroke mm 110
Displacement L/Min 450
Discharge pressure (Mpa) Mpa 2-3
Suction tube diameter mm 89
Discharge pipe diameter mm 51
Liner Diameter mm 80
Hydraulic Welder
Welding current A 60-250
Hydraulic Min.oil flow L/min 42
Norm/Max Pressure Bar 190/210
Voltage V 110/220VDC
Power Kw 1or2
L*W*H mm 390*190*230
Foam pump / Optional
Dimension
Net Weight T 22
Shipping Length mm 10500
Shipping Width mm 2480
Shipping Height mm 3050
Working size(L*W*H) mm 11000*2480*7147



Application



It is mainly used for drilling in resource exploration, hydrological wells, civil water wells, agricultural irrigation and other projects.

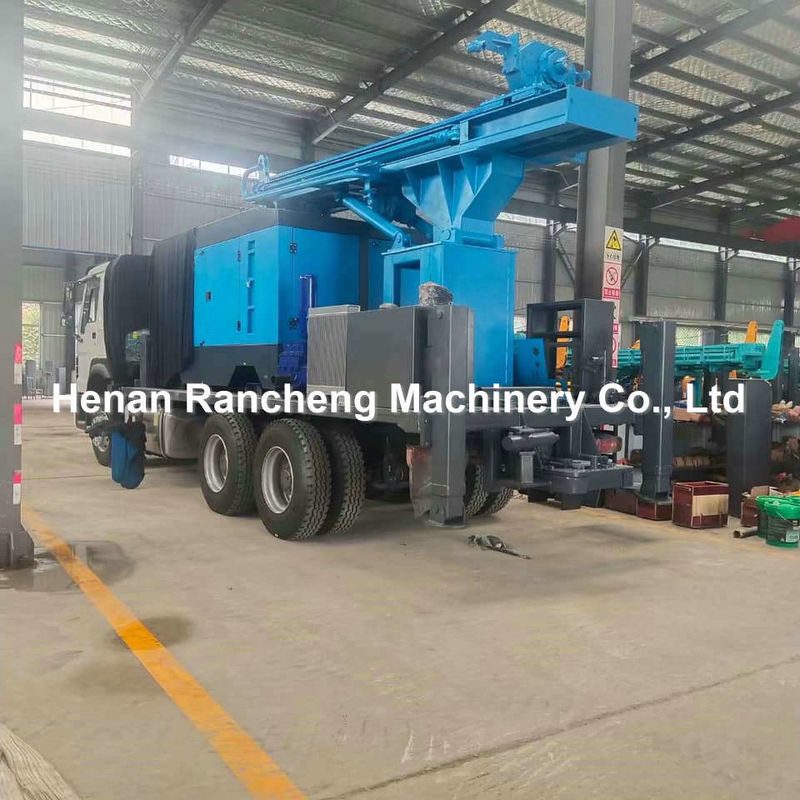

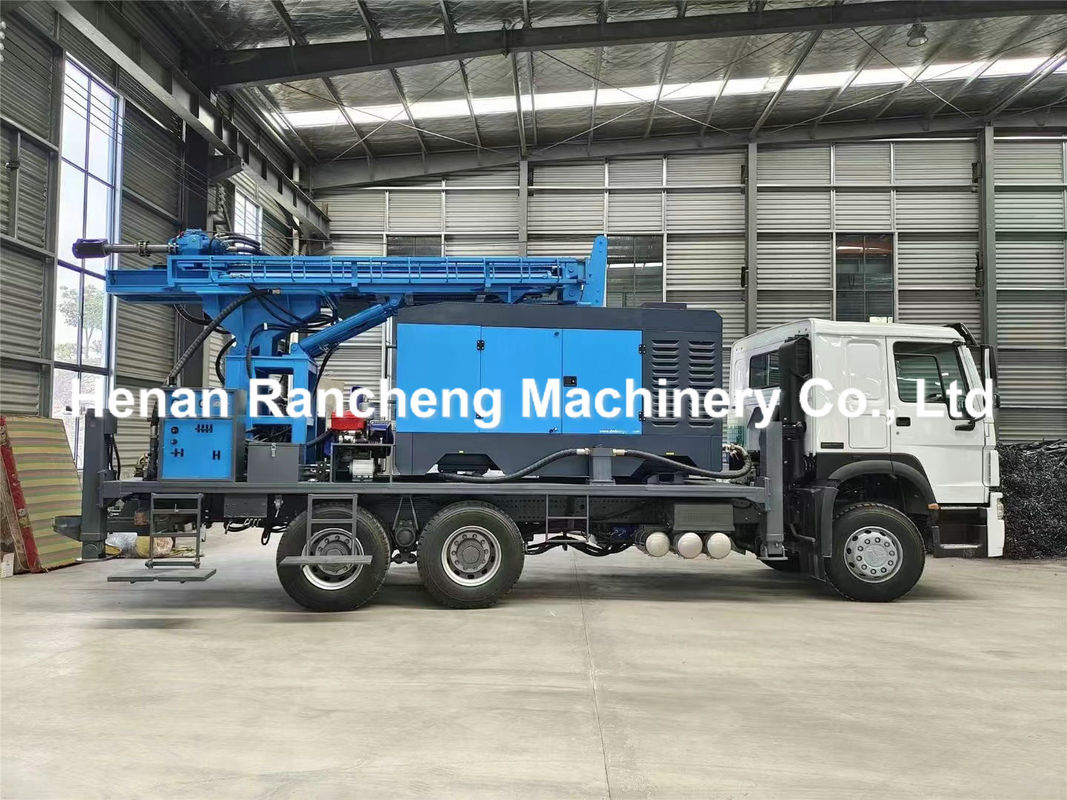

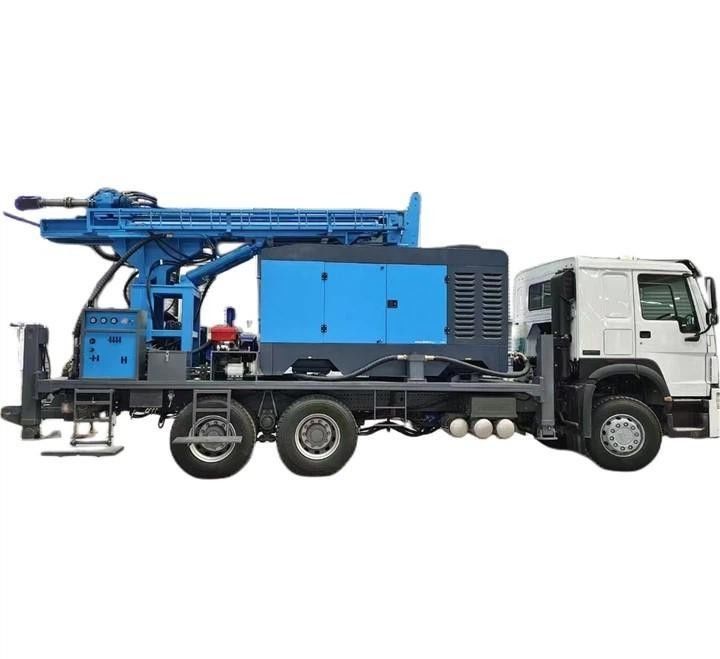

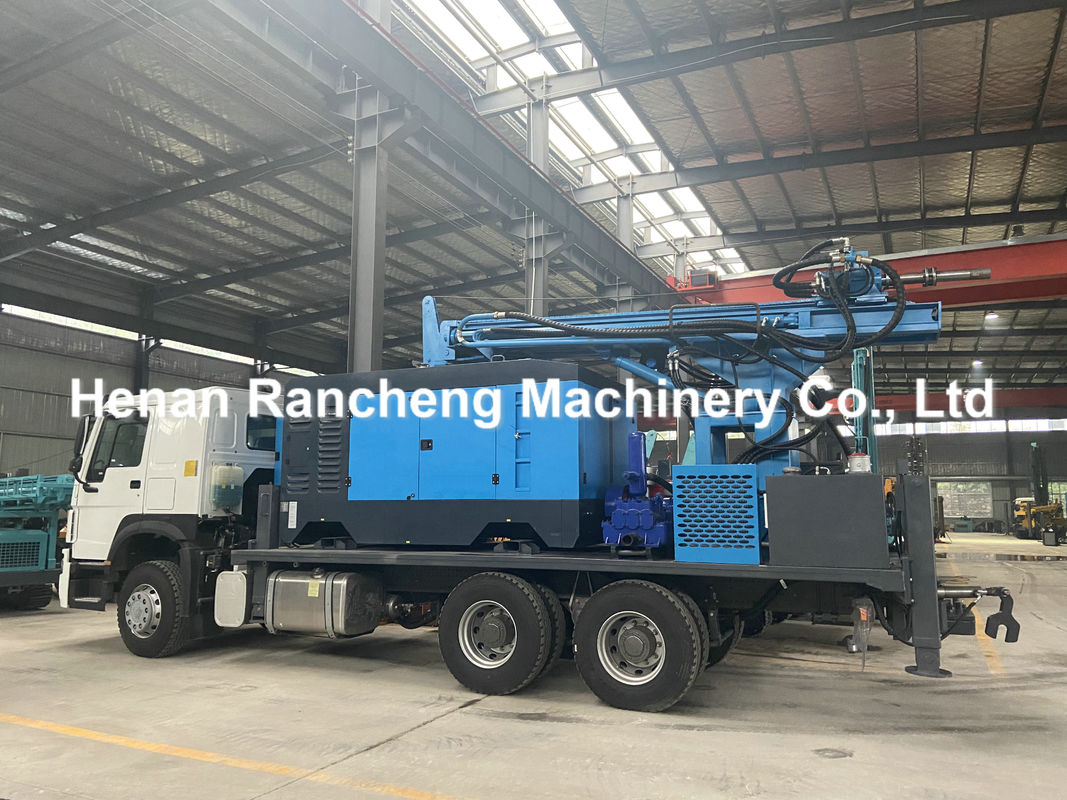

Machine Pictures



Hydraulic Tricycle Mounted Water Well Drilling Rig Drill Depth 400m with Cummins 170 HP Load Vehicle Engine 0Hydraulic Tricycle Mounted Water Well Drilling Rig Drill Depth 400m with Cummins 170 HP Load Vehicle Engine 1Hydraulic Tricycle Mounted Water Well Drilling Rig Drill Depth 400m with Cummins 170 HP Load Vehicle Engine 2Hydraulic Tricycle Mounted Water Well Drilling Rig Drill Depth 400m with Cummins 170 HP Load Vehicle Engine 3
