Hydraulic Core Drilling Rig RCJ1600C Drill Depth1400-1800m With 154KW Cummins Engine

Hydraulic Core Drilling Rig RCJ1600C Drill Depth1400-1800m With 154KW Cummins Engine

154KW Core Drilling Rig

Hydraulic Core Drilling Rig 1800m

Hydraulic Core Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCJ1600C

Chat Now
Chat Now
Product Details
Model:
RCJ1600C Full Hydraulic Core Drilling Rig
Diameter:
NQ,BQ,HQ,PQ
Diesel Engine:
154KW Cummins Engine
Max Torque:
4000N.m
Clamp (hydraulic):
T75/89/115mm
Dimension:
5900*2100*2400mm
Weight:
10000kg
Highlight:

154KW Core Drilling Rig

,

Hydraulic Core Drilling Rig 1800m

,

Hydraulic Core Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Standard shipping
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

Hydraulic Core Drilling Rig RCJ1600C Drill Depth1400-1800m With 154KW Cummins Engine

Product Description

This series of fully hydraulic core drilling rigs is a new type of drilling rig independently developed by our company based on the absorption of advanced technologies of similar drilling rigs at home and abroad.



This series of fully hydraulic core drilling rigs adopts full hydraulic drive, the rotation of the power head is driven by an axial piston pump and a bevel piston motor, mechanical dual-speed plus stepless speed regulation, and advanced structure. The power head adopts a cylinder chain speed regulation feed mechanism, which moves smoothly and reliably. The power head is equipped with a lateral translation mechanism, and the mast adopts a cylinder lifting and sliding overall sliding, which can be used for drilling within the range of 45-90°. The hydraulic system adopts load-sensitive control, with high working efficiency and large torque.

Technical Parameters



RCJ1600C full hydraulic core drilling rig
Working stratum Loose soil layer and bed rock(hardness:F6~20)
Drilling capacity BTW (m) 1800
  NTW (m) 1600
  HTW (m) 1400
  PQ(m) 1200
Hydraulic system Rated pressure Mpa 32+25 (main pump :145 ml/r ,32 MPa, auxiliary pump 96 ml/r, 25 MPa.)
  Cooling way secondary air cooling plus primary water cooling
Power Diesel engine model cummins engine 6 cylinders
  Rated power 154KW
  Rated speed 2000rpm
Rotary head Max torque 4000N.m
  Max rotary speed 1400rpm
  Feeding stroke 3.5m
  Lifting force 460KN
  Feeding force 230KN
Wireline hydraulic Winch capacity Rope capacity 1600m
  Lifting force 30KN
  Lifting speed 110m/min
  Rope diameter 6mm
Mast Full height 8.1m
  Drilling angle 45-90°
  Slip Stroke 1200mm
Clamp (hydraulic)   T75/89/115mm
Mud pump (hydraulic ) Model BW250
Crawler chassis Walking speed 2-3km/h
  Climbing angle 25°-30°
Dimension Transport 5900*2100*2400mm
Weight 10000kg


Application

It is mainly suitable for drilling solid mineral deposits, and can also be used for engineering drilling such as engineering geology, shallow oil, natural gas, groundwater drilling, tunnel ventilation, drainage and dam grouting.

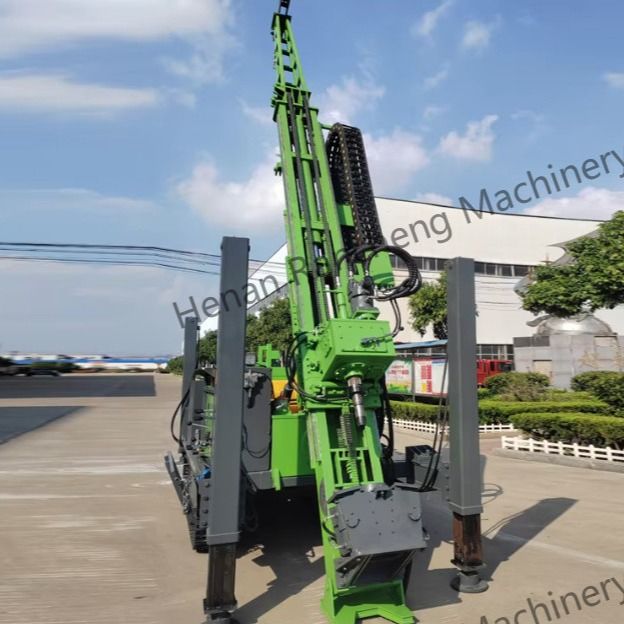

Hydraulic Core Drilling Rig  RCJ1600C Drill Depth1400-1800m With 154KW Cummins Engine 0

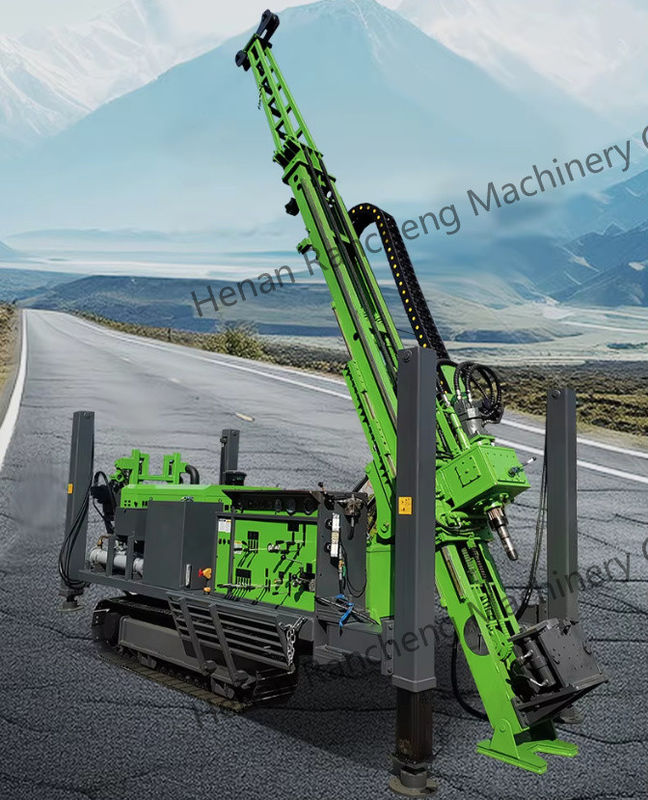

Hydraulic Core Drilling Rig  RCJ1600C Drill Depth1400-1800m With 154KW Cummins Engine 1

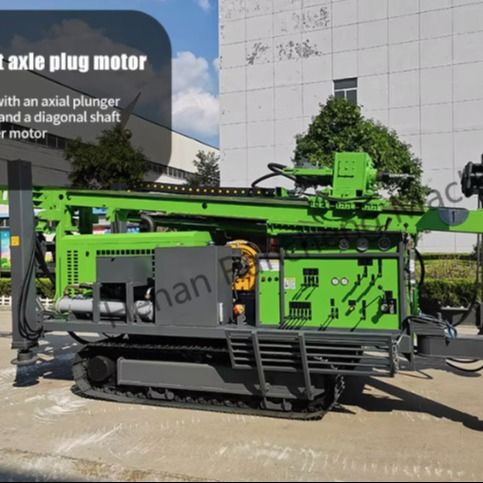

Hydraulic Core Drilling Rig  RCJ1600C Drill Depth1400-1800m With 154KW Cummins Engine 2

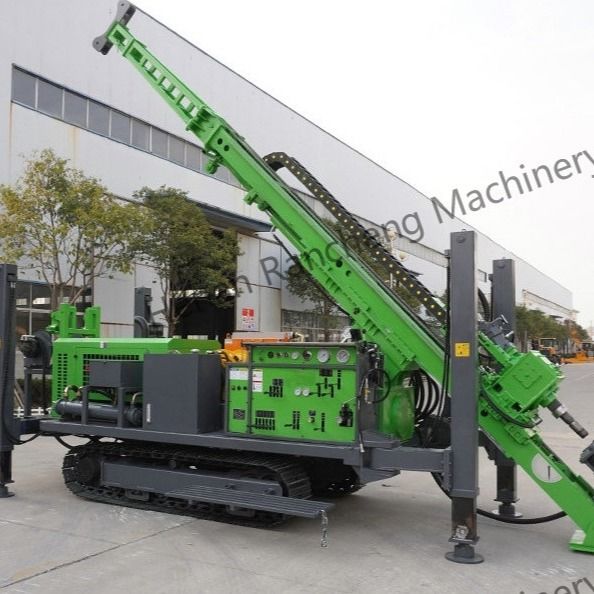

Hydraulic Core Drilling Rig  RCJ1600C Drill Depth1400-1800m With 154KW Cummins Engine 3

Hydraulic Core Drilling Rig  RCJ1600C Drill Depth1400-1800m With 154KW Cummins Engine 4

Hydraulic Core Drilling Rig  RCJ1600C Drill Depth1400-1800m With 154KW Cummins Engine 5
