150m Depth Portable Well Drilling Rig 22Hp / 16.2Kw Diesel Motor Power Percussive And Rotating Type

150m Depth Portable Well Drilling Rig 22Hp / 16.2Kw Diesel Motor Power Percussive And Rotating Type

22Hp Portable Well Drilling Rig

Rotating Type Portable Well Drilling Rig

150m Depth Portable Well Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCS200P

Contact Us
Request A Quote
Product Details
Name:
Portable Water Well Drilling Machine
Model:
RCS200P
Drilling Machine Overall Dimension:
1800x1000x2000mm
Weight:
1000kg
Drill Rod Diameter:
Ø 50
Drill Rod Length:
1500mm
Rod Change Method:
Full Automatic Screw Thread
Drilling Depth:
150m
Diesel Motor Powe:
22Hp / 16.2kw
Drilling Method:
Percussive And Rotating Type
Pump Power:
2.2kw
Warranty:
1 Year
Highlight:

22Hp Portable Well Drilling Rig

,

Rotating Type Portable Well Drilling Rig

,

150m Depth Portable Well Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Generally this machine is shipped by LCL shipping
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

150m Depth Portable Well Drilling Rig 22Hp / 16.2Kw Diesel Motor Power Percussive And Rotating Type



Product Description



The RCS200P portable water well drill is a versatile rig with a wide range of applications. With a drilling depth of up to 150 meters and a drilling diameter of 100-450 mm, it is very suitable for various water well drilling projects. At the same time, its design fully considers portability and is equipped with two wheels for easy mobility. The wheeled design ensures stability during transportation. The equipment is equipped with a 22 horsepower diesel engine, which has sufficient power to complete the work quickly and efficiently.



Application



It is suitable for various applications, such as wells for farmland, courtyard, garden irrigation and household drinking water. In agricultural irrigation, it provides the required amount of water; in courtyards and gardens, it digs wells for watering flowers and plants, spraying water features, etc.; in household drinking water, it digs wells for collecting water and supplying drinking water. The RCS200P portable water well drilling rig is portable and flexible, can be easily moved and used in various situations to meet the needs of different users.



Technical Parameters



Model of drilling machine RCS200P
Drilling machine overall dimension(mm) 1800*1000*2000
Weight of Drilling machine (kg) 1000
Drill rod diameter (mm) Ø50
Drill rod length(mm) 1500
Rod change method Full automatic screw thread
Drilling depth(m) 150
Diesel Motor Power (Hp/kw) 22 / 16.2
Drilling method Percussive and rotating type
Drilling hole diameter(mm) Within Ø 450mm
Stroke distance (mm) 2000
Hosting capacity (kg) 1500KG



Advantage



The lightweight wheeled drilling rig has good maneuverability and is suitable for frequently moving working environments. It is highly flexible and can operate in various terrains and environments. The stable support system ensures stability and construction efficiency during the operation. It is equipped with a high-power diesel engine or electric motor to complete drilling operations quickly and efficiently. Its versatility makes it suitable for well drilling operations in the fields of farmland irrigation, landscaping, drinking water, etc. Simple operation reduces the workload of operators.

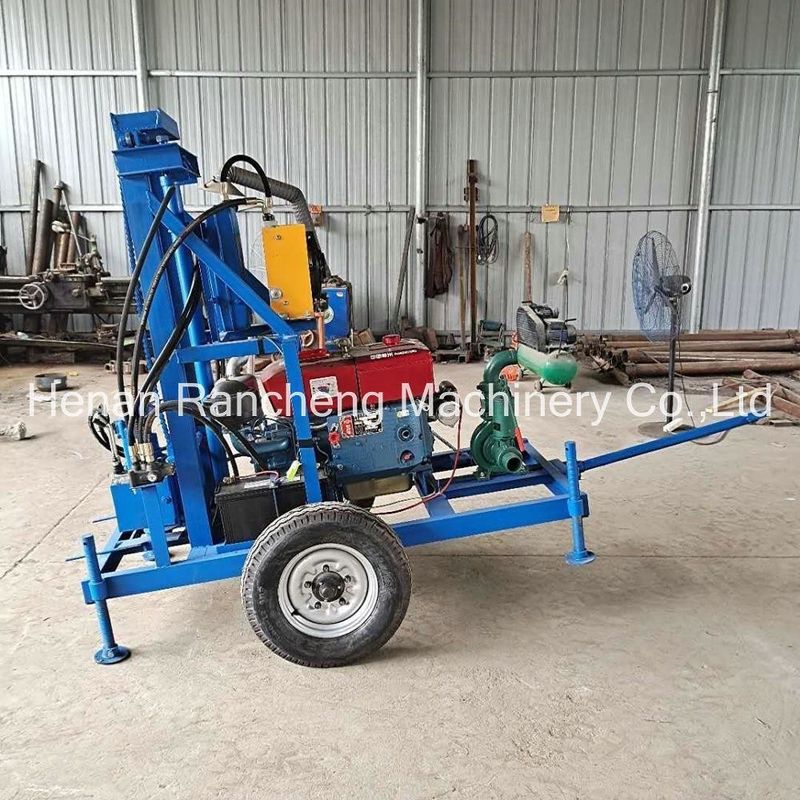

150m Depth Portable Well Drilling Rig 22Hp / 16.2Kw Diesel Motor Power Percussive And Rotating Type 0150m Depth Portable Well Drilling Rig 22Hp / 16.2Kw Diesel Motor Power Percussive And Rotating Type 1

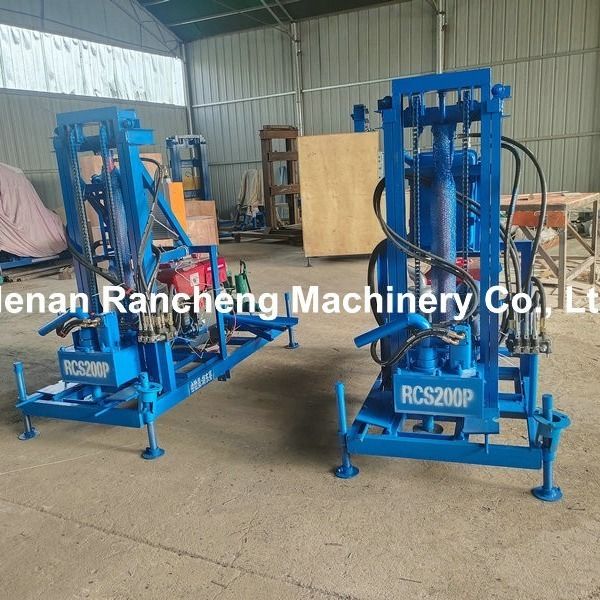

150m Depth Portable Well Drilling Rig 22Hp / 16.2Kw Diesel Motor Power Percussive And Rotating Type 2

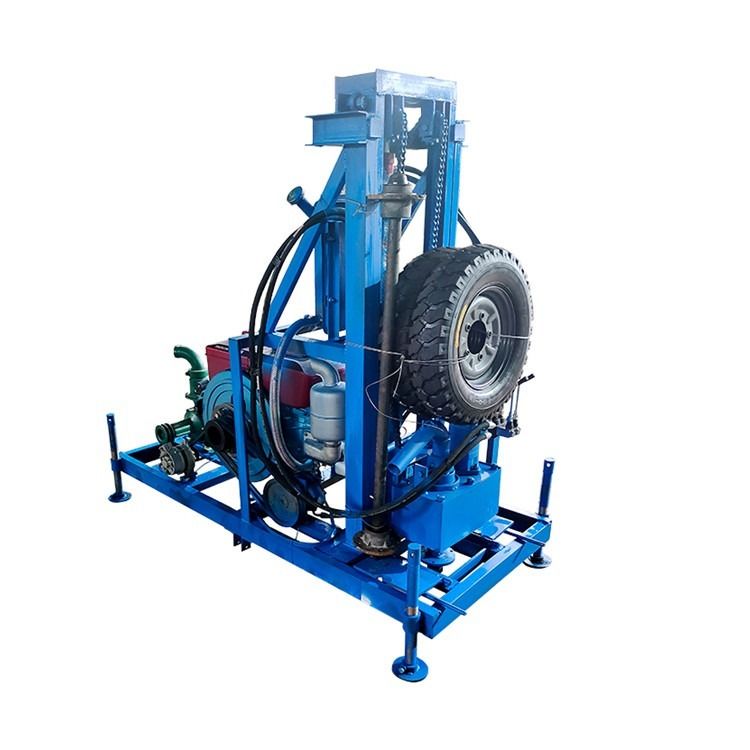

150m Depth Portable Well Drilling Rig 22Hp / 16.2Kw Diesel Motor Power Percussive And Rotating Type 3
