Name: Air Capacity 31m3/Min S100T Air Compressor Work Pressure 25bar With 309KW Xichai Engine
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: S100T
Availability: InStock

Home > products > Drilling Air Compressor >

Air Capacity 31m3/Min S100T Air Compressor Work Pressure 25bar With 309KW Xichai Engine

31m3/min Air Compressor

S100T Air Compressor

Drilling Air Compressor With 160L Tank

Place of Origin:

China

Brand Name:

Zhigao

Certification:

CE, ISO 9001:2000

Model Number:

S100T

Request A Quote

Product Details

Name:

S100T Air Compressor

Rated F.A.D:

31m³/min

Work Pressure:

25 Bar

Air Storage Tank Capacity:

160L

Full Load Speed:

1850rpm

Power Output At Rated Speed:

309KW

Highlight:

31m3/min Air Compressor

S100T Air Compressor

Drilling Air Compressor With 160L Tank

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 20" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

Four Wheels Trailer Type LGCY17-18-18/15TK Air Compressor Work Pressure 18bar 210HP Cummins Engine For 150-200m Drilling

Get Best Price

Video

Air Capacity 31m3/Min S100T Air Compressor Work Pressure 25bar With 309KW Xichai Engine

Get Best Price

Video

Capacity 1107CFM Pressure 25bar Diesel Engine Screw Compressors Portable Air Compressors

Get Best Price

Video

25bar 400HP Yuchai Diesel Engine Screw Compressors Portable Air Compressors

Get Best Price

Contact Now

Product Description

Air Capacity 31m3/Min S100T Air Compressor Work Pressure:25bar With 309KW Xichai Engine

Product Description

The newly designed cooler in this series of air compressors features independent modular units secured with cushioned structural supports. This design eliminates pressure concentration points, effectively preventing damage caused by deformation of the cooler housing. If a unit is damaged, it can be replaced individually without the need to dismantle the entire cooler assembly.

These compressors are primarily used with drilling rigs for water well drilling, geothermal projects, and other applications requiring a reliable air source. While maintaining the key advantages of mobile air compressors, this series has been upgraded and optimized to meet the demands of continuous operation and compact transportation dimensions.

Product Specifications

Model	S100T
Desription	Diesel screw air compressor
Rated F.A.D	31m³/min
Work pressure	25bar
Discharge air temperature	100℃
Compressor oil capacity	100L
Air Storage tank capacity	160L
Compression stage	2 stage
Transmission type	Coupling direct driving
Cooling type	Air cooled
Noise level	80±5 db
Engine maker	Xichai
Model	CA6DM2-42GAG31
Full load speed	1850rpm
Power output at rated speed	309kW
Cylinders	6 pcs

Product Features

1. All series of products have been optimized, with stronger frames, higher traction protection and safety; the roof has stronger load-bearing capacity and is equipped with rubber protection strips to meet customer load requirements.

2. All pressure pipes are connected with steel pipes, which have excellent sealing, prevent rubber aging and wear, and have beautiful appearance.

3 Diesel mobile compressors all use international brand controllers with optimized interfaces, which can be operated with only three switches: power, start and stop.

5. The whole body sound-absorbing cotton and rear compartment muffler design reduce the operating noise by 40% compared with ordinary products.

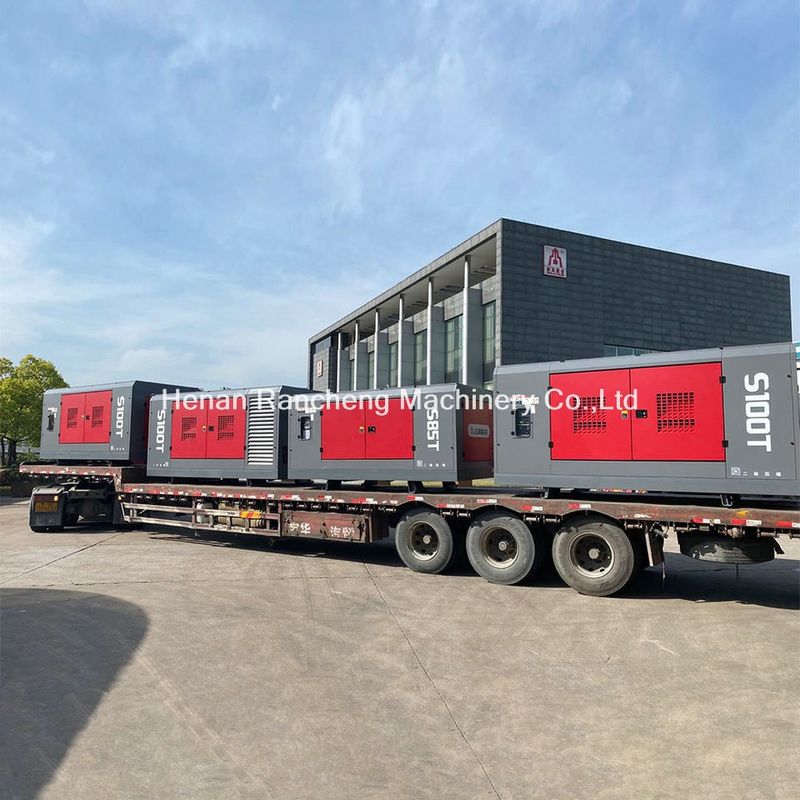

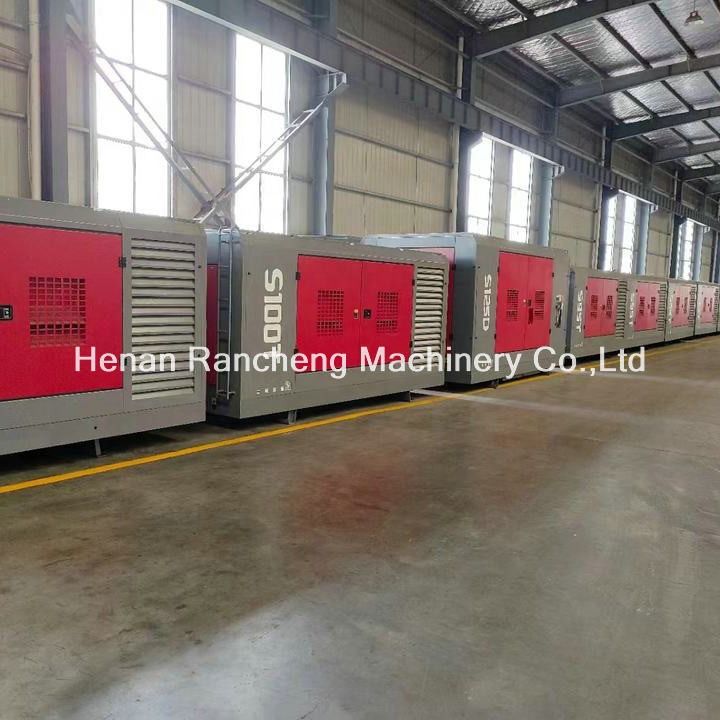

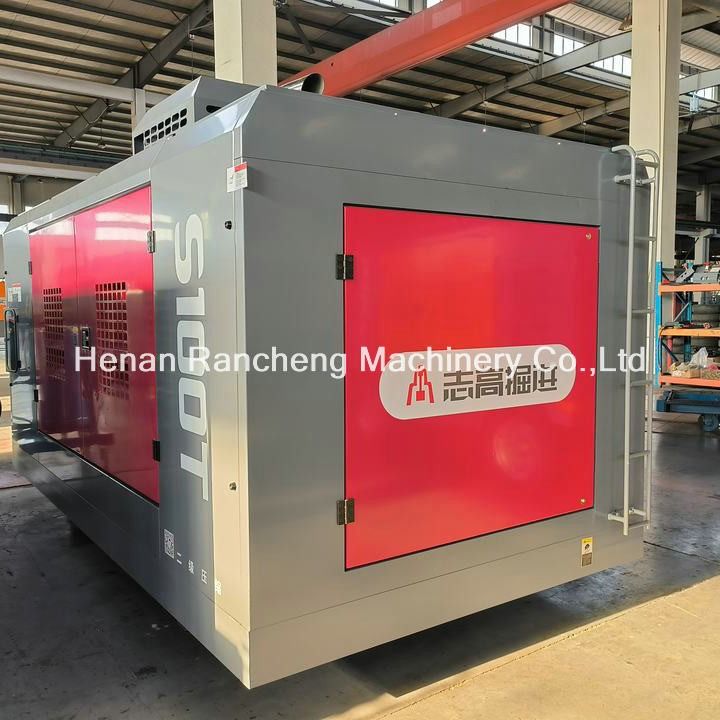

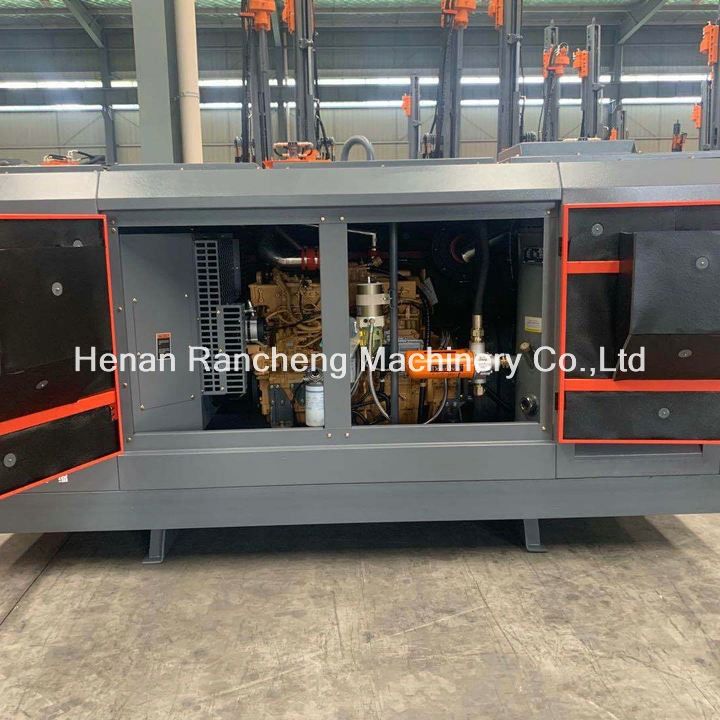

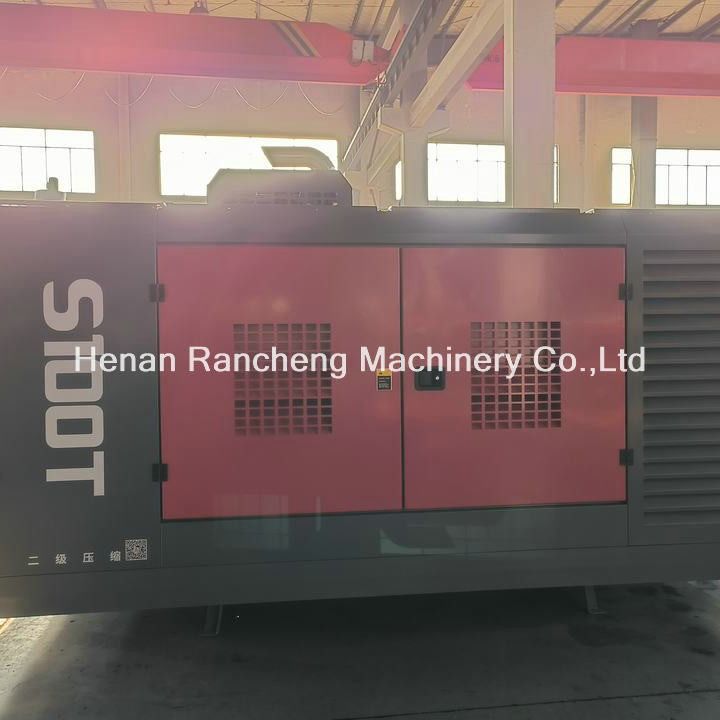

Product Image

Air Capacity 31m3/Min S100T Air Compressor Work Pressure 25bar With 309KW Xichai Engine 0

Air Capacity 31m3/Min S100T Air Compressor Work Pressure 25bar With 309KW Xichai Engine 4
