Diesel Engine Type Mud Pump Max 600L/Min Horizontal Tri-Cylinder Dual Role Penthouse Detroit Piston Pump

Diesel Engine Type Mud Pump Max 600L/Min Horizontal Tri-Cylinder Dual Role Penthouse Detroit Piston Pump

Tri-Cylinder Mud Pump

Dual Role Mud Pump

Diesel Engine Type Mud Pump

Place of Origin:

China

Certification:

CE, ISO 9001:2000

Model Number:

BW600 / 10

Contact Us
Request A Quote
Diesel Engine Type Mud Pump Max 600L/Min Horizontal Tri-Cylinder Dual Role Penthouse Detroit Piston Pump
Diesel Engine Type Mud Pump Max 600L/Min Horizontal Tri-Cylinder Dual Role Penthouse Detroit Piston Pump Diesel Engine Type Mud Pump Max 600L/Min Horizontal Tri-Cylinder Dual Role Penthouse Detroit Piston Pump Diesel Engine Type Mud Pump Max 600L/Min Horizontal Tri-Cylinder Dual Role Penthouse Detroit Piston Pump
Product Details
Name:
BW600 / 10 Mud Pump
Cylinder Diameter:
100mm
Piston Stroke:
110mm
Frequency Of Stroke Times/min:
232/162/109/76
Pressure Mpa:
3.5/5/7.5/10
Power Input KW:
55
Highlight:

Tri-Cylinder Mud Pump

,

Dual Role Mud Pump

,

Diesel Engine Type Mud Pump

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by LCL
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price 185KW Power 7MPa Maximum Pressure Drilling Mud Pump For 1000m Deep Water Well Projects 7200kg online Video

185KW Power 7MPa Maximum Pressure Drilling Mud Pump For 1000m Deep Water Well Projects 7200kg

Get Best Price
Good price Diesel Engine Type Mud Pump Max 600L/Min Horizontal Tri-Cylinder Dual Role Penthouse Detroit Piston Pump online Video

Diesel Engine Type Mud Pump Max 600L/Min Horizontal Tri-Cylinder Dual Role Penthouse Detroit Piston Pump

Get Best Price
Good price 185KW Power 7MPa Maximum Pressure Drilling Mud Pump For 1000m Deep Water Well Projects 7200kg online Video

185KW Power 7MPa Maximum Pressure Drilling Mud Pump For 1000m Deep Water Well Projects 7200kg

Get Best Price
Good price BW1200/7 Plunger Mud Pump For 1000-Meter Deep Water Well Drilling online Video

BW1200/7 Plunger Mud Pump For 1000-Meter Deep Water Well Drilling

Get Best Price
Contact Us
Contact Now
Product Description

Diesel Engine Type Mud Pump Max 600L/Min Horizontal Tri-Cylinder Dual Role Penthouse Detroit Piston Pump



Machine Description



The BW600 mud pump is equipped on the drilling rig for mud drilling. During the drilling process, the mud pump pumps mud and water into the hole to provide a protective layer for the hole wall, lubricate the drilling tools, and send cuttings back to the ground. It is suitable for geological core drilling and exploration drilling at depths below 1500 meters, and can also be used for water well drilling at depths of 300 to 500 meters.



This mud pump is also the main equipment for geological exploration. Its main role in core drilling is to provide fluid (mud or water) that circulates during drilling, send cuttings back to the ground to keep the bottom of the hole clean, and lubricate and cool the drill bit and drilling tools.





Technical Parameters



Model BW600/10
Cylinder diameter 100mm
Piston Stroke 110 mm
frequency of stroke  232/162/109/76times/min
Flow rate  600/415/280/195L/min
Pressure  3.5/5/7.5/10Mpa
Power input 55KW
Diameter of suction pipe 127mm (5”)
Diameter of discharge pipe 63.5 mm (2-1/2”)
Overall dimensions (LxWxH)  1500X890X1230mm
Weight  1400kg



Machine Application



It is mainly used to supply flushing fluid to the drilling well in core drilling or hole drilling. The pump can discharge not only clear water, but also thick mud.

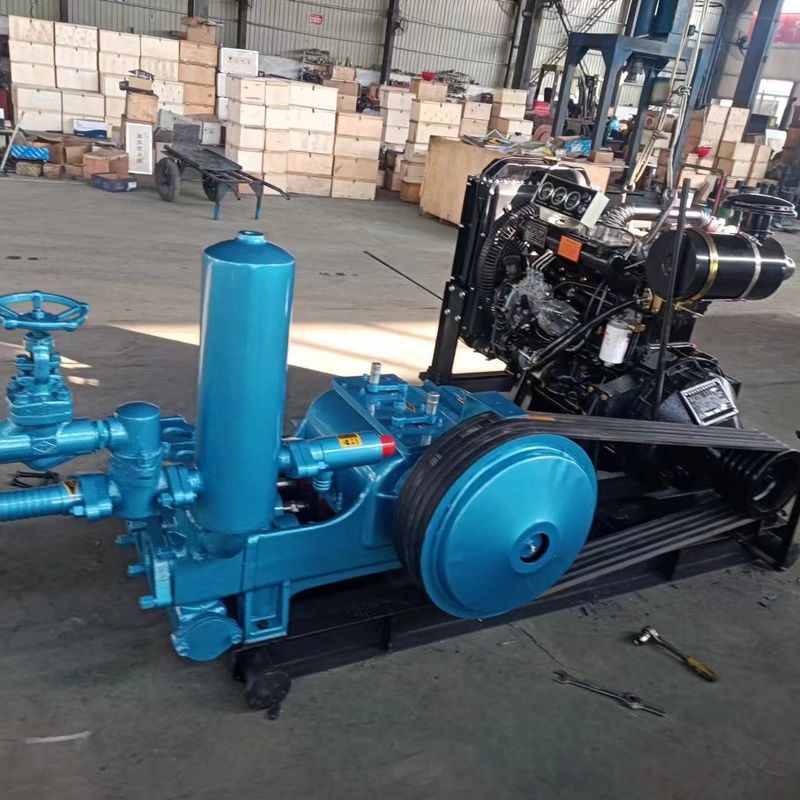

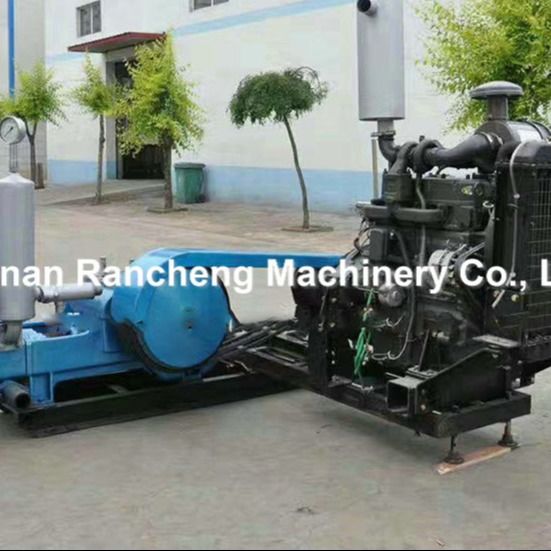

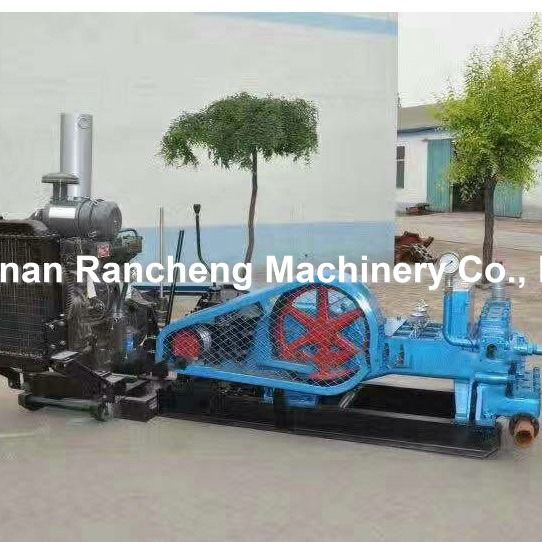

Machine Pictures



Diesel Engine Type Mud Pump Max 600L/Min Horizontal Tri-Cylinder Dual Role Penthouse Detroit Piston Pump 0Diesel Engine Type Mud Pump Max 600L/Min Horizontal Tri-Cylinder Dual Role Penthouse Detroit Piston Pump 1Diesel Engine Type Mud Pump Max 600L/Min Horizontal Tri-Cylinder Dual Role Penthouse Detroit Piston Pump 2

Diesel Engine Type Mud Pump Max 600L/Min Horizontal Tri-Cylinder Dual Role Penthouse Detroit Piston Pump 3

Diesel Engine Type Mud Pump Max 600L/Min Horizontal Tri-Cylinder Dual Role Penthouse Detroit Piston Pump 4
